CAME AXO SET INTENSIVE WORK for swing gates with
a max weight of 400 kg sash and max. 5m length
PACK CONTAINS:
|

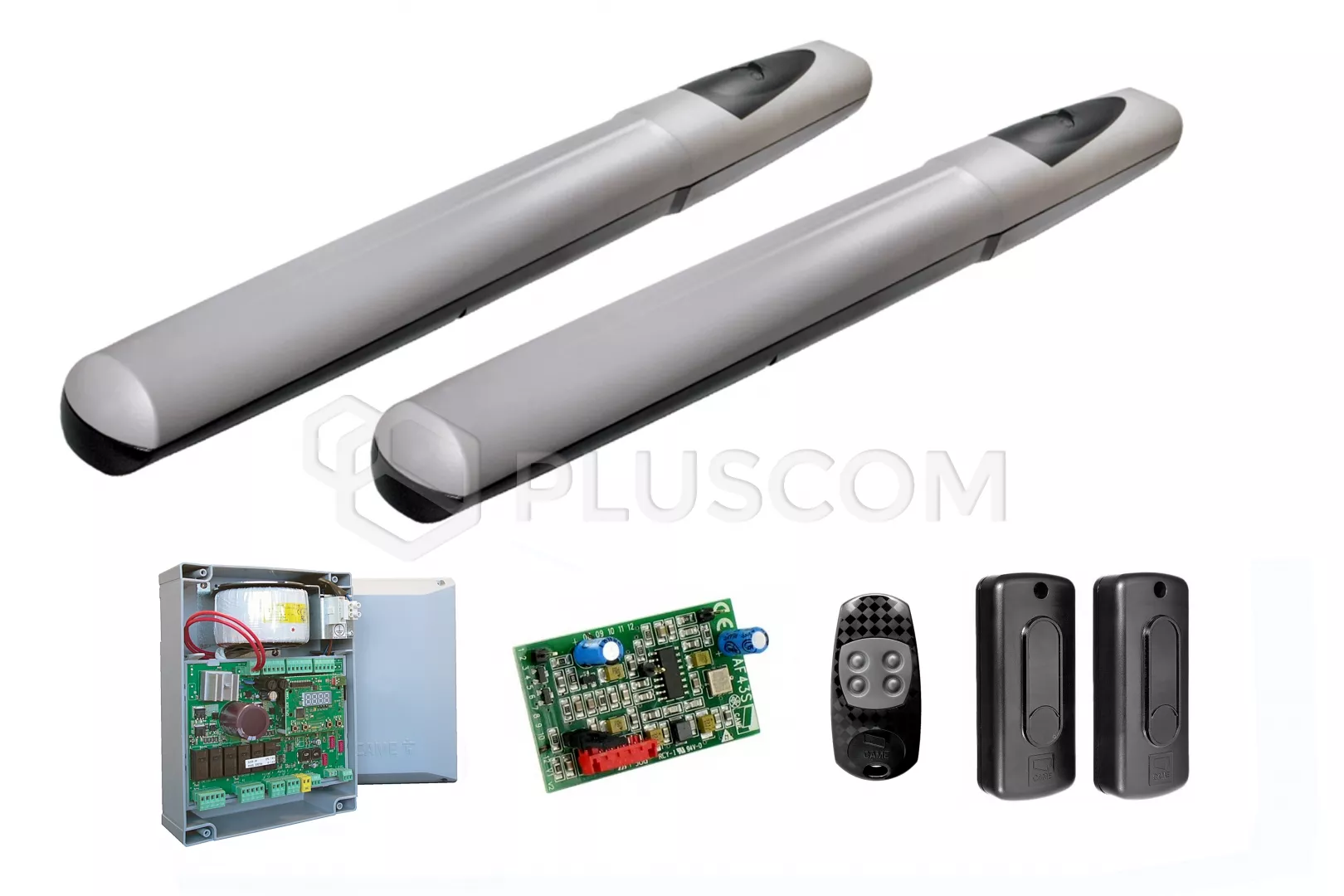

CAME AXO INTENSIVE WORK Set for double-leaf gates up to 10m
|

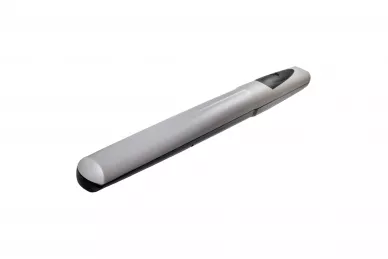

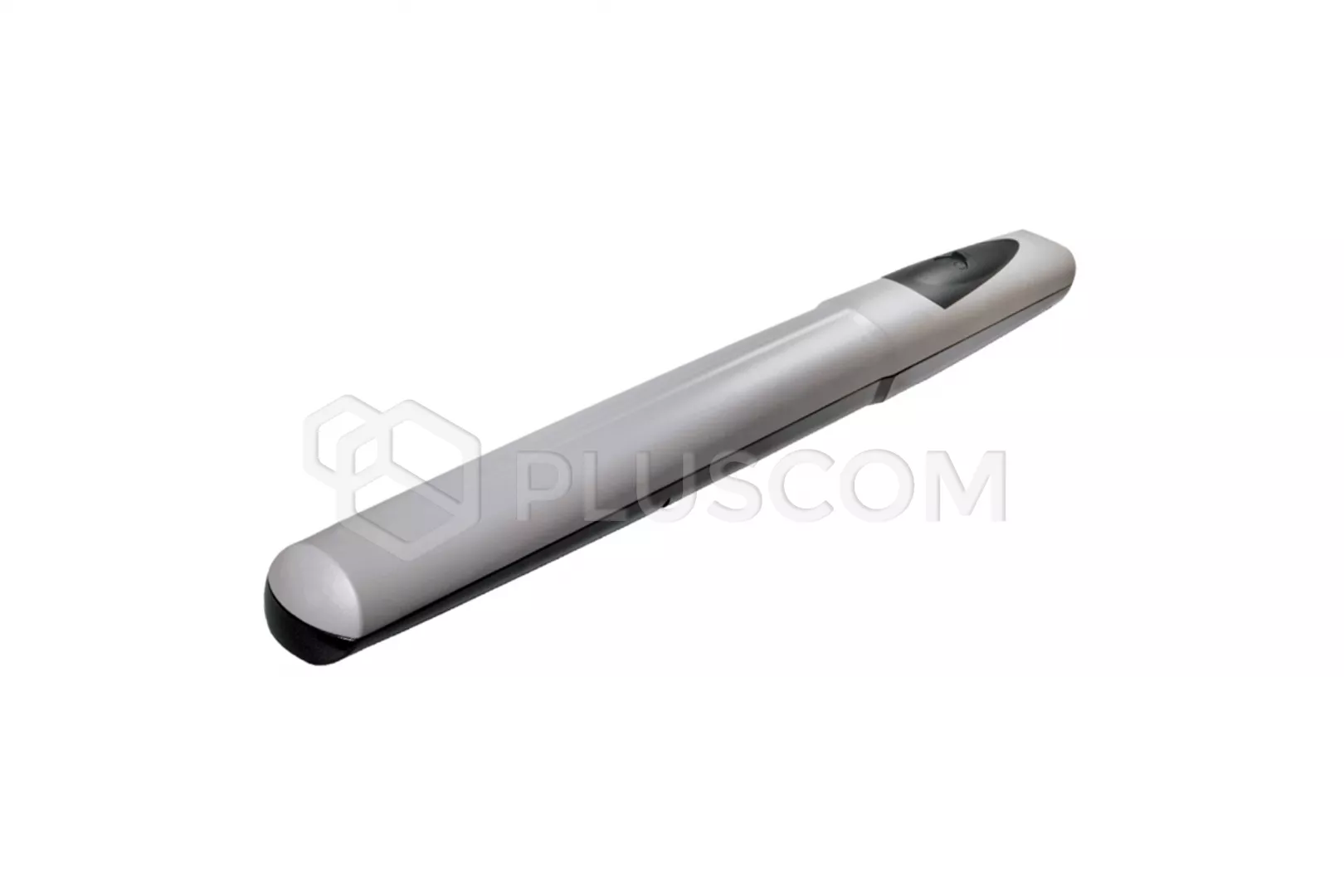

The self-locking AX5024 electromechanical actuator is
designed for the automation of swing gates used in buildings housing of medium
and large dimensions, with a maximum leaf length of up to 3m and 500kg.
Provides maximum durability and safety
The actuator has a built-in encoder that controls the speed of decelerations
geared motor, which allows you to control the generated force. Impact forces
generated during the movement, the gates comply with the standards established
by the Standards European.
PRODUCT ADVANTAGES
- motor power: 24V
- simplification of electrical connections thanks to the presence of one,
three-wire cable
- unlocking system with unlocking key
- ability to manage gate movement and braking
- safe and reliable operation
- technology EN Tested
- built-in encoder
- leaf opening time to 90 °: adjustable
- programmable for partial gate opening
- test of the safety devices before each gate movement
- 2-start auger eliminates pull-sleeve wear

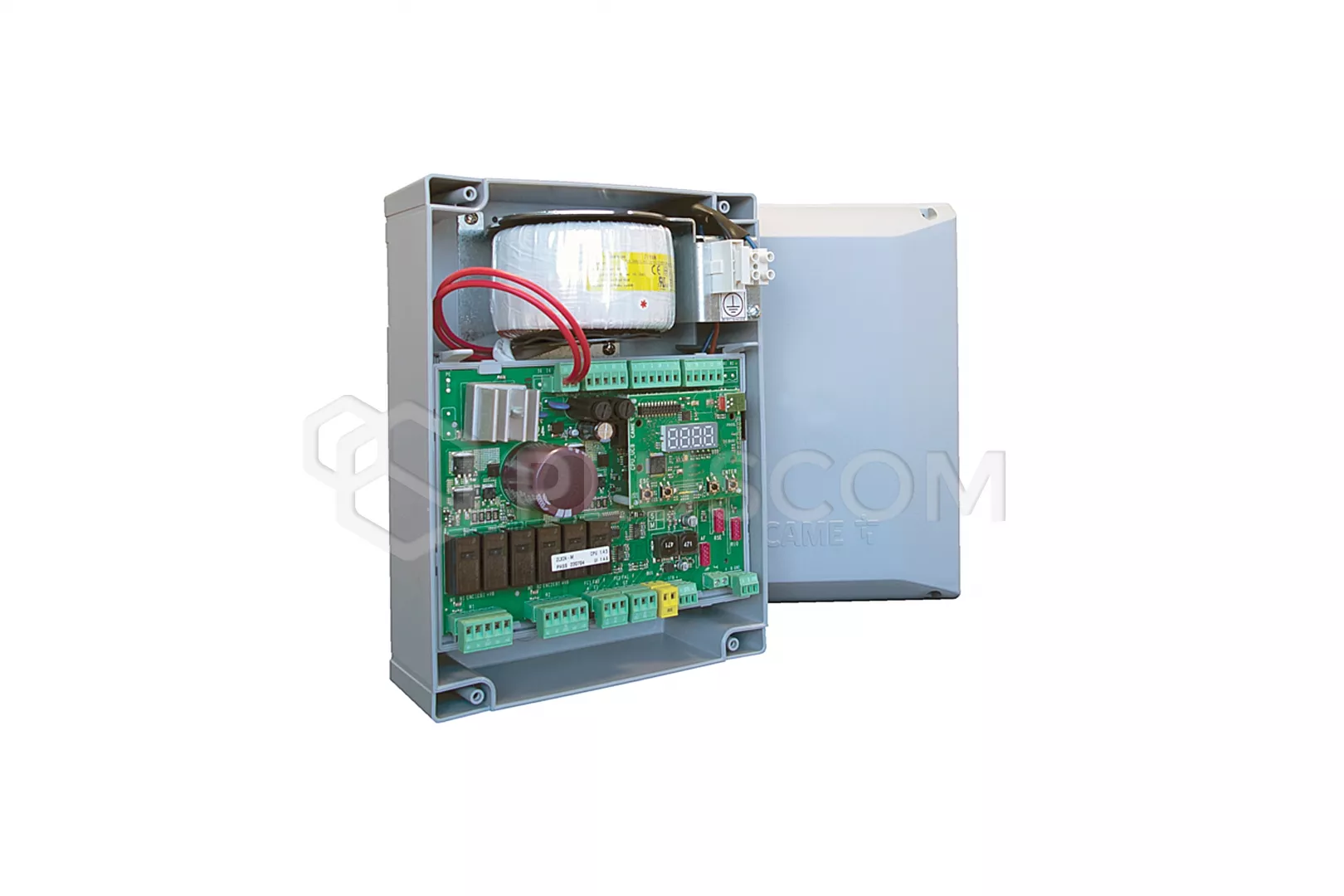

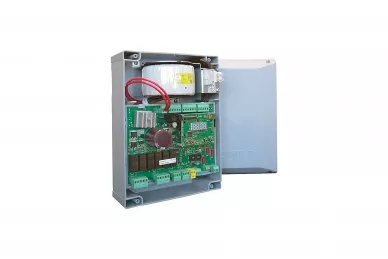

The ZLX24MA exchange has a socket for connecting CAME KEY
and a BUS input supporting the technology CAME CXN BUS for bus connection of
control accessories and security.
The control panel enables the extension of the installation with the necessary
control accessories and safety devices such as photocells, flashing light,
electric lock, card frequencies, antenna or remote controls, also wireless
thanks to the RIO SYSTEM. The total power of the accessories must not exceed 35
W.
The ZLX24MA is equipped with a 7-segment display.
The

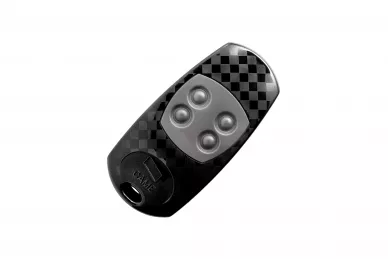

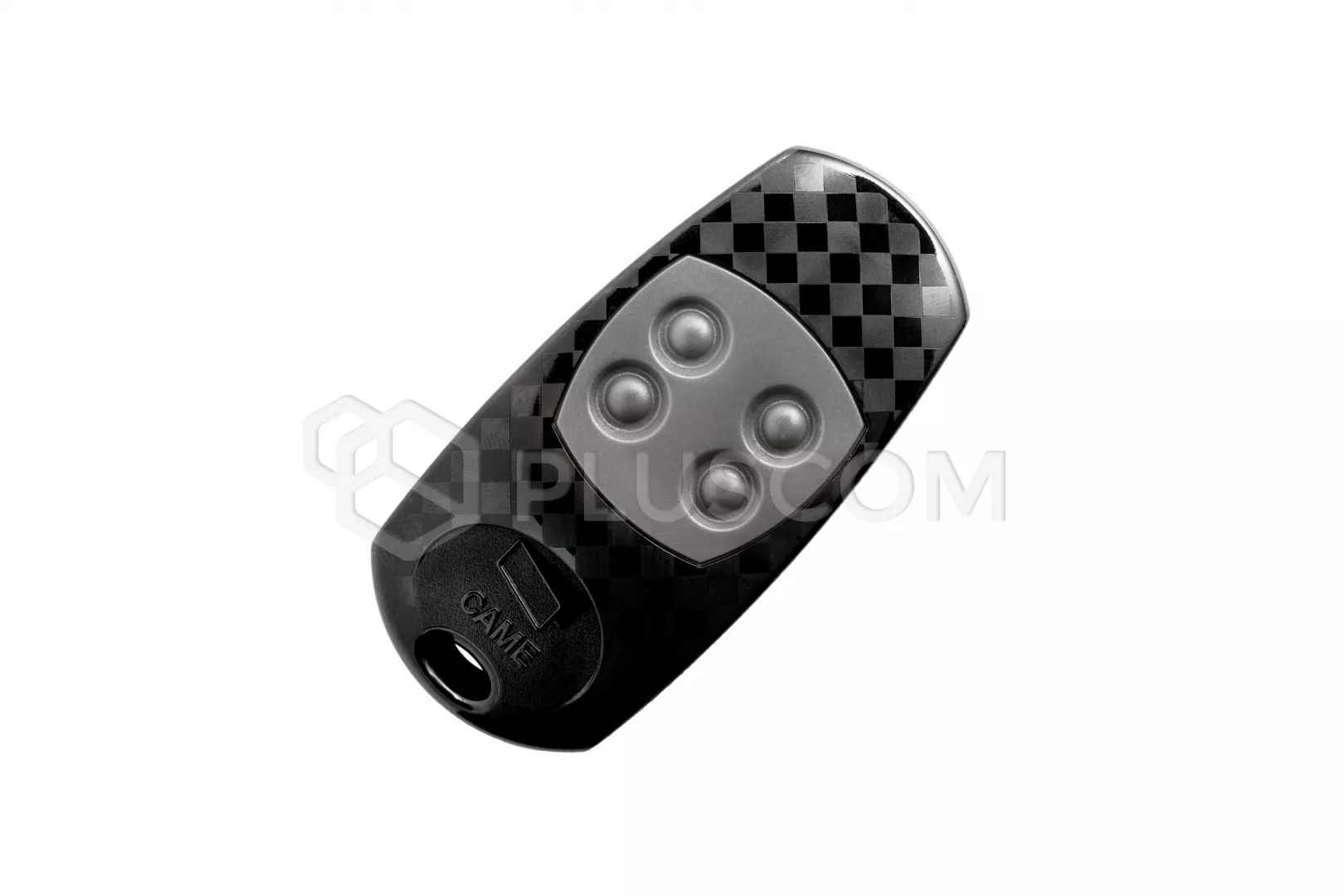

AT04EV remote control provides radio control of the
dynamically variable code o frequency 433.92 MHz, which gives a high level of
safety of use, and makes the code impossible to copy.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.

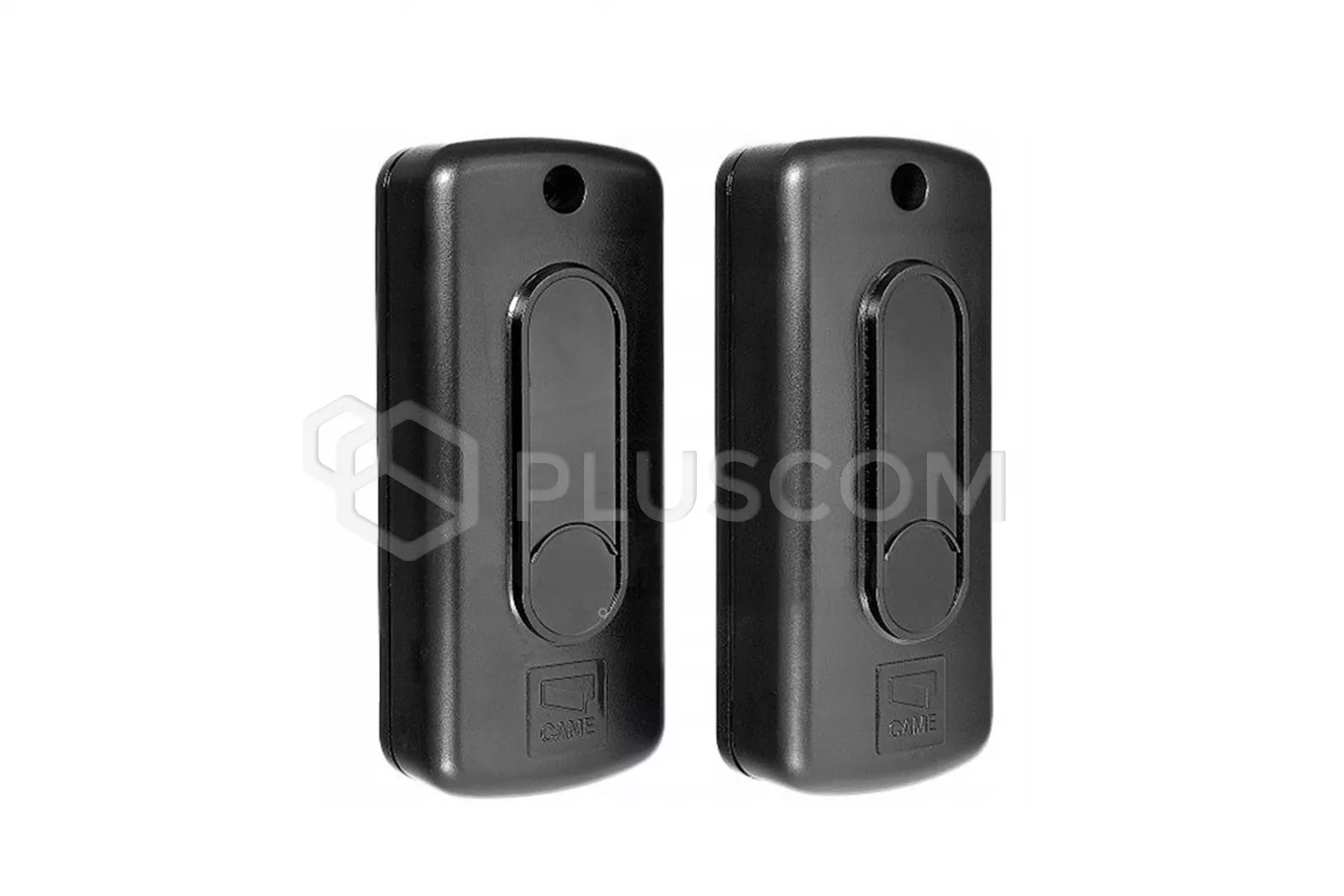

DIR photocells are distinguished by a modern look and very
small sizes. Thanks to the use of IP54 tightness class and appropriate mounting
accessories, DIR photocells can be mounted both inside and outside and out.
They have a modular structure, thanks to which their assembly can be at
different heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.

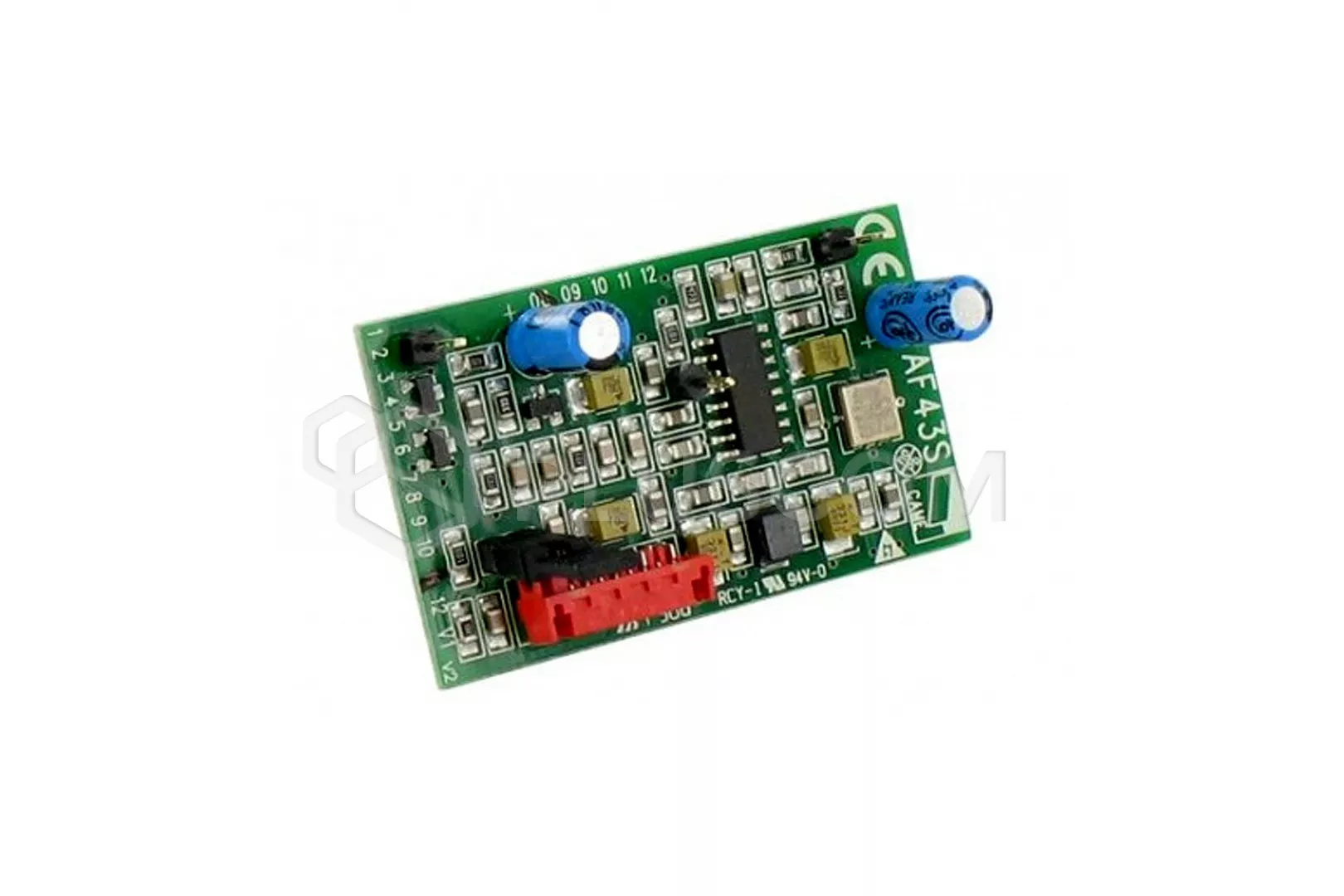

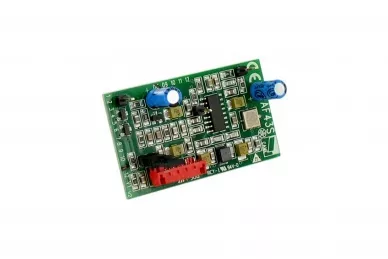

The
AF43S frequency card , included in the kit, works in
frequency 433.92 MHz and supports TOP and TAM fixed code control as well with
the ATOMO rolling code.

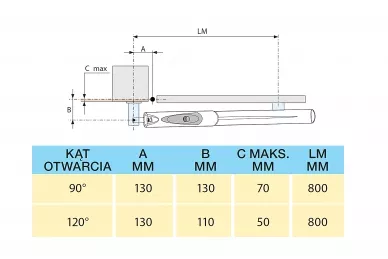

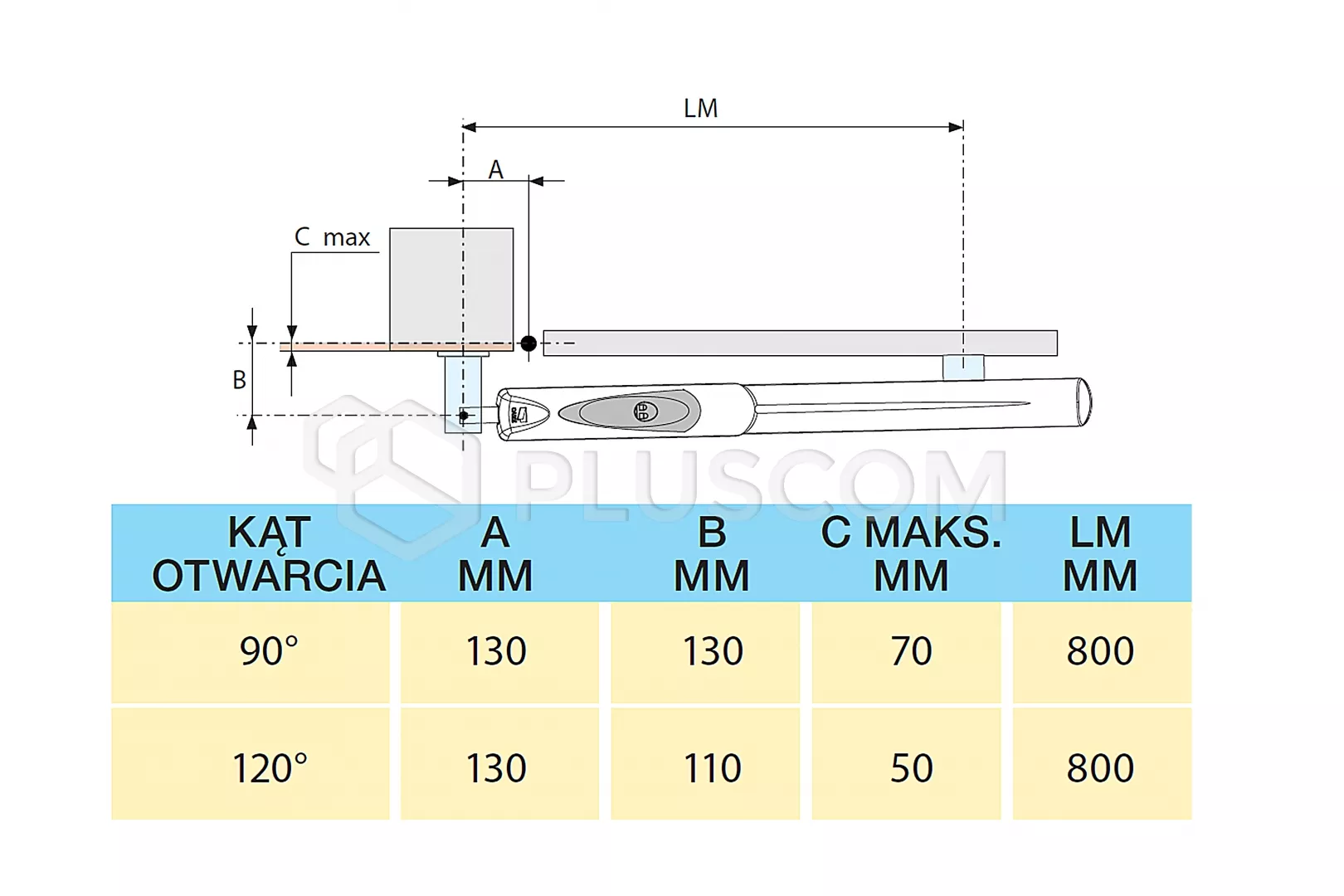

Installation Specification
TECHNICAL PARAMETERS:
- power supply: 230V 50/60 Hz
- motor power: 24V
- motor current consumption: 10A
- maximum power: 120W
- work cycle: intensive work
- thrust: 500 ÷ 4500 N
- opening time (up to 90 °): adjustable
- degree of protection: IP44

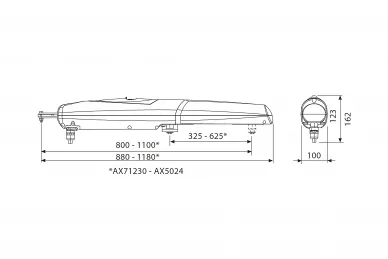

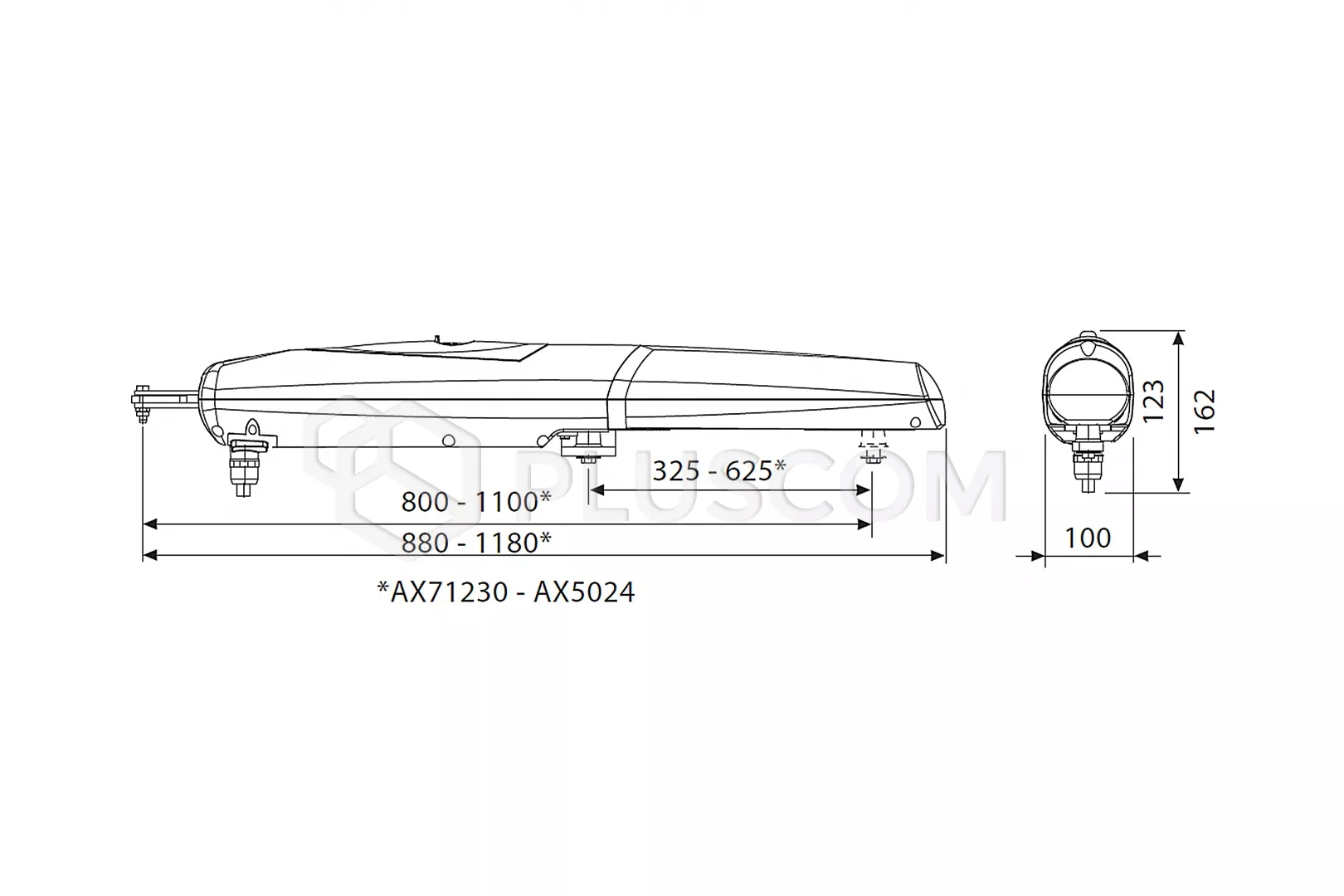

Dimnsions:
To ensure effective and reliable closing and to protect the gears of the
drives, it is recommended to install an electric lock. If the wings are more
than 3m, an electric lock is compulsory.
,
