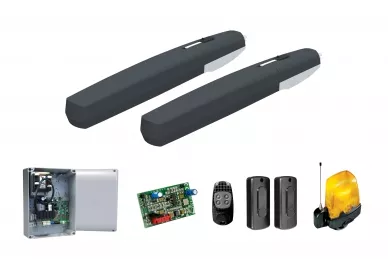

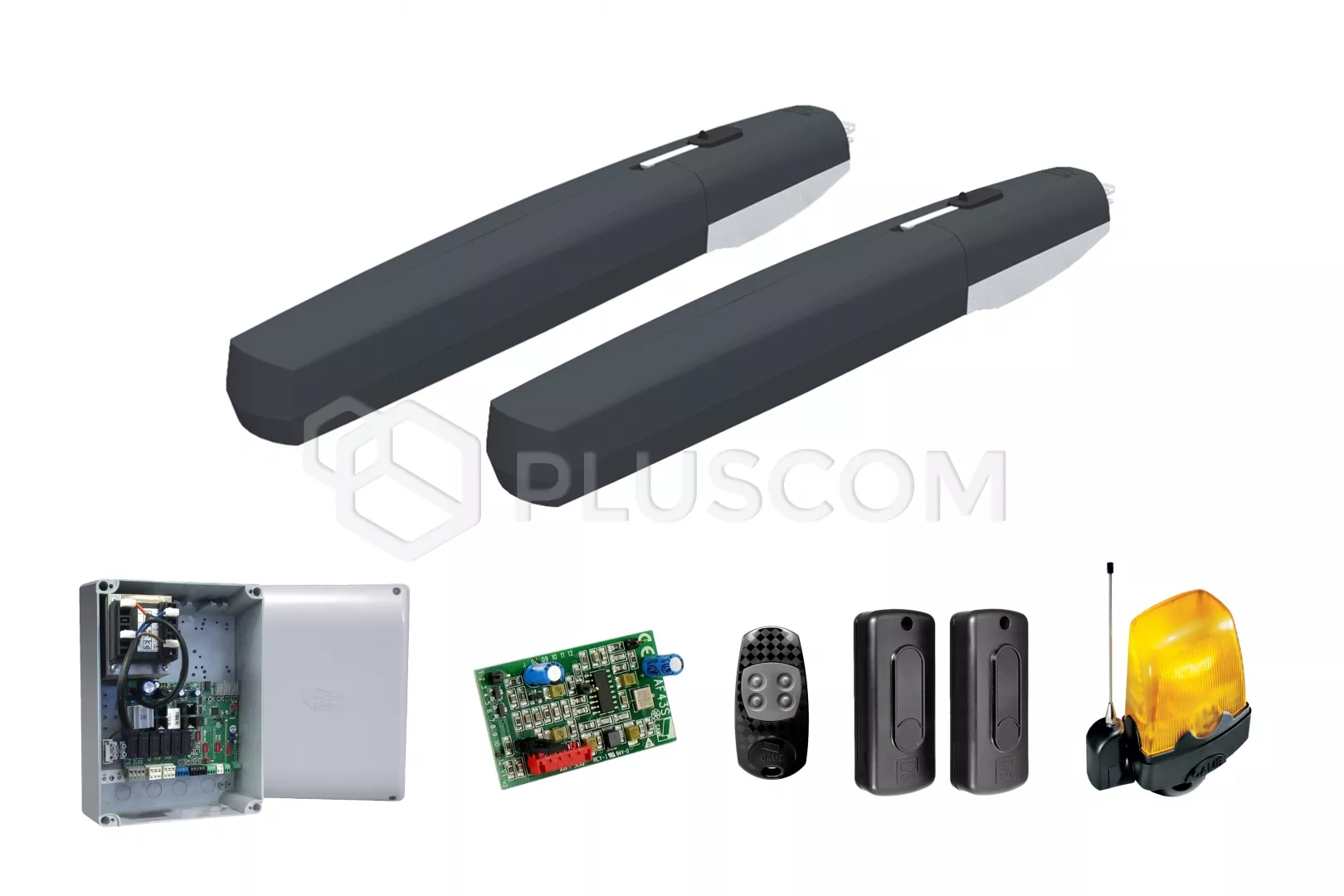

CAME AXL 22 ECO ATOMO set for gates wing doors
with a maximum wing weight of 200 kg and max. 2.2 m long
SET CONTAINS:
|
CAME AXL 22 ECO ATOMO Set
|

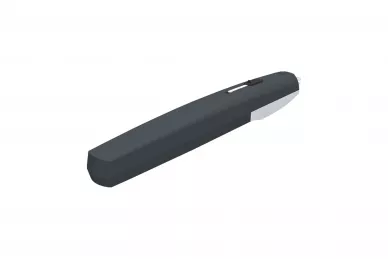

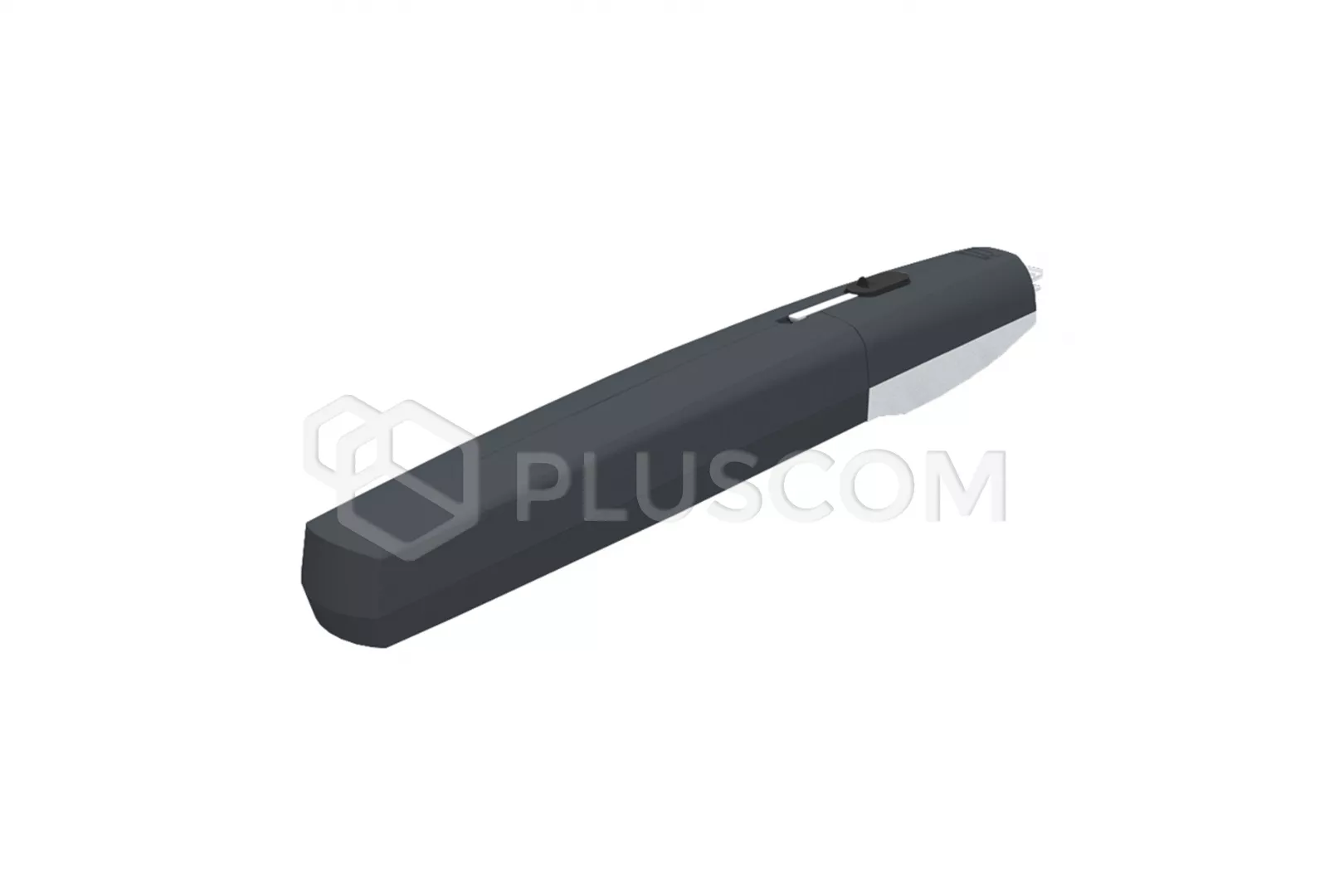

AXL20DGS self-locking actuator equipped with a gear motor with with
an angle gear for greater smoothness of movement and integrated and adjustable
mechanical stops. Thanks to this technology, the actuator ensures smooth
operation and function slowing down makes the device ideal for use residential.
PRODUCT ADVANTAGES
- motor power supply: 24 V
- smooth movement and 90° opening time in 15 seconds
- operation in the event of a power outage by placing batteries in
dedicated slots
- self-diagnosis of wired security devices
- plug connectors for the R800 card and AF receiver
- support for up to 25 users – variable code
ZL60 control unit is a multifunctional control unit for single- or
double-leaf gates. The functions of the control panel are set using DIP
switches and adjusted special regulators. It is possible to connect the GP1
module to reduce energy consumption and to connect the LB39 card ensuring
operation in the event of a power outage and enabling batteries to be charged.
ZL60 has many optional features available as additional modules, that can be
connected directly to it.

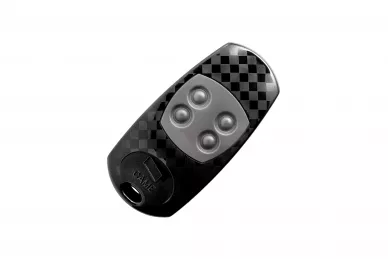

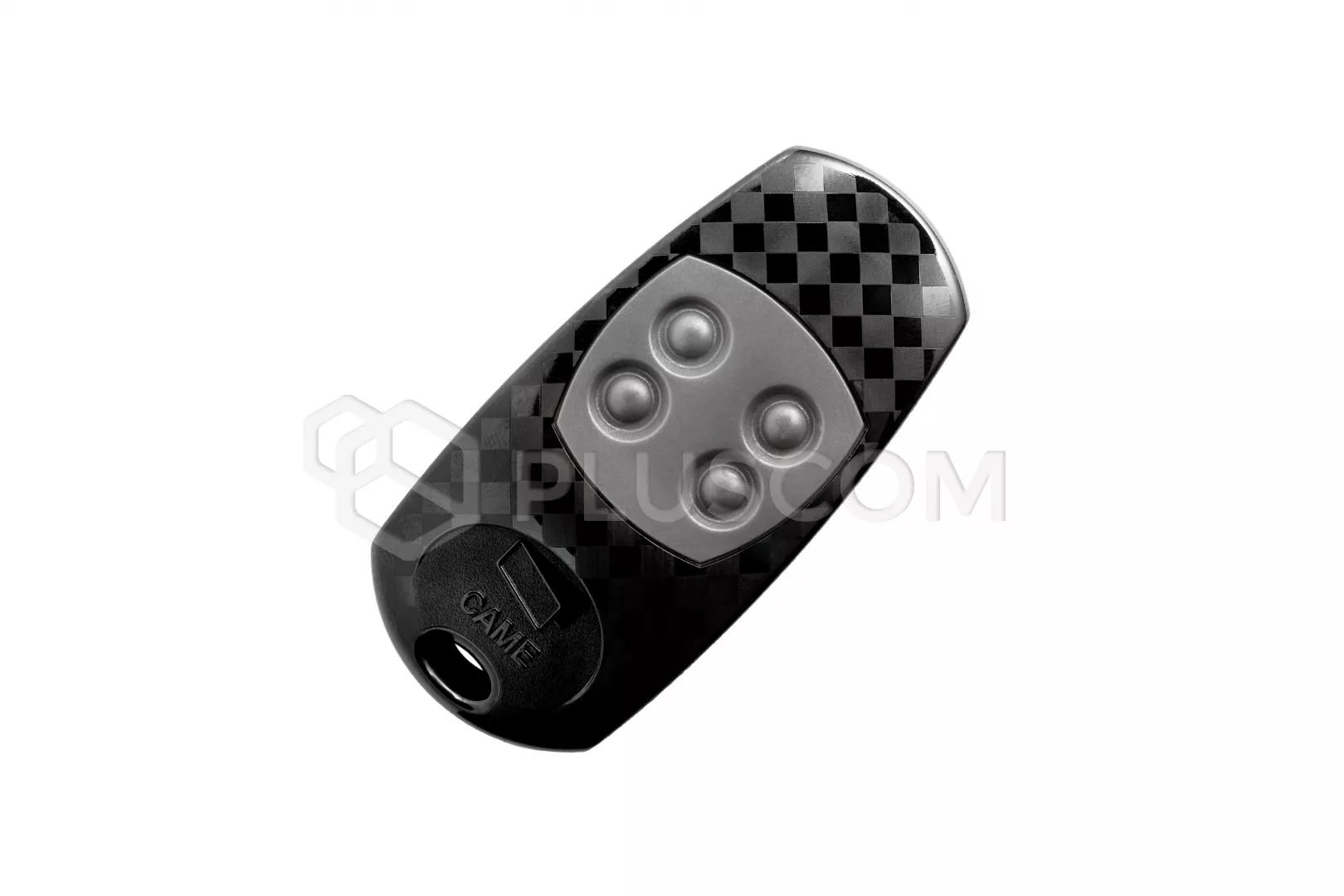

AT04EV remote control is provides radio control of the dynamically
variable code with the frequency of 433.92 MHz, which gives a high level of
user security and makes the code impossible to be copied.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.

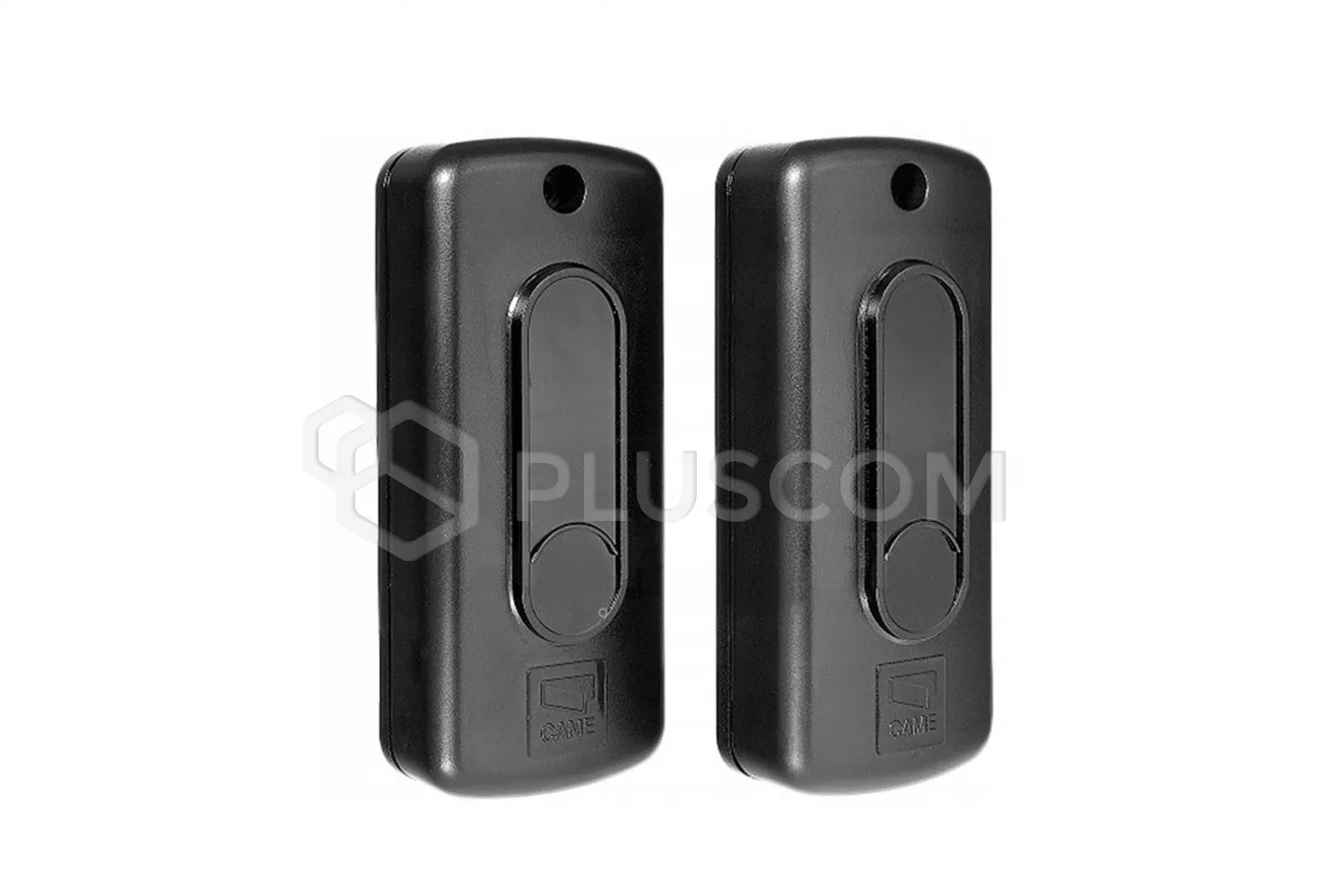

DIR photocells are distinguished by a modern design and very small
dimensions. Thanks to the use of the IP54 tightness class and appropriate
accessories mounting, the DIR photocells can be installed both inside and on
outside.
They have a modular structure, so their assembly can be on different types
heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.

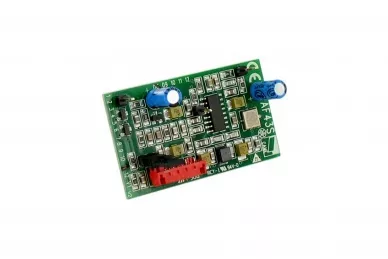

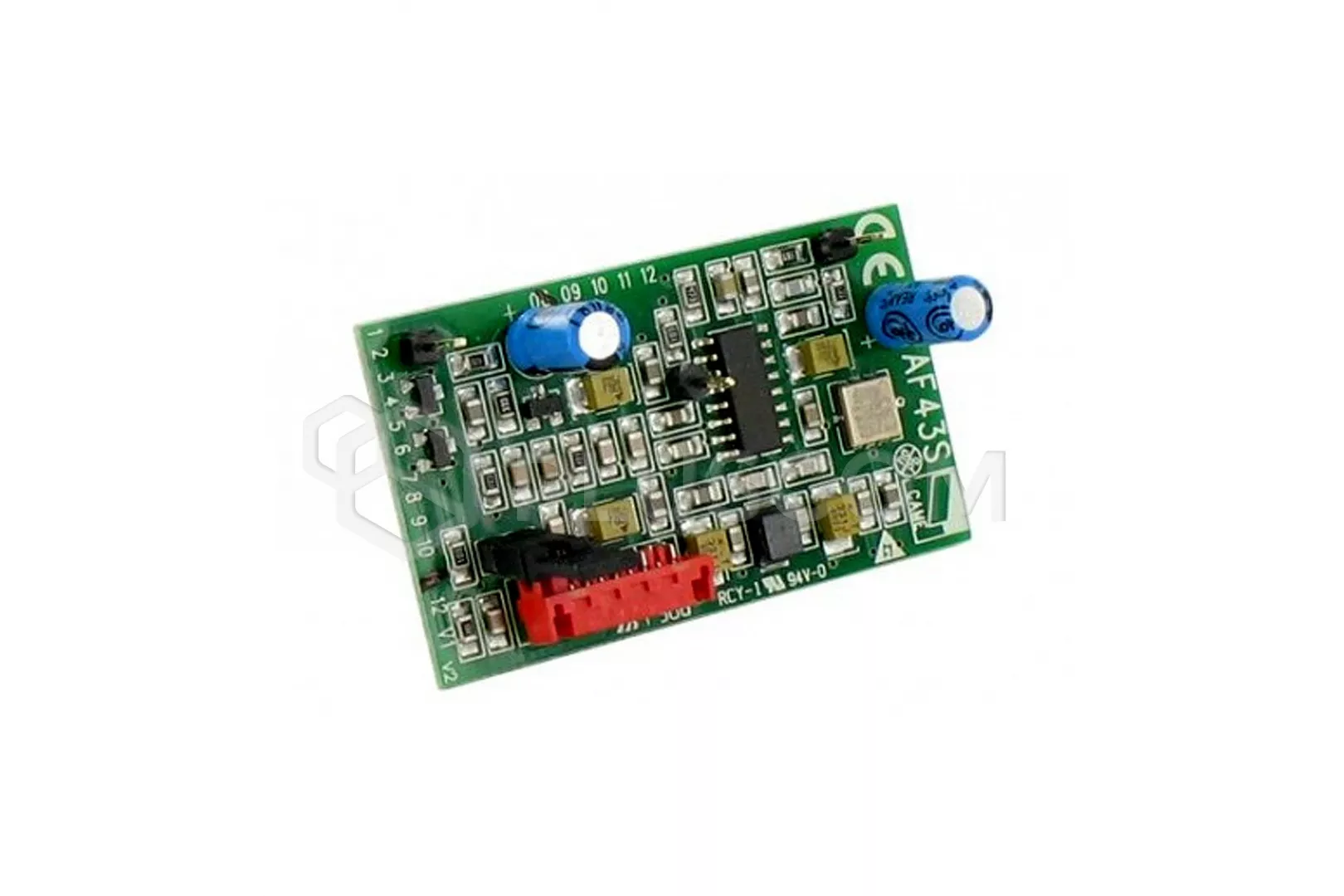

The AF43S frequency card, included in the kit, operates at 433.92 MHz
and supports constant code control TOP and TAM and the ATOMO rolling code.

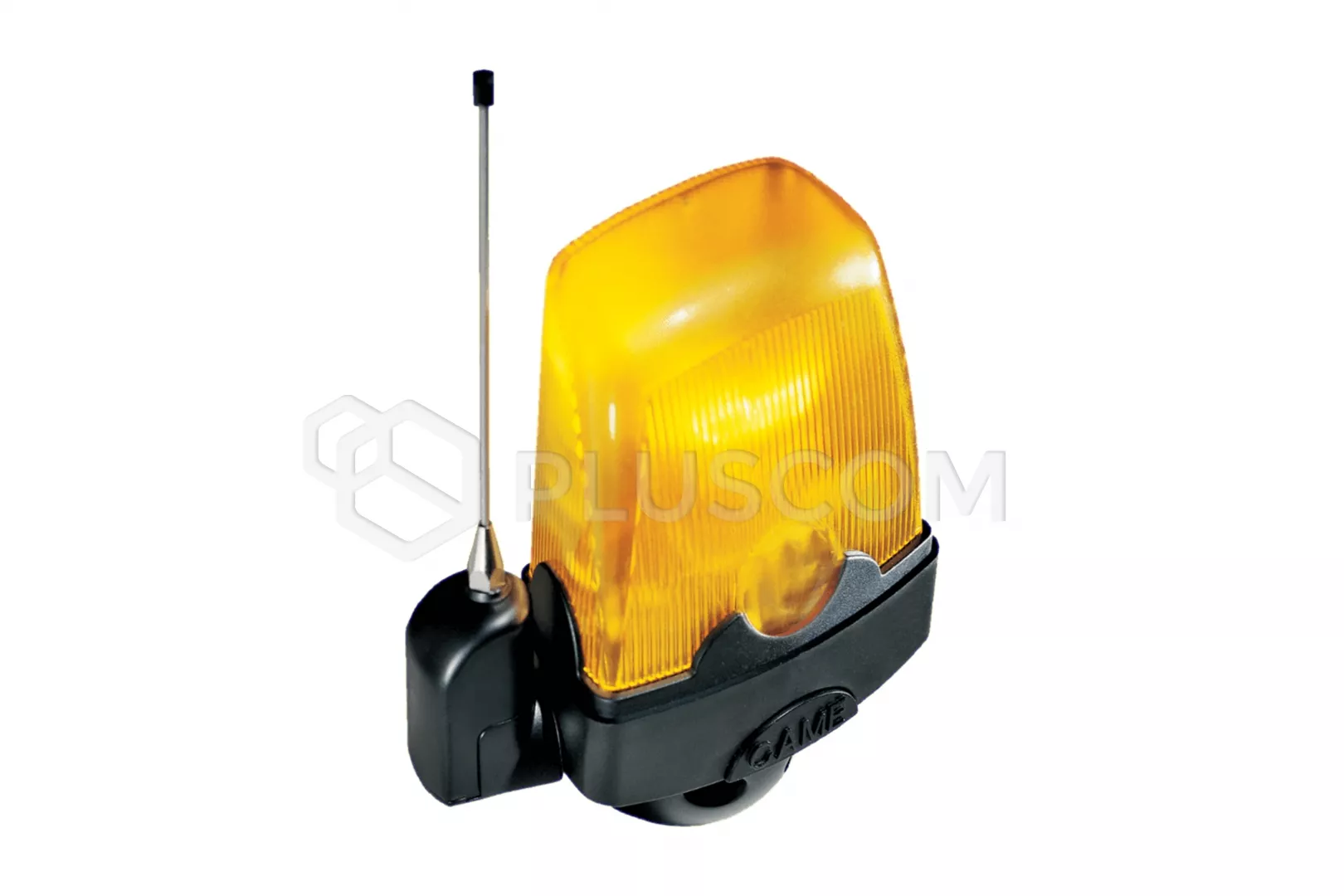

KLED24 signal lamp is an element that increases the safety of using the
automation. The light source is an energy-saving LED diode giving up to 85%
savings and longer life compared to traditional light bulbs.
Housing made of polycarbonate ABS material.
The lamp can be installed on the
wall, using the dedicated KIAROS bracketthat provides full adjustment
range: 0°-90° - 180°-270°. The lamp is reversible integration with the radio
antenna.
