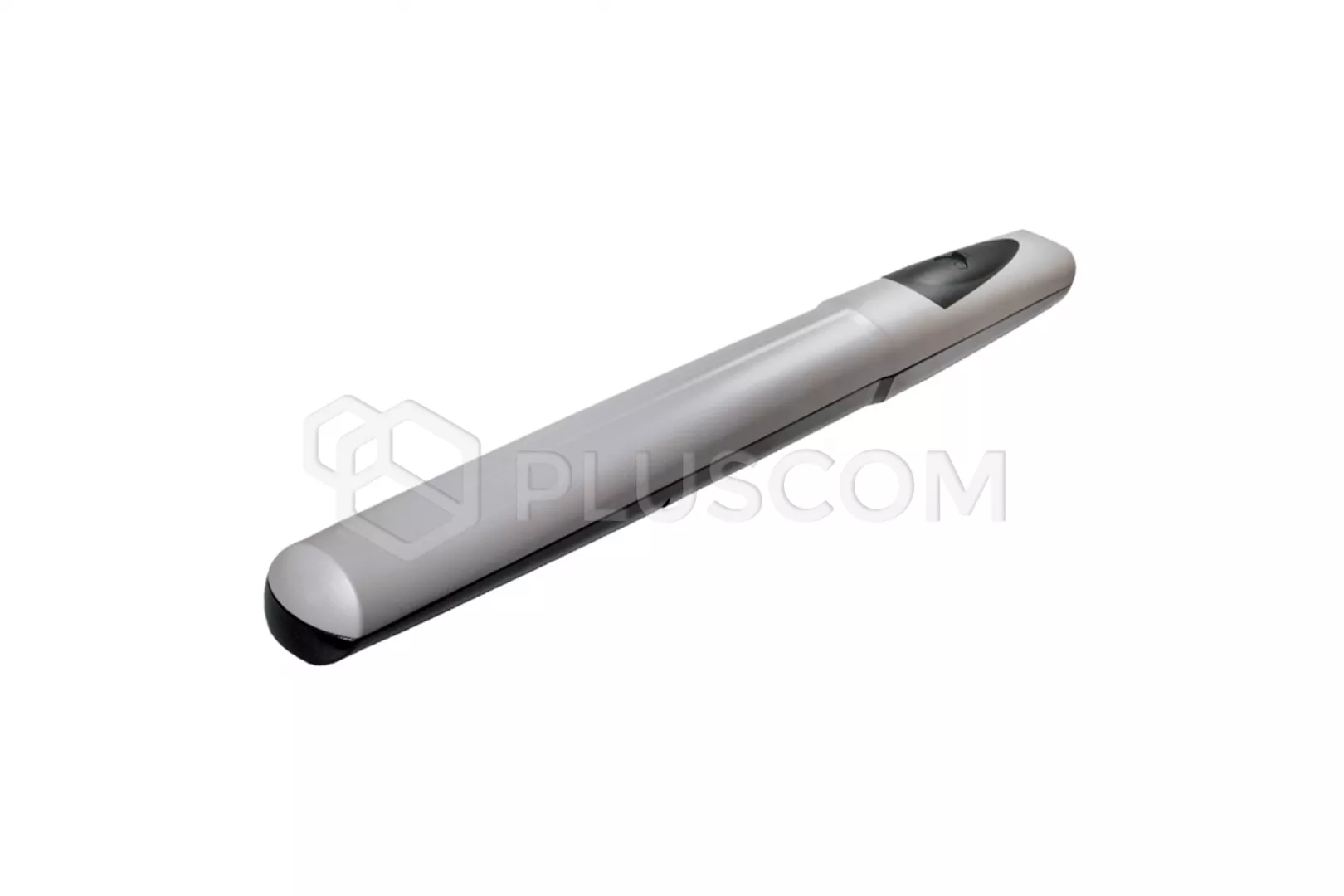

Came AX71230 Actuator 230V, leaf up to 7m / 300kg

CAME AX71230 Gearmotor for single or double-leaf gates up to 7m

The self-locking electromechanical actuator is designed for automation swing gates used in residential buildings of medium and large size dimensions, with a maximum leaf length of up to 7m and 300kg. Provides maximum durability and security.

Application range:

• 7m / 300g
• 6m / 350kg
• 5m / 400kg
• 4m / 500kg
• 3m / 700kg
• 2.5m / 800kg
• 2m / 1000kg

It is compulsory to install the gate more than 2.5m per leaf interlocking electric lock
The actuator has a built-in encoder that controls the speed of decelerations geared motor, which allows you to control the generated force. Impact forces generated during the movement, the gates comply with the standards established by the Standards European.
If the gate is open in strong winds, the leaf can shut up.

PRODUCT ADVANTAGES

• motor power supply: 230V
• unlocking system with unlocking key
• ability to manage gate movement and braking
• safe and reliable operation
• technology EN Tested
• built-in encoder
• leaf opening time to 90 °: 40s
• programmable for partial gate opening
• test of the safety devices before each gate movement
• 2-start auger eliminates pull-sleeve wear
• motor thermal protection

TECHNICAL PARAMETERS:

• power supply: 230V 50/60 Hz
• motor power supply: 230V
• motor current consumption: 1.5A
• maximum power: 175W
• work cycle: intensive work
• thrust: 500 ÷ 4500 N
• opening time (up to 90 °): 40s
• degree of protection: IP44
