Came 8K06SL-007 Access control kit

161,92 EUR including 23.00% VAT
Product code: #26305
Manufacturer: CAME
  • Zestaw składający się z: SELT1BDG, S0002P i 2 kart zbliżeniowych
  • BUS CXN technology
  • For keypads and RFID readers
  • Surface mounting
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Came 8K06SL-007 Access Control Kit

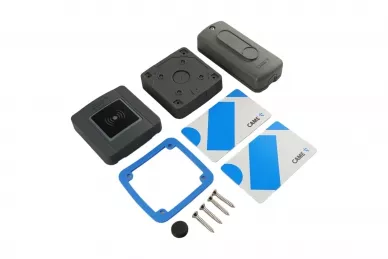

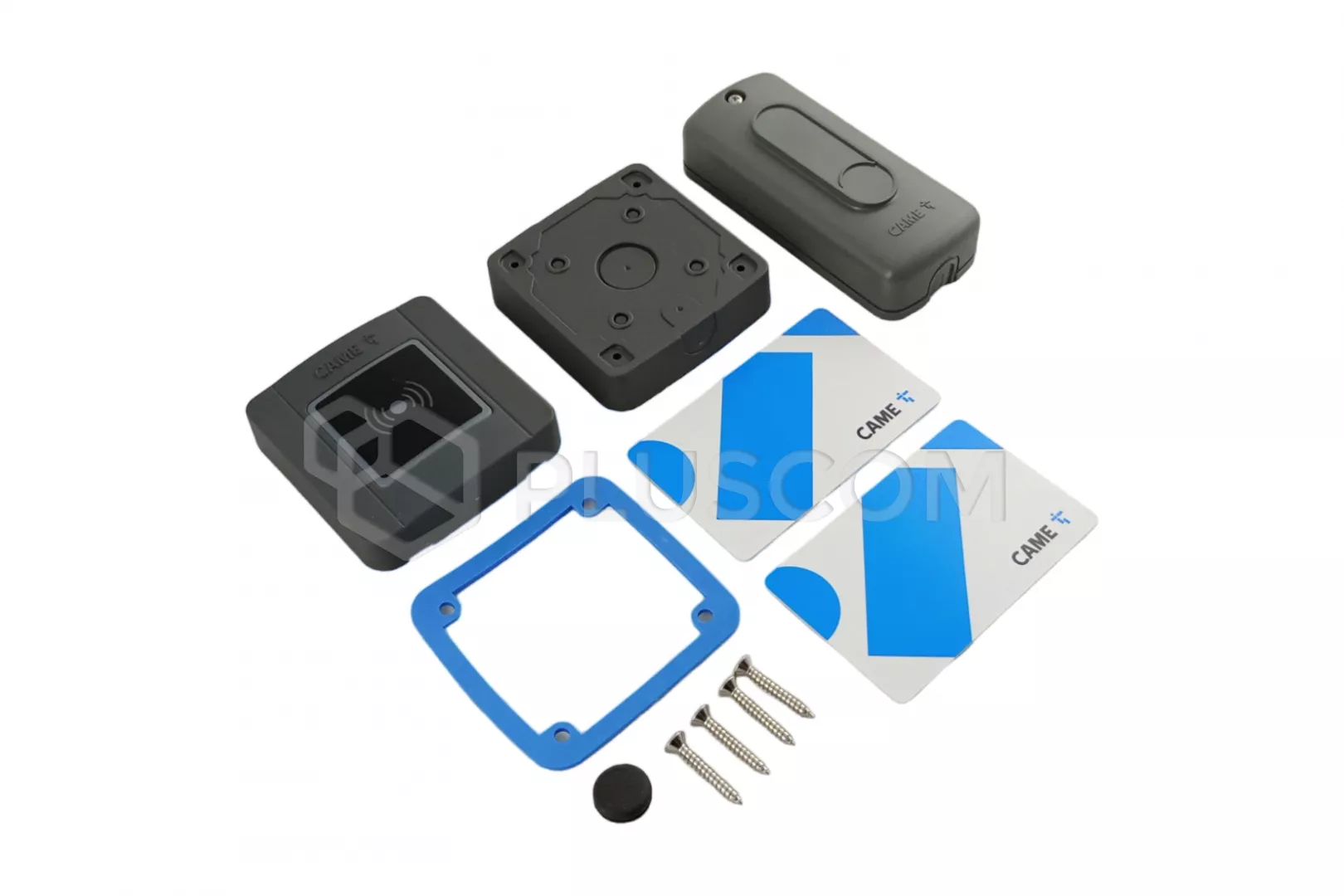

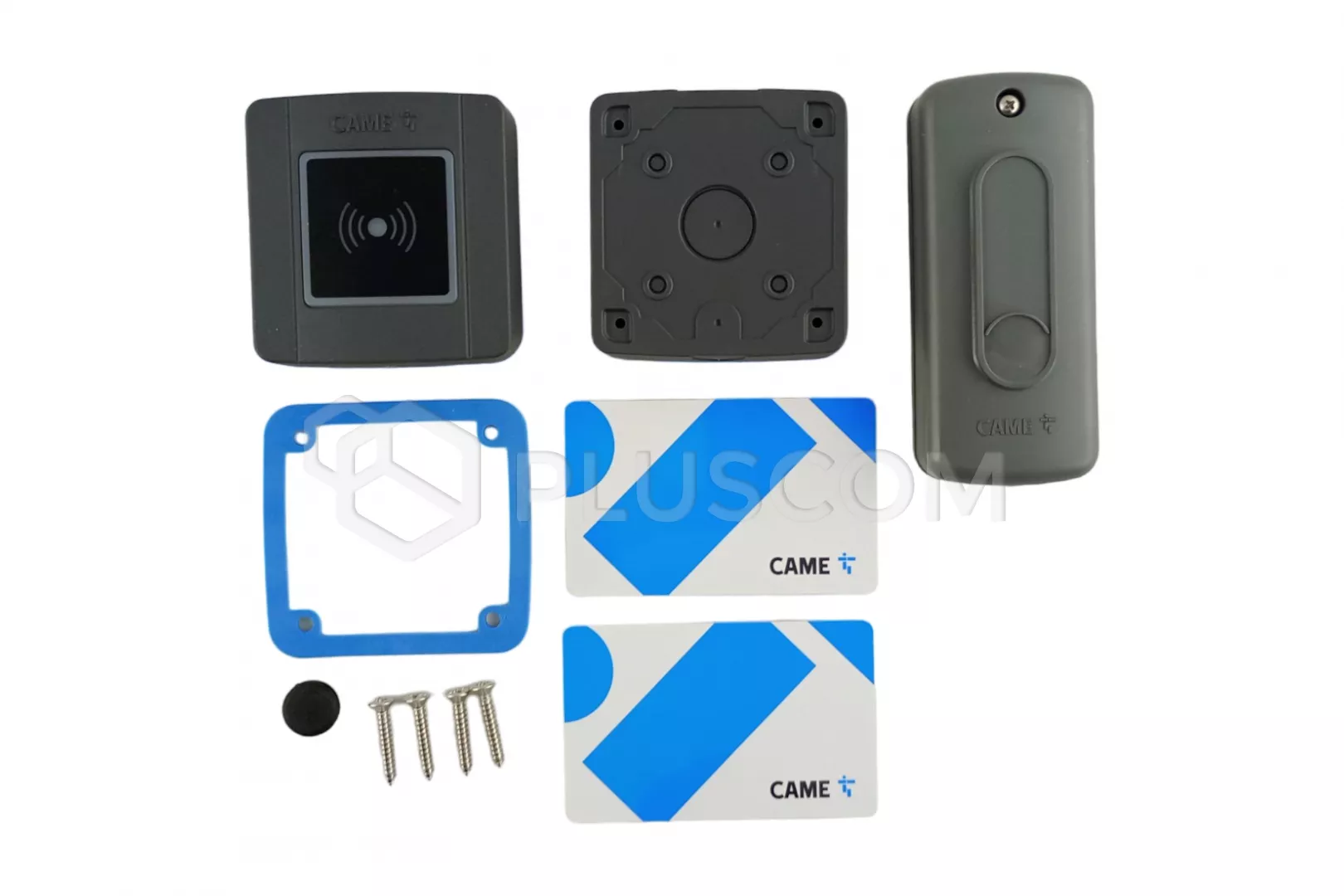

SET CONTAINS:
SELR1BDG is a surface-mounted blue proximity reader backlight. The transpponder uses the Manchester protocol and works with cards, key rings and pendants.

CAME CXN BUS is a connection system with two non-polarized wires, which allows you to easily connect all devices in this technology, therefore, after connecting the reader to the control panel with BUS CXN technology, we can use it manage without additional accessors.
If the control panel does not have a BUS input, the reader can be connected to it connect in the traditional way via the R700 interface.
Came R700 Interface
Came R700 Interface
54.49 EUR
 Add to cart


S0002P is an external two-channel control board for keypads and transponder. It has a sealed plastic housing with IP54 protection class.
It supports the CXN bus and is powered by 12-24V AC / DC.

The board includes:
  • terminals for outputs of channels OUT1 and OUT2
  • power terminals
  • terminals for connecting accessories
  • warning LED
The distance between the S0002P board and the keyboard selector or transponder must be max. 30m.
Download
User manual 0.54 MB
