Came S0002P Two-channel decoder

82,51 EUR including 23.00% VAT
Product code: #26304
Manufacturer: CAME
  • Support for the CXN bus
  • Power supply: 12-24 V AC-DC
  • For keypads and RFID readers

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came S6000 Internal seven-button keypad Came S7000 7-button external keyboard Came S5000 Outdoor keypad, backlit Came SELR2BDG 125 kHz proximity reader Came SELR1BDG 125 kHz proximity reader Came SELT2BDG Flush-mounted code keypad Came SELT1BDG Surface-mounted code keypad

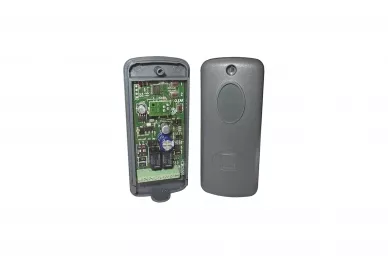

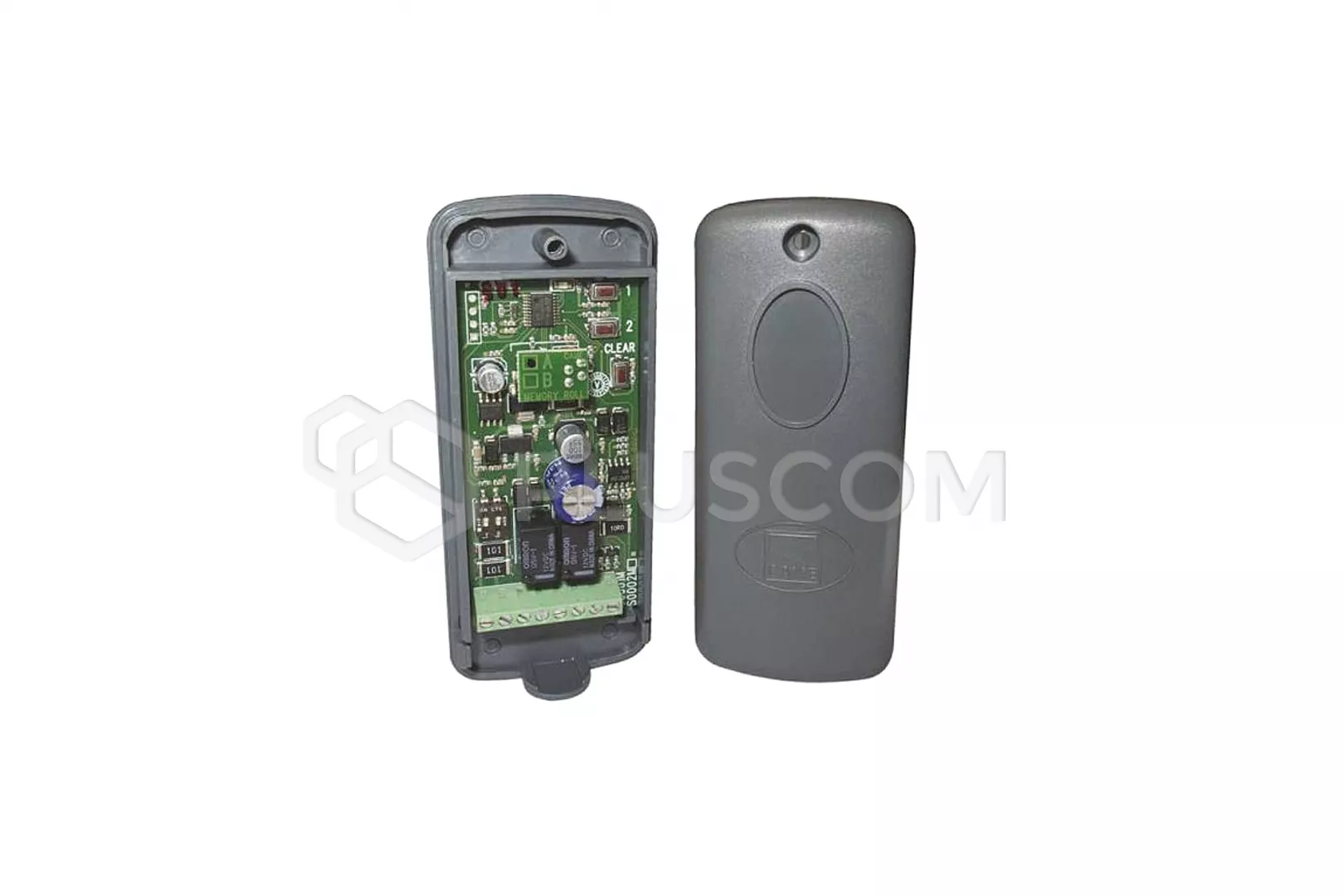

CAME S0002P Two channel decoder


The S0002P is an external two-channel control board for keypads and transponder. It has a sealed plastic housing with IP54 protection class.
It supports the CXN bus and is powered by 12-24V AC / DC.

The board includes:
  • terminals for outputs of channels OUT1 and OUT2
  • power terminals
  • terminals for connecting accessories
  • warning LED
The distance between the S0002P board and the keyboard selector or transponder must be max. 30m.

TECHNICAL DATA
  • Power supply: 12 / 24V AC / DC
  • Absorption max. at 24 VAC: 350mA
  • Range of the relay max. at 24 VDC: 1A
  • Number of relay contacts: 2
  • Degree of protection: IP54

Download
Manual 0.54 MB
