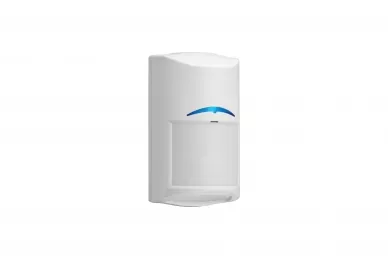

Bosch ISC-CDL1-WA15GE Motion detector with anti-mask, range 15m

104,62 EUR including 23.00% VAT
Product code: #22857
Manufacturer: Bosch
  • PIR + MW detector, range 15x15m
  • Frequency: 10.52-10.55GHz
  • Anti-masking and first step analysis (FSP)
  • Resistance to small animals up to 4.5 kg
  • Impact and noise resistance
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Bosch B338 Universal ceiling mount bracket

Bosch ISC-CDL1-WA15GE Motion detector with anti-mask, 15m range


Bosch ISC-CDL1-WA15GE is a motion detector equipped with a PIR and microwave sensor Doppler radar combined with advanced signal processing. Such the solution increases its detection efficiency and resistance to false alarms Perfect for alarm systems of residential buildings and small commercial buildings. These tiny discrete detectors are special easy to install thanks to the sliding, self-locking housing, equipped with a bubble level and a removable block of specially fitted lifting clamps. They do not require adjustment by the user.

KEY FEATURES:
  • First Step Processing (FSP)
  • Anti-mask with active infrared
  • Microwave adaptive noise processing
  • Integrated EOL resistors selectable on the jumper
  • Resistance to small animals (up to 4.5kg)
  • Test functions
  • Switch configuration
  • Better tamper resistance

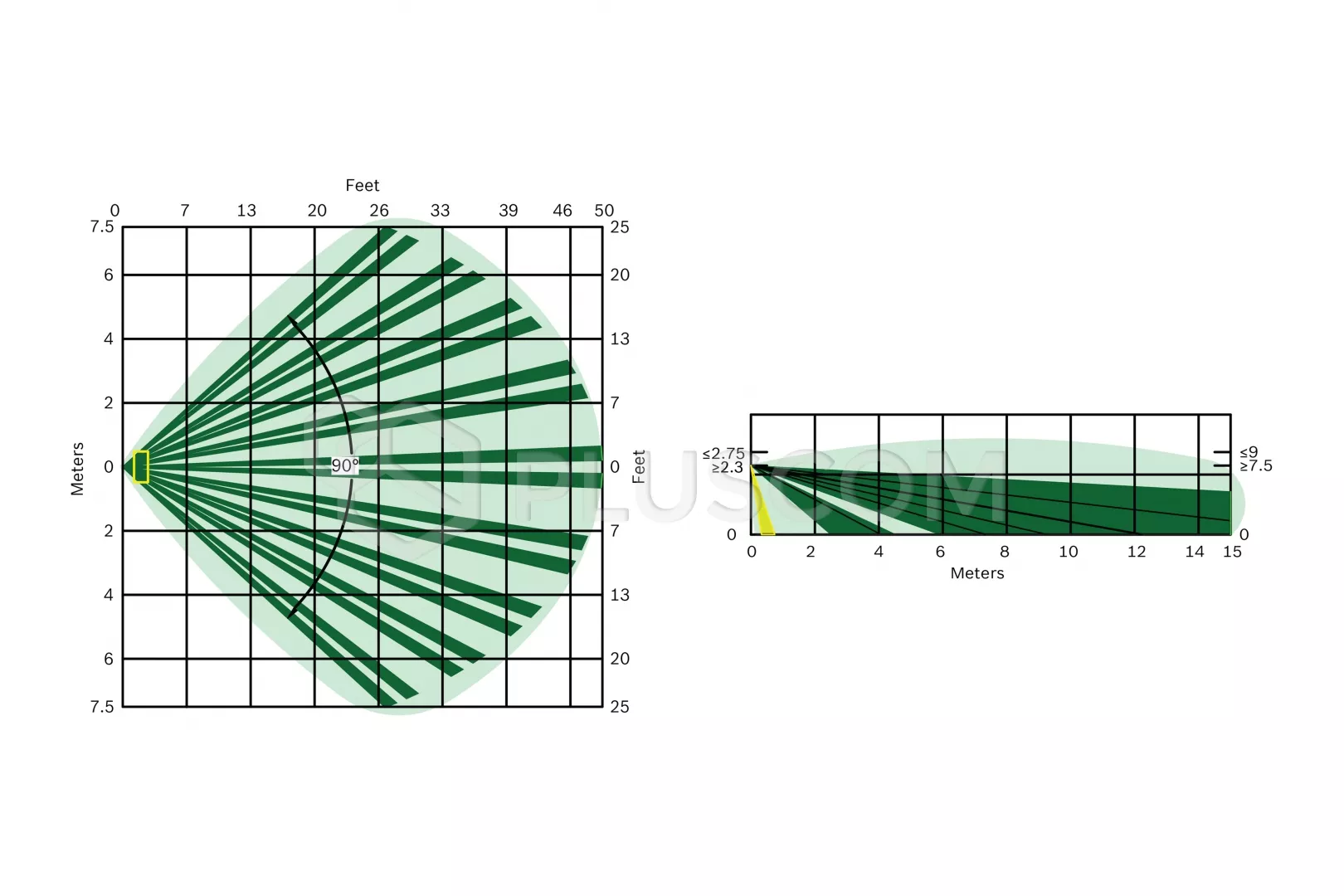

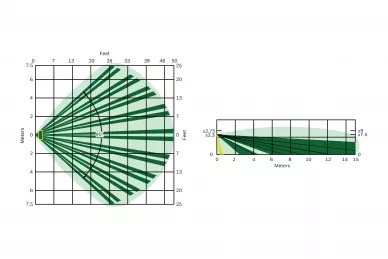

Range:

Range:

PARAMETERS:
  • 15x15m range
  • viewing angle: 90 °
  • motion sensor type: PIR + MW
  • frequency: 10.525GHz
  • recommended mounting height: 2.3 - 2.75m
  • supply voltage: 9-15V DC
  • current: max 35mA (15mA - standby)
  • cable size for terminals: Ø 0.40–1.29 mm
  • working temperature: -30 ° C ... 55 ° C
  • material: impact resistant ABS plastic, white color
  • dimensions: 120x70x455mm
Download
