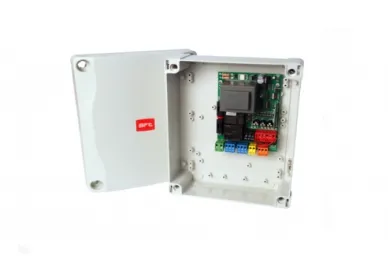

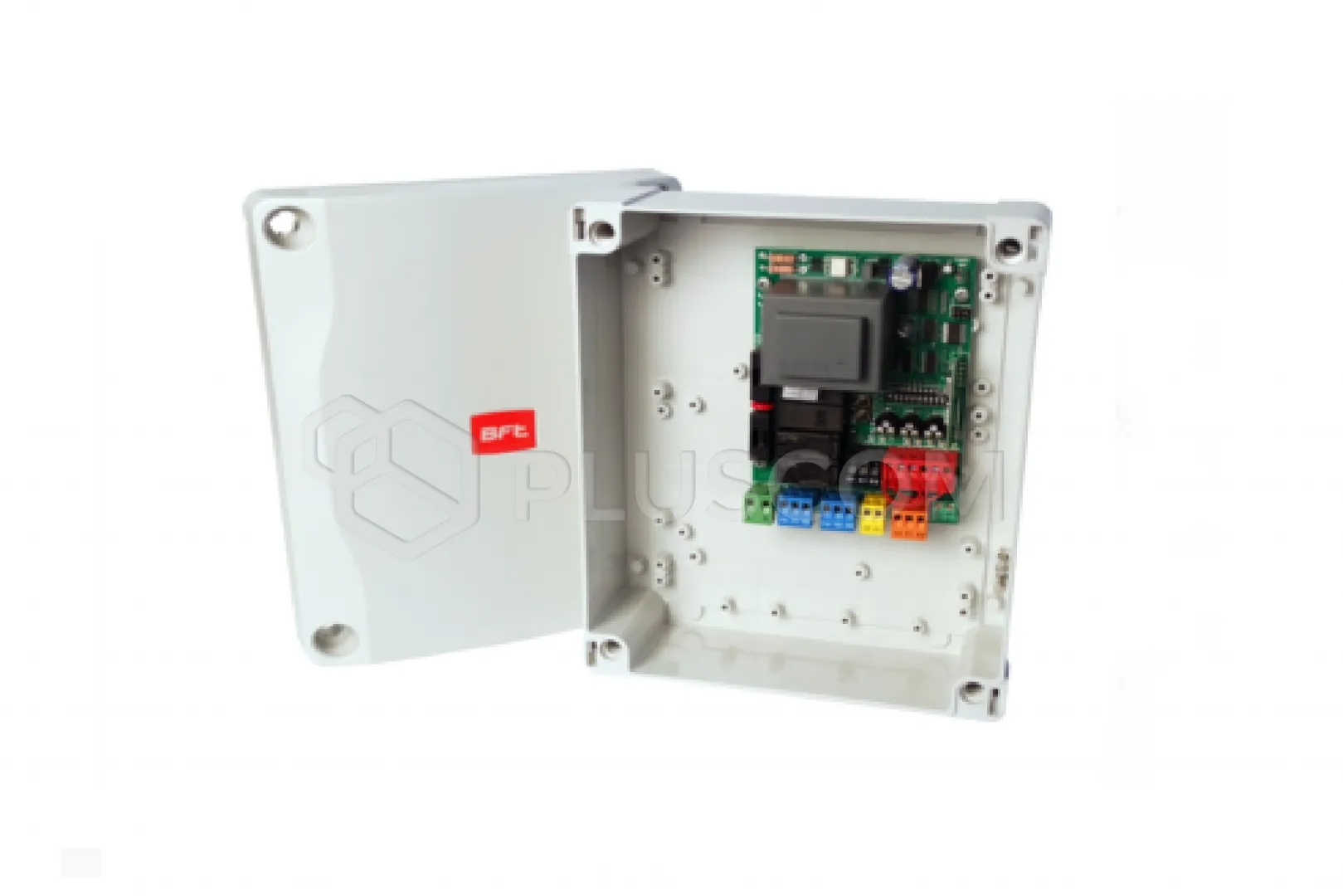

BFT 2601365 Control unit ALCOR AC A

280,86 EUR including 23.00% VAT
Product code: #37848
Manufacturer: BFT
  • Board power supply: 230 V
  • Power supply for additional circuits: 24 V
  • Dimensions [mm]: 195x237x100
  • Max. number of radio commands in memory: 63
  • ALCOR N Replacement
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2600026 Self-locking actuator 230V, left (P930010 00006)

BFT 2601365 Control unit ALCOR AC A


Control unit supporting 1 or 2 swing gate motors powered by 230 V with a power of up to 300 W each.
It has an integrated two-channel radio receiver with a dynamically changing code with memory for 63 remote controls.
Suitable for Bft E5N, ORO, LUX, P7, P4.5, SUB and BERMA actuators.

Technical data:

  • Power supply: 220-230 V 50/60 Hz
  • Dimensions: 195x237x100 mm
  • Mains/low voltage insulation: > 2MOhm 500 Vdc
  • Operating temperature: -20°C +50°C
  • Dielectric stiffness: rete/bt 3750 Vac for 1 minute
  • Power supply for additional circuits: 24 Vac (0.2 A max. consumption)
  • AUX 0-Light signal Powered contact: 230 Vac 40W max
  • Built-in Rolling-Code radio receiver: frequency 433.92 MHz
  • Setting parameters and logic: TRIMMER + DIP SWITCH
  • Max. number of radio commands in memory: 63
  • Maximum power: 750 W
  • Maximum operating time: 90s
