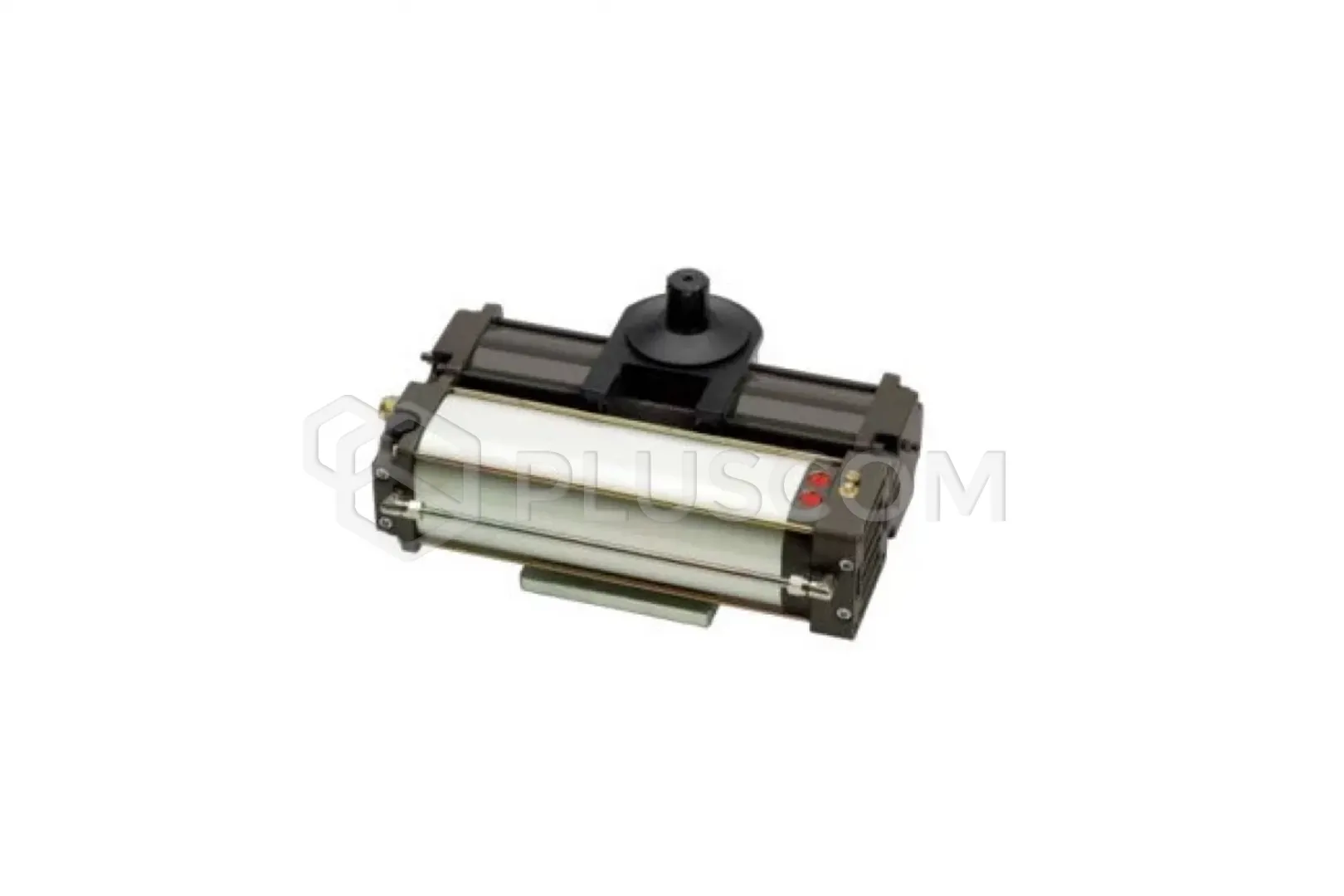

BFT 2600026 Self-locking actuator 230V, left (P930010 00006)

1296,54 EUR including 23.00% VAT
Product code: #37451
Manufacturer: BFT
  • Max. gate leaf length: 1.8m
  • Max. gate leaf weight: 800kg
  • Engine power supply 230V
  • Hydraulic force regulation and obstacle detection
  • Intensive work
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BFT 2600785 FCS SX Foundation box for mounting the left SUB actuator BFT 2600784 FCS DX - Foundation box for mounting the right SUB actuator BFT 2614120 MITTO COOL C4 remote BFT 2614118 MITTO COOL C2 remote control BFT 2607540 RADIUS LED lamp AC A R0 (230V without antenna) BFT 2601411 Photocells Compacta A20-180 BFT 2601365 Control unit ALCOR AC A

BFT SUB G SX Self-locking 230V actuator with release function when opening and closing, left (P930010 00006)


Self-locking hydraulic actuator (left) for swing gates with a maximum length of 1.8 m and a leaf weight of 800 kg. It has hydraulic force regulation, obstacle detection and hydraulic locks on opening/closing.
Release during closing guarantees quiet and smooth movement even in the case of the largest leaves. The adjusting screw also allows you to adjust the intensity of the release to the requirements of any situation.

It is designed for very intensive work with a frequency of use of up to 500 cycles per day.

The design consisting of a single block allows you to obtain aesthetic, exceptionally reliable installations despite the passage of time.

TECHNICAL DATA:

  • Motor voltage: 230 V
  • Board power supply: 230 V
  • Control unit: RIGEL 6
  • Power consumption: 250 W
  • Max. door/gate leaf width: 1.8 m
  • Max. door/gate leaf weight: 800 kg
  • Maximum angle: 180 °
  • Maneuver time: 33 s
  • Lock Hydraulic: opening/closing
  • Unlocking: triangular key
  • Impact response: hydraulic clutch
  • Use frequency: very intensive
  • Protection class: IP67
  • Working environment (max.): -10 ÷ 60 °C
  • Dimensions: 392x283x400mm
Download
User manual 1.67 MB
