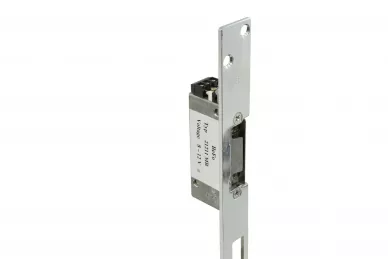

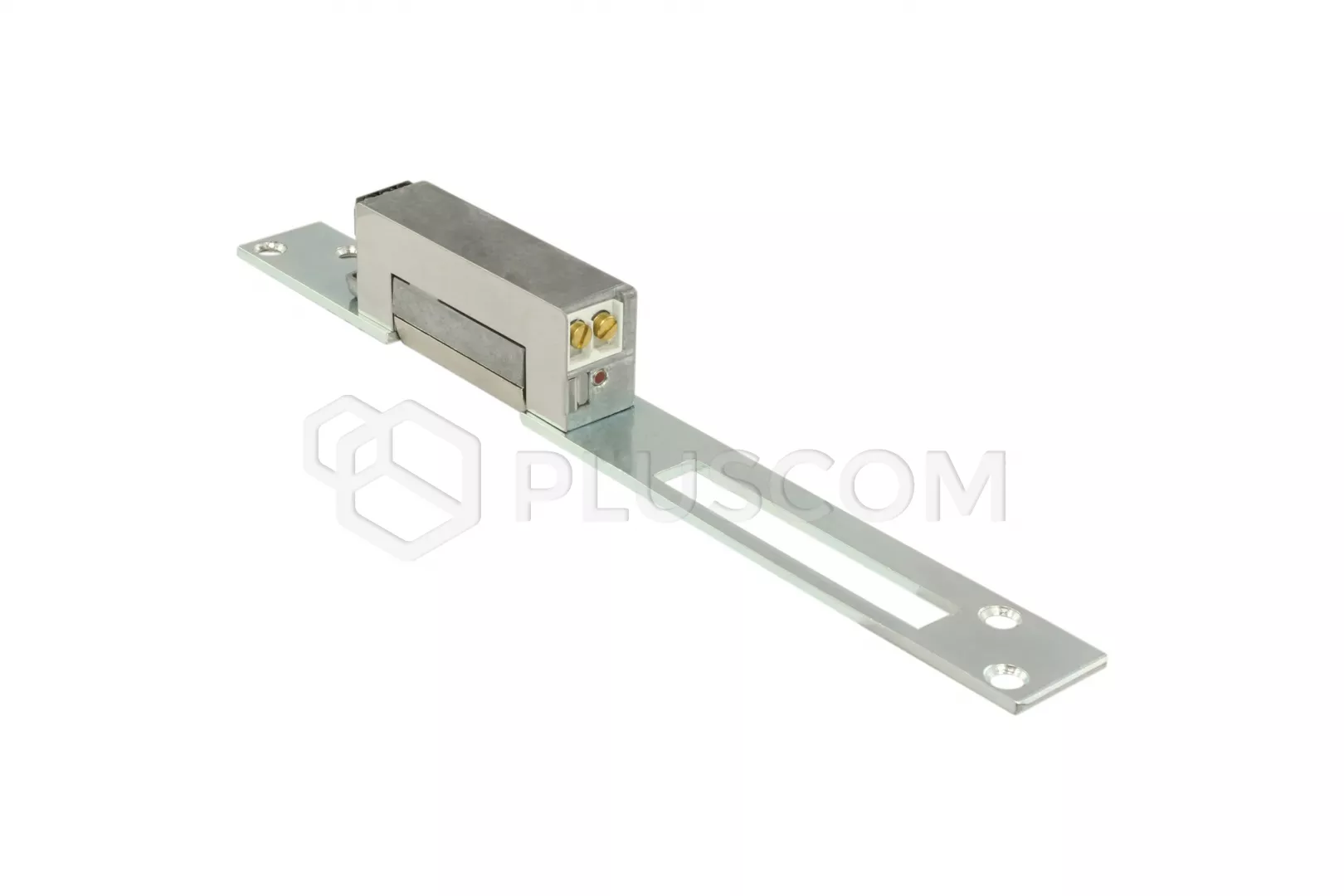

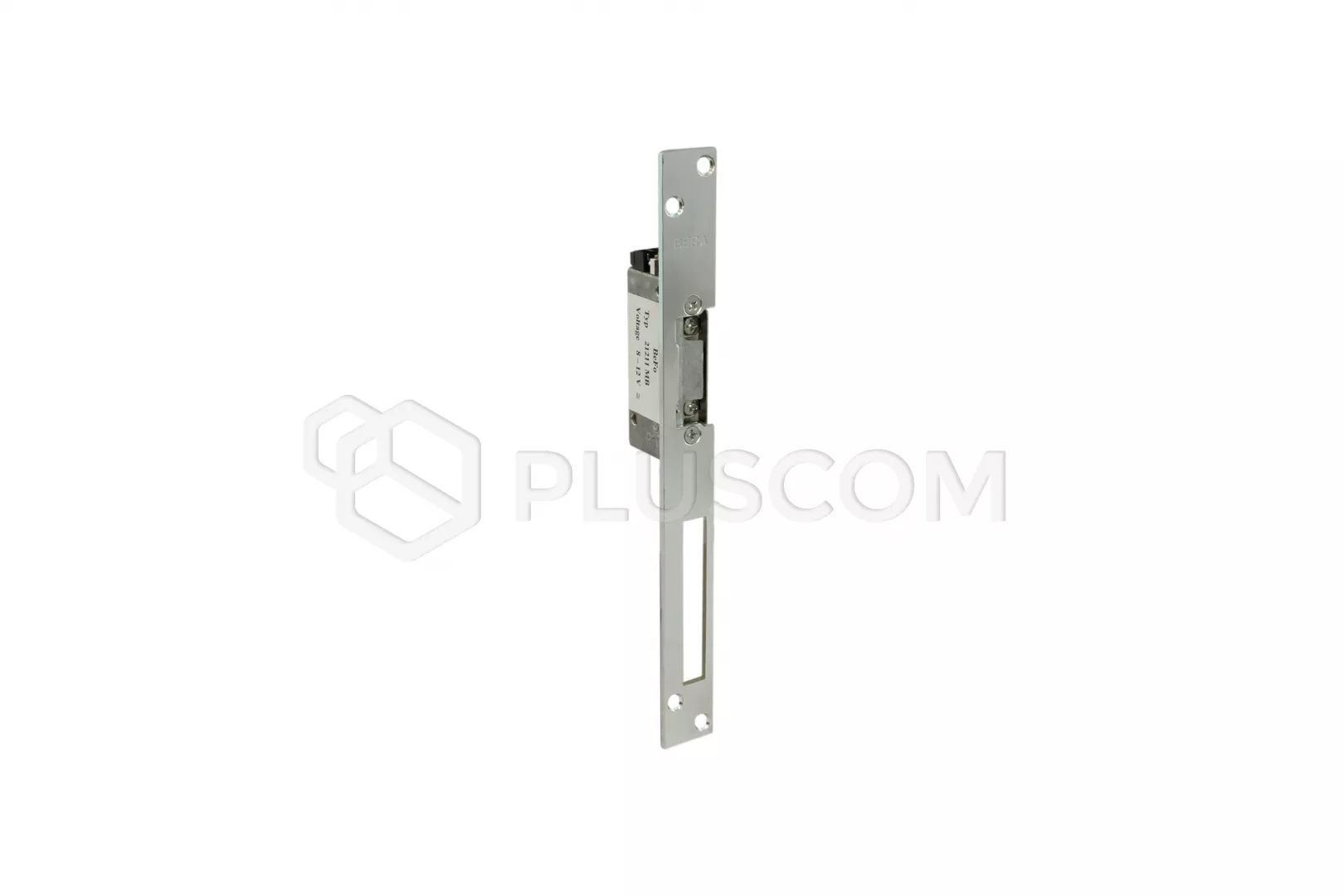

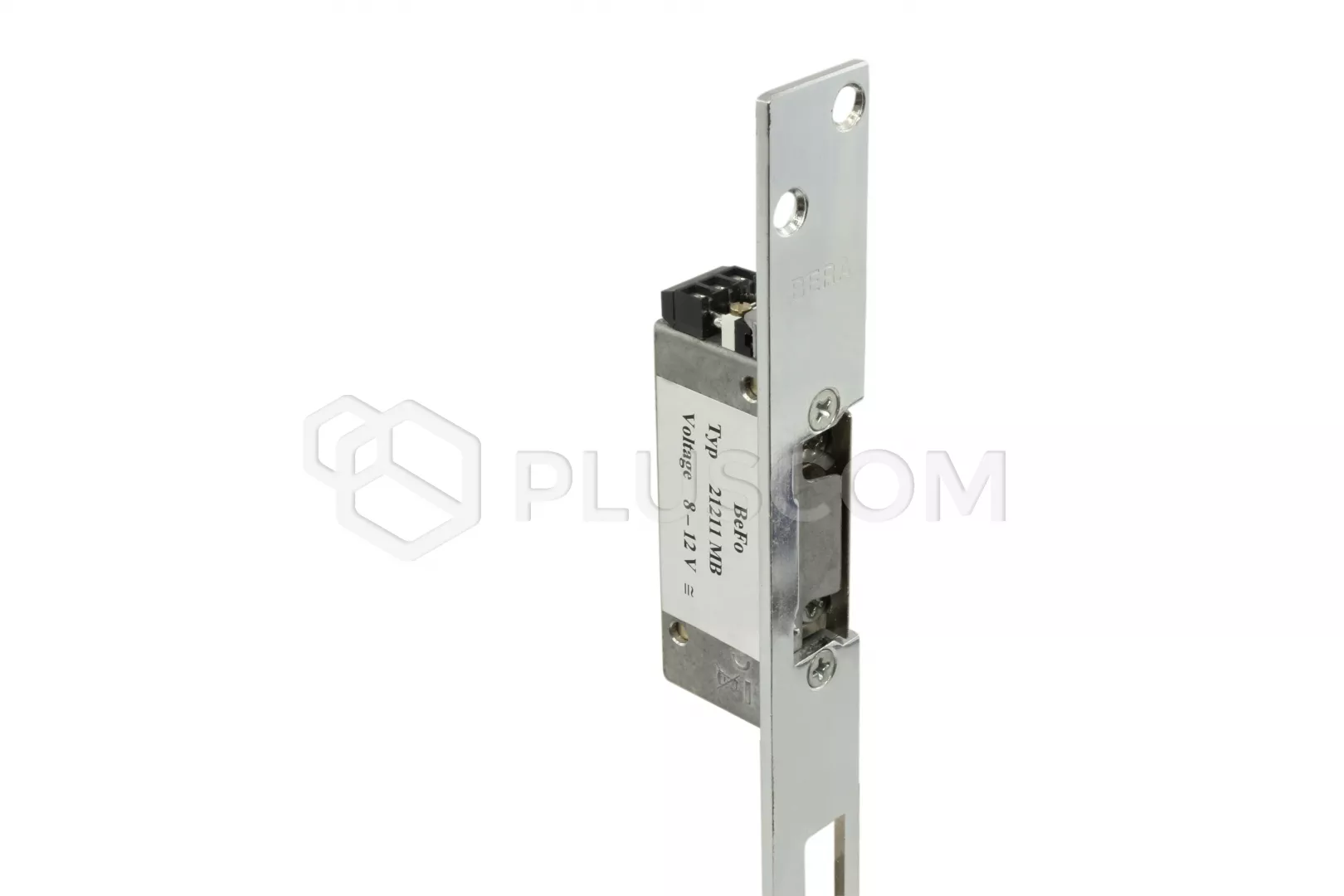

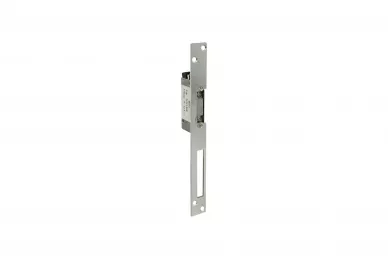

BeFo 21211 MB Electric strike with signaling and mechanical unlocking

ASSA ABLOY BeFo 21211 MB Electric strike with signaling and mechanical unlocking

BeFo 21211 MB is a standard model of an electric strike with opening signaling and a mechanical opening blocker MB, which can be installed in left / right door frames, z adjustable latch in the range of 4mm.

The electric strike can be controlled by voltage:

• constant: 12V, 600mA
• variable: 12V, 300mA

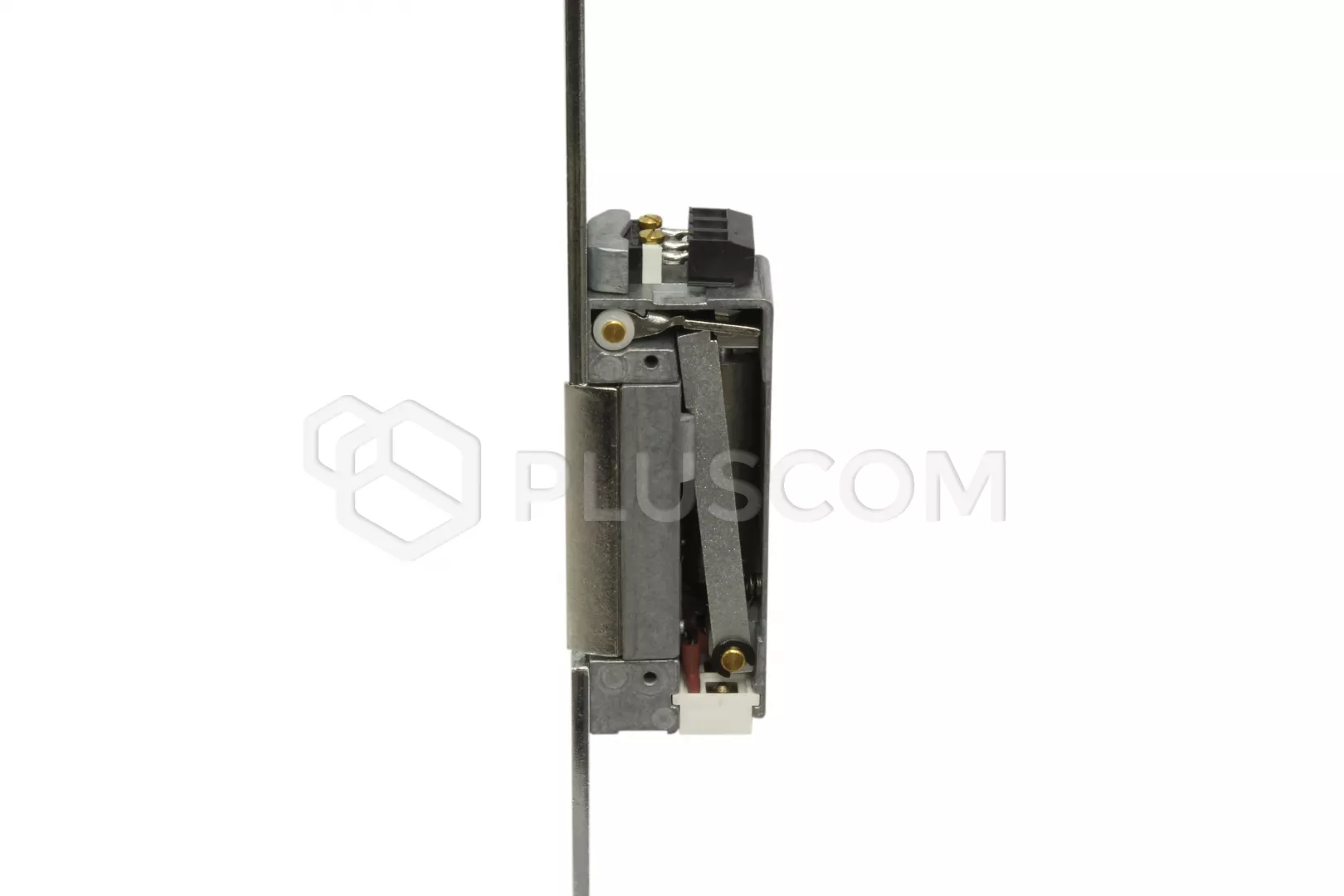

PRINCIPLE OF OPERATION:
The electric strike has a mechanical lock switch, which can be set to the position:

• OPEN - you can walk through the door at any time without giving electric impulses
• CLOSED - works like a standard electric strike

The BeFo 21211 MB is equipped with a microswitch with terminals that completely replaces the additional solenoids installed in the door.
The electric strike will be perfect for places where there is a lot of traffic during the day and there is no need for it access control of persons.

DIMENSIONS AND ADJUSTMENT:

• electric strike latch can be adjustable within 4mm
• universal, left / right

• 52.5mm spacing of the mounting screws
• 20mm width

•

• dimensions of the electric strike: 75x20x28mm
• sheet dimensions: 250x3x25mm
• working temperature: -15 ° C ~ 50 ° C
