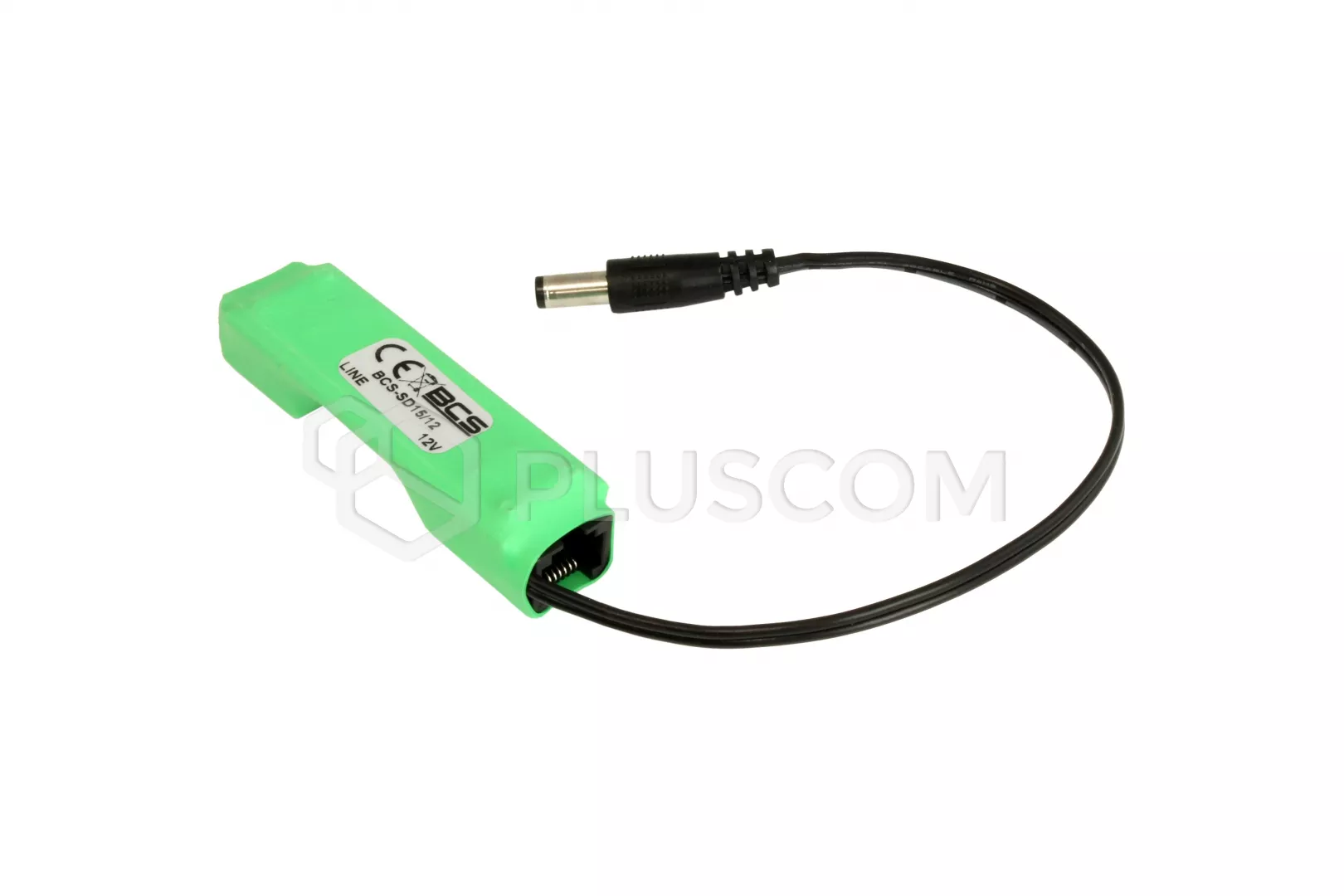

BCS-SD15/12 Stabilizing and reducing voltage converter

28,65 EUR including 23.00% VAT

Add to cart

Product code: #8067

Manufacturer: BCS

Ask about this product

PoE Input voltage: 35V - 56VDC
Output voltage: DC 12V
Output current: 1A
Cable with DC 5.5 / 2.1mm plug and RJ-45 connector
Dimensions: 72 × 20 ×16 mm

Delivery and tax:

Poland VAT: 23.00% change

Shipping cost from:

2,53 EUR

Payment methods:

We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:

BCS-ADPOE Universal adapter for supplying network devices

BCS-SD15/12 Stabilizing and reducing voltage converter

Lowering and stabilizing converter to supply the video doorphone external panel and other devices with 12VDC after passive PoE. Allows power supply via a single UTP Cat cable. over long distances. For the transmission of power it uses free pairs in the LAN cable (T568B standard). The input requires a power supply in the range 35-56 VDC, while the output lowers and stabilizes the voltage to 12VDC. It has one PoE input and one LAN output (Ethernet sockets) and 12 VDC power output (DC plug).

Due to the limitations of power switches by the PoE standard af (max 15W), it is recommended that a direct voltage is applied to the lone pairs of the UTP cable by an adapter BCS-ADPOE.

TECHNICAL DATA:

PoE input voltage: 35V ÷ 56VDC
output voltage: 12VDC +/- 3%
maximum output current: 1A
output type 12VDC: cattached cable with DC 5.5 / 2.1 mm plug
1 PoE input (RJ45 socket)
1 LAN output (RJ45 socket)
sealing class: IP20
Output power indication: red LED inside RJ45 sockets
dimensions: 72x20x16 mm
working temperature: -10° C ~ +40° C
