BCS-PAN1701S-S Single-family IP outdoor panel

364,54 EUR including 20.00% VAT
Product code: #22125
Manufacturer: BCS
  • Flush or surface mounting
  • 1/2.8 "CMOS color camera 1.95mm
  • One mechanical call button
  • Information LEDs: calling, conversation, opening
  • TCP/IP/SIP protocol
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BCS-PP17 Flush-mounted housing for the BCS-PAN1701S-S panel BCS-PN17 Surface-mounted housing for the BCS-PAN1701S-S panel BCS-ZA1220 Power supply for a DIN rail BCS-MODKD2 Access control module

BCS-PAN1701S-S Single-family IP outdoor panel

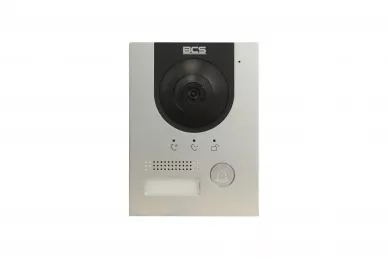

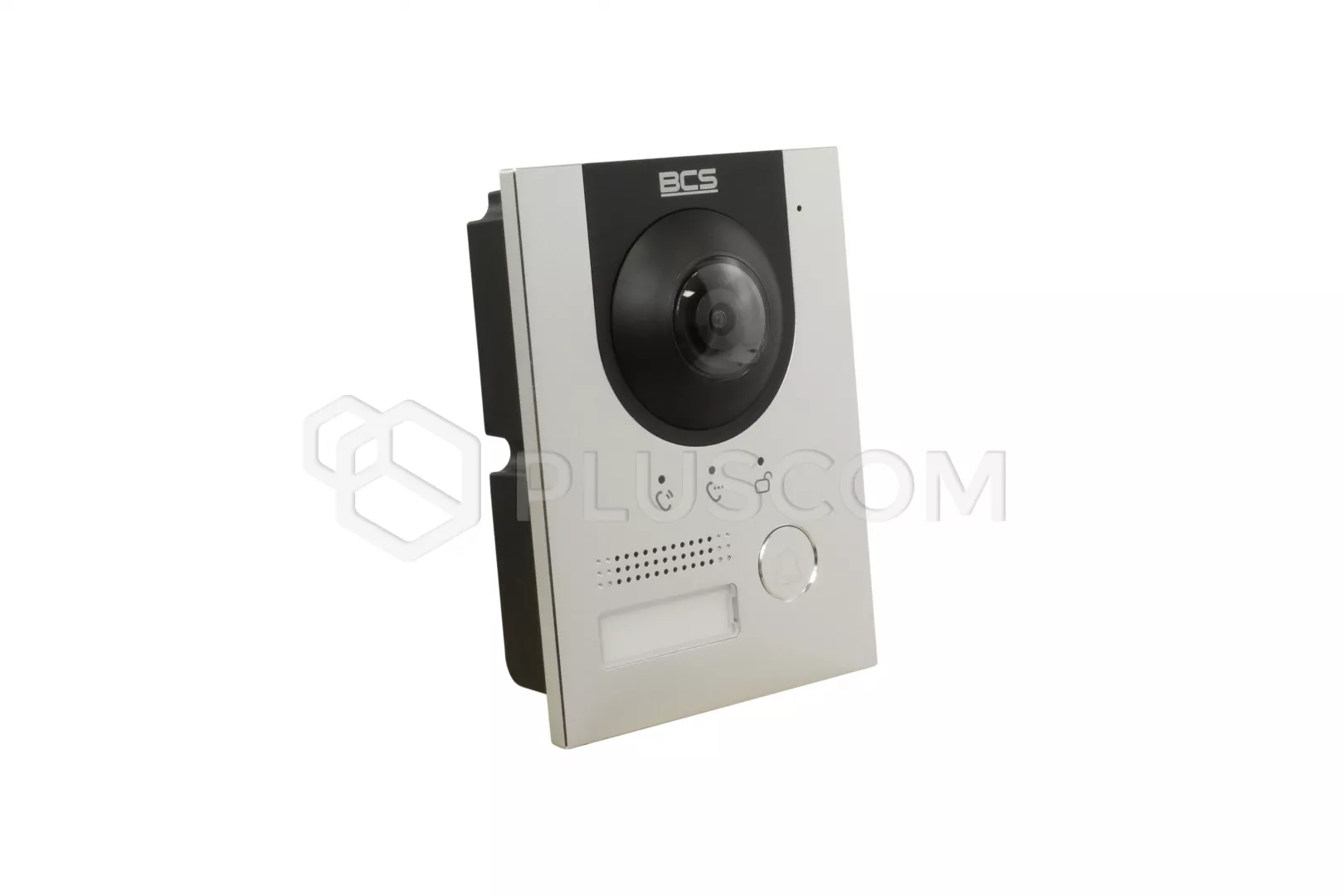

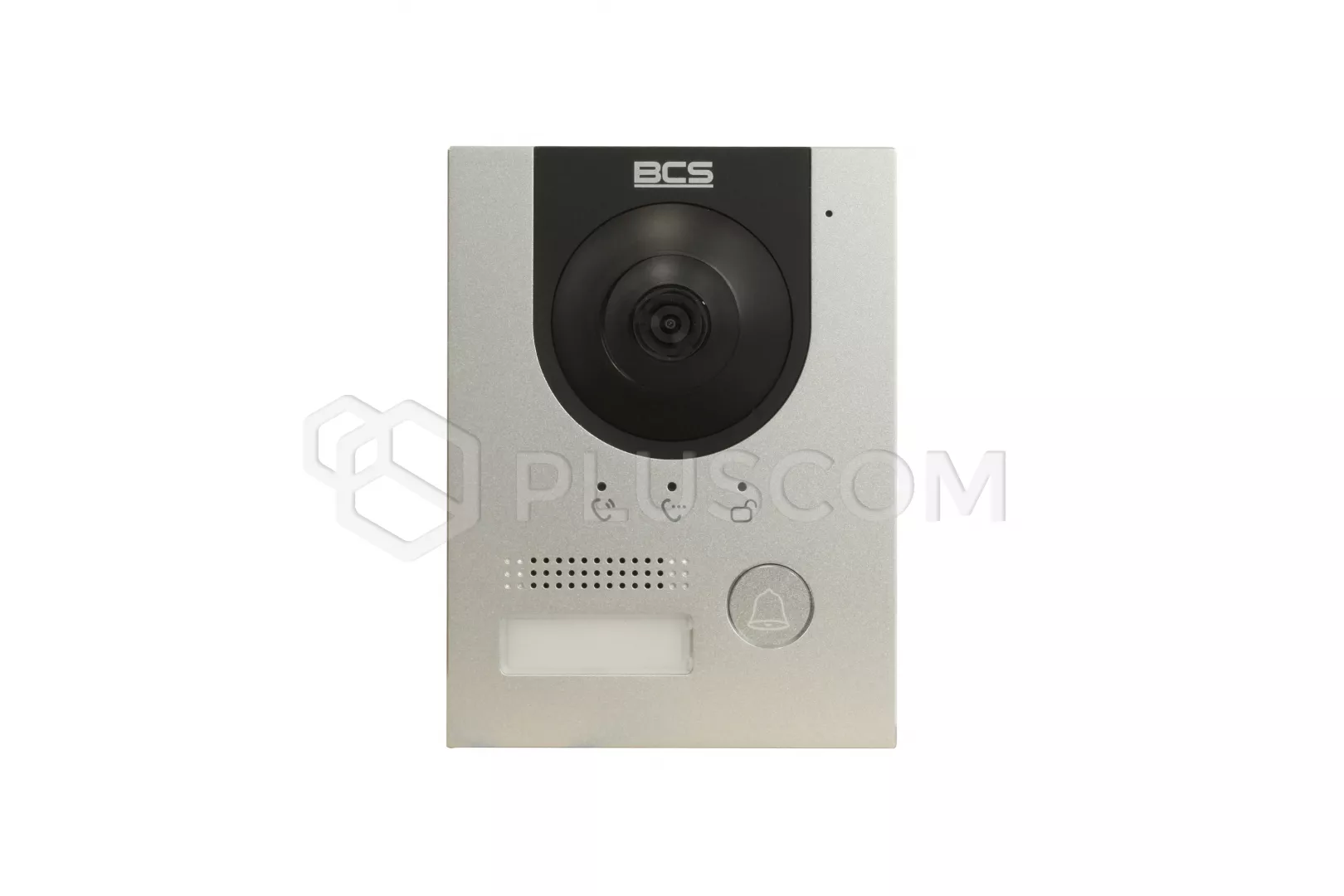

BCS-PAN1701S-S is an external panel equipped with a color CMOS camera 1 / 2.8 '' with automatic LED backlight and 1.95mm lens, possibility power supply from PoE (802.3at / af or passive). it has built-in LED indicators that signal calling, conversation and relay opening.
The panel can be mounted both flush and surface. To the chosen way assembly, we must choose a dedicated housing model. Recommended execution seals on the top and sides between the housing and the mounting surface, then we get IP65 tightness class.

The operation of the device is facilitated by numerous built-in voice messages and management via a web browser (Web Service) and access to free BCS Line mobile application for iOS and Android.

FEATURES AND FUNCTIONS
  • information leds: call, talk, open
  • video recording on BCS Line and other (RTSP) recorders
  • web management (Web Service)
  • free BCS Line mobile application for iOS and Android - receiving connections, preview of the intercom camera and BCS series IP cameras and recorders LINE, opening the door and gate, taking a photo and video recording of the person caller (a link with a fixed IP address is recommended)
  • view camera image from the Web Service
  • built-in voice messages - initiation / termination of a conversation, opening, busy, connection error, AV message recording assistant for tenant
  • built-in relay (C, NO, NC) with adjustable working time
  • RS485 output for connecting the BCS-MODKD2 relay module (module supplied separately) that allows you to control an additional device with monitor or mobile application (e.g. gateway)
  • time / date change from Web Service
  • DST, NTP, P2P, UPnp function
  • menu and voice messages in Polish or English
  • possibility to record audio-video messages for the tenant
  • take pictures of callers automatically
  • support for all models of IP video monitors from the BCS offer (only version SIP)
  • tightness class: IP65 (additional sealing recommended)
  • mechanical resistance class: IK07
  • tamper contact activating an acoustic alarm when trying to open housing
