BCS-PAN1601S-S Single-family IP outdoor panel

562,33 EUR including 23.00% VAT
Product code: #22124
Manufacturer: BCS
  • Flush or surface mounting
  • Built-in Mifare 13.56 MHz proximity card reader
  • Keyboard with Braille markings
  • 1/2.9 "CMOS color camera 2mm
  • TCP/IP/SIP protocol
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BCS-KZ-M1 Proximity card BCS-PP16 Flush-mounted housing BCS-PN16 Surface-mounted housing for the BCS-PAN1601S-S panel BCS-ZA1220 Power supply for a DIN rail BCS-MODKD2 Access control module

BCS-PAN1601S-S Single-family IP outdoor panel


BCS-PAN1601S-S Single-family IP outdoor panel

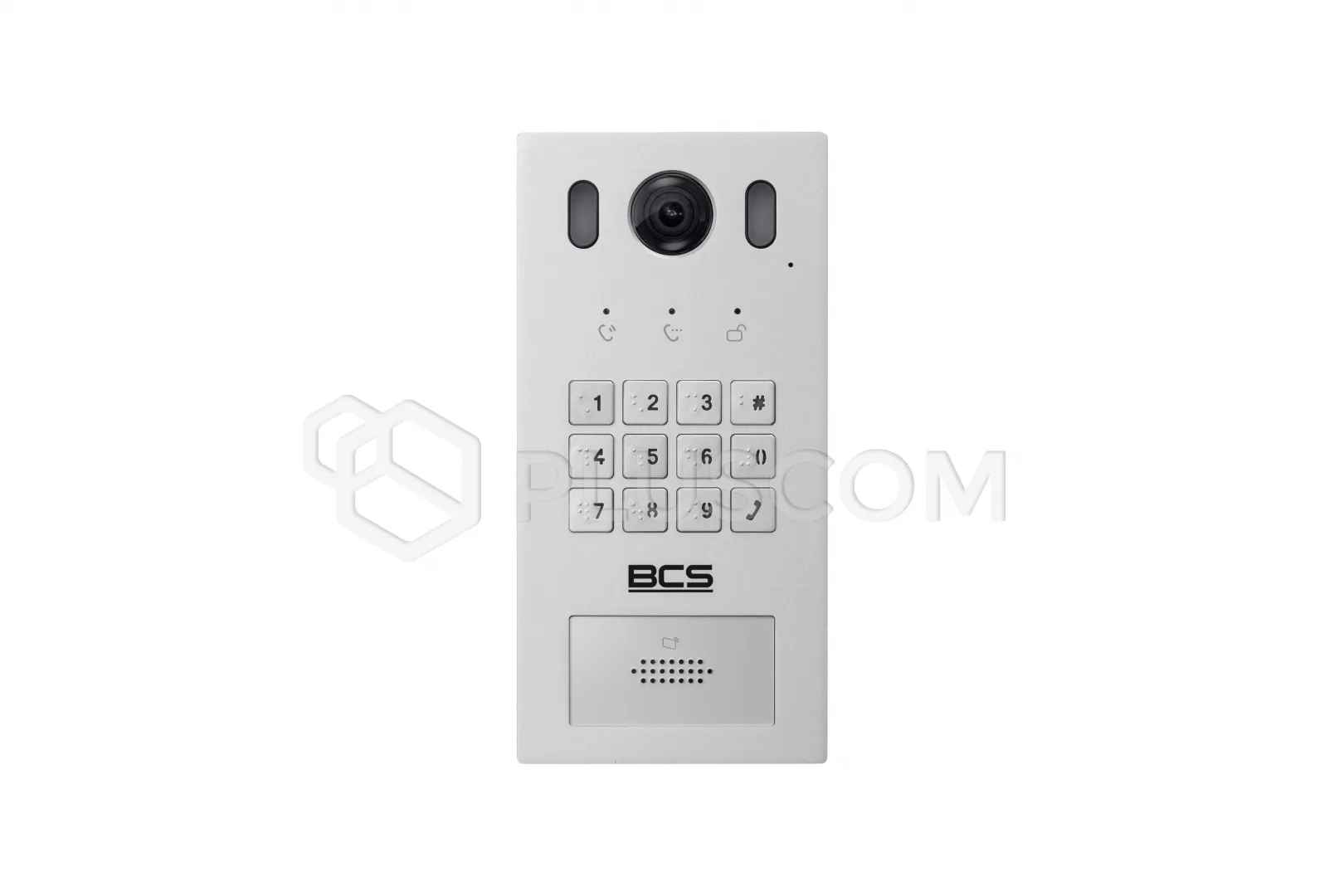

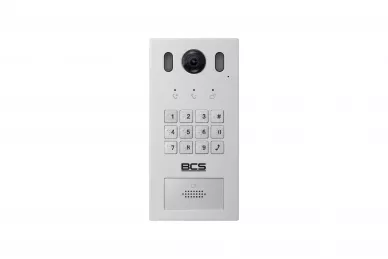

BCS-PAN1601S-S is an external panel, equipped with a color CMOS camera 1 / 2.9 '' with automatic LED backlight and 2mm lens, possibility power supply from PoE (802.3af). It is dedicated to single-family houses.

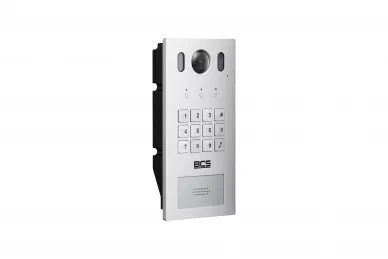

We have the option of mounting the panel both flush and surface. Down selected mounting method, we must select a dedicated housing model.

BCS-PAN9201S-S is equipped with a numeric keypad with LED backlight and Braille markings and Mifare card reader. Code lock supports up to 50 6-digit door opening codes.

FEATURES AND FUNCTIONS
  • one mechanical call button
  • built-in voice prompts for easy operation - initiation / termination calls, opening, busy, connection error, message recording assistant audio-video for the tenant
  • view camera image from the Web Service
  • web management (Web Service)
  • time / date change from Web Service
  • change ports from Web Service
  • take pictures of callers automatically
  • possibility to record audio-video messages for the tenant
  • image recording on BCS LINE and Point recorders

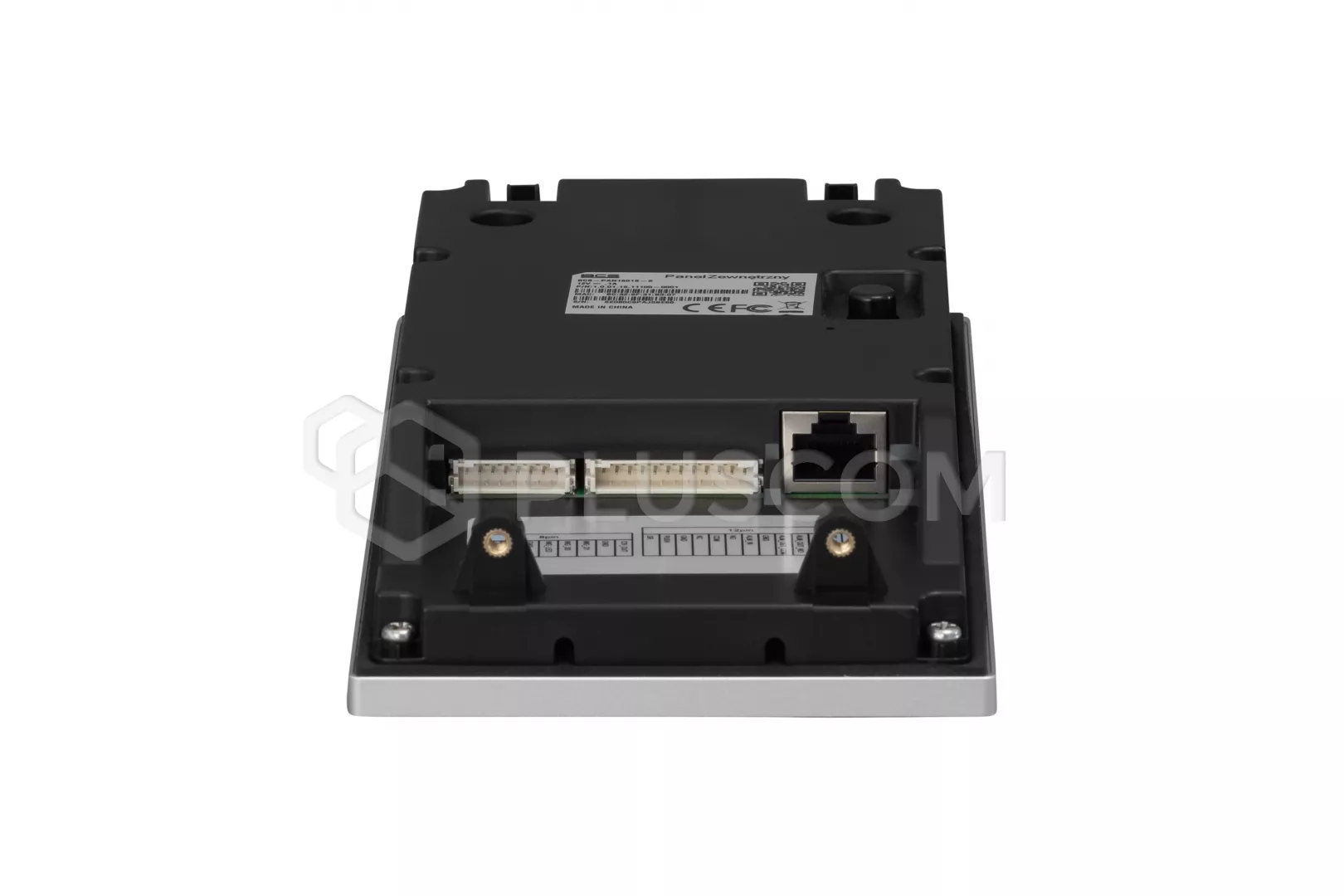

  • LAN connection using the Ethernet socket built into the panel
  • DST, NTP, P2P, UPnp function
  • menu and voice messages in Polish or English
  • adding IP CCTV cameras from the Web Service
  • processor / OS: built-in / LINUX
  • power supply: 12 VDC 2A, PoE 48V (802.3 af)
  • power consumption: standby 2W max, max 7W operation
  • working temperature: -40 ° C ~ + 60 ° C
  • weight: 1.5 kg
  • dimensions: 200x32x98 mm
