BCS-PAN1501G-S One-family IP outdoor panel

BCS-PAN1501G-S One-family IP outdoor panel

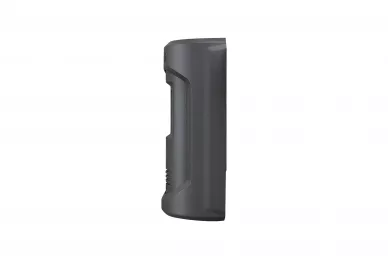

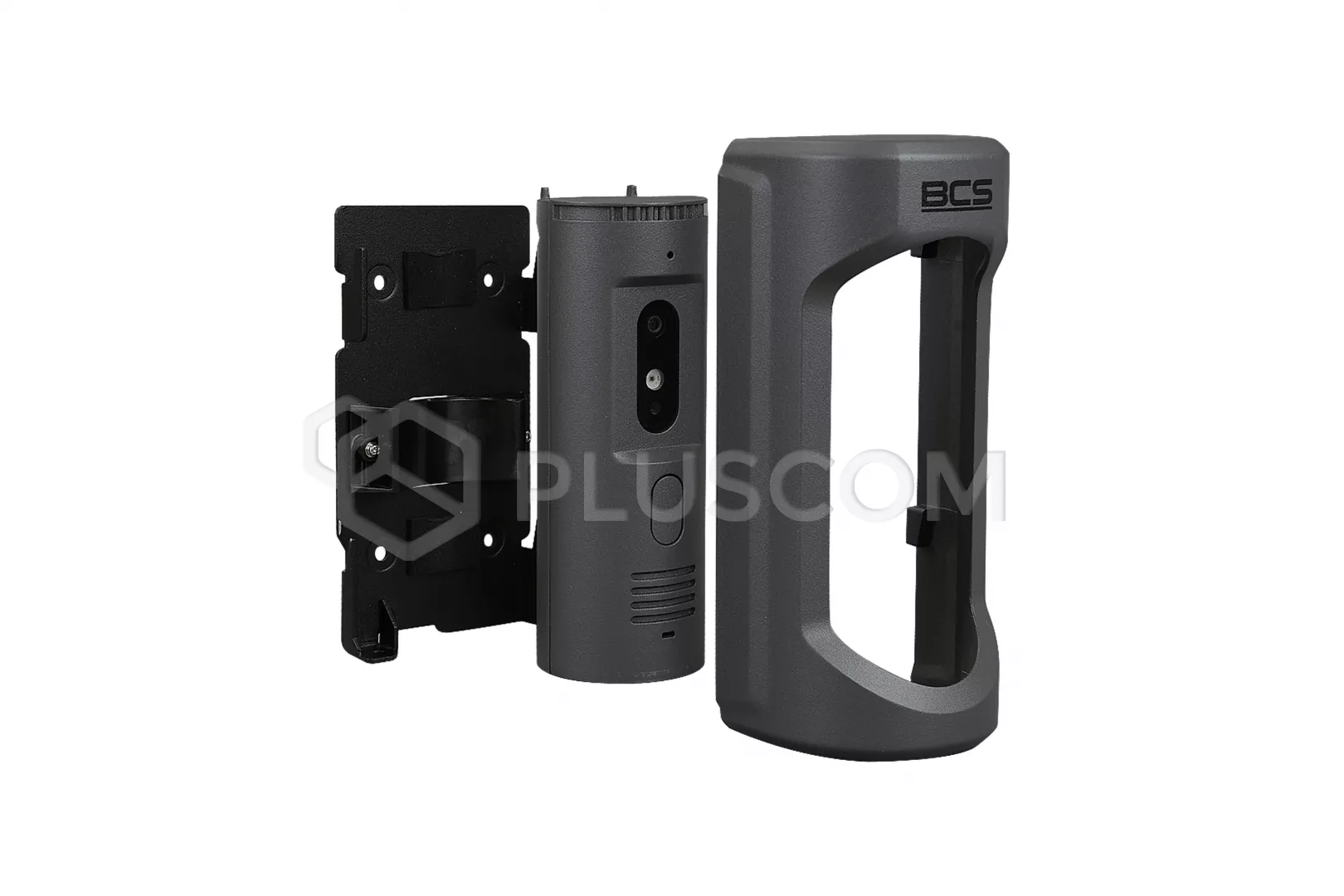

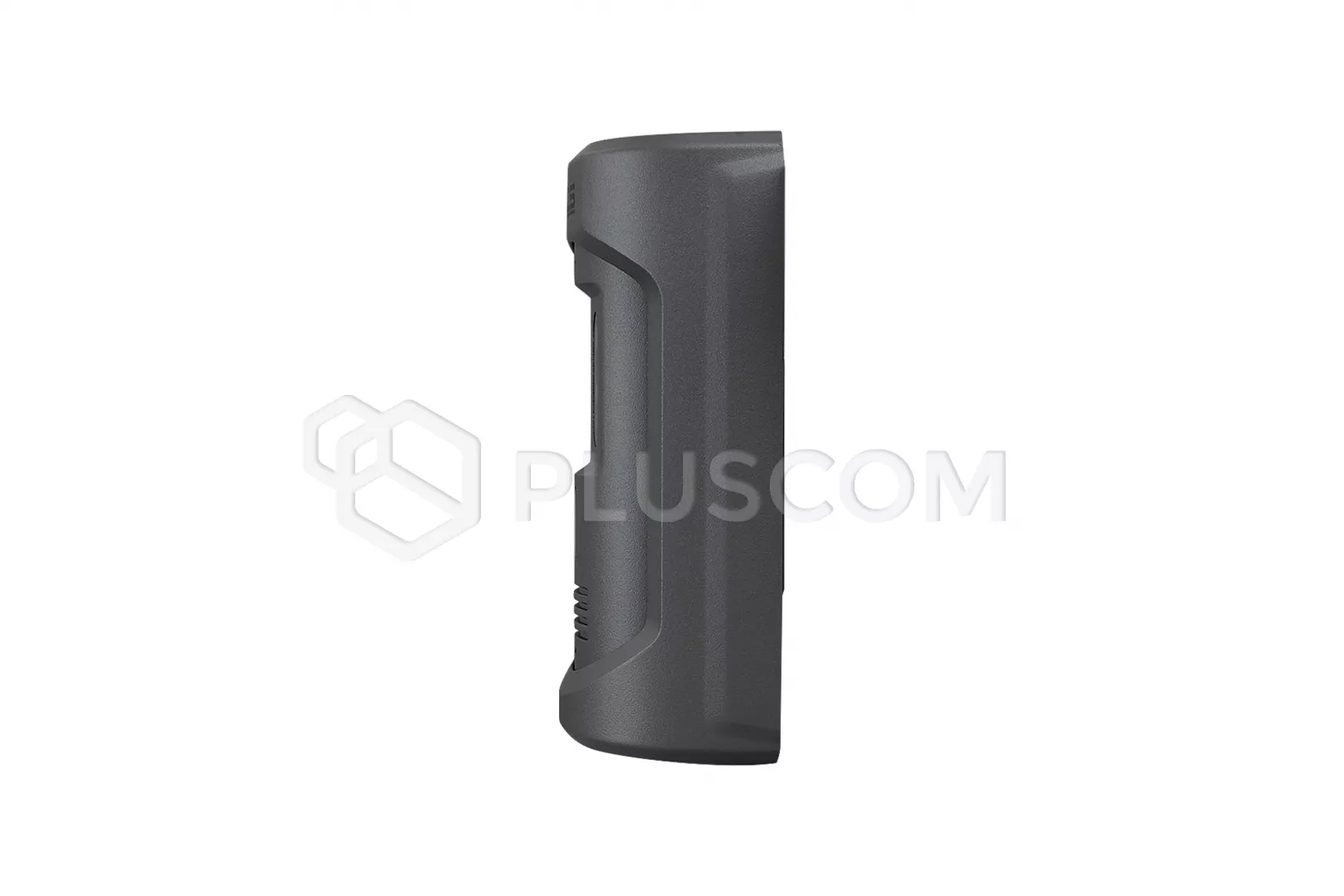

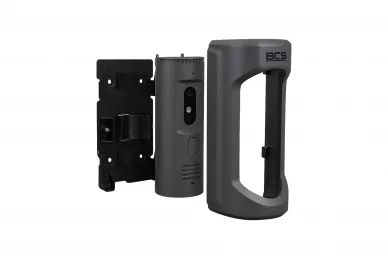

The BCS-PAN1501G-S panel is made of aluminum / zinc alloy and its a unique structure protects the station against attempts to destroy or steal. Adding to this a high class of protection (IP65) and work in the range of temperatures -40 to + 60 ° C, we get a device perfectly suited for installation both inside and outside the building.

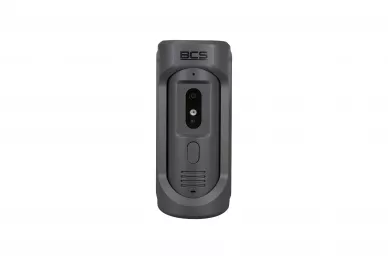

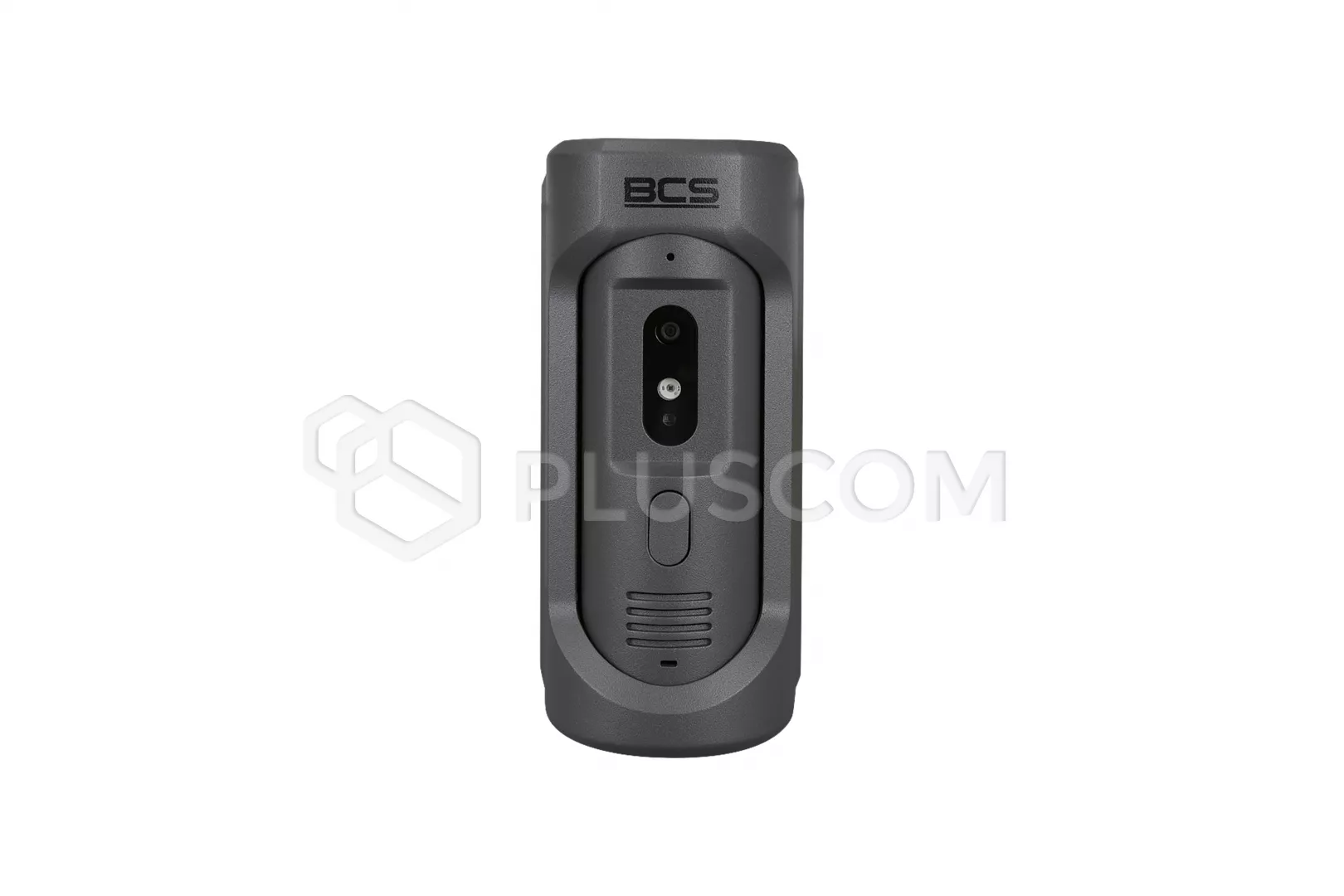

The panel has one calling button and a camera with a viewing angle of approx 100 ° (horizontal) with horizontal angle adjustment 45 °.
The panel allows you to automatically take pictures of callers. Also, includes built-in voice prompts for easy operation.
It is compatible with video monitors with the SIP protocol and the device menu is in Polish or English.

Key features and specifications:

• TCP / IP protocol
• Ethernet 10/100 Mbps auto negotiation
• 1 / 2.7 "CMOS sensor
• 2.8 mm lens
• ICR light
• Supported resolution: 720p, D1
• Video encoding: H.264
• Audio coding: G.711
• Camera angle of view: 100 ° (horizontal), camera angle of view adjustable 45 °
• Image recording on BCS LINE and Point recorders
• Web browser management
• Camera image preview from the Web Service level
• One mechanical call button
• Built-in voice prompts for easy operation - call initiation / termination, opening, busy, connection error, recording assistant for audio-video messages for the tenant
• Built-in relay (C, NO, NC) with adjustable working time
• RS485 output for connecting the BCS-MODKD2 relay module (module delivered separately), which allows you to control an additional device from the monitor or mobile application (e.g. gateway)
• LAN connection using the included adapter
• Connection of power supply, relay, exit button and RS port by means of the supplied connecting tape
• Changing time / date from the Web Service level
• DST, NTP, P2P, UPnp function
• Changing ports from the Web Service level
• Menus and voice messages in Polish or English
• Adding IP CCTV cameras from the Web Service level
• The ability to record audio-video messages for the tenant
• Automatically take pictures of callers
• Sealing class: IP65
• Mechanical resistance class: IK10
• Power supply: 12 VDC or PoE 48V (802.3af)
• Power consumption: ≤2.5W, Work ≤7W
• Working temperature: ﹣40 ° C ~ + 60 ° C, humidity: 10% ~ 90% RH
• Dimensions: 163.0mm × 73.0mm × 54.5.0mm
• Weight: 0.8 kg
• Aluminum / zinc alloy housing in graphite color

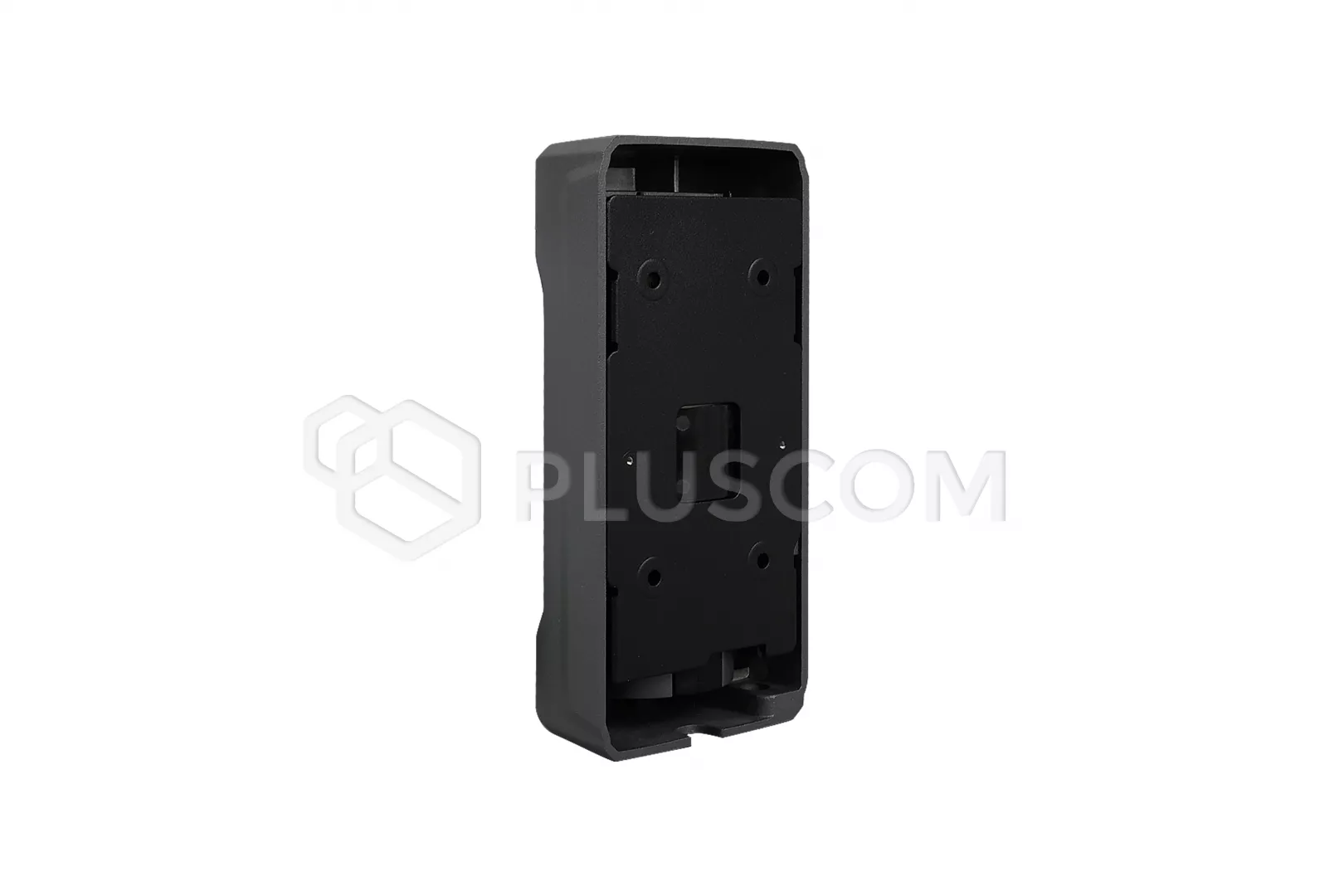

• Surface mounting
• Compatibility: BCS-MON7300B / W series video monitors; for the BCS-MON7000B / W and BCS-MON7200W series monitors, a firmware update for the video monitor is required
