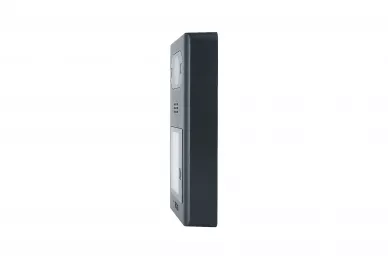

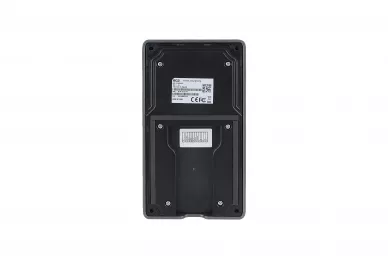

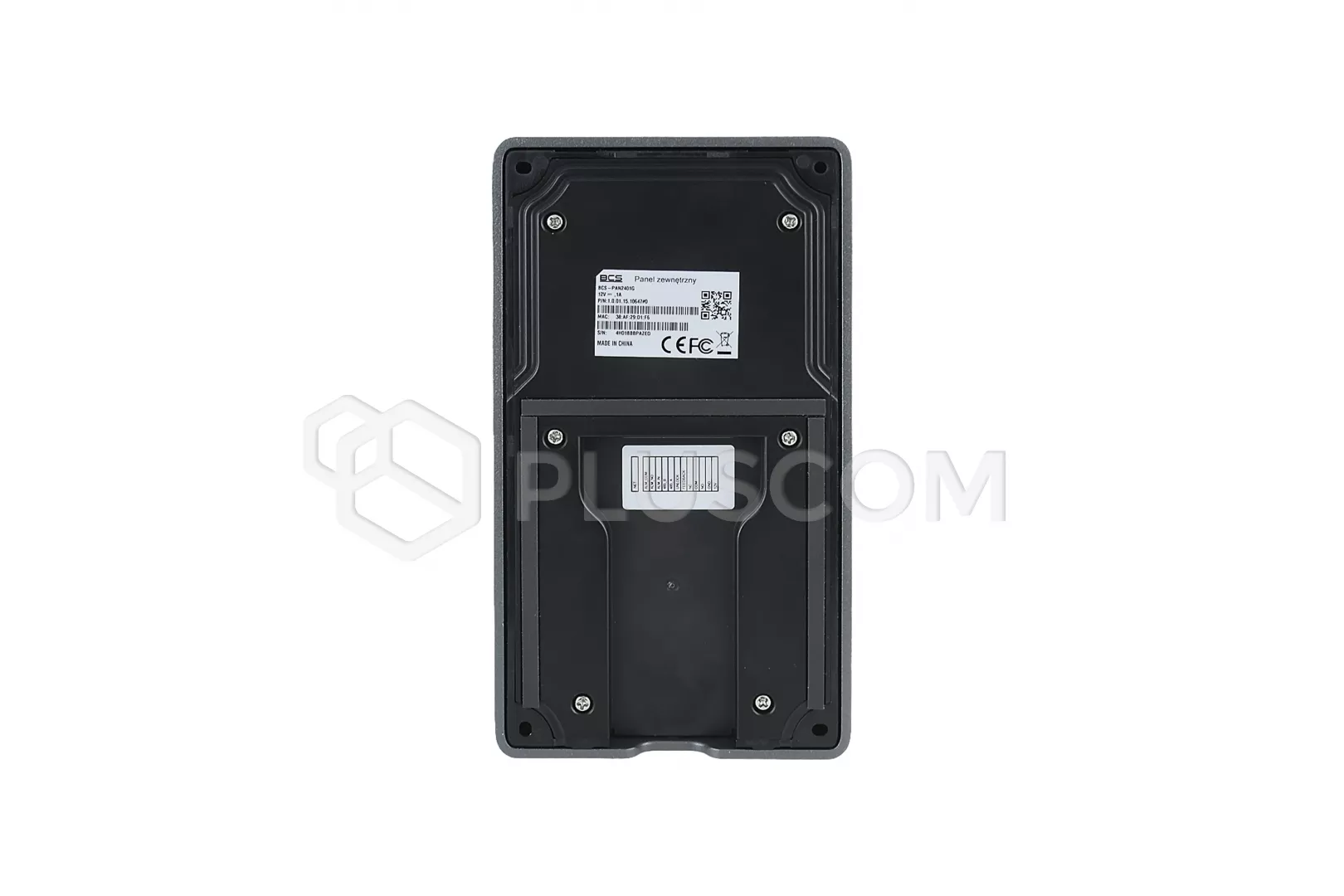

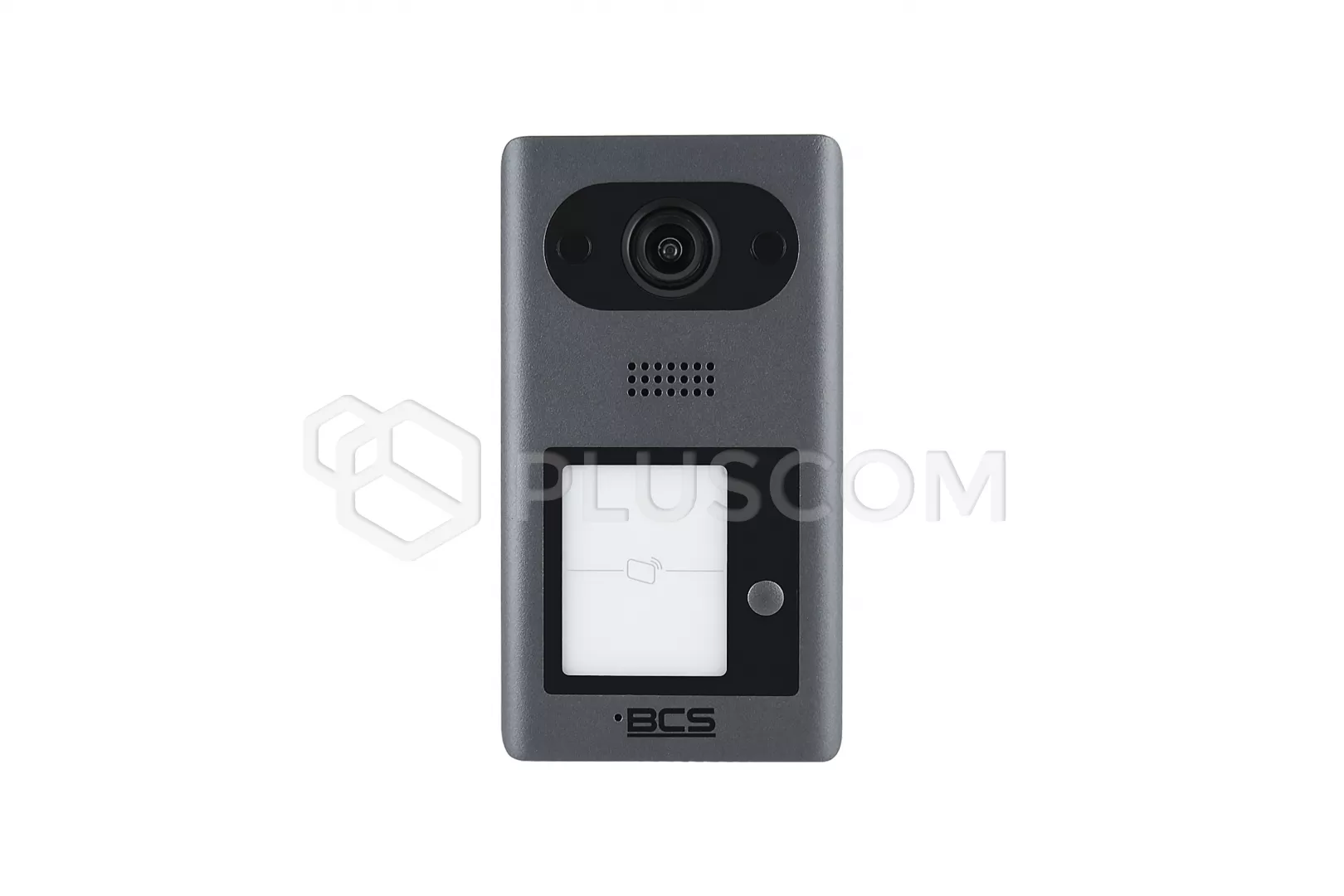

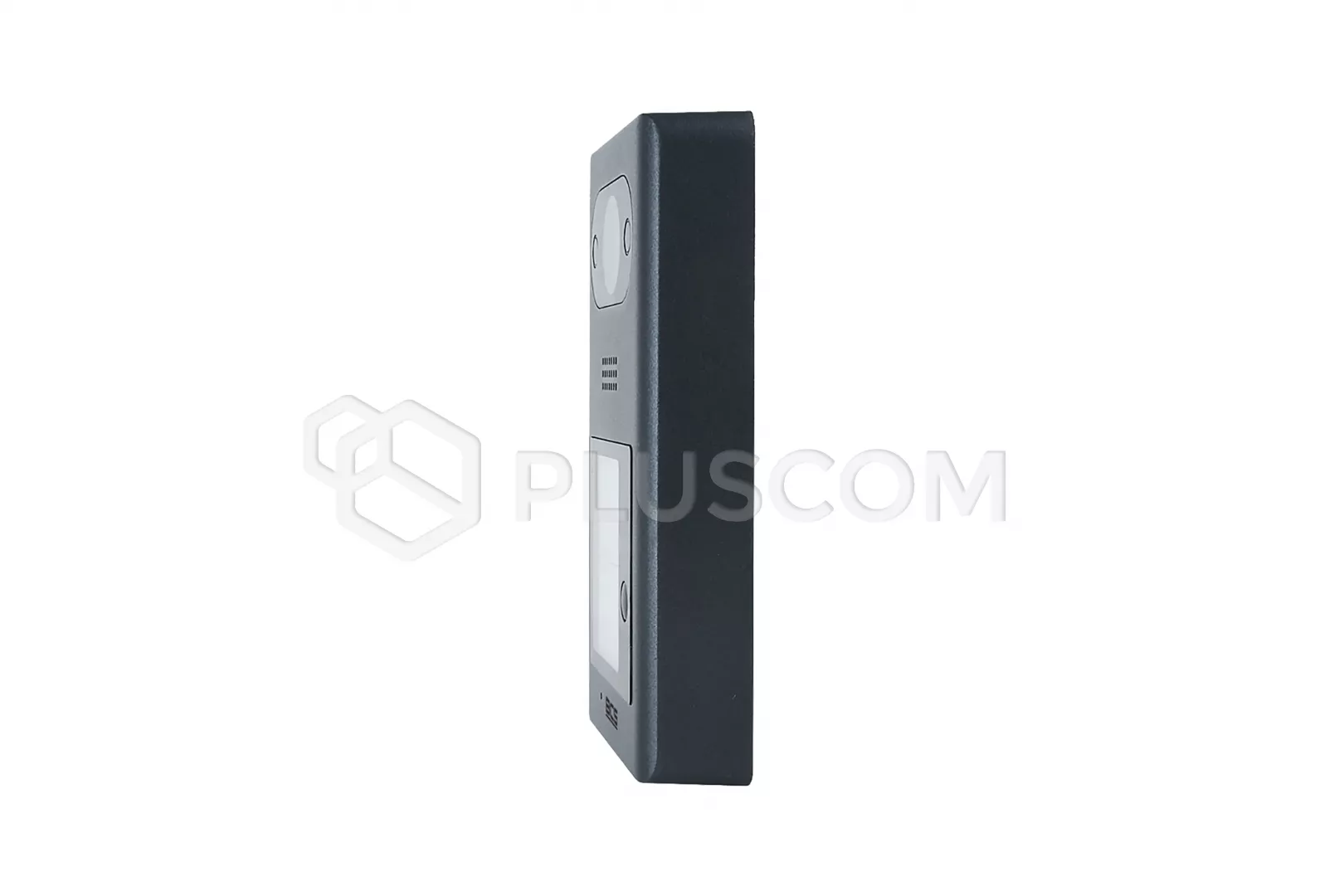

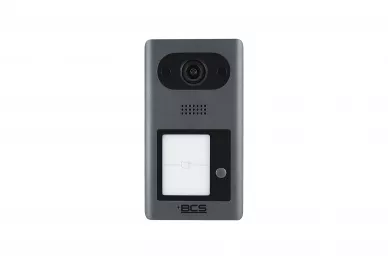

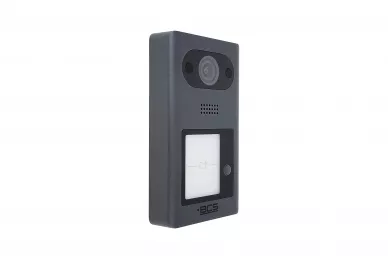

BCS-PAN1401G-S One-family IP outdoor panel

306,70 EUR including 23.00% VAT
Product code: #22126
Manufacturer: BCS
  • Surface mounting
  • Built-in Mifare 13.56 MHz proximity card reader
  • Colour camera with 1 / 2.8mm CMOS sensor
  • Power supply with PoE (802.3af) or 12V
  • TCP/IP/SIP protocol
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BCS-MON7300B-S BCS IP video intercom monitor, black BCS-MODKD2 Access control module BCS-MON7300W-S BCS IP video intercom monitor, white

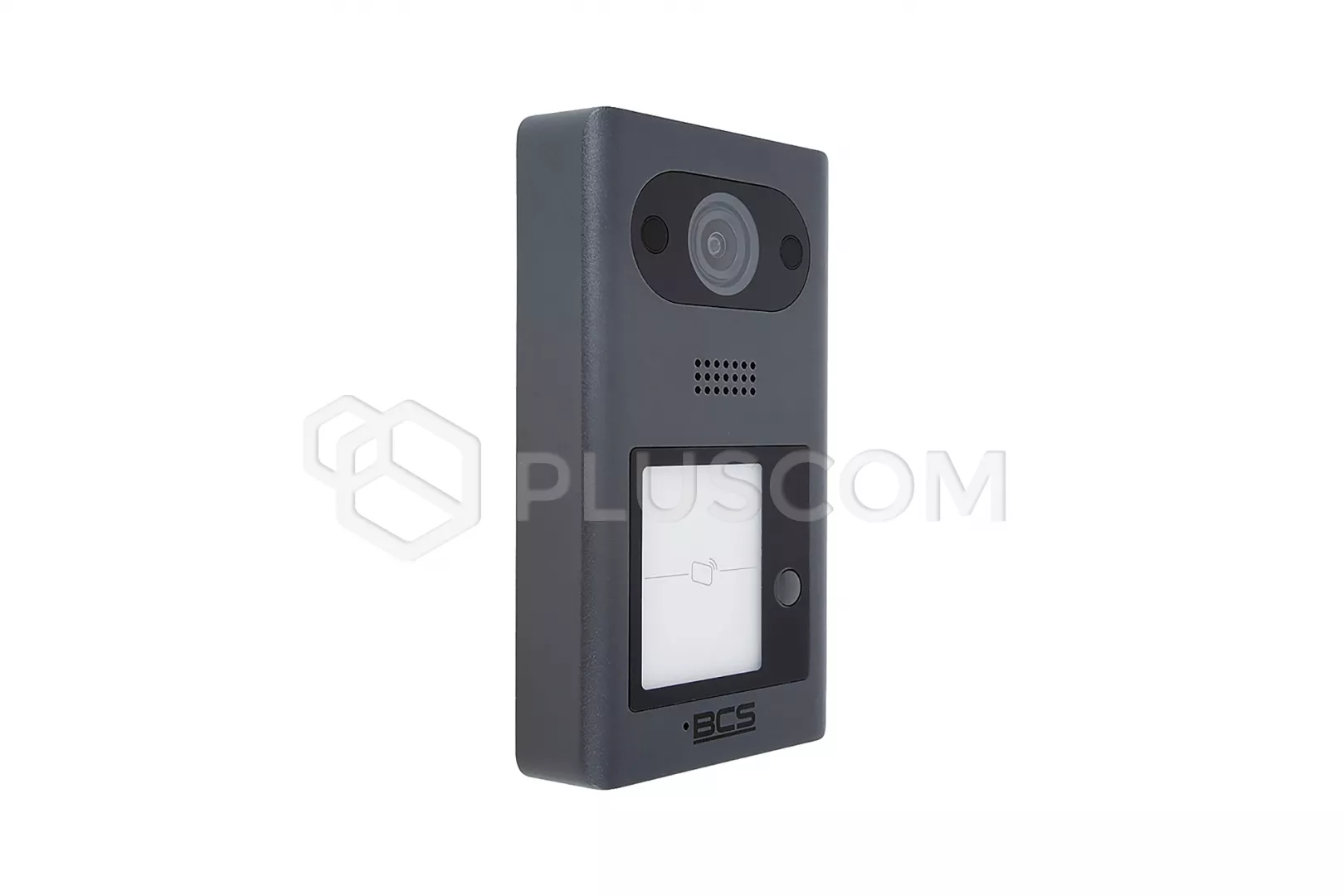

BCS-PAN1401G-S One-family IP outdoor panel with color camera and backlit


A new model of an external panel for one families. Surface mounting, aluminum vandal-proof housing, built-in card reader, wide-angle 1.9mm lens, 720p camera with CMOS 1 / 2.8mm sensor, ICR and backlit twilight card holder with adjustable sensitivity, power supply with PoE (802.3af).

Technical Specifications:
  • TCP/IP/SIP protocol
  • Ethernet 10 / 100Mbps auto negotiation
  • CMOS 1 / 2.8 "converter
  • 1.9mm lens
  • ICR light
  • Supported resolution: 720p, D1
  • Video encoding: H.264
  • Audio coding: G.711
  • Camera angle of view: 140 ° (horizontal)
  • Built-in 13.56MHz Mifare proximity reader
  • Picture recording on BCS LINE and Point recorders
  • Management via a web browser (Web Service)
  • BCS Viewer Lite free mobile application for iOS and Android - receive calls, preview the entry phone camera and BCS LINE series IP cameras and recorders, open the door and gate, take a picture and video of the caller (recommended link with fixed IP address)
  • Viewing the image from the camera from the Web Service level
  • Two mechanical call buttons
  • Card holder with LED backlight (twilight switch)
  • Built-in voice prompts for easy operation - initiation / termination of the conversation, opening, occupancy, connection error, assistant recording of audio-visual messages for the tenant
  • Built-in relay (C, NO, NC) with adjustable operation time
  • RS485 output for connecting the BCS-MODKD2 relay module (module supplied separately), which allows you to control an additional device from the level of a monitor or a mobile application (eg a gateway)
  • LAN connection using the included adapter

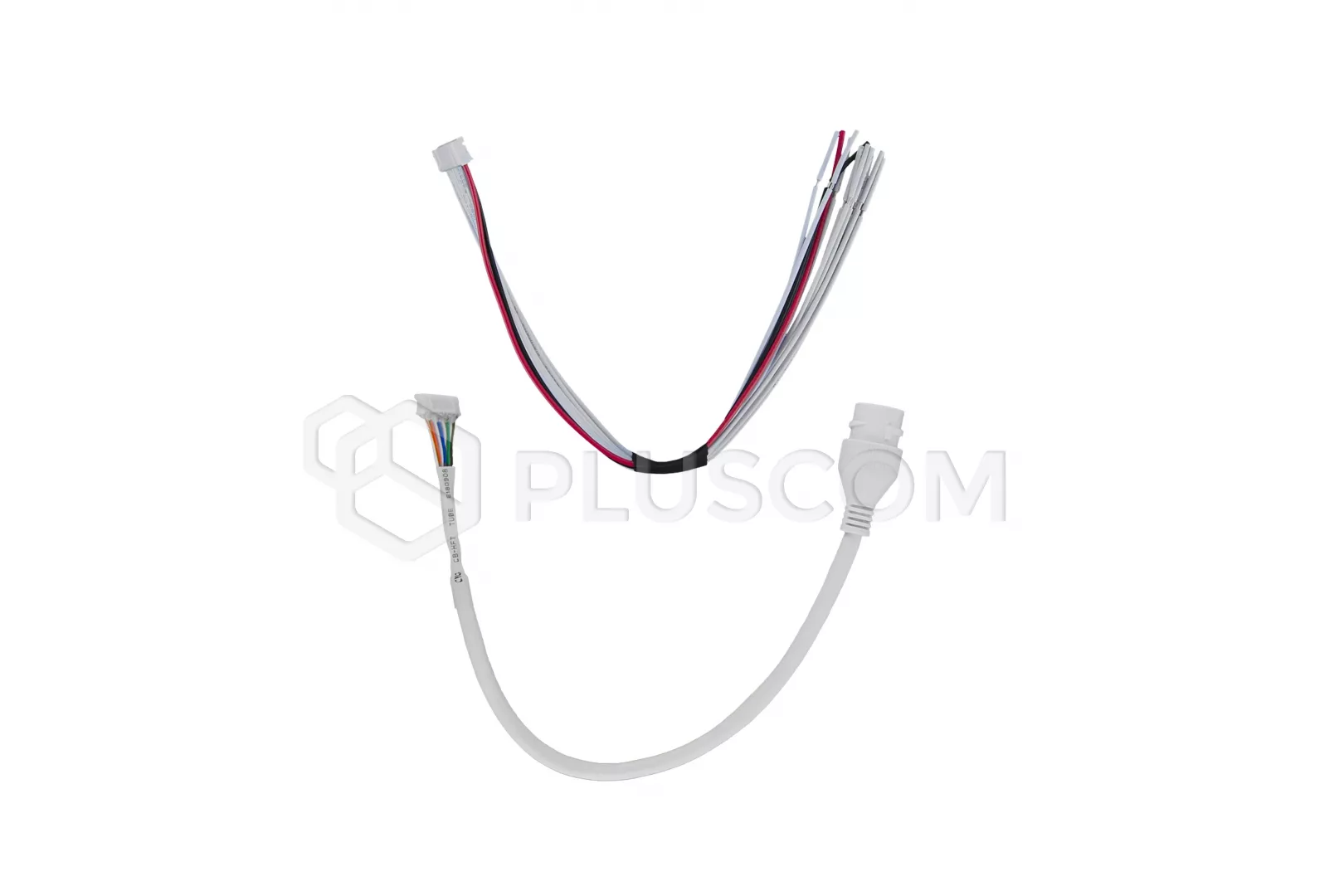

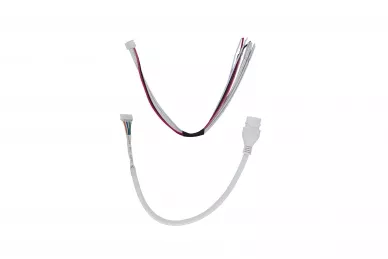

  • Connecting the power supply, relay, exit button and RS port with the supplied connection tape
  • Change of time / date from the Web Service level
  • Function DST, NTP, P2P, UPnp
  • Changing ports from the Web Service level
  • Adding CCTV IP cameras from the Web Service level
  • The possibility of recording an audio-visual message for the tenant
  • Automatically taking pictures of callers
  • Support for all models of IP video monitors from the BCS offer
  • Protection: IP65
  • Mechanical resistance class: IK08
  • Power supply: 12 VDC or PoE 48V (802.3af)
  • Housing made of aluminum alloy in graphite
  • Surface mounting
  • Voltage output for powering the electric lock or BCS-MODKD2 module
  • Alarm input (GND IN)
  • COM / NO alarm output activated for 30 sec. after activating the alarm input
