BCS-MON7300W-S BCS IP video intercom monitor, white

363,99 EUR including 23.00% VAT
Product code: #22120
Manufacturer: BCS
  • Surface mounting
  • 7 "TFT capacitive touch screen
  • Doorbell function
  • Graphical interface and 5 quick select buttons
  • Firmware SIP
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BCS-ZA1220 Power supply for a DIN rail BCS-MODKD2 Access control module

BCS-MON7300W-S BCS IP video intercom monitor, white

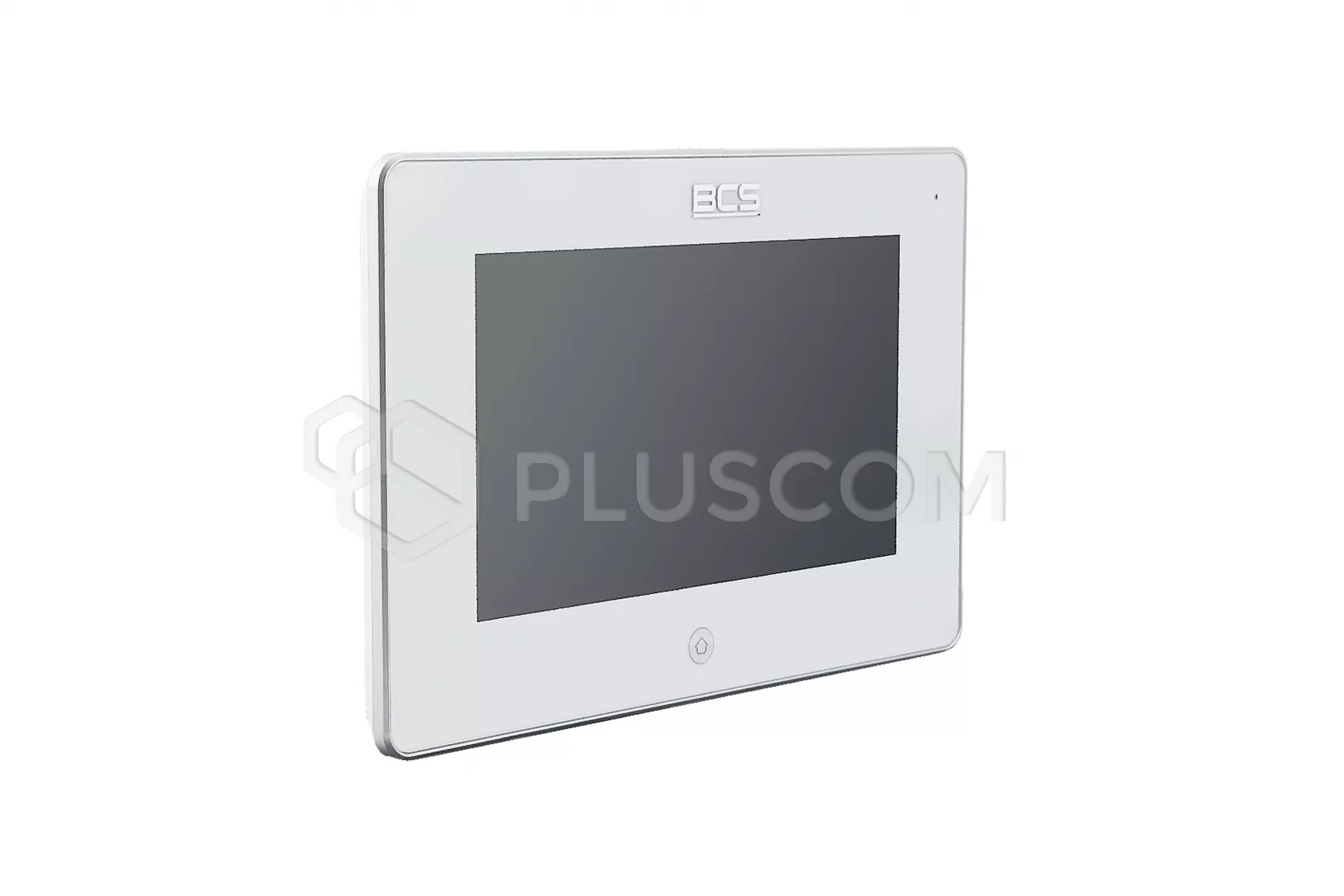

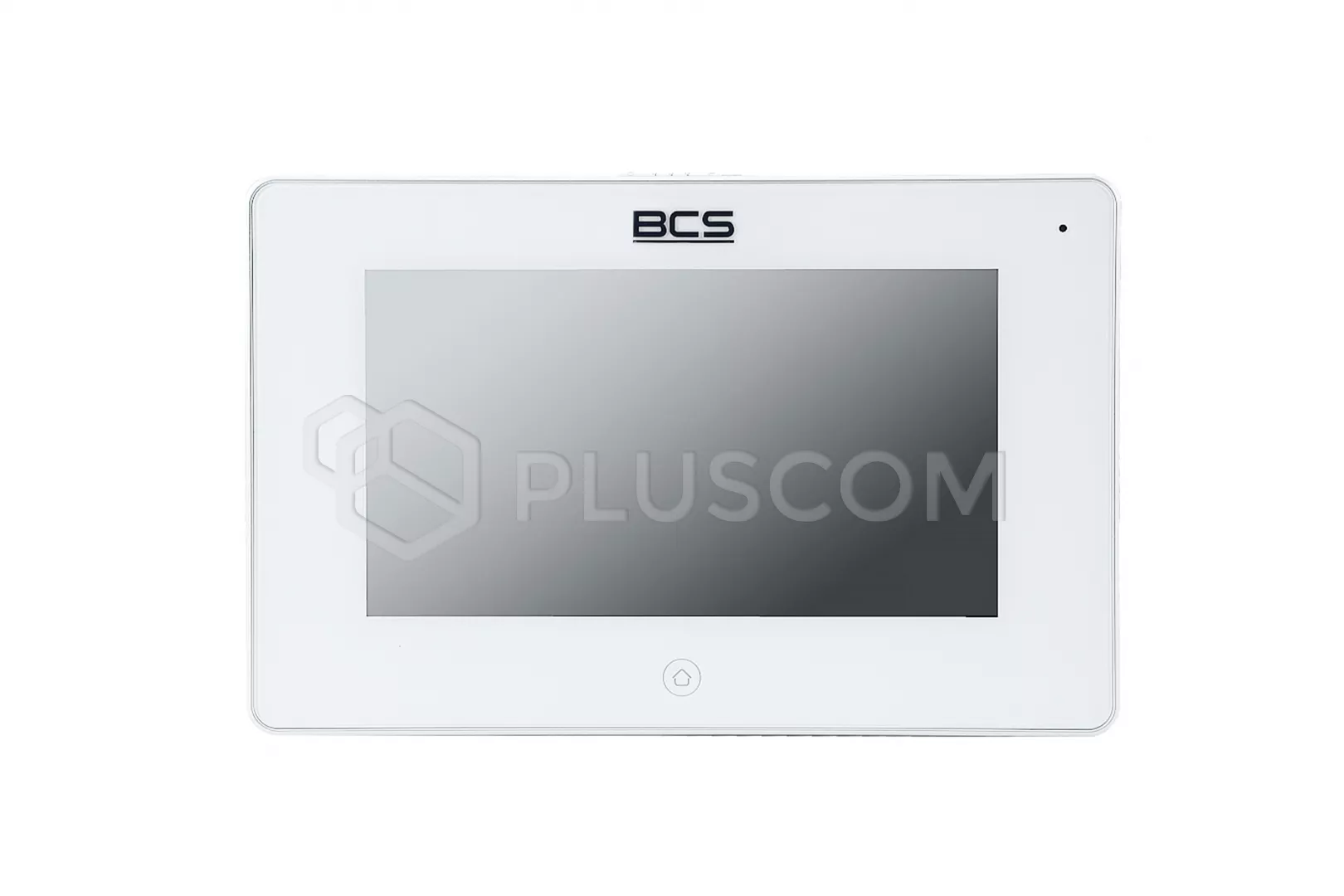

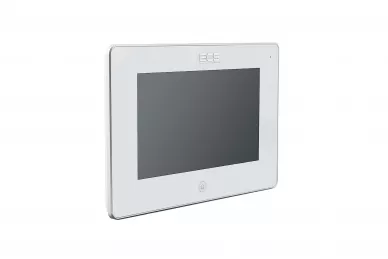

The BCS-MON7300W-S monitor is an elegant indoor panel that is equipped with a touch capacitive screen with a diagonal of 7 ''. It has a graphic interface and sensory quick access buttons for local management.

The device is compatible with all TCP / IP / SIP external panels BCS brand, provided that the entire system is used with the firmware from this same generation (v1.0 / 3.120 or 4.0 / 4.3 SIP).

SPECIFICATION
  • Hands-free IP video intercom monitor, white housing
  • Touch capacitive TFT screen with 7 "diagonal
  • Menu in Polish or English
  • The monitor is managed via a graphical interface and 5 quick select buttons
  • Built-in list of tenants and a list of connections
  • Ability to save photos and recordings from external panel cameras
  • Automatic recording of images of callers on the memory card
  • Alarm function enabling connection of 6 NO / NC sensors, division into zones, history logs
  • The ability to display the image from IP cameras (BCS Line, Point and Onvif, 32 cameras for each monitor)
  • Expansion up to 10 monitors and 10 external panels in the same house
  • Audio intercom function between all monitors in the same house

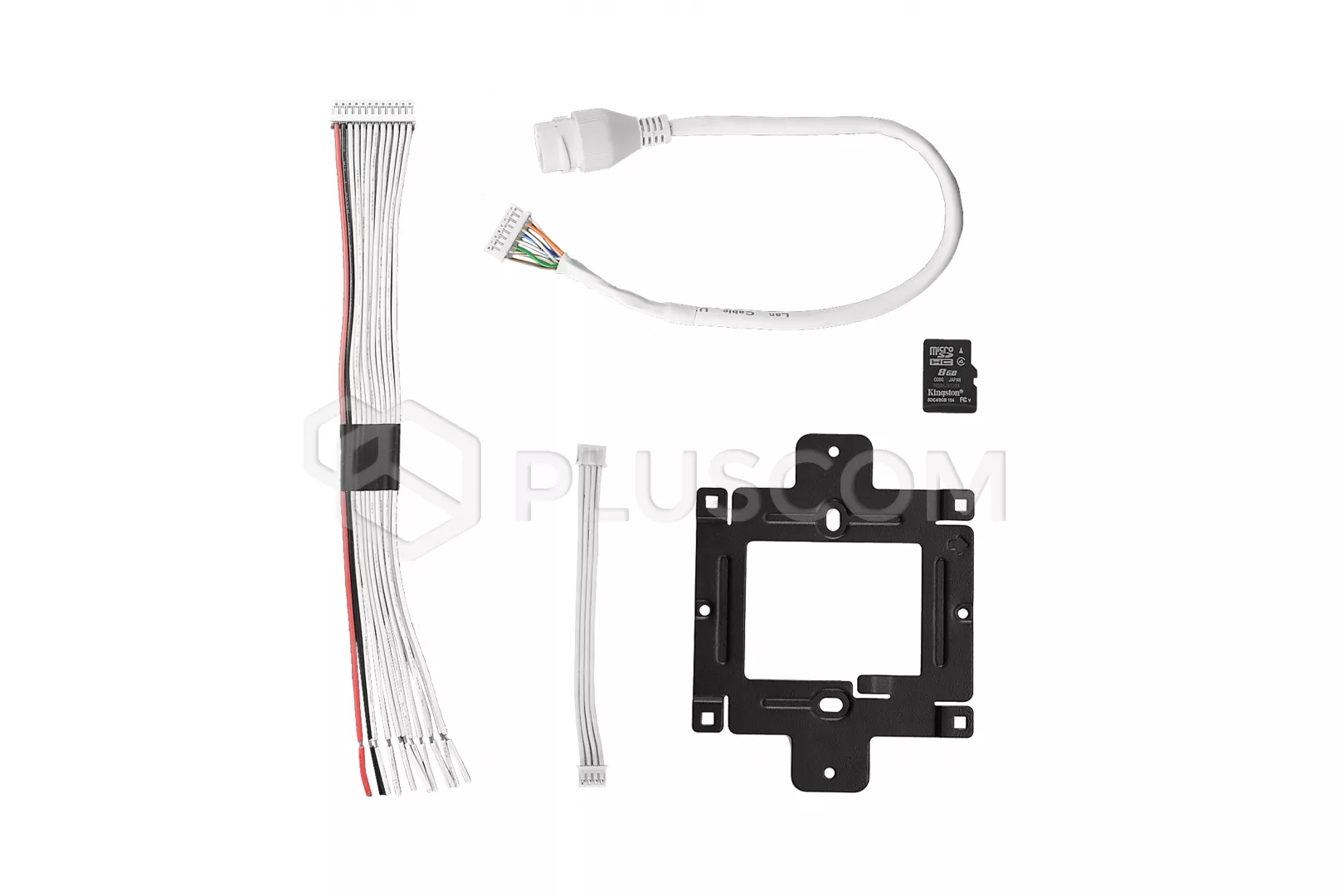

  • Surface mounting, mounting base included a set
  • Relay / 2 relay control (applies to a compatible panel with the BCS-MODKD2 relay module) from the monitor level during a call, conversation and preview of a doorphone or other IP camera
  • It is possible to switch during the call / talk image from the doorphone camera to another indicated IP camera and return to the doorphone camera at any time
  • Support for single-family and modular panels, changing the date and time from the monitor menu
  • Local 12VDC power supply, 48V PoE support (802.3 af)
  • Slot for micro SD memory card (max 32GB), 8GB microSD card included a set
  • New graphical interface, 1024x600 screen resolution
  • Built-in alarm output COM, NO, intended for the Alarm function
  • It is possible to assign different ringtones for inputs (2 melodies)
  • Adjustment of the microphone and speaker sensitivity
  • Door bell function
  • LED indication of missed calls
Download
Datasheet 0.54 MB
CE Declaration 1.26 MB
Manual 5.42 MB
