BCS-PAN1300B-S One-family IP outdoor panel

BCS-PAN1300B-S One-family IP outdoor panel

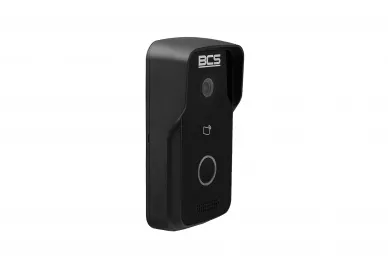

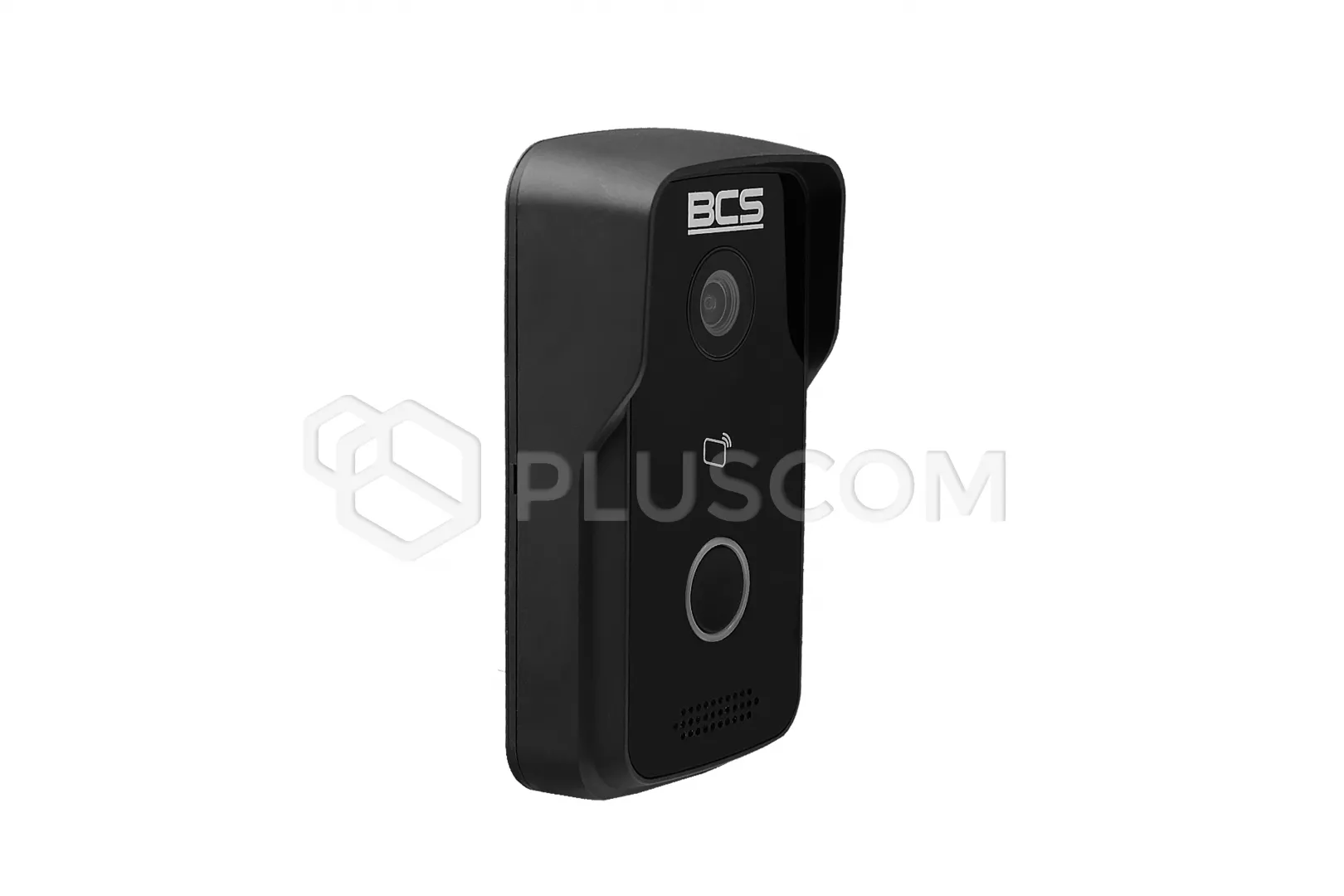

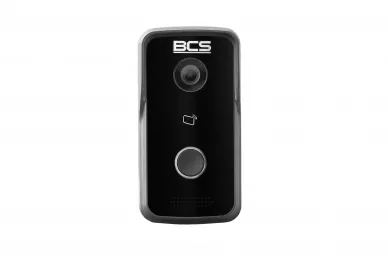

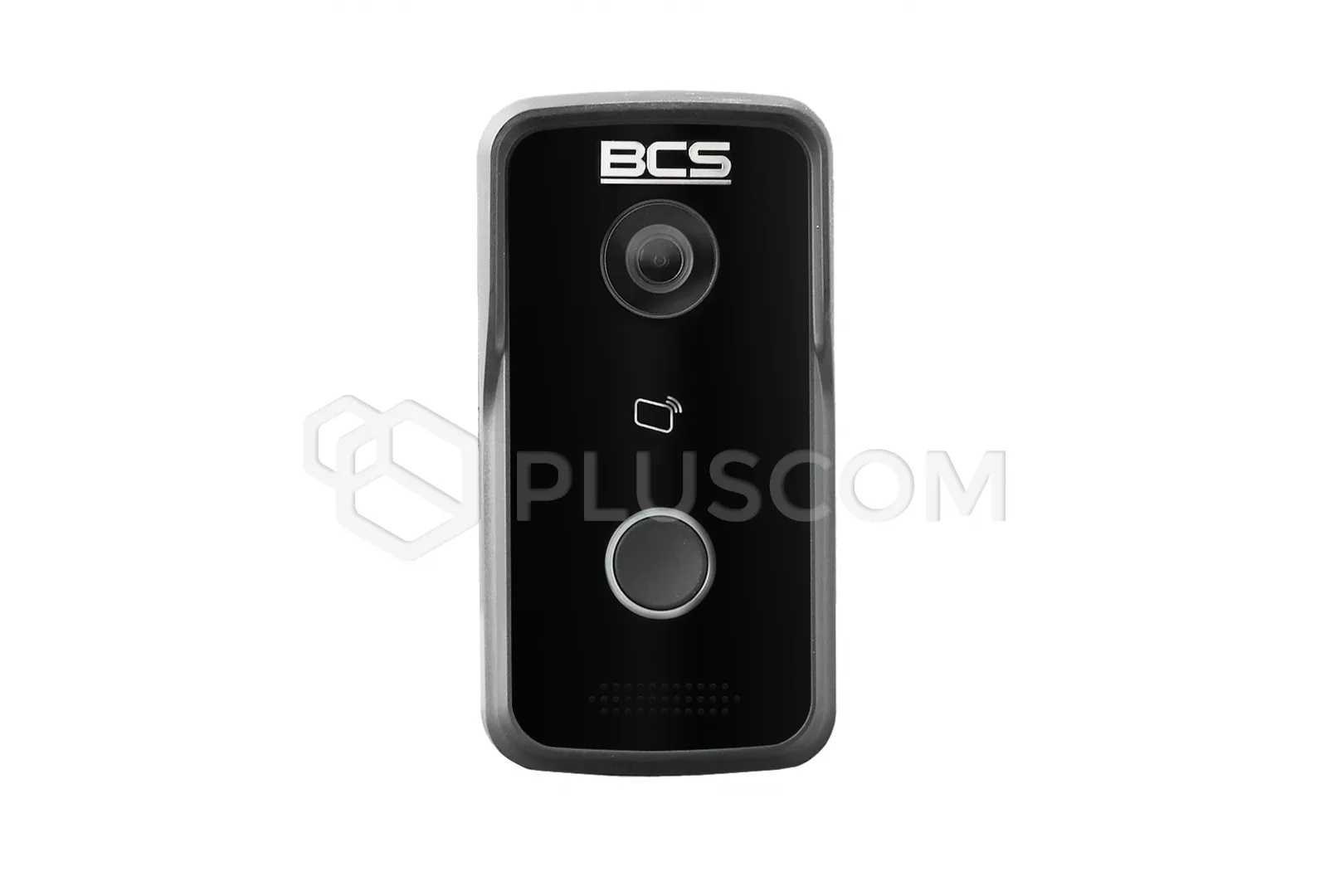

BCS-PAN1300B-S is an external IP video intercom panel with one button call, equipped with a 1/4 '' CMOS camera with ICR illuminator and lens 2.2mm, PoE powered (802.3at / af or passive).

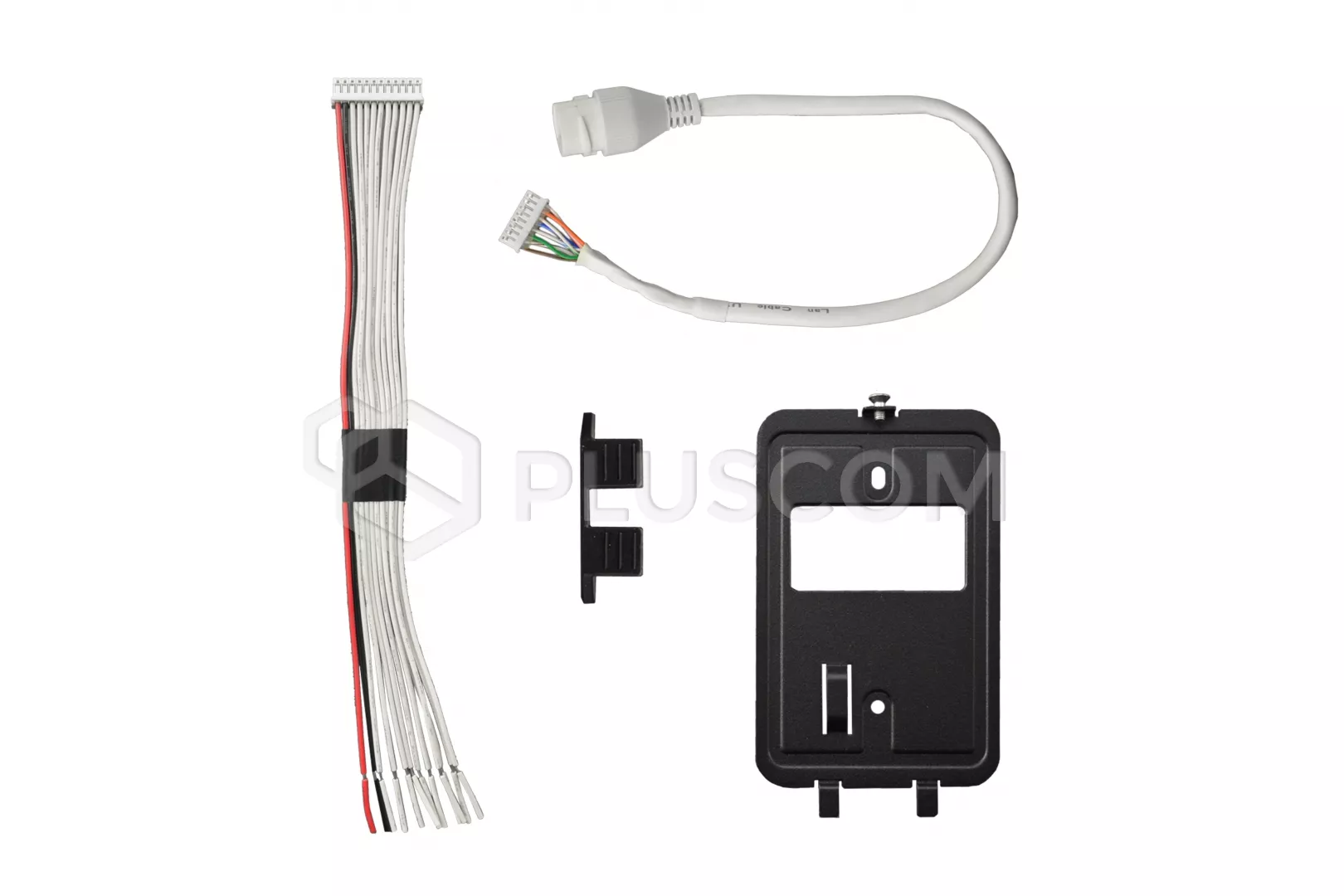

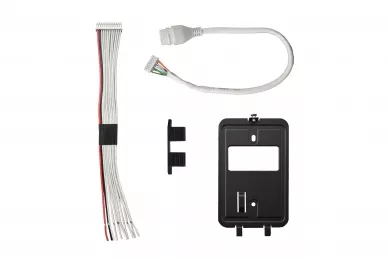

The panel for surface mounting using the base included in the set. It is recommended to seal the top and sides between the housing a mounting surface. In this way, we get the IP65 tightness class.

The operation of the device is facilitated by numerous built-in voice messages and management via a web browser (Web Service) and access to free BCS Line mobile application for iOS and Android.
The built-in Mifare 13.56MHz proximity reader facilitates and speeds up control a gate or a door.

FEATURES AND FUNCTIONS

• Built-in Mifare 13.56MHzF proximity reader
• Black housing made of plastic
• Surface mounting
• Compact dimensions: 135mm × 70.4mm × 34.4mm
• Camera 1/4 "1MP CMOS, illuminator ICR
• 2.2 mm lens
• Supported resolution: 720p / D1
• Compression of H.264 video
• G.711 audio compression
• Built-in Web Service - management using a web browser
• Built-in relay (C, NO, NC), operation of the exit button
• One mechanical call button with LED backlight
• Built-in voice prompts for easy operation
• The possibility of recording an audio-visual message for the tenant
• Automatically taking pictures of callers (recording on the video card of the video monitor)
• Local 12 or PoE 48V power supply (802.3af)
• Degree of protection IP54
• TCP / IP protocol, built-in Ethernet port
• Ability to operate using the free BCS Viewer Lite mobile application
• Picture recording on BCS POINT and LINE recorders
• Live view from the camera and adjustment of image parameters from the Web Service level
• Remote door opening from the level of Web Service, P2P, DST, NTP function
• RS485 output for connecting an additional BCS-MODKD2 relay module (available separately)
• Compatibility with all BCS IP video monitors
