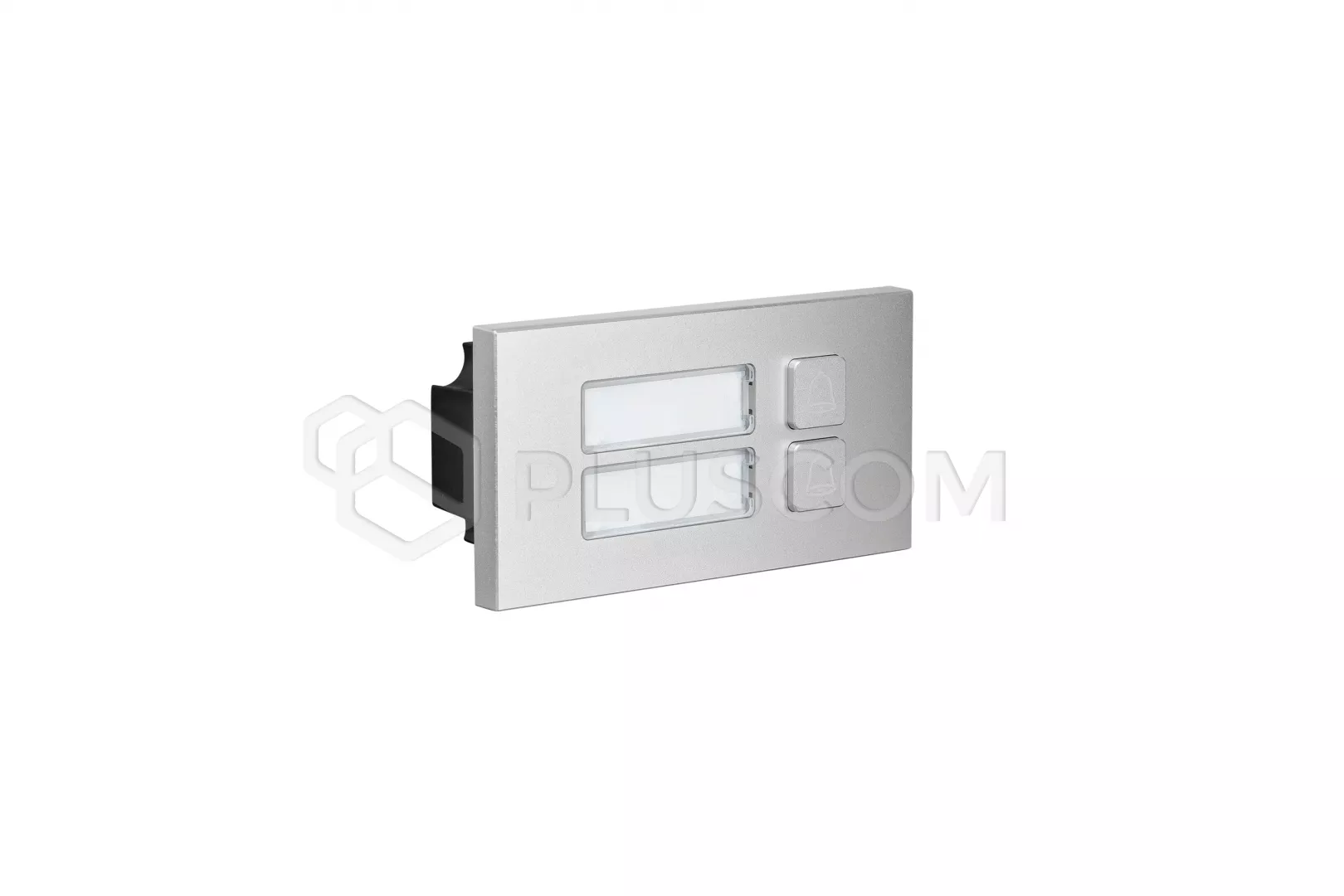

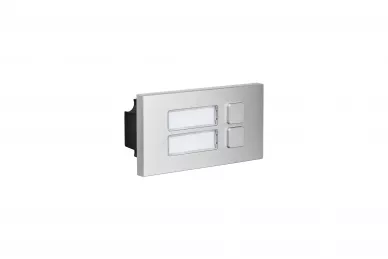

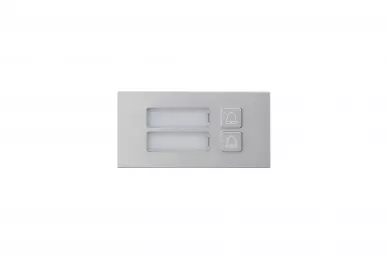

BCS-PAN-P2-N Slave module with 2 call buttons

61,97 EUR including 23.00% VAT
Product code: #22106
Manufacturer: BCS
  • The BCS-PAN-KAM-N camera module is required for operation
  • 2 call buttons
  • 2 slots for a card holder
  • Power supply and data transmission via BCS-PAN-KAM-N
  • IP65, IK07
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BCS-PPN2-N Surface / flush-mounted housing for the new modular system BCS-PAN-KAM-N Camera module for the system of modular IP panels BCS-RA3-N Triple frame for the new system of modular panels BCS-RA2-N Double frame for the new system of modular panels BCS-PPN3-N Surface / flush-mounted housing for the new modular system

BCS-PAN-P2-N Slave module with 2 call buttons


Single module with two call buttons and a place for a card holder IP BCS modular system. We can assign each button independently any calling code. The module allows you to extend the number of serviced apartments in system.
The front is made of anodized aluminum, which makes it very durable device, resistant to weather conditions.
BCS-PAN-P2-N is for mounting in two or three modular frames and strictly cooperates with the BCS-PAN-KAM-N camera module, thanks to which it is powered. Data transmission also takes place via the camera module.
Depending on the needs and the chosen frame, BCS-PAN-P2-N can be installed on or under plaster, horizontally or vertically.

TECHNICAL DATA
  • module size: single
  • number of call buttons: 2
  • power supply: DC5V, Provided by BCS-PAN-KAM-N
  • power consumption: ≤1W
  • module bus I / O: 1/1
  • programming: with Web Service built into the camera module
  • tightness class: IP65 - additional sealing
  • vandal resistance class: IK07
  • working temperature: -20 ° C ~ + 60 ° C
  • dimensions: 100 × 49.9 × 30.5mm
  • weight: 100g
Download
Datasheet 0.48 MB
CE Declaration 0.17 MB
