BCS-PAN-KAM-N Camera module for the system of modular IP panels

301,09 EUR including 23.00% VAT
Product code: #22103
Manufacturer: BCS
  • 1.95mm lens angle of view: H: 160°, V: 82°
  • Max. 8 mobile users
  • Support for up to 200 apartments
  • Management from a Web Service browser
  • TCP/IP/SIP protocols
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BCS-RA3-N Triple frame for the new system of modular panels BCS-RA2-N Double frame for the new system of modular panels BCS-PPN3-N Surface / flush-mounted housing for the new modular system BCS-PPN2-N Surface / flush-mounted housing for the new modular system BCS-PAN-C-N Slave proximity reader module

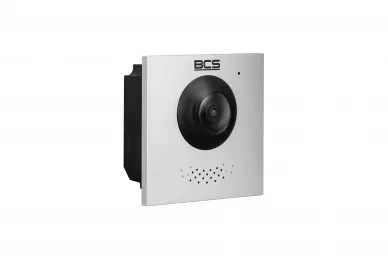

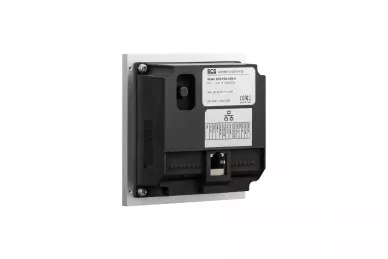

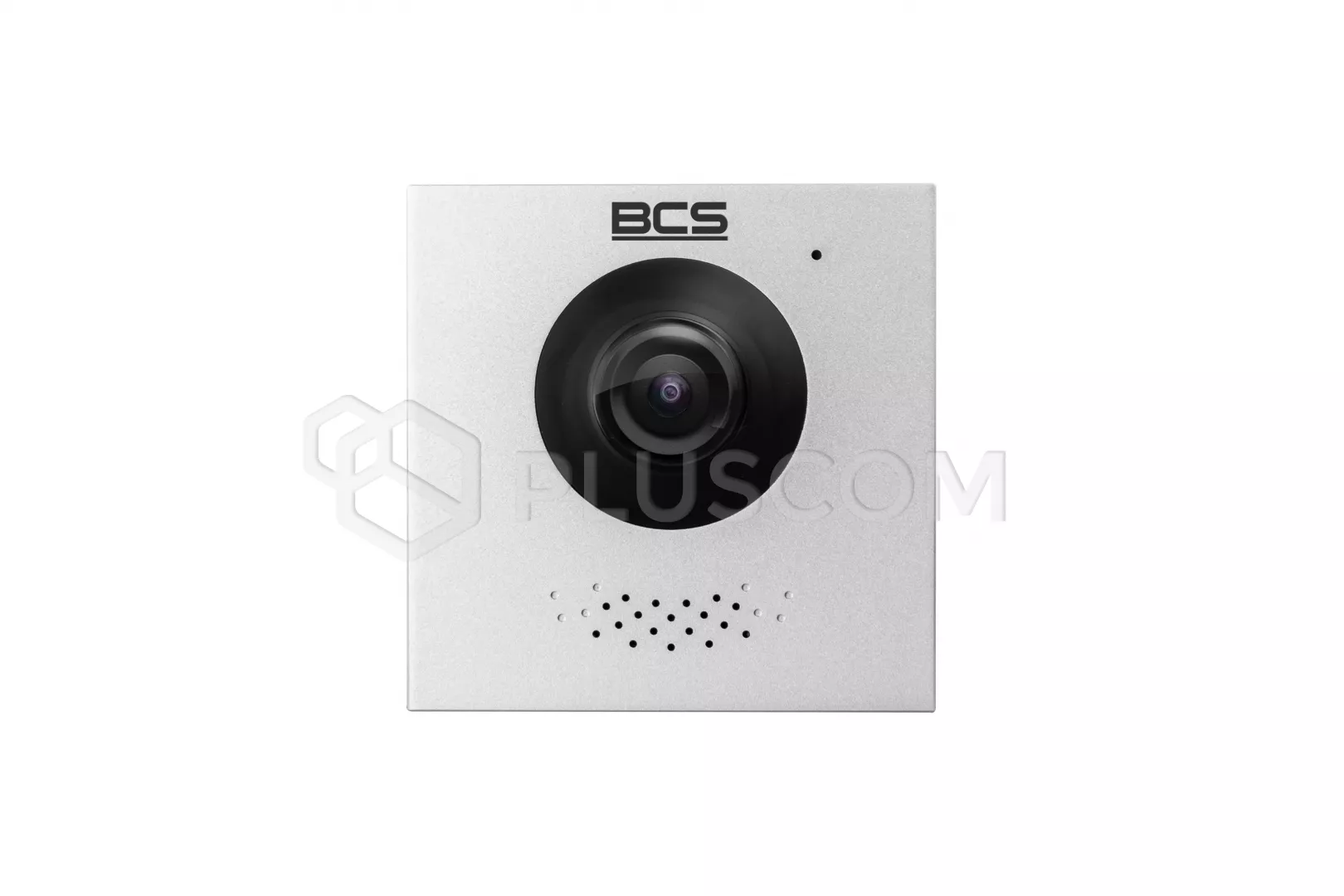

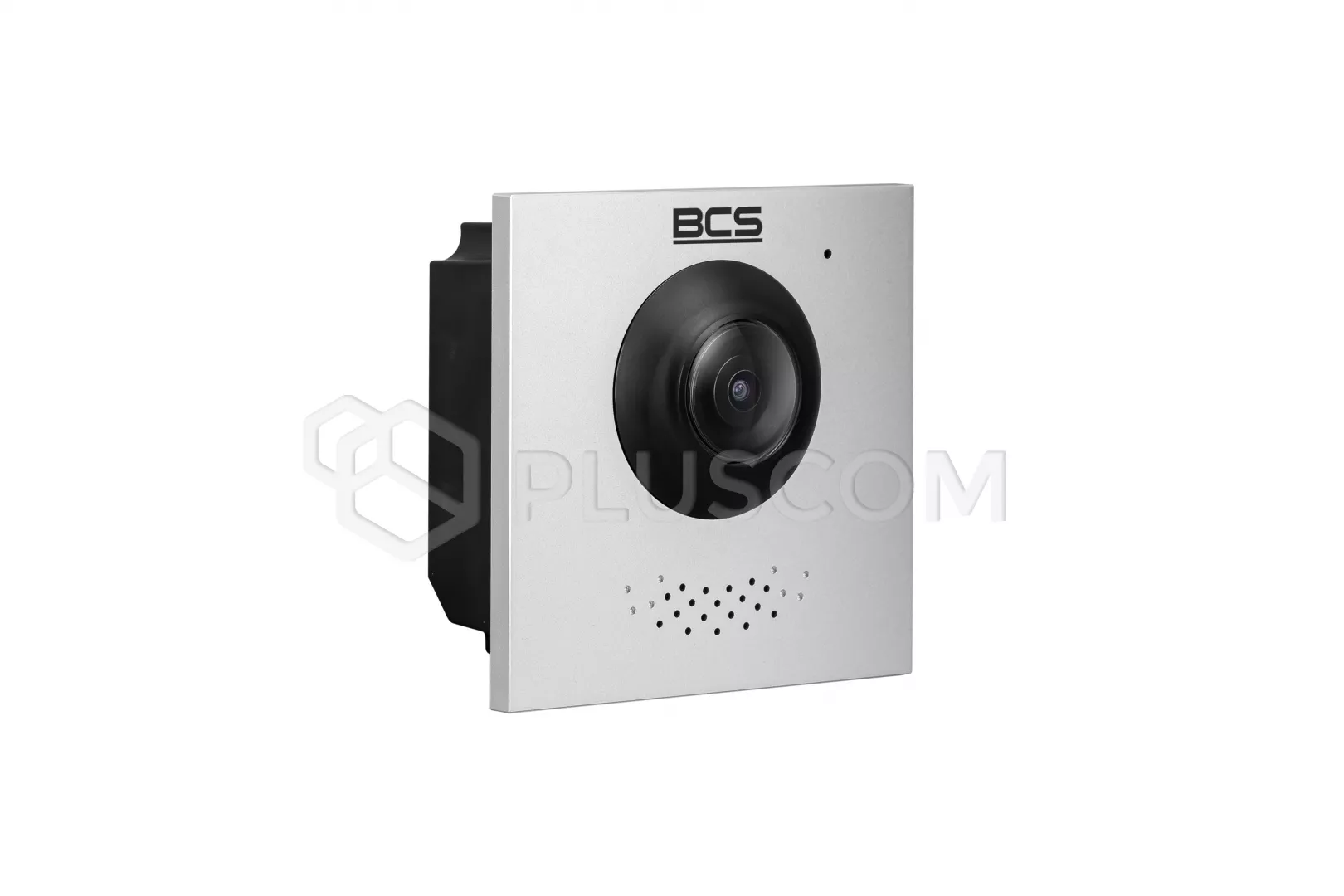

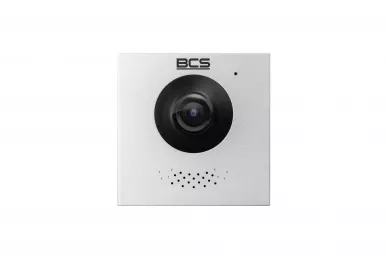

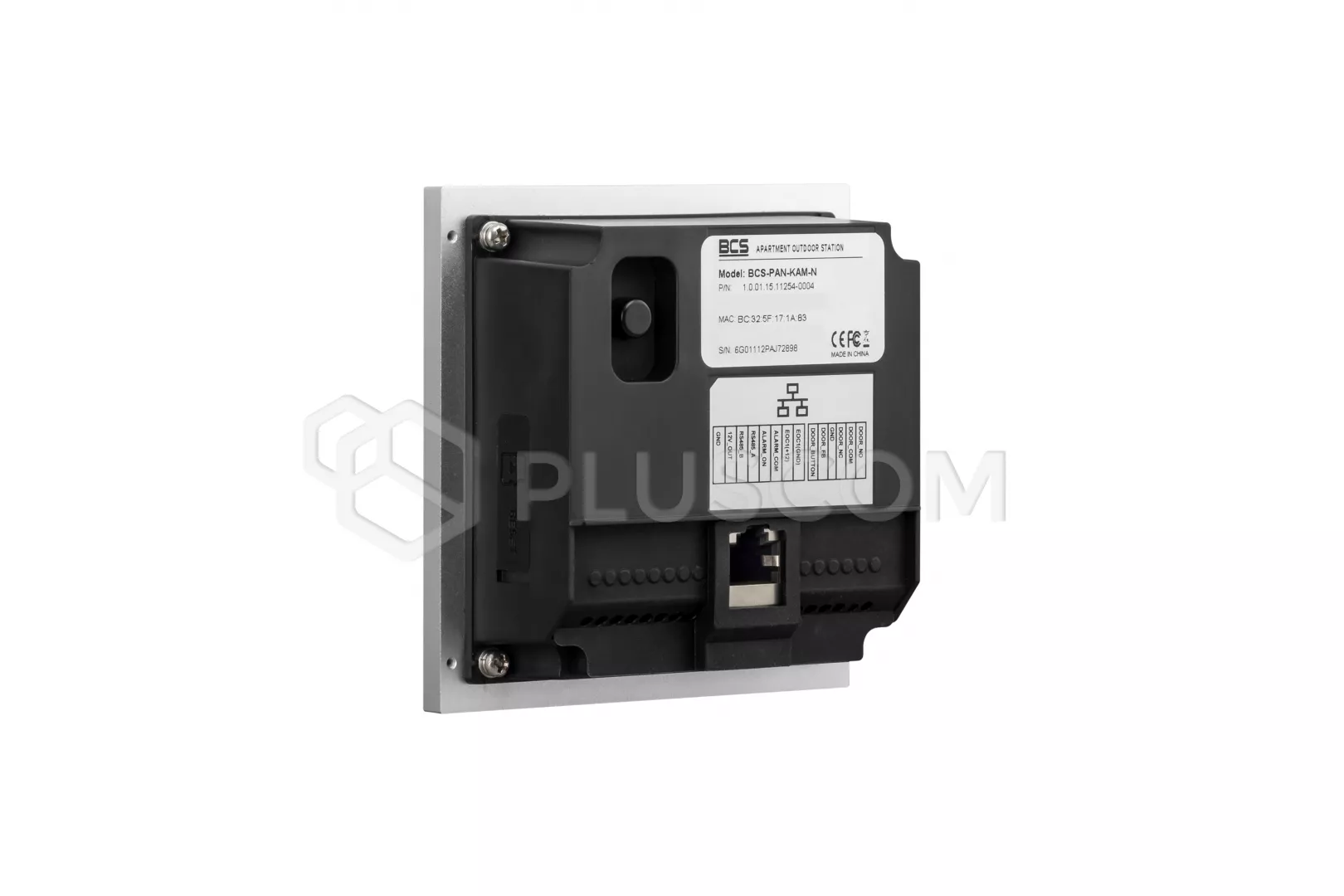

BCS-PAN-KAM-N Camera module for the IP modular panel system


The innovative camera module allows you to build a modern system IP video intercom tailored to the user's requirements.
The module has a built-in 1.2Mpix camera with 1.95mm lens and viewing angle 160 ° (horizontally) and 82 ° (vertically). 720p resolution and FISHEYE lens gives a good quality image, which makes it easy to recognize people.

CHARACTERISTICS
  • module size: double
  • possible installation in vertical or horizontal arrangement
  • installation: surface or flush mounting depending on the housing used (BCS-PPN2-N or BCS-PPN3-N)
  • built-in microphone and speaker
  • built-in web service, Polish or English
  • compatible with BCS-NVR / XVR Line series, and others (RTSP)
  • BCS Line mobile application (iOS, Android)
  • receiving audio-video calls from the panel and the possibility of independent opening the wicket and the gate with the mobile application
  • NO / NC / COM relay output
  • RS485 output for connecting an additional relay module BCS-MODKD2
  • module bus output (data + power)
  • 10/100 Mbps self-adaptive Ethernet port
  • anodized aluminum front, IK07
  • after applying additional sealing between the mounting frame, a wall surface, we obtain IP65 tightness
Download
Datasheet 0.57 MB
