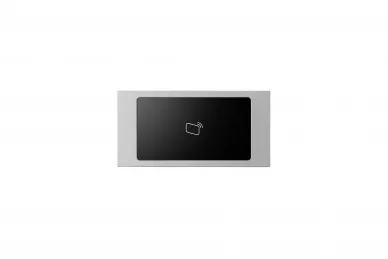

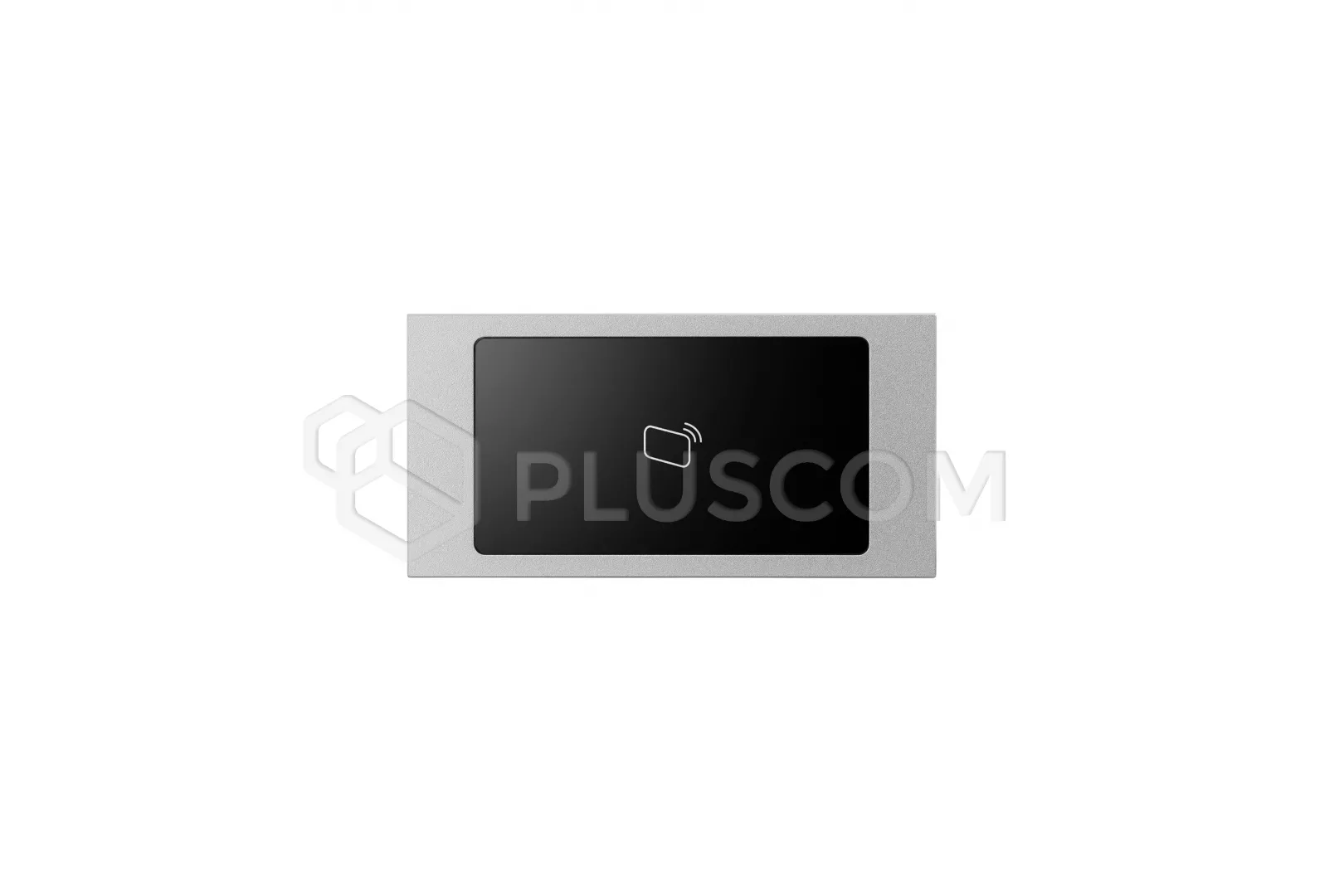

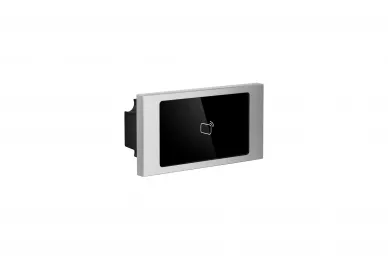

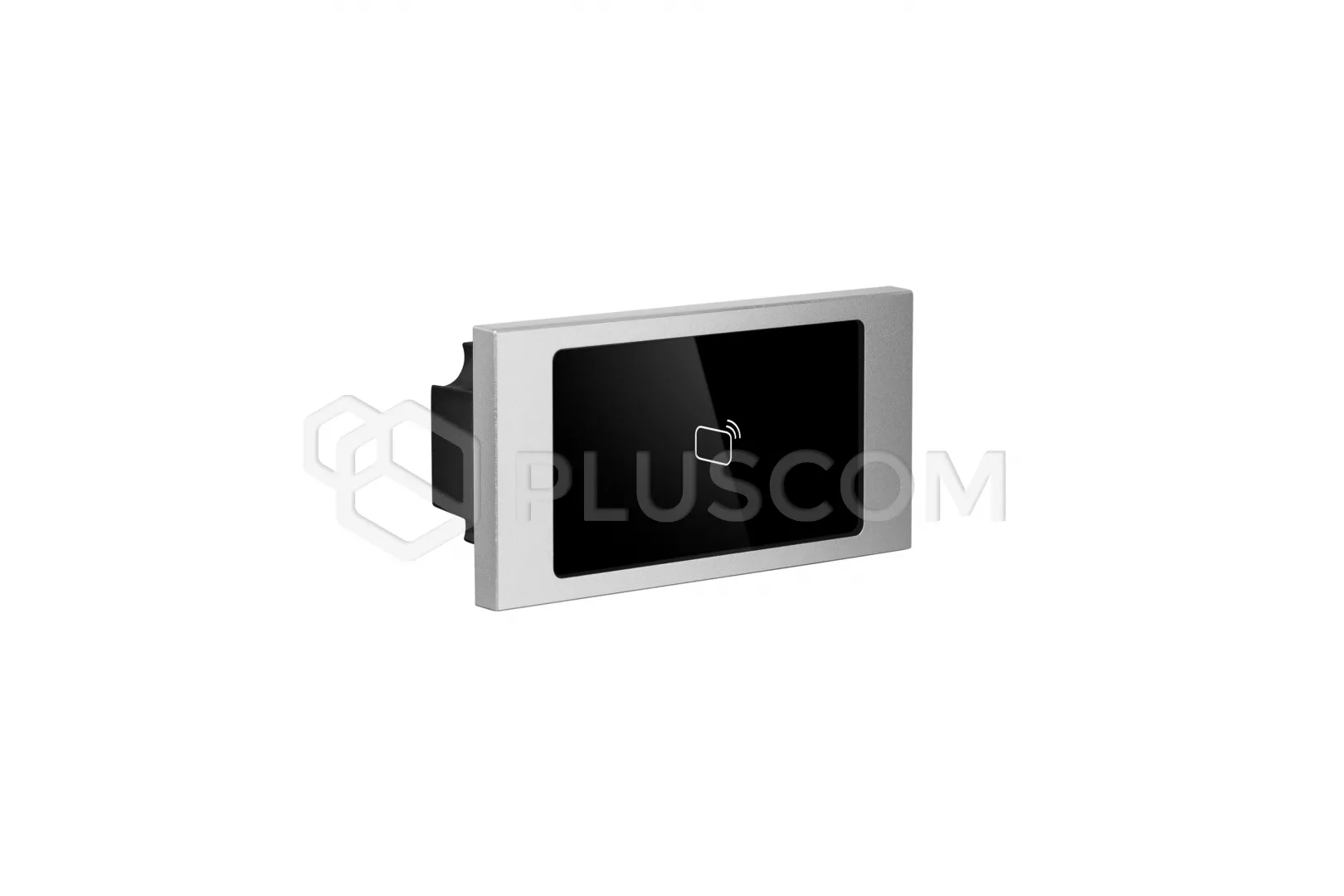

BCS-PAN-C-N Slave proximity reader module

61,97 EUR including 23.00% VAT
Product code: #22104
Manufacturer: Belden
  • The BCS-PAN-KAM-N camera module is required for operation
  • Frequency: Mifare 13.56MHz
  • Support for up to 10,000 users
  • Power supply and data transmission via BCS-PAN-KAM-N
  • IP65, IK07
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Proximity keyring BCS-BZ1 BCS-PAN-KAM-N Camera module for the system of modular IP panels BCS-KZ-M1 Proximity card BCS-RA3-N Triple frame for the new system of modular panels BCS-RA2-N Double frame for the new system of modular panels

BCS-PAN-C-N Sub module of the Mifare 13.56MHz proximity reader


Proximity reader module for the IP BCS modular system. Made of anodized aluminum, which gives a very durable device, resistant to conditions atmospheric.
The reader is dedicated to be installed in two or three modular frames and strictly it works with the BCS-PAN-KAM-N camera module, thanks to which it is powered. Data transmission also takes place via the camera module.
Depending on the needs and the chosen frame, BCS-PAN-C-N can be installed on or under plaster, horizontally or vertically.

TECHNICAL DATA 586/5000
  • type of supported cards: Mifare 13.56 MHz
  • transponders: BCS-BZ1, BCS-KZ-M1
  • capacity: 10,000 cards
  • module bus I / O (data and power): 1/1
  • module size: single
  • power and communication: DC5V, communication via modules cameras
  • power consumption: ≤1W
  • working temperature: -20 ° C ~ + 60 ° C
  • protection class: IP65 (additional sealing required)
  • mechanical resistance: IK07
  • weight: 90g
  • dimensions: 100x49.9x28.5mm
