BCS-PAN-K-N Button moule

165,03 EUR including 23.00% VAT
Product code: #22105
Manufacturer: BCS
  • The BCS-PAN-KAM-N camera module is required for operation
  • Mechanical buttons with Braille designation
  • Number of serviced apartments: 200
  • Power supply and data transmission via BCS-PAN-KAM-N
  • Code lock function
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
BCS-MODKD2 Access control module BCS-RA3-N Triple frame for the new system of modular panels BCS-RA2-N Double frame for the new system of modular panels BCS-PPN3-N Surface / flush-mounted housing for the new modular system BCS-PPN2-N Surface / flush-mounted housing for the new modular system BCS-PAN-KAM-N Camera module for the system of modular IP panels

BCS-PAN-K-N Button moule

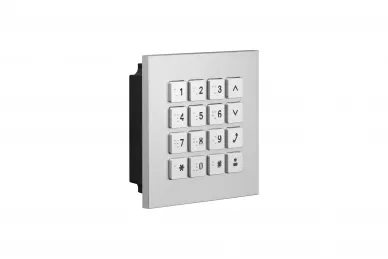

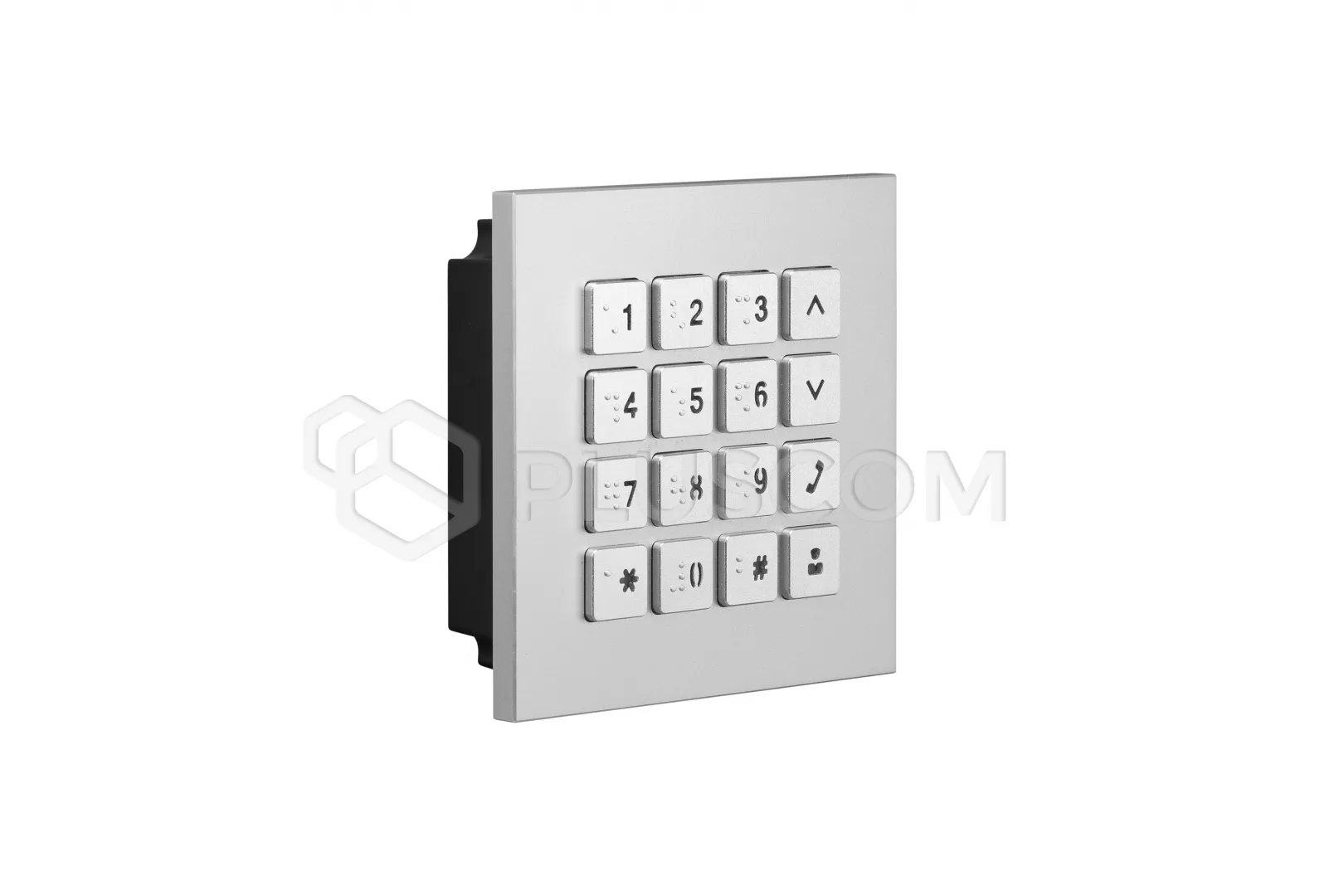

Keypad module for the IP BCS modular system. Made of anodized aluminum, which gives a very durable device, resistant to weather conditions.
The keyboard is dedicated to installation in two or three modular frames and works closely with the BCS-PAN-KAM-N camera module, thanks to which it is powered. Data transmission also takes place via the camera module.
Depending on the needs and the chosen frame, BCS-PAN-K-N can be installed on or under plaster, horizontally or vertically.

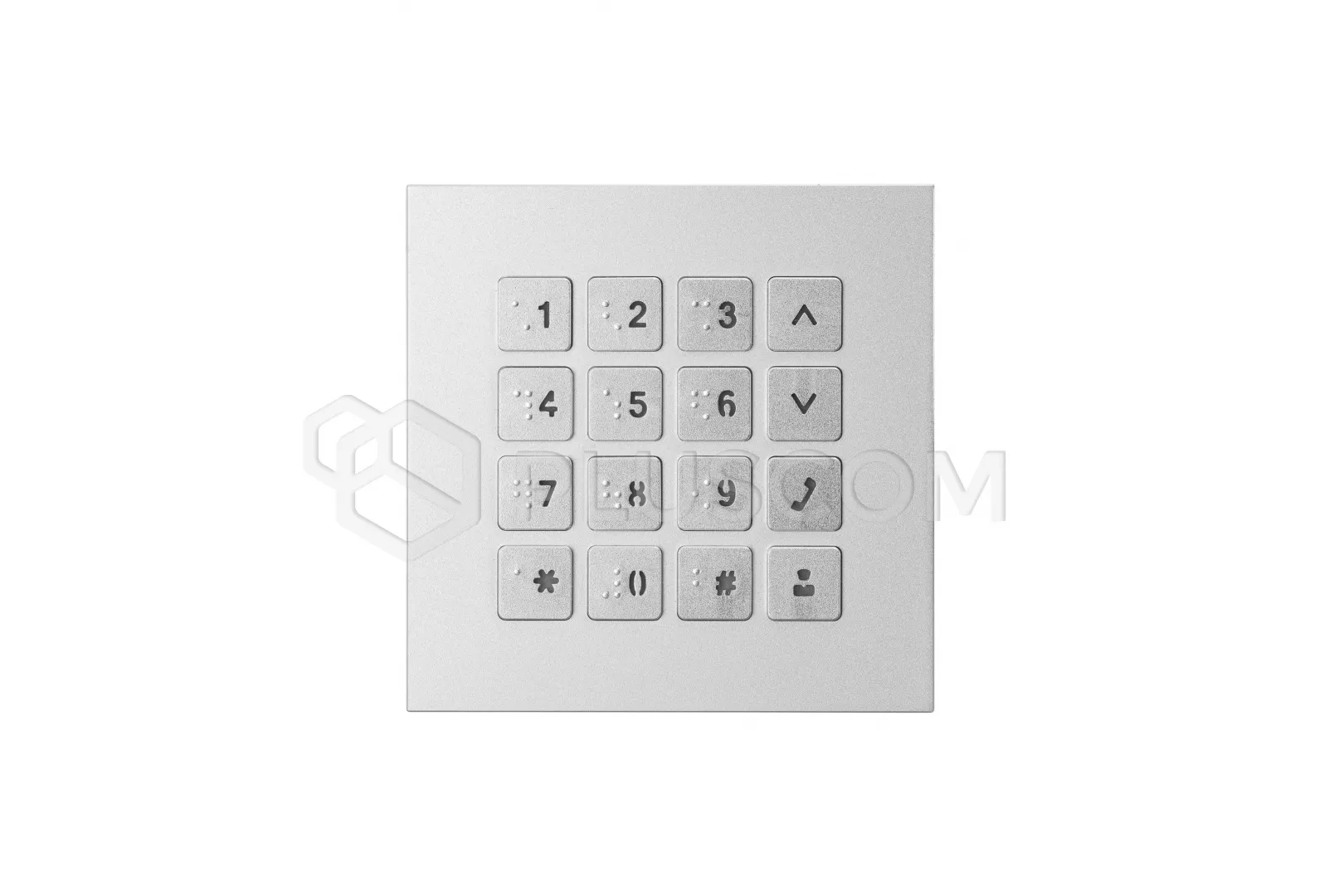

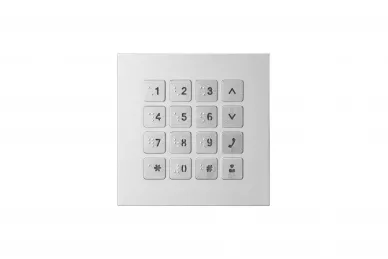

The module has 16 illuminated buttons marked in the alphabet Braille`a.

FEATURES
  • programming individual opening codes for each place with Web Service
  • function of calling any apartment in the system
  • power supply and programming via the BCS-PAN-KAM camera module
  • 1 input and 1 output for module bus
  • device ports secured with an additional rubber gasket
TECHNICAL DATA
  • module size: double
  • module type: slave (requires the BCS-PAN-KAM-N camera module to work)
  • number of supported opening codes: 50 to 200 6-digit door opening codes (depending on the firmware version)
  • number of serviced apartments: 200 (external panel as a SIP server)
  • inputs: 1x module bus input (data and power)
  • outputs: 1x module bus output (data and power)
  • power supply: 5V DC
  • power consumption: ≤ 1W
  • working temperature: -20 ° C ~ + 60 ° C
  • housing: anodized aluminum, plastic
  • tightness class: IP65 (after applying additional sealing between the mounting frame and wall surface)
  • mechanical resistance class: IK07
  • dimensions: 100x100x31 mm
