BCS-MON7400B-S video intercom monitor, black

BCS-MON7400B-S video intercom monitor, black

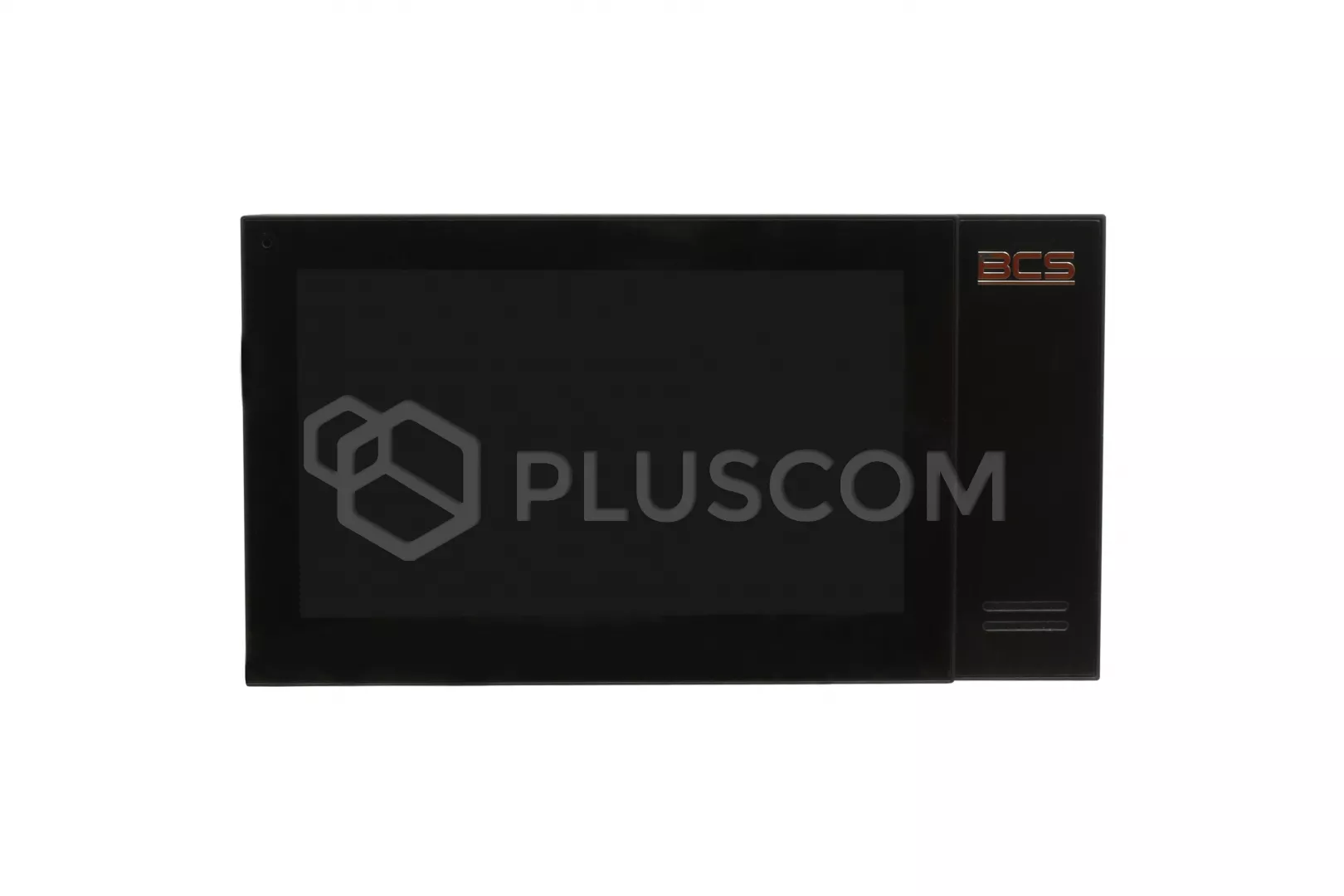

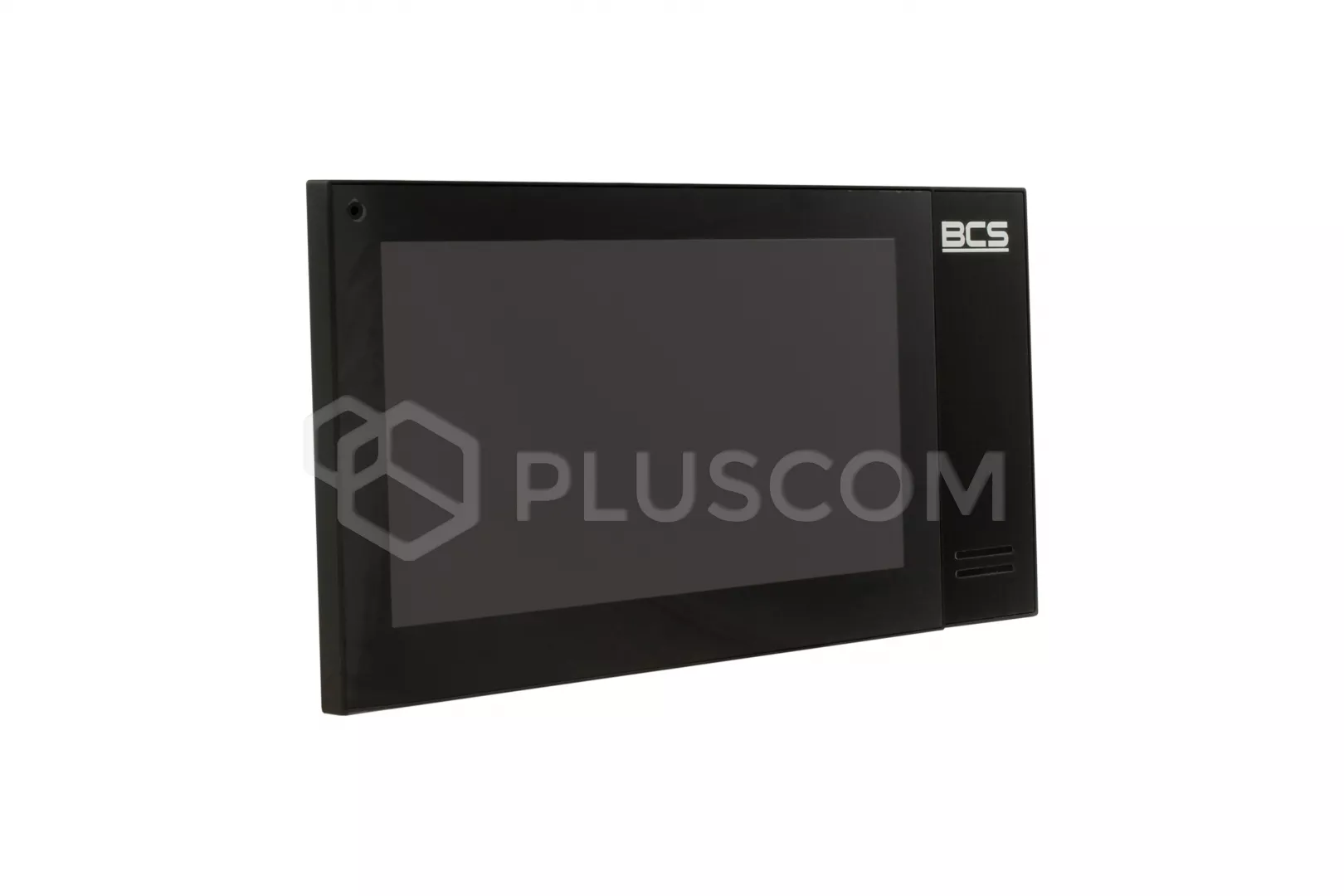

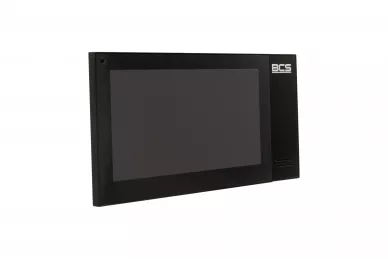

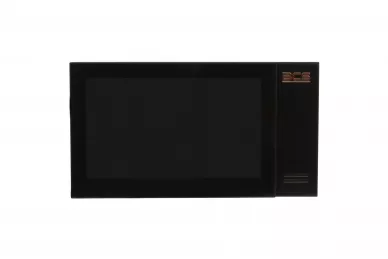

The BCS-MON7400B-S hands-free monitor is an elegant indoor panel that is equipped with a 7 '' capacitive touch screen. Management is done via a graphical interface.

The device is compatible with all TCP / IP / SIP external panels BCS brand, provided that the firmware version 4.3 is used in the entire system SIP or higher.

The video intercom has:

• screen resolution 1024x600
• built-in 8GB microSD memory card (upgrade to max 32GB)
• built-in list of tenants and list of connections
• automatic saving of photos on memory card in case of missed delivery connections
• Alarm function for connecting 6 NO / NC sensors, division into zones, history
• expansion to 10 monitors and 10 external panels, including the same the premises
• audio intercom function between all monitors on the same building
• additional functions: auto-opening, door bell function, DND (function do not disturb, daily / weekly schedule)
• relay / two relays control (for compatible external panel with the BCS-MODKD relay module2) from the monitor in during the call and during the conversation
• built-in relay output COM, NO - two operating modes (duplicate calls or manual control)
• adjustable microphone and loudspeaker sensitivity
• it is possible to assign different bells for inputs (2 melodies)
• possibility to save photos and recordings from cameras of external panels on the card memory (manually operated)
• possibility of displaying images from IP cameras in 720p resolution (BCS Line and Onvif, 32 cameras per monitor)
• the ability to switch the image from the intercom camera during the call / conversation to another indicated IP camera and return to the intercom camera in any moment
• can be mounted using an additional BCS-MON-P desk stand (available separately)
