Basic4G-BOX LTE module + AT-GSM-MINI90 kit

123,39 EUR including 23.00% VAT
Product code: #40938
Manufacturer: Ropam
  • 12V power supply
  • Built-in LTE 4G/2G modem
  • NanoSIM card slot
  • Supports up to 8 voice messages
  • SMA antenna socket
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

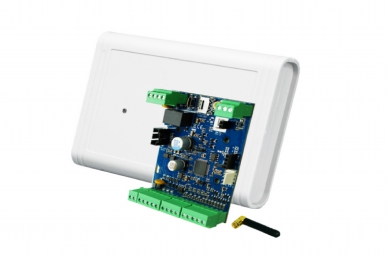

Basic4G-BOX LTE module + AT-GSM-MINI90 kit


Notification and control module with alarm control panel functions. The built-in LTE modem enables data transmission using 4G and 2G technologies. Thanks to its modular design, it can be expanded with an EXP-RF radio receiver.
BasicLTE can operate independently or as an extension of other systems.

The kit includes:

  • Basic4G communication module
  • AT-GSM-MINI90 antenna
  • Surface-mounted housing

FEATURES:

  • Alarm module – alarm control panel functions
  • Intuitive visualization and control of alarm control panels
  • Built-in LTE modem supporting 4G and 2G networks (LTE-FDD: B1/B3/B5/B7/B8/B20/B28, GSM: 850/900/1800/1900 MHz)
  • Event notifications via: SMS/CALL/EMAIL
  • Remote control via: SMS/CLIP/DTMF
  • Supports up to 8 users: 8 phone numbers, 8 email addresses
  • Can be expanded with an EXP-RF radio receiver, allowing the module to be controlled using TR-4H series remote controls.
  • Memory for up to 1000 events with overwriting.
  • Supports TSR and RHT-2 series temperature and humidity sensors.
  • Automatic prepaid card monitoring with minimum balance notifications.
  • RTC clock, calendar, synchronization with LTE network or NTP servers.
  • BasicLTEManager configuration program for management:
    – local via micro USB.
    – remote via RopamBridge (LTE) server.
  • Built-in LogicProcessor for creating advanced logic and arithmetic functions.
    – 10 independent logical conditions.
    – 10 relays.
    – 4 calendar timers
  • Operation via the RopamBasic mobile app – activation required
  • GPRS monitoring for a security agency monitoring station, cooperation with an RMS or SIA-IP* station/server in preparation

Technical specifications:

  • Built-in LTE 4G/2G modem
  • Number of inputs: 8
    – 6 NO/NC inputs
    – 2 NO/NC or analog 0-10V/4-20mA inputs
  • FAC input for AC power control
  • Number of outputs: 4
    – 1 relay output
    – 3 OC outputs (0.7A)
  • Fuse-protected AUX power output (1A)
  • 4 timers with calendar
  • SMA antenna socket
  • Detachable terminal connectors
  • Supports up to 8 voice messages
  • MicroUSB port for programming and updates
  • NanoSIM card slot
  • 12V power supply
