AVO ATEL 324 Set of two 24V actuators for 3m swing gates with an interface
for control via an application

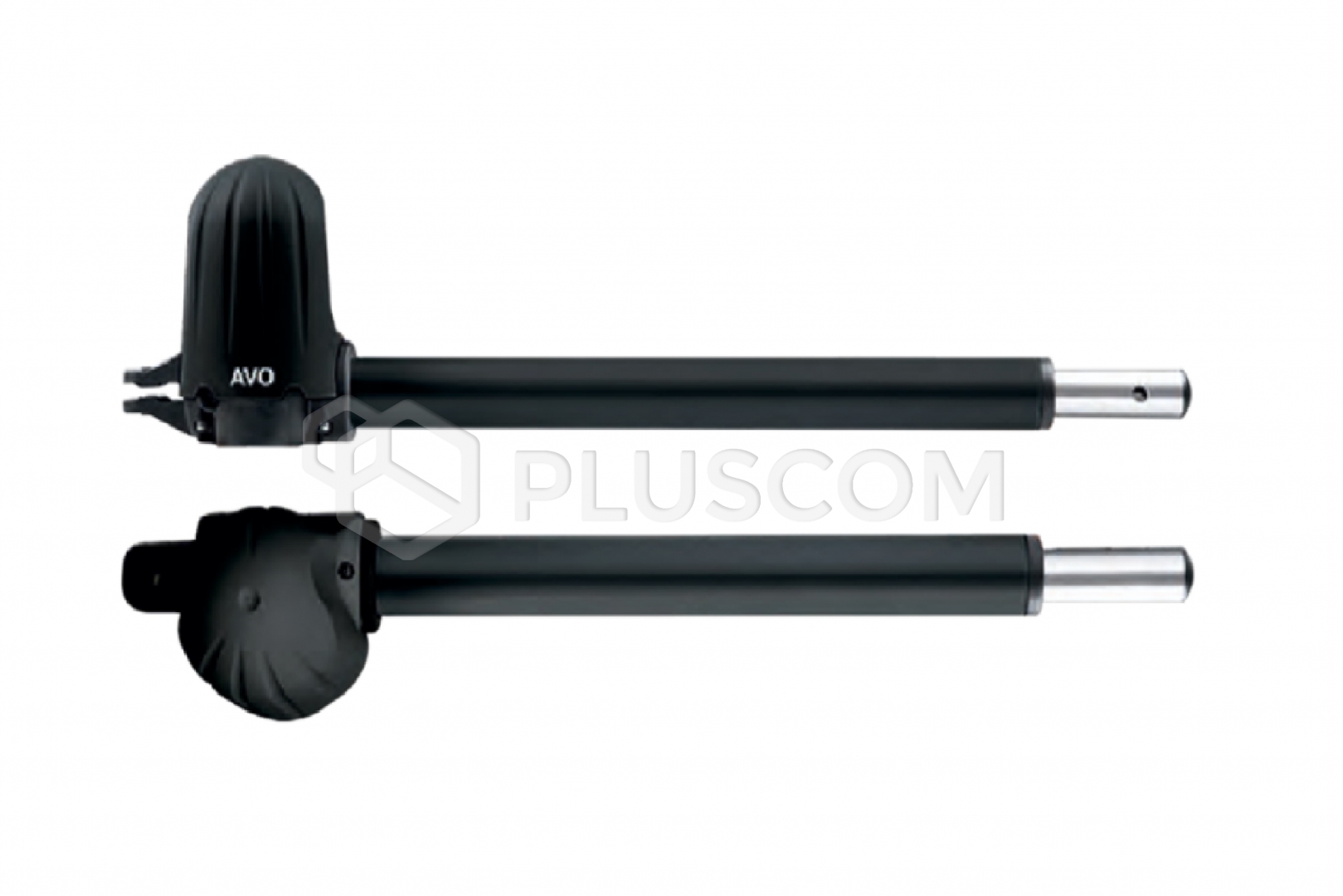

Electromechanical, self-locking 24V telescopic actuator for swing gates with a
leaf length of up to 3 m.

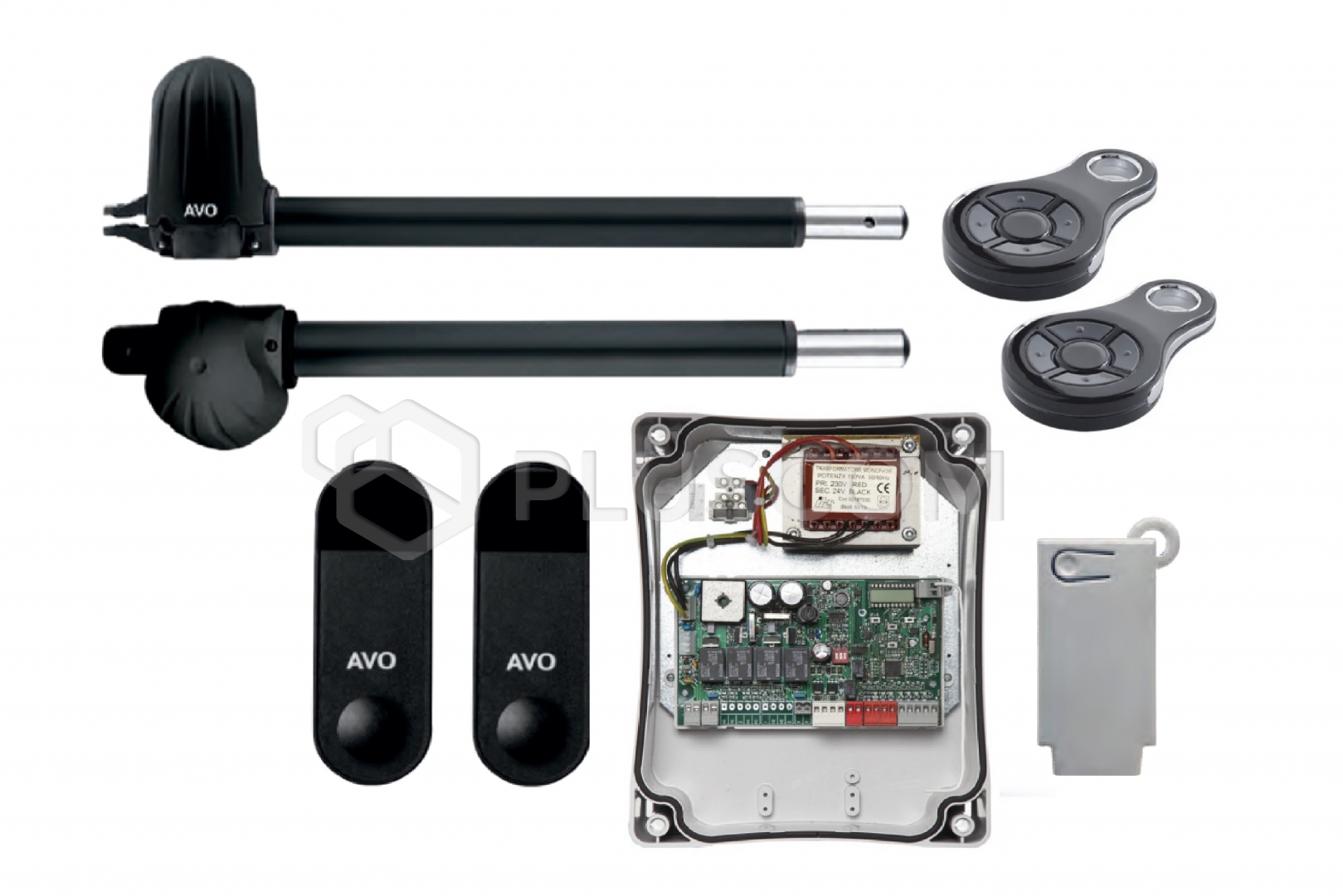

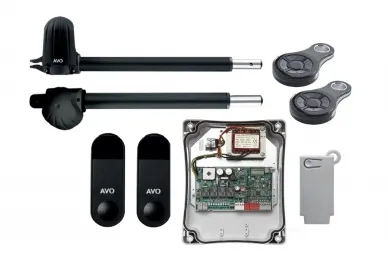

The kit includes:
- 2 ATEL 324 actuators
- ACT20224 control unit
- AFT180 photocells

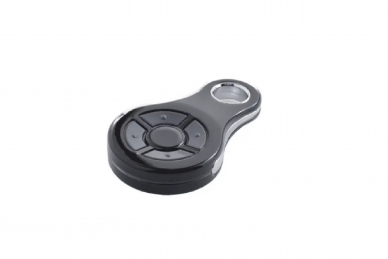

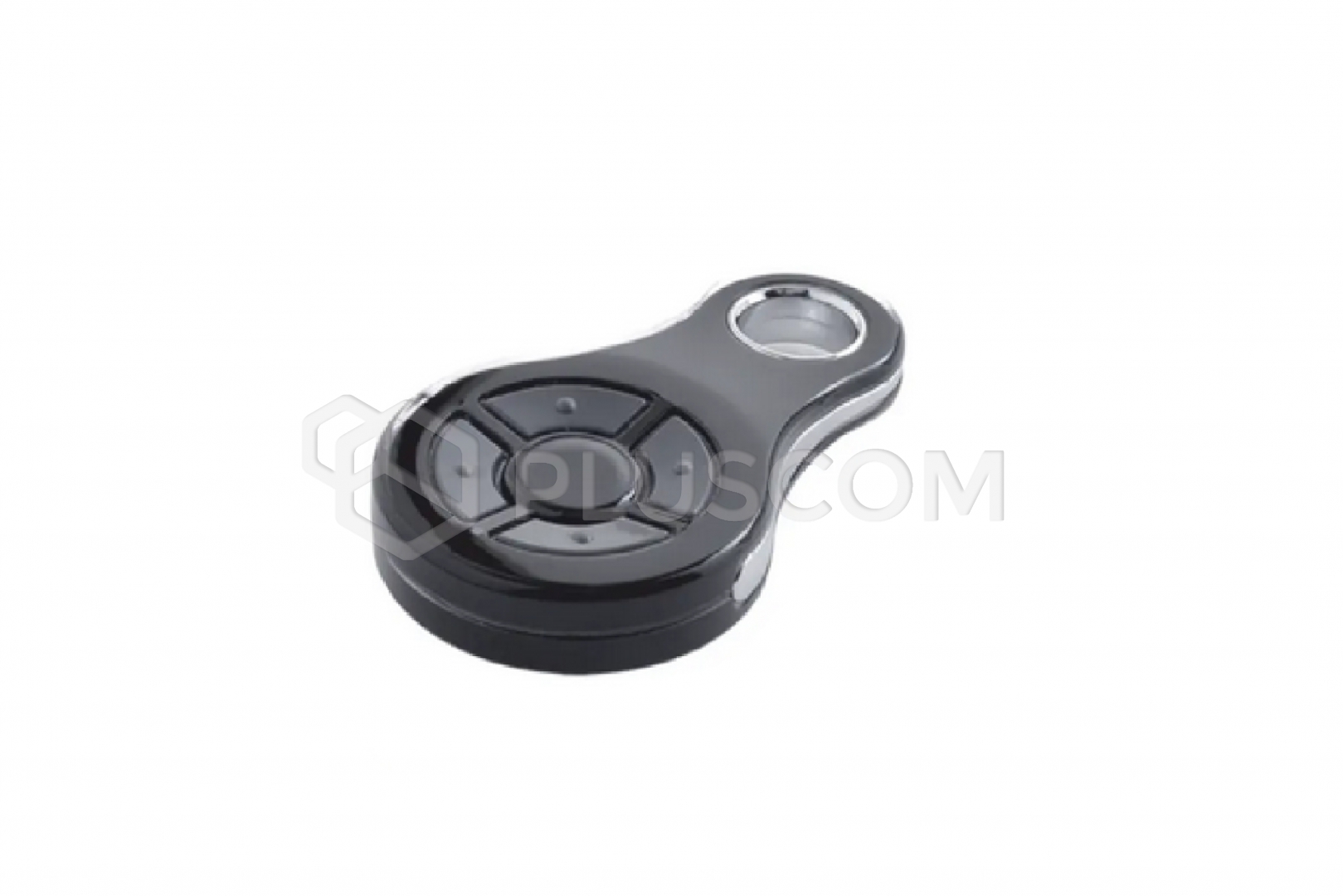

- 2 AVAK 4-channel remote controls
- Adjustable, screw-on mounting brackets
- KUBE interface for controlling the drive via an app
Innovative:
The new encoder-free design ensures easy programming and
enables soft start and slowdown (an external stop is required on closing).
This is another step forward in gate automation and ensures long-term,
trouble-free operation.
Durable:
Mechanical components protected against external factors,
robust metal release system, convenient and effective even in the most
difficult weather conditions (snow).

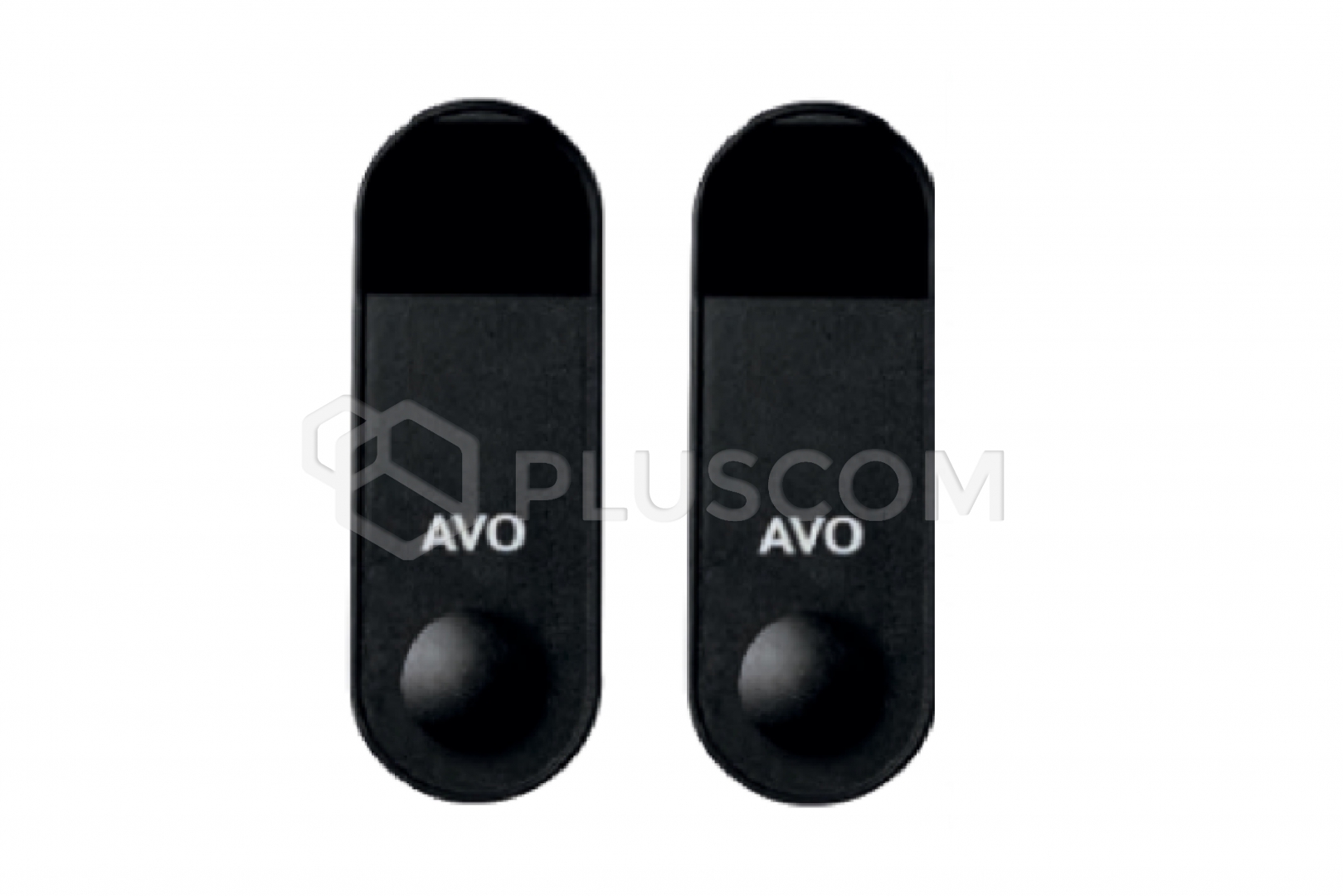

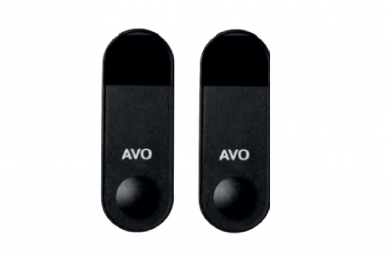

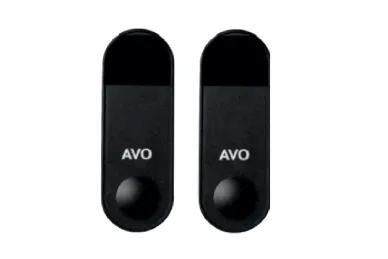

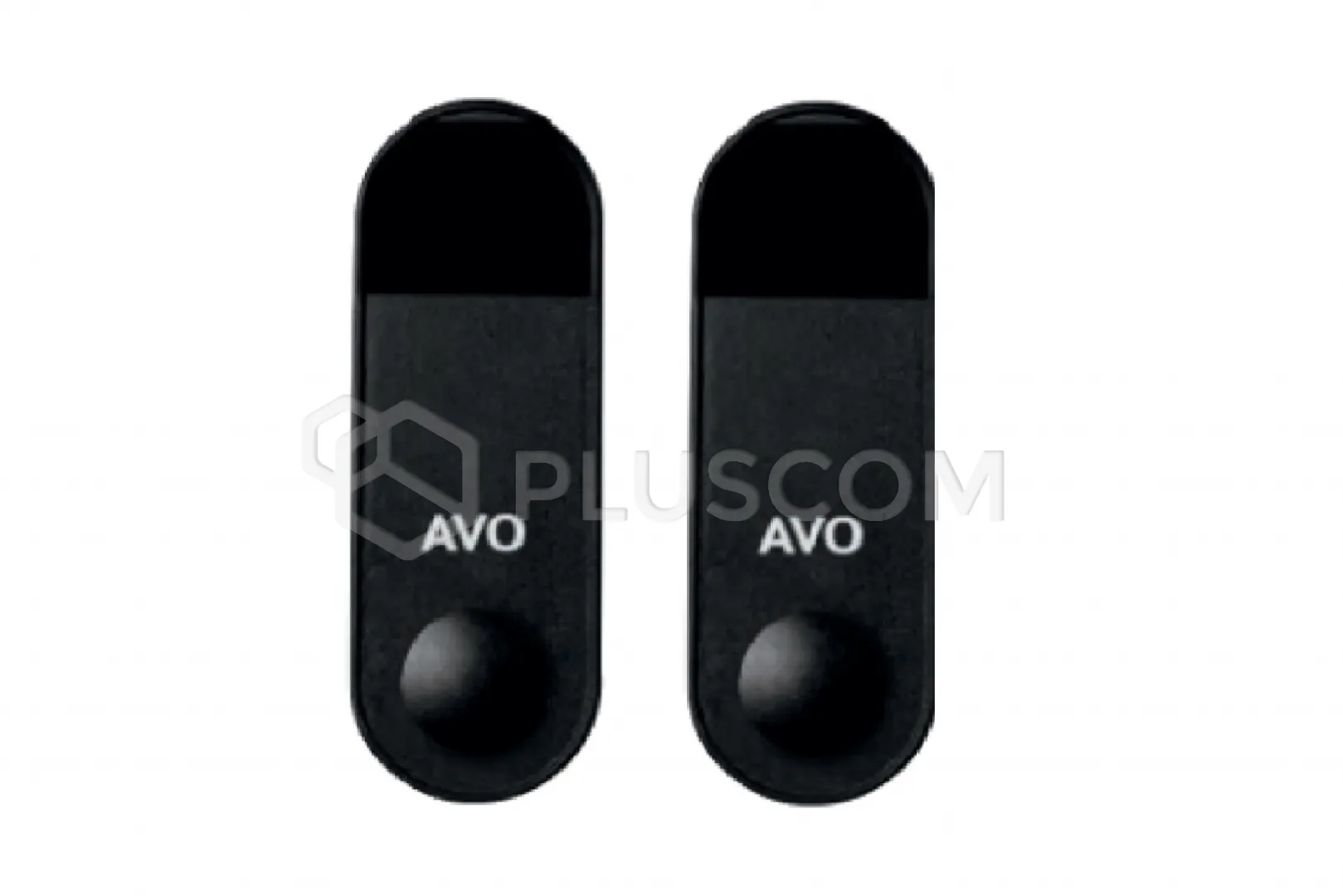

Photocells:
An adjustable pair of external photocells designed for
installation on narrow posts, with 180-degree adjustment, is standard equipment
in each set.

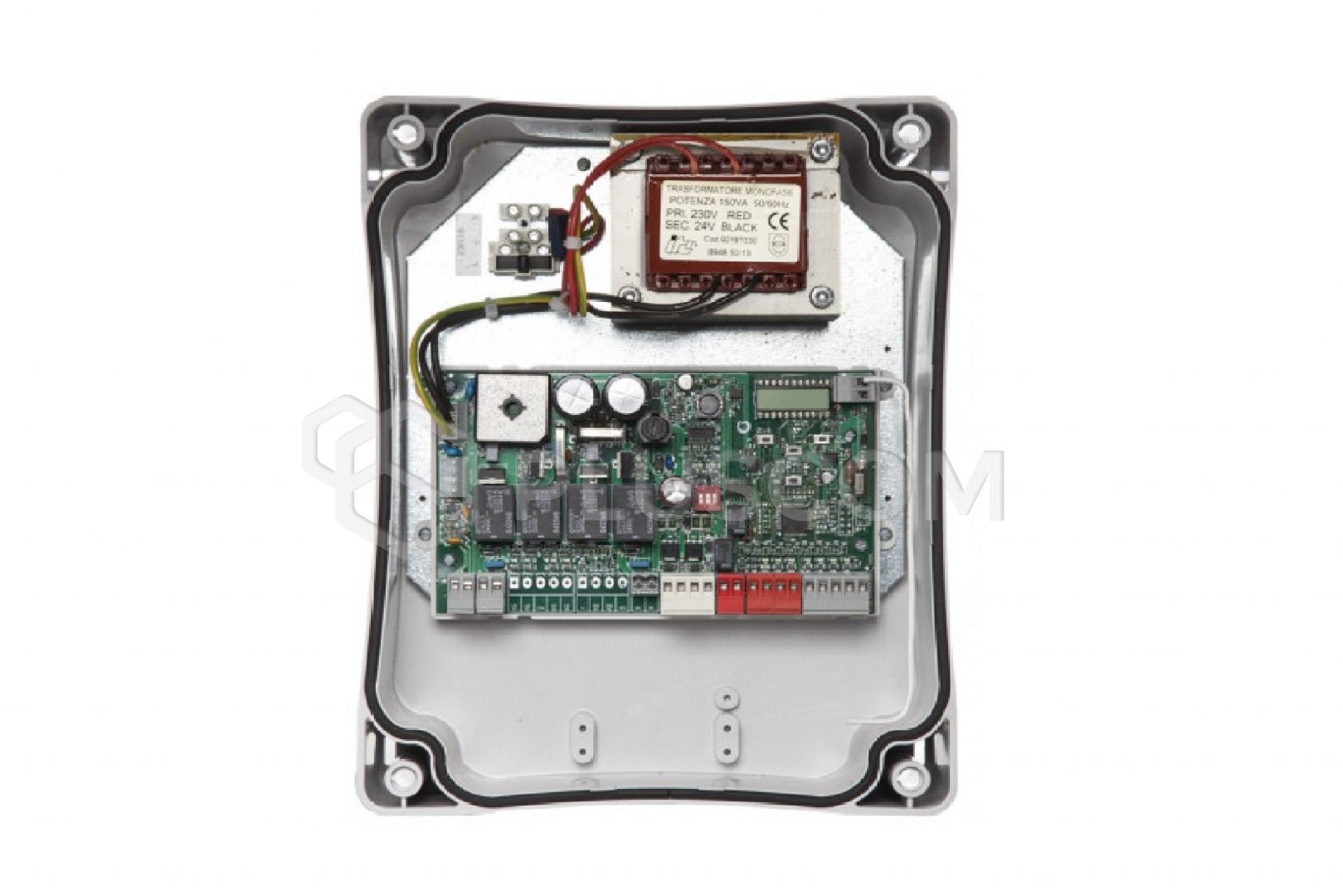

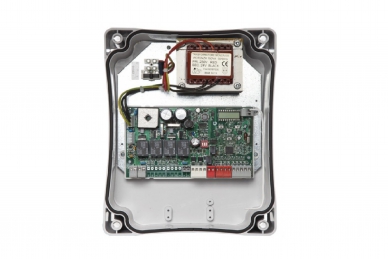

Modern:
Control is provided by the modern ACT20224 control unit, which
ensures easy operation and full control over the gate's functionality.

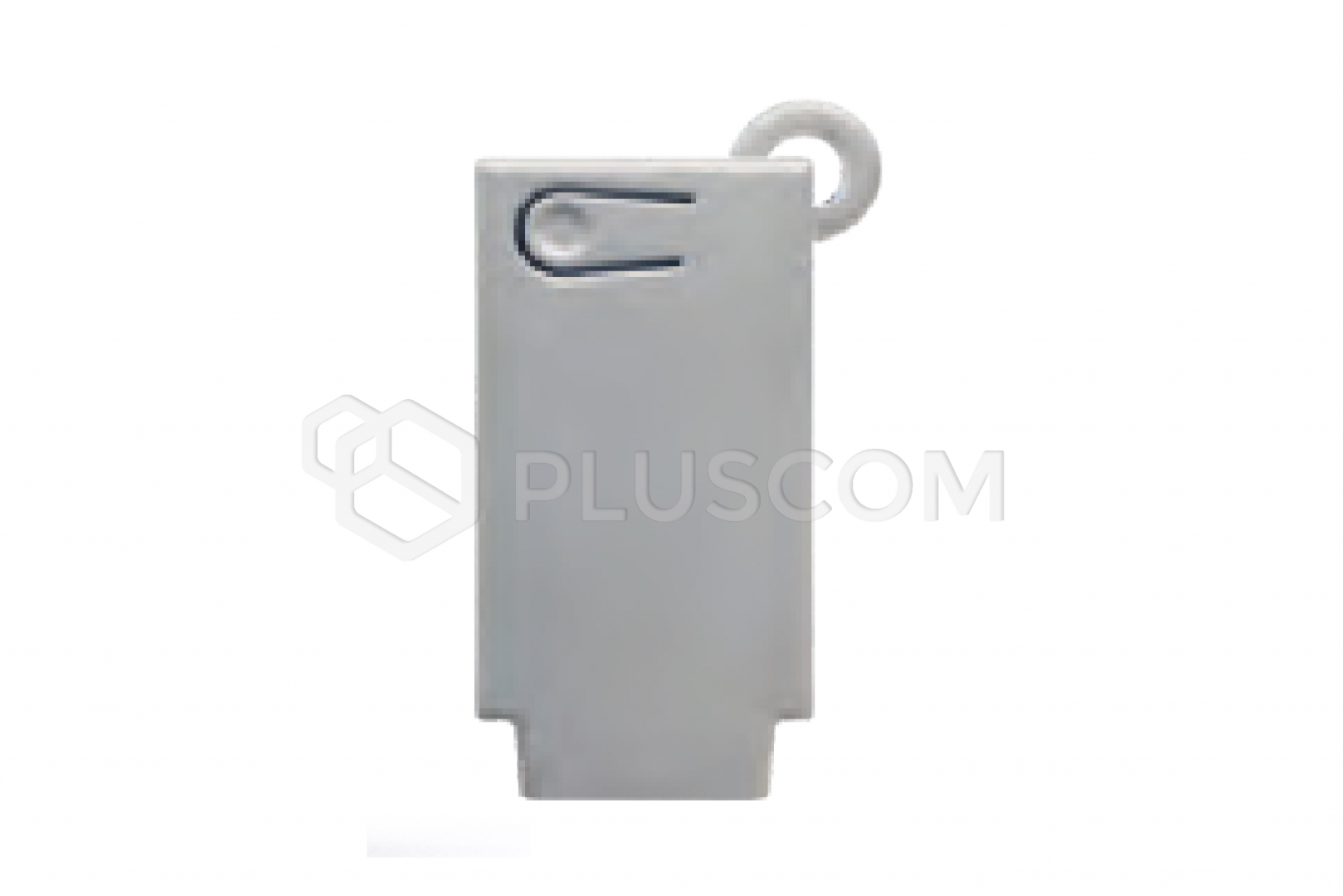

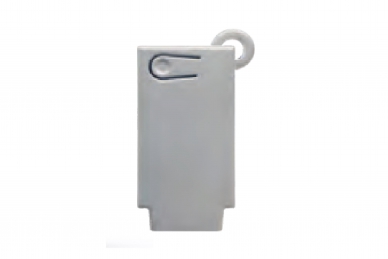

KUBE Interface
Created with the end user in mind, it offers the ability
to share access via smartphone, with the option to set specific times and days,
eliminating the need to use a traditional remote control.
The user can check the current automation status and adjust key operating
parameters at any time.
Programming:
Using buttons on the control panel.
Technical Specifications:
- Speed cm/s: 2.5
- Thrust force N: 1400
- Work intensity %: 50
- Open time to 90° s: 18-25
- Control unit: ACT20224
- Power supply V DC: 24
- Consumption A: 3.5
- Motor power W: 85
- IP protection class: 54
- Dimensions (L-D-H) mm: 741 - 115 - 177
- Weight kg: 3.2
- Temperature Operating temperature °C: -20 + 55
- Maximum gate leaf weight kg: 400
