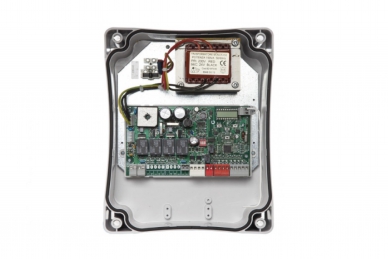

AVO ACT20224 24V control unit for 2 actuators

311,28 EUR including 23.00% VAT
Product code: #36465
Manufacturer: Avo
  • Power supply: 230V
  • Accessory power supply: 24V AC / 24V DC
  • Amperometric sensitivity: YES
  • Warning light output 24V/15W
  • Possibility of connecting an emergency battery
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

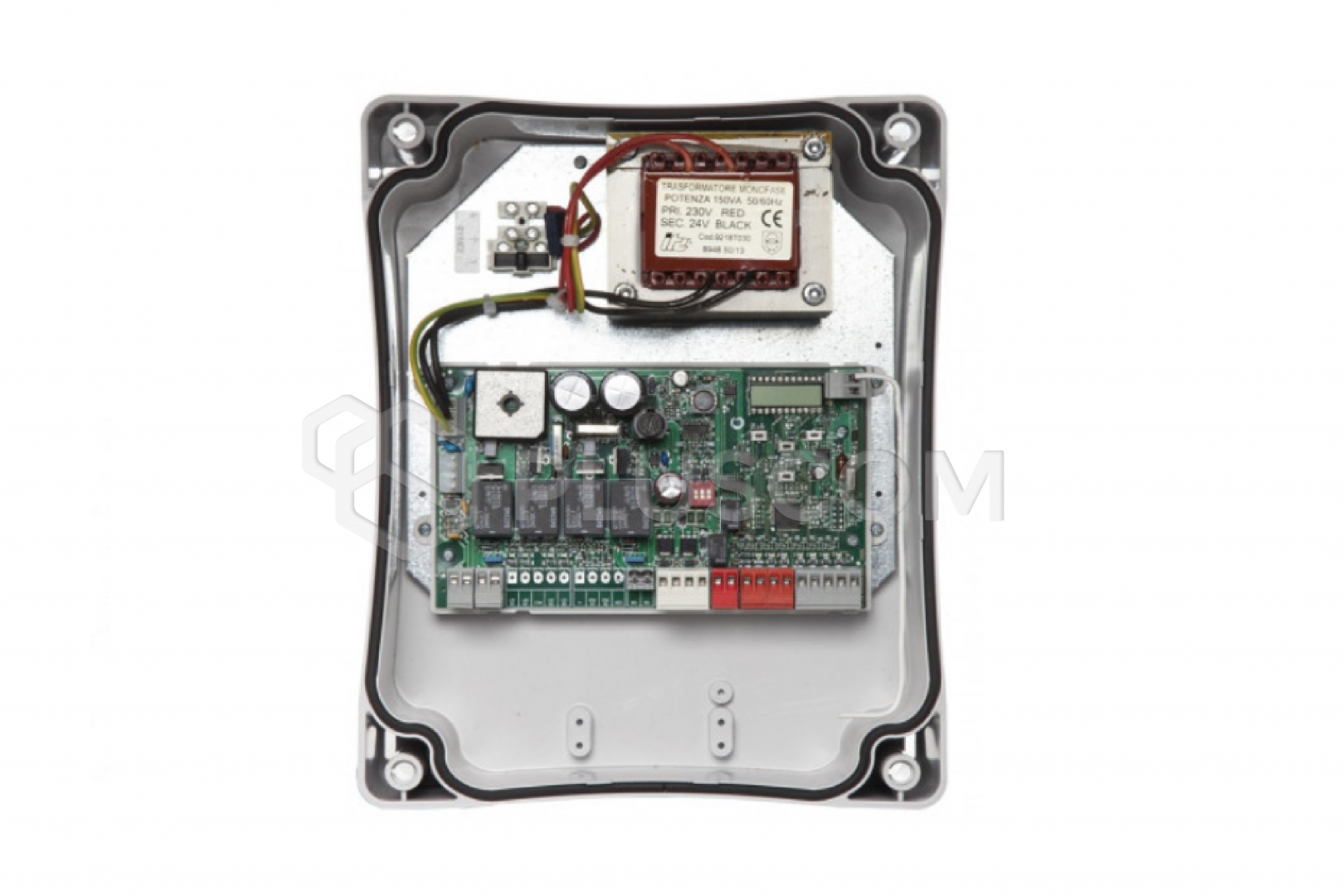

AVO ACT20224 24V control unit for 2 actuators


Control unit for two 24V swing gate actuators, with electric lock support, opening and closing slowdown, and integrated radio receiver, in a housing.

This unit belongs to the AVO ACT series of control units, which share the same method for programming end positions and adjusting parameters.
The control unit monitors the operation of two 24V DC motor actuators.

FEATURES:

  • Two motor outputs (M1, M2)
  • 24V/15W warning light output
  • Remote-controlled additional lighting output (24V/15W)
  • Gate status indicator output (24V/5W) / Electric lock output (12VAC/15VA)
  • Backup battery connection option
  • 4 switches for deactivating security inputs (no jumpers required)
  • 2 analog photocell inputs
  • STOP input operating as a NC contact or compatible with an 8.2 kΩ resistive strip
  • 4 control inputs: step-by-step, open, close, gate
  • Built-in Radio receiver (memory for 150 remote controls/buttons)
  • Equipped with a display for easy programming and parameter adjustment, as well as monitoring the status of safety and control inputs.

FUNCTIONS:

  • Human presence: YES
  • Semi-automatic operation: YES
  • Automatic operation: YES
  • Apartment complex: YES
  • Pre-flashing: YES
  • Phototest during opening: YES
  • Soft start: YES
  • Soft stop: YES
  • Additional lighting: YES
  • Gate status monitoring: YES
  • Slow-down function: YES
  • Electric strike release: NO
  • Electric limit switch deactivation: NO
  • Pause during opening: YES
  • STEP-BY-STEP function: YES
  • Separate opening and closing: YES
  • Amperometrics: YES
  • Adjustable delay during opening: YES
  • Brake: NO
  • Cycle counter: YES
  • Display: YES
  • Encoder: NO
  • Close after photo: YES
  • Wicket function: YES
  • Electric strike: YES
  • Energy saving: YES
  • Behavior after power failure: YES
  • Sensitive edge connection: YES
  • Amperometric sensitivity: YES
  • Solar power supply: YES

Technical Specifications:

  • Power Supply: 230V 50Hz
  • Accessory Power Supply: 24Vac / 24Vdc
  • Maximum Motor Power: 210W
  • Maximum Operating Time: 240 sec.
  • Maximum Pause Time: 0 - 900 sec.
  • Amperometric Sensitivity: YES
  • Encoder Support: NO
  • Ingress Protection Rating: 54IP
  • Dimensions (L x W x H): 220 x 110 x 275 mm
  • Operating Temperature: -20°C / +55°C
