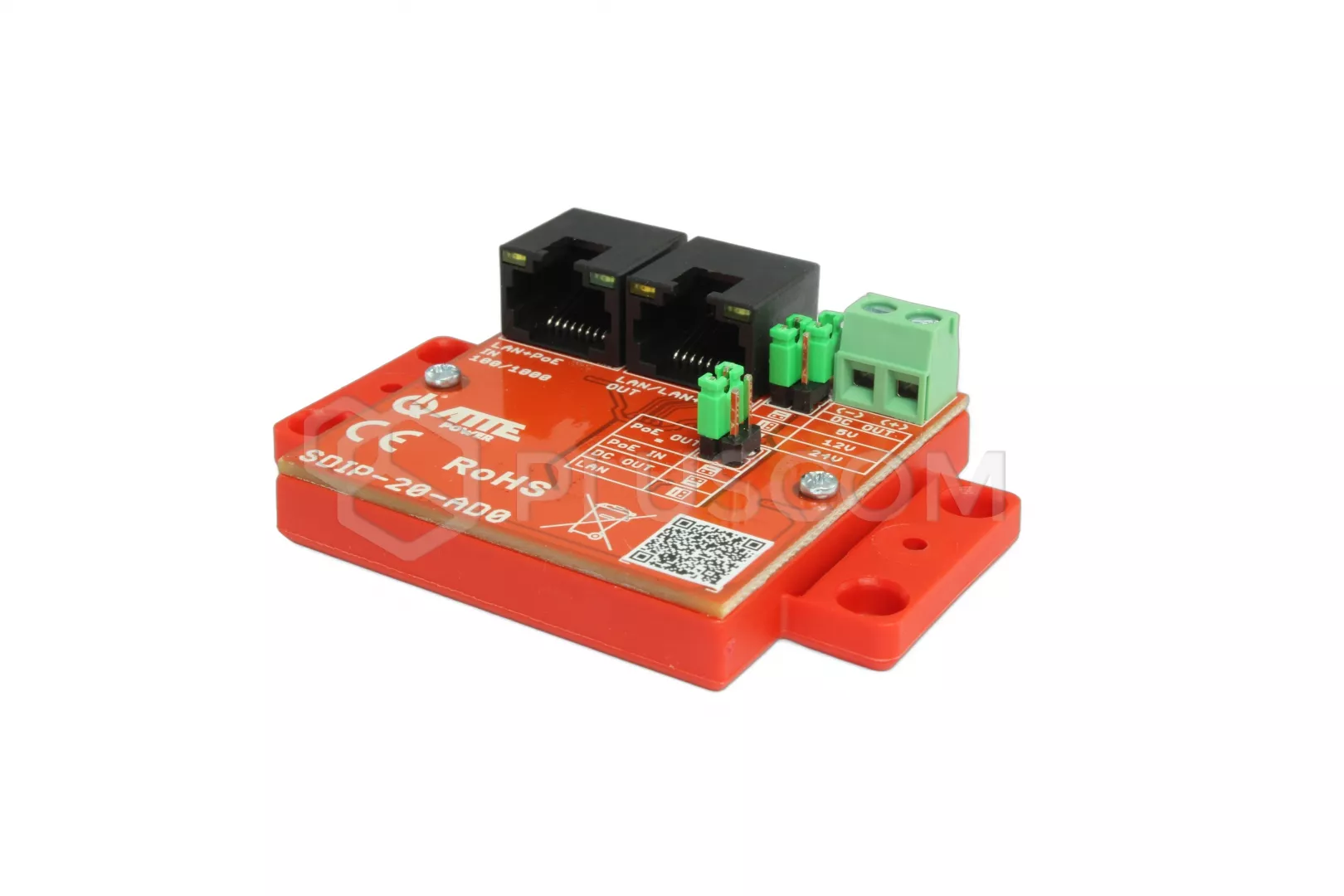

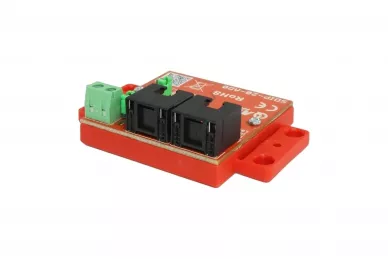

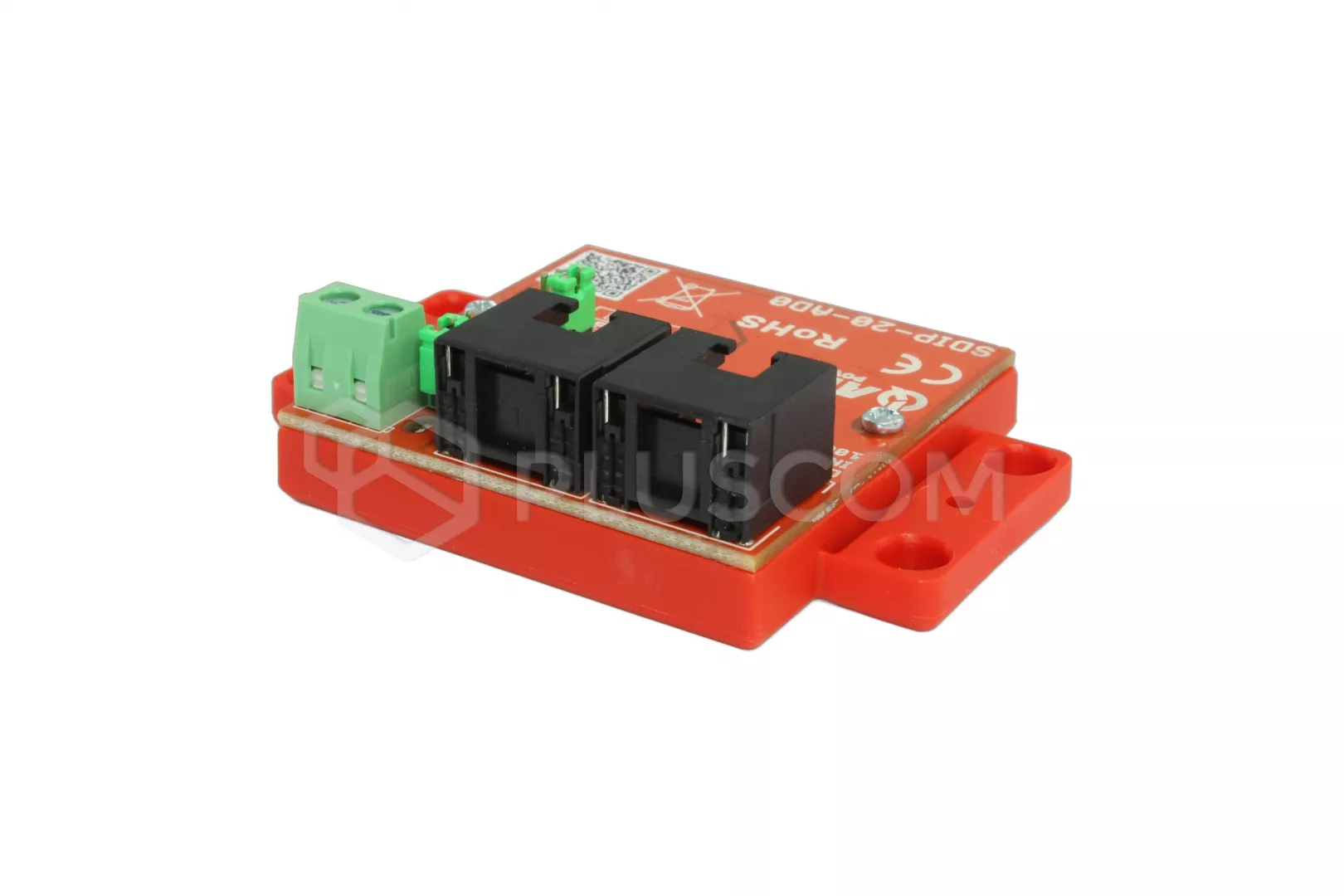

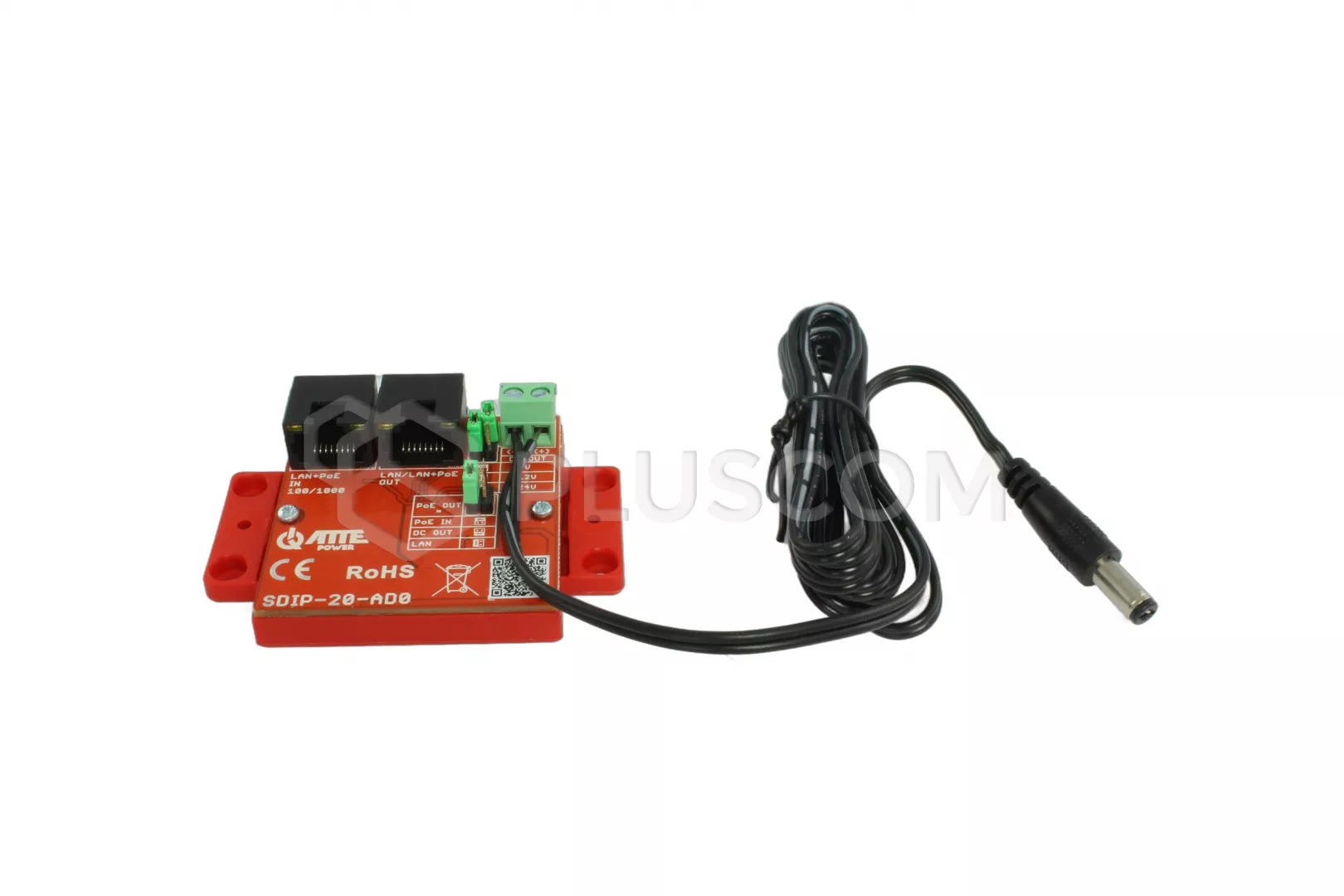

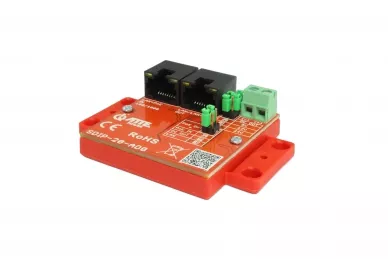

ATTE SDIP-20-AD0 PoE Gigabit Ethernet step-down adapter

30,82 EUR including 23.00% VAT
Product code: #30765
Manufacturer: Atte
  • LAN transmission (LAN + PoE) at 1000 Mbps
  • DC OUT: 5V, 12V or 24V
  • Pout max 20W 802.3at/af and PASSIVE
  • Work in the 802.3at/af or PoE PASSIVE standard
  • Dimensins: 51 x 51 (73)x 21 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Atte AEPI-1-50 Passive 1-channel PoE adapter

PoE Gigabit Ethernet adapter reducing voltage Vout 5V/12V/24V, Pout max 20W 802.3at/af and PASSIVE


The SDIP-20-AD0 adapter is designed to power additional devices via PoE line or lowering the PoE voltage present in the RJ45 plug at throughput 10/100/1000Mbps.
The adapter is designed to work with a PoE switch operating in 802.3at/af or PoE PASSIVE standard. It has a very small size which allows for easy installation in small spaces. Additional mounting pins or adapters allow for mounting in ABOX enclosures or on a TH35 rail.

Appropriate jumper combinations allow you to select the correct configuration POE power supply at the output as well as the output voltage level from the converter. One set of jumpers selects the DC output voltage of the inverter at 5V, 12V or 24V. The second set of jumpers is responsible for configuration power available on the LAN output port. Allows you to transfer to PoE power output from the input, lowering the PoE voltage to the value set with jumpers in the inverter or turning off the power and leaving only LAN transmission.

TECHNICAL DATA
  • connectors:
    • 2x RJ45 Port 10/100/1000Mbps
    • output voltage Vout – DC OUT connection terminal
  • output voltage:
    • DC OUT 5 VDC / 12 VDC / 24 VDC +/-5% jumper setting
    • PoE OUT none / 5 VDC / 12 VDC / 24 VDC +/-5% jumper setting
    • PoE PINS: 4.5 (V+) 7.8 (V-) PassivePoE
  • DC OUT power: Max. 20W
  • input voltage:
    • 44 ... 56 VDC (PoE)
    • PoE PINS: 1.2 (V-) 3.6 (V+) 4.5 (V+) 7.8 (V-)
  • protections: 2A converter overload with auto recovery
  • indication: red LED - presence of output voltage
  • enclosure design Universal mounting base, mounting pins, rail TH35 with an additional handle, can be screwed to a flat surface surface
  • ingress protection: IP20
  • operating temperature: -25 ... +50°C
  • dimensions: 51 x 51 (73) x 21mm
  • weight: 0.031 kg
