Atte AEPI-1-50 Passive 1-channel PoE adapter

29,89 EUR including 23.00% VAT
Product code: #27288
Manufacturer: Atte
  • Powering devices operating in the PoE 802.3at/af and PoE PASSIVE standards
  • Number of PoE ports: 1x
  • Supply voltage: 10-56 VDC
  • RJ45/RJ45 connectors
  • IP20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
ATTE AEPI-4-10-OF Power distribution module after UTP twisted pair ATTE ABOX-M1 External casingfor power supplies ATTE SDIP-20-AD0 PoE Gigabit Ethernet step-down adapter ATTE ABOX-S3 External casing for power supplies ATTE ABOX-S2 External casing for power supplies ATTE AEPI-1-10-HS Power distribution module after UTP twisted pair ATTE ABOX-S1 External casing for power supplies ATTE ABOX-XL2 External housing for power supplies ATTE ABOX-XL1 External housing for power supplies ATTE ABOX-L2 External casing for power supplies

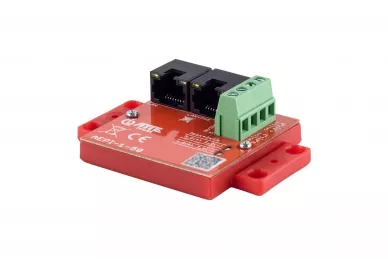

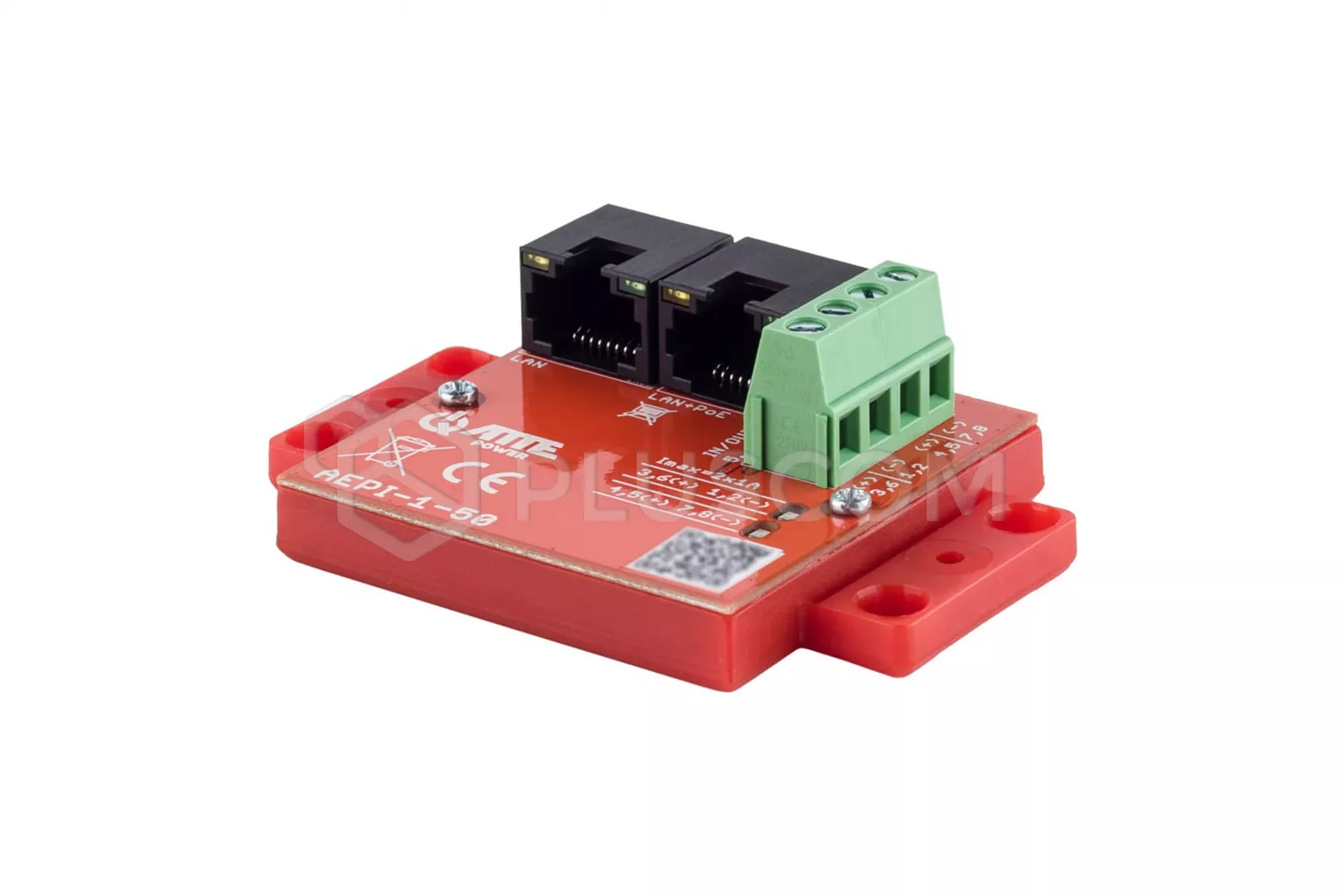

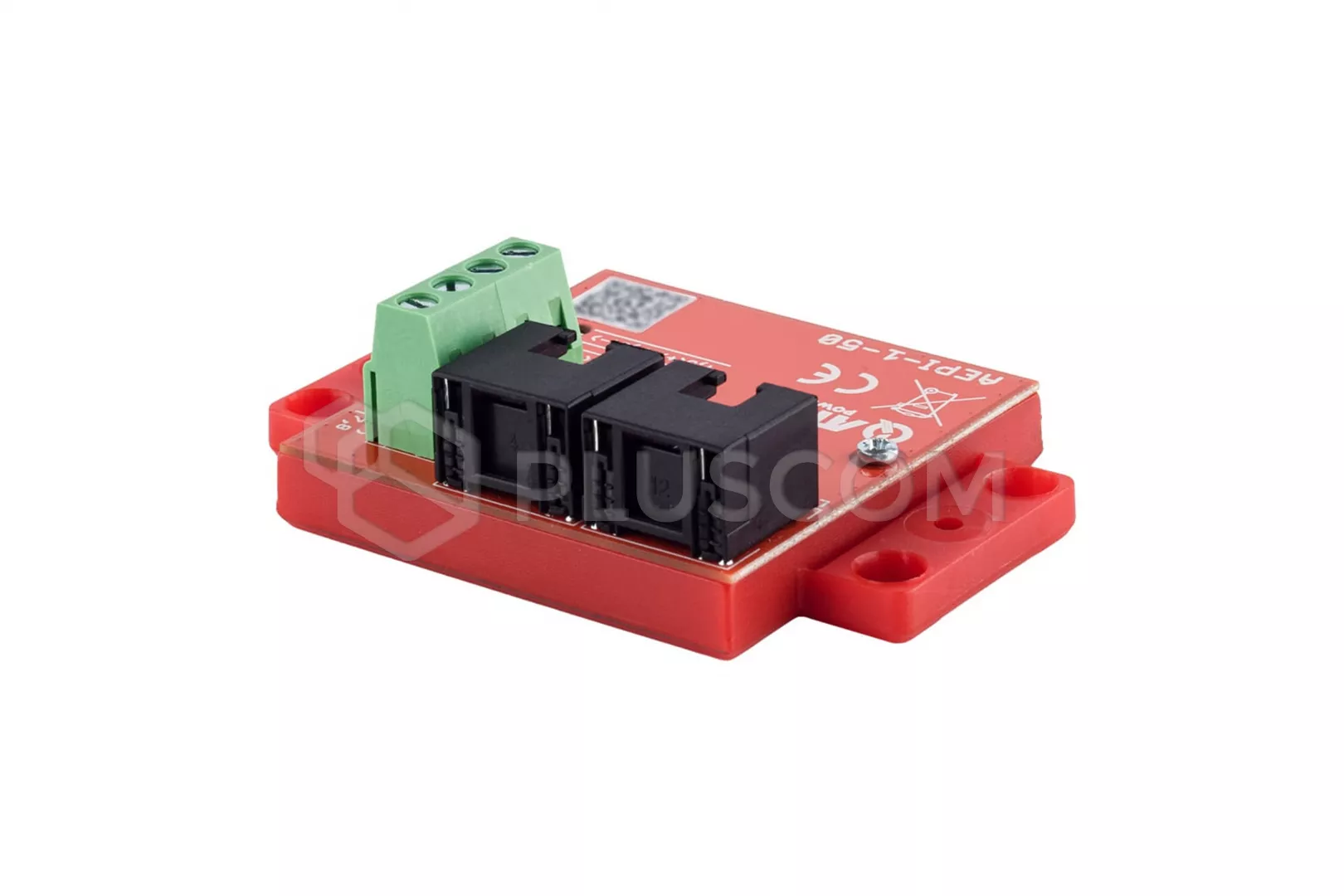

Atte AEPI-1-50 PoE PASSIVE 1-channel adapter


AEPI-1-50 is a gigabit adapter (PoE injector) designed to power television devices industrial devices operating in the PoE 802.3at/af and PoE PASSIVE standards.

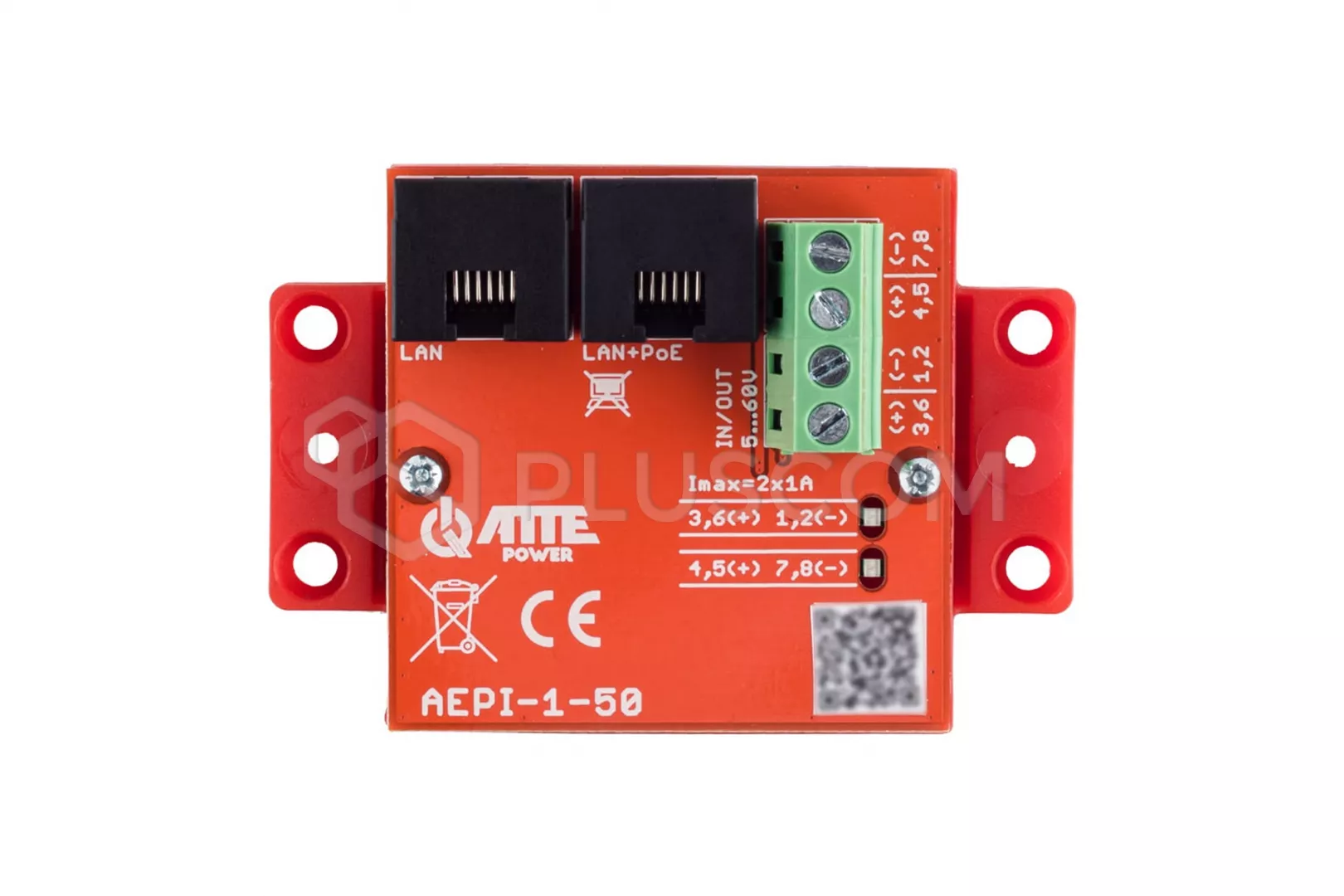

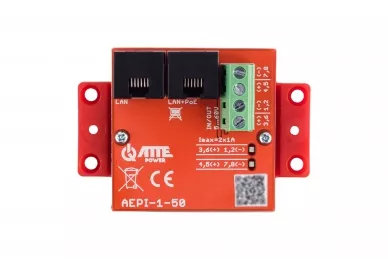

PoE power is available on one of the RJ-45 connectors (described as LAN+PoE). Second connector RJ-45 is used to connect to the LAN.

Selecting the appropriate connector in the terminal allows you to choose which UTP pairs will be used for transmitting power in parallel with data (receiver power supply after selected 2 pairs or after all 4 pairs). Independent connection terminals assigned to specific UTP pairs allow you to send two AEPI-1-50 devices with one cable various voltage levels while maintaining transmission speeds of up to 1000 Mbps.

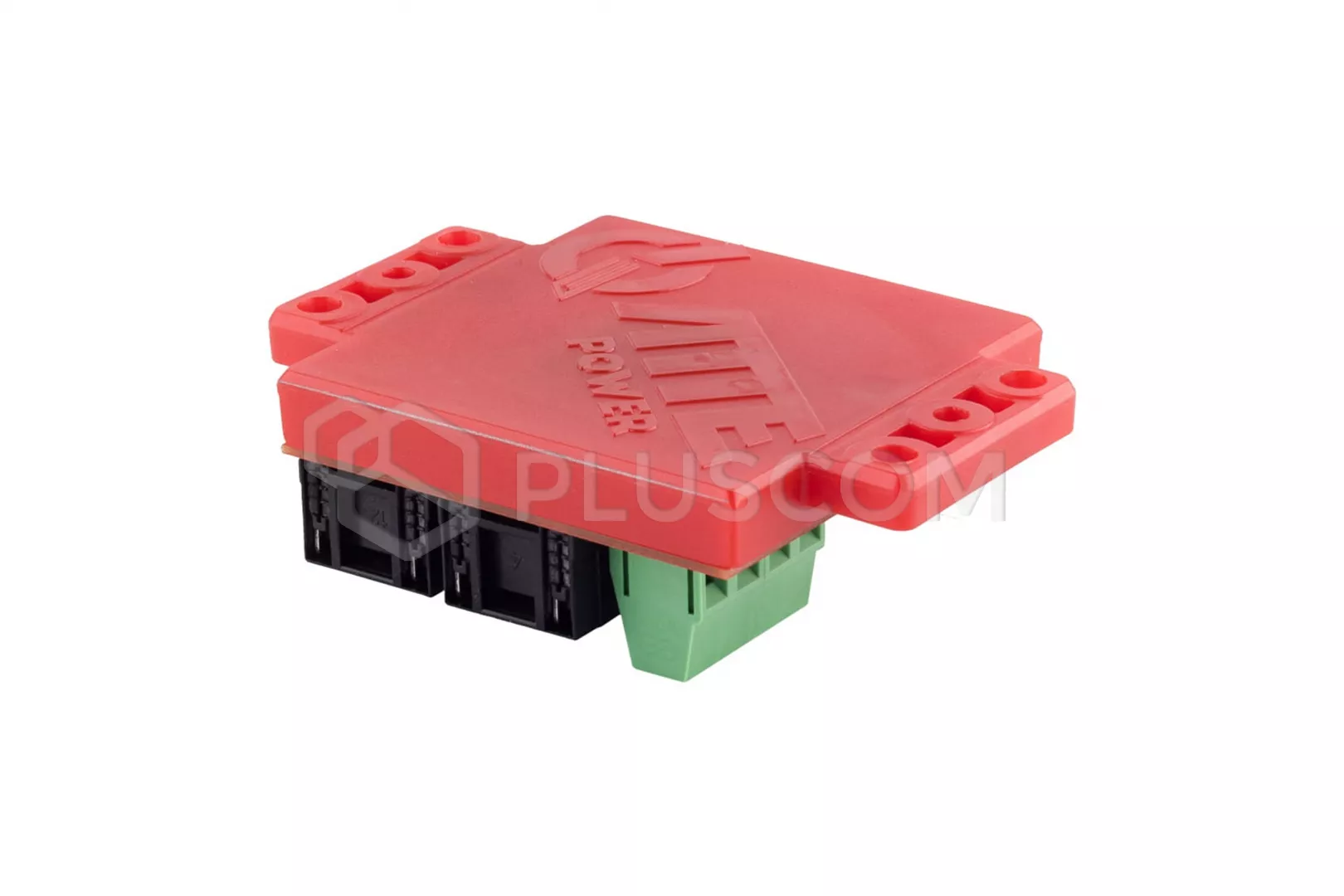

The small size allows the device to be installed in any housing, however The most convenient method of installation is dedicated ABOX series housings and sheet metal assembly, equipped with system holes in a 10.8 mm pitch. System solution allows for vertical or horizontal installation of selected devices in any drilled part casing or mounting plate.

TECHNICAL DATA:
  • Total number of ports: 1 PoE port, 1 LAN port, 1 Screw strip
  • PoE IN port: LAN
  • PoE OUT ports: LAN + PoE
  • 1000Mbps LAN ports: LAN
  • LAN + PoE OUT 10/100Mbps ports: LAN + PoE
  • PoE output voltage: Vout = Vin
  • Output power control: configuration via screw terminal connection
  • Supply voltage: 10-56 VDC
  • Power indication: LED (green) - presence of PoE power on appropriate pairs
  • Housing design: universal mounting base
  • Mounting: mounting pins, additional adapters available for TH-35 and RACK rails
  • Operating temperature range: -25°C...+50°C
  • Dimensions: 51 x 51 (73) x 23 mm
  • Weight: 0.05 kg
  • Protection rating: IP20
