ATTE AUPS-100-120-OF SMPS power buffer supply unit for installation

65,08 EUR including 23.00% VAT
Product code: #21677
Manufacturer: Atte
  • Output voltage: DC 12V
  • Rated current: 8A
  • Power: 100W

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

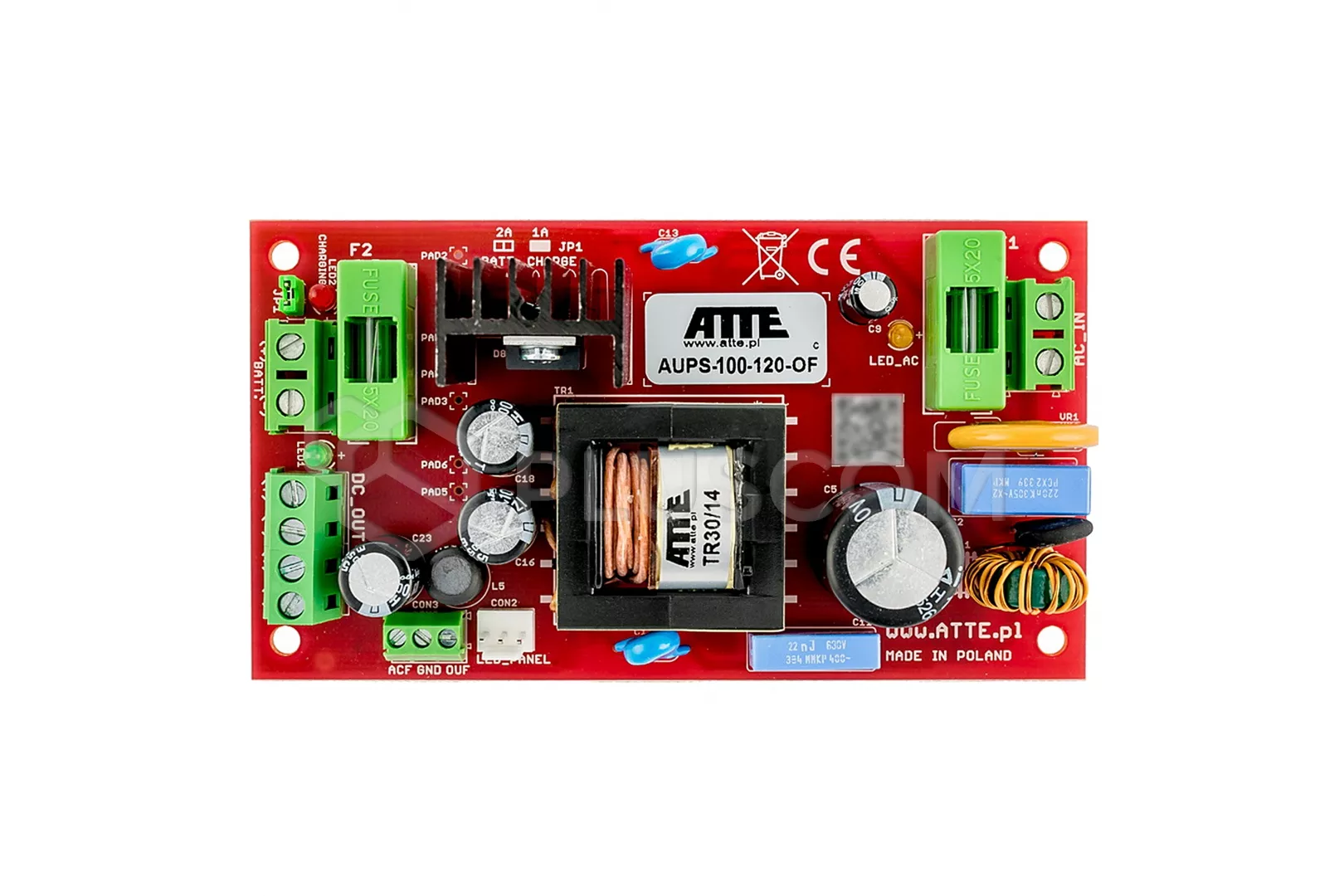

ATTE AUPS-100-120-OF SMPS power buffer supply unit for installation

Buffer power supply for powering television system devices industrial CCTV and access control systems. It is adapted to work with SLA lead-acid batteries or dry batteries. The device in very easy to mount in housings with system holes in 10.8mm pitch. Thanks to the high efficiency of the power supply, it shows low heating the inside of the housing

TECHNICAL DATA:

  • output voltage: DC 12V
  • input voltage: AC 230V (190-260V)
  • current efficiency: 8A
  • power: 100W
  • efficiency: 90% @100W
  • cooperation with one gel or AGM battery 12V - 7...18Ah
  • battery charging current: 1A or 2A selection via jumpe
  • battery circuit protection:
    • against reverse connection and overload - fuse fuse 6.3A
    • before deep discharge - battery disconnection for voltage below 10.2V with automatic return
  • automatic activation of the power supply after connecting the battery
  • signaling:
    • LED1 (yellow) - the presence of voltage from the network
    • LED2 (green) - output voltage present
    • LED3 (red) battery charging
  • open collector technical outputs with maximum load 50mA
  • OUF - no voltagea + DC_OUT
  • ACF - no voltage AC
  • working temperature: -25°C...+50°C
  • dimensions: 65x118x45mm
  • weight: 140g
