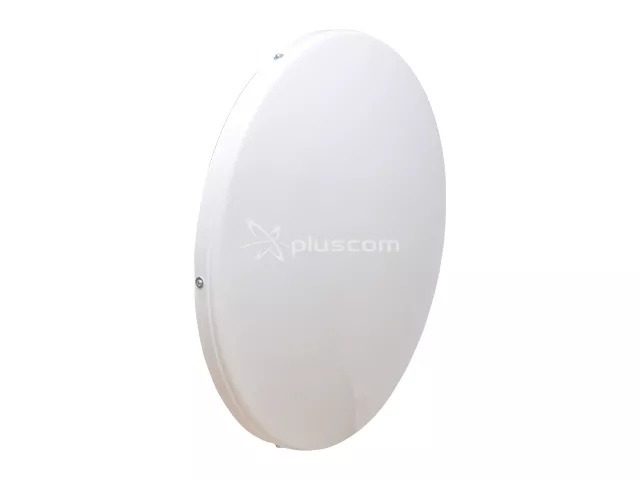

Antenna Jirous JRC-29 MIMO 2pcs (RP-SMA/female)

Specification:

• dual-polarized antenna, horizontal and vertical polarization
• easy to use with GentleBOX JR-200
• keenly priced
• only 1 antenna instead 2 save money for mast!
• high front to back ratio
• direction links for long and medium distance, also short in difficult conditions
• cleint antenna for large distances and difficult conditions
• setting elevation (of gradient) and azimuth has independent adjustment


Technical parameters

• Frequency range    5,4 - 5,9 GHz
• Gain    28,6 ±0,6dBi
• VSWR     ≤ 1,5
• Front to back ratio    ≥ 42 dB
• Beamwidth-3 dB    5,8°
• Polarization    linear, horizontal and vertical
• Isolation between connectors    28dB
• Connector    N - Female - JRC-29 MIMO, R-SMA - JRC-29 MIMO-SMA
• Parabola    ø 65 cm
• aluminium alloy with baking colour
• Cover    UV steady plastic ABS
• Instalation for mast     ø 27 - 74 mm


The radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity.

Recommended accessories:
Gentleclip + Rocket M5JRC-29 MIMO + GentleBOX JR-200
Using with GentleBOX JR-200 - we recommend JRC-29 MIMO-SMA with R-SMA connectors.
Bracket GentleCLIP par for mounting Ubiquiti Rocket M5
Pigtail R-SMA/MMCX for JRC-29 MIMO-SMA
Pigtail R-SMA/UF.L for JRC-29 MIMO-SMA

Packing
2 pcs in carton
