Antenna ATK-LOG 9dBi Cable 5m FME socket

18,31 EUR including 23.00% VAT
Product code: #5114
Manufacturer: Dipol
  • Gain: 9 dBi
  • Beamwidth: 62°/91° H/V
  • Dimensions: length 670mm
  • Connector FME socket, cable 5m

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Logarithmic antenna ATK-LOG is designed for GSM/DCS/UMTS/HSDPA working in the band: 800-2170MHz

Check out where in the workplace laptop with card GSM/UMTS or phone signal is too weak to work properly.

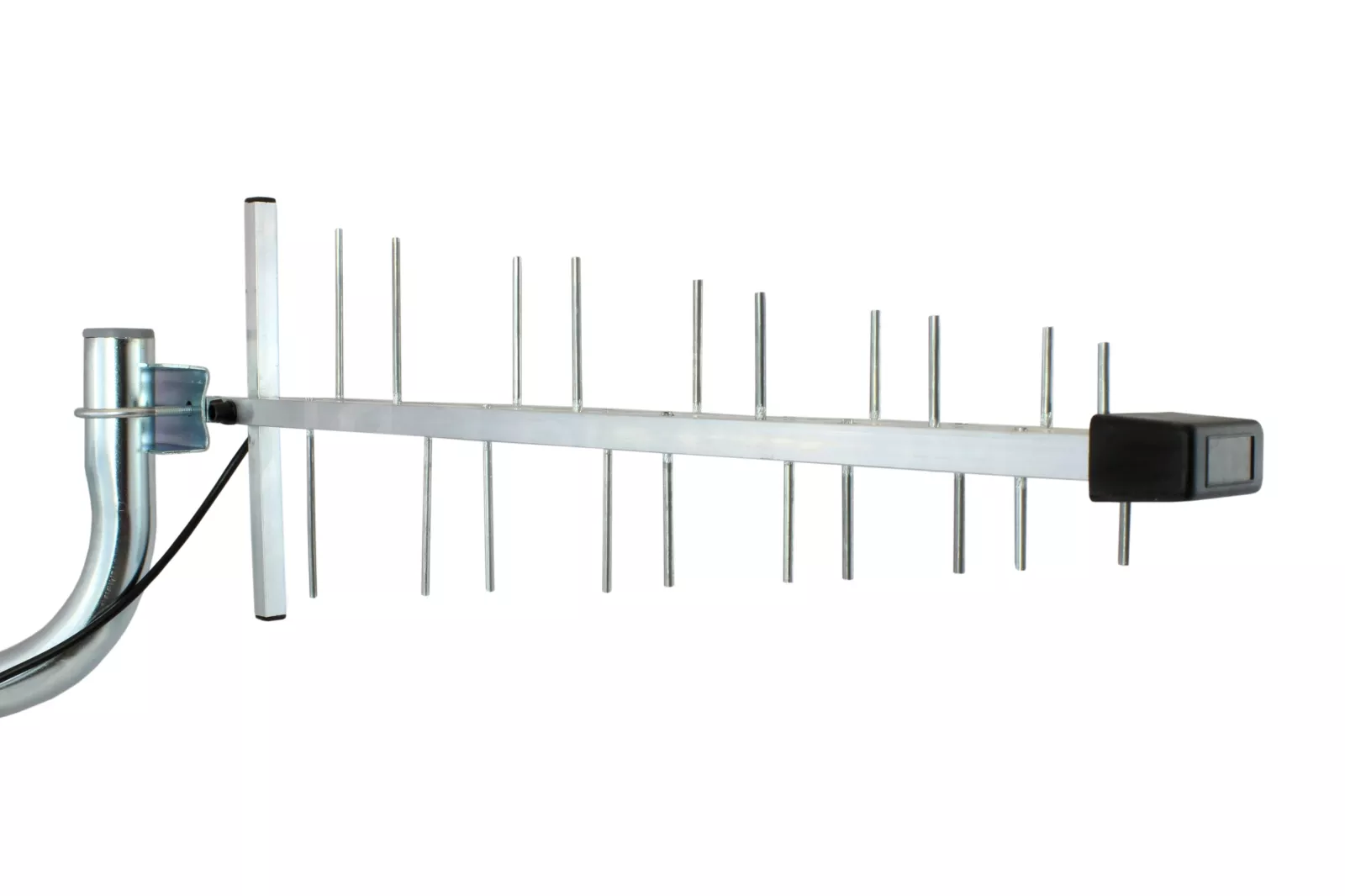

Antenna ATK-LOG 9dBi GSM/UMTS

Antenna ATK-LOG 9dBi GSM/UMTS


The antenna is equipped with RF-5 cable 5m terminated with FME socket and can be installed outside the building. What can significantly improve the received signal strength. By using handle easily fasten it to any holder tube of Ø40mm.

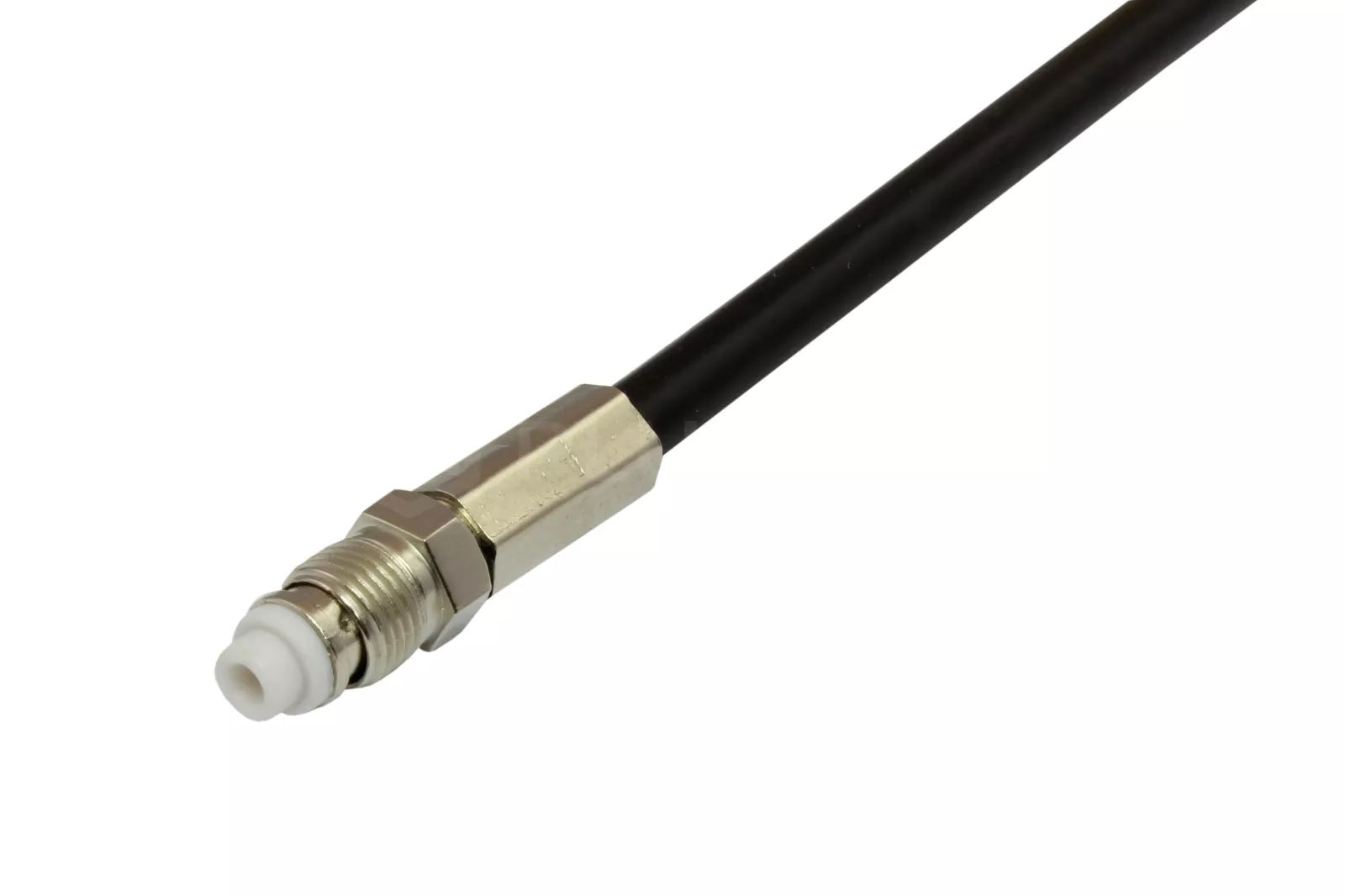

Antenna connector: FME socket

Antenna connector: FME socket


Technical parameters:
  • frequency range: 800-2100MHz
  • gain: to 9dBi
  • polarization: H / V
  • beam width:
    • horizontal: 62°
    • vertical: 91°
  • standing wave ratio <2
  • impedance output / input 50Ohm
  • length: 670mm
  • weight 0.53 kg
