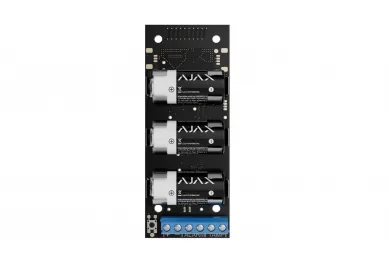

AJAX Transmitter Jeweller Wireless module for connecting external sensors

AJAX Transmitter Jeweller Wireless module for connecting external sensors

The Jeweller Transmitter is a wireless module for connecting external motion sensors, IR barriers, liquid and gas level sensors, thermal relays, and any third-party devices with a wired output to the Ajax security system.

FEATURES:

• Converts third-party sensors into complete Ajax devices.
• Can be used as a power source for third-party devices.
• Operates at temperatures from +50°C to -25°C and humidity up to 75%.

Operation Principle.

Receives the sensor activation signal via wire and transmits the alarm to the Ajax control panel.

Features.

The transmitter integrates wired hardware with Ajax devices: burglar alarm sensors, emergency and medical buttons, fire and gas sensors.
The type of connected device is specified in the mobile app.

The device type determines the notification text sent to system users and the alarm code sent to the ARC.
Additionally, the Transmitter is protected by an accelerometer that detects opening the housing of the sensor to which it is connected and triggers an alarm.

Installation and assembly

Installed in external sensor housings or in a mounting box.

Technical Specifications:

• Alarm Output: 1
• Tamper Output: 1
• Output Voltage: 3.3V
• Operating Frequency: 868.0 - 868.6 MHz
• Transmission Range: 1600m (in open area)
• Power Supply: 3x 3V CR123A battery (included)
• Dimensions: 39x22x100mm (W/L/H)
