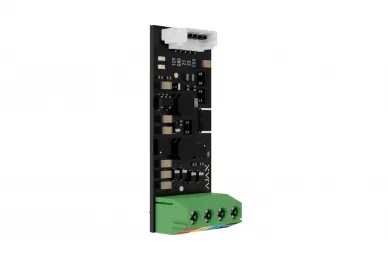

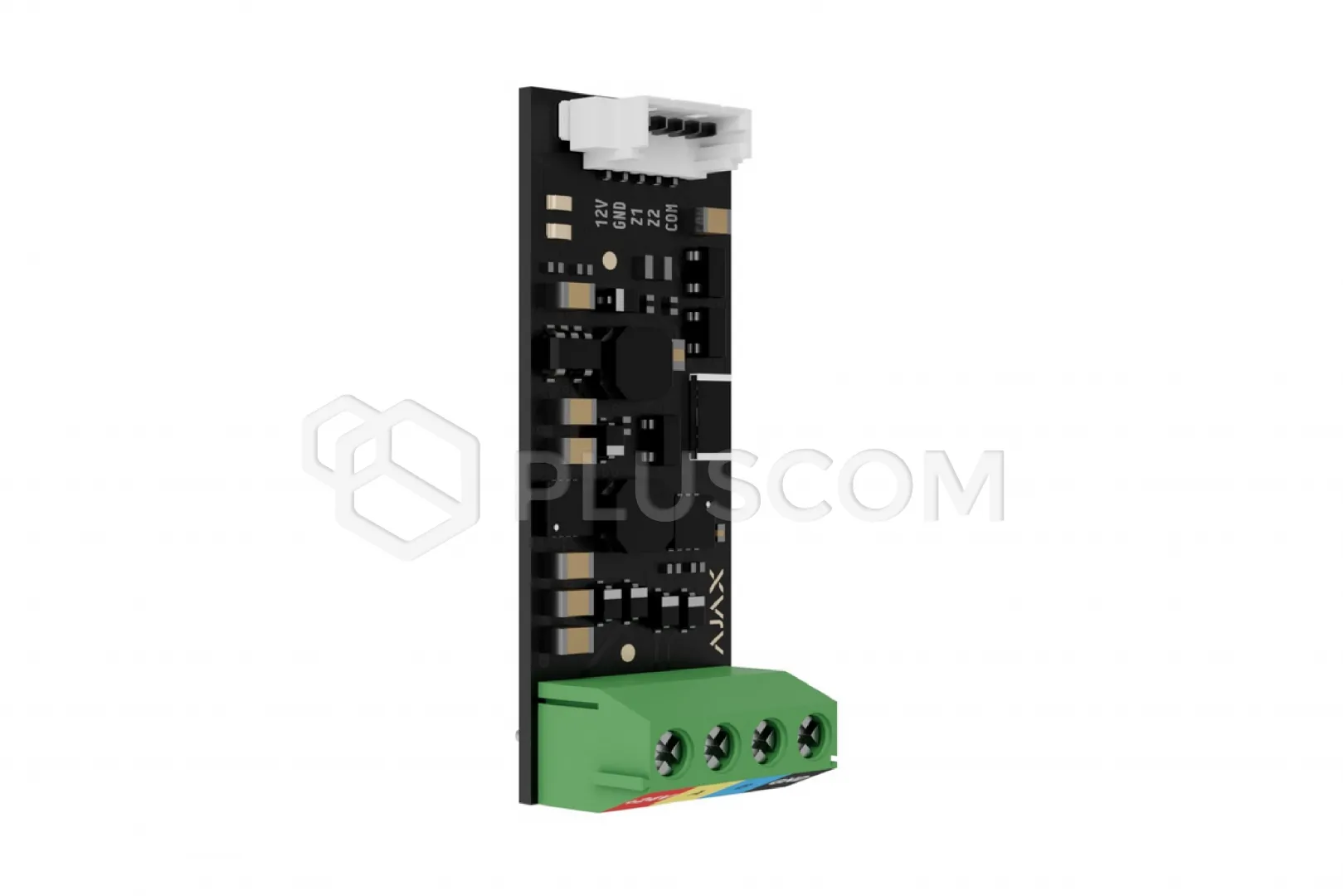

AJAX Superior Transmitter Fiber Module for connecting an external
sensor
The AJAX Superior Transmitter Fibra is a wired module that allows the
integration of one external sensor or other third-party wired device with the
Ajax alarm system.
It allows you to expand the capabilities of the Ajax system with device
functions not standardly available in the Ajax offering, thus raising the
security and functionality standards of the entire system. The module allows
you to connect a wide range of wired sensors and devices, supporting various
connection types, such as NO, NC, EOL, 2EOL, and 3EOL, ensuring compatibility
with many solutions available on the market.
The Superior Transmitter Fibra is characterized by high resistance to sabotage
thanks to advanced wire damage and loss of connection detection functions, as
well as encryption of transmitted data, ensuring secure communication with the
Ajax hub.
FEATURES:
- Supports NC, NO, EOL, 2EOL, and 3EOL connections, and a KeyArm Zone
input.
- Allows integration of third-party sensors with the Ajax device
system.
- Instant connection loss detection.
- Automatic integration of EOL resistor data in wired system
integration.
Fibra Technology.
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected using a standard four-wire cable, allowing for a stable
connection at distances up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
A second life for your wired alarm
AJAX Superior Transmitter Fiber
transforms almost any wired alarm device into a part of the Ajax ecosystem. It
allows you to create an intelligent alarm system for projects of any
complexity.
The integrated device offers all the features that users and security agencies
value in the Ajax system: in-app security control, automation scenarios,
information notifications, integration with video surveillance, and more.
Transform outdated solutions into innovative ones
Ajax integration
modules help you avoid the high costs of replacing an old alarm system.
The Fibra Transmitter was designed to build a modern alarm system and aid in
automation using outdated but still functional equipment.
This solution features seamless integration of older alarm systems with the
latest Ajax devices.
KeyArm Zone
KeyArm Zone is a dedicated input type that allows you to
switch system arming modes using third-party devices connected to Ajax
integration modules.
Third-party devices include access controllers, mechanical key switches,
push-button switches, radio controllers, telephone relays, and more.
KeyArm allows you to arm/disarm the system, individual groups, or set Night
Mode. This feature is available in Ajax applications.
Security via smartphone
With Superior Transmitter Fibra, users can
control their security via a mobile app, receive full notification data, and
implement automation scenarios.
The installer can configure the system or device using the PRO app on-site or
remotely.
Technical Specifications:
- Supported connection types: NC, NO, EOL, 2EOL, 3EOL
- Alarm or tamper input: 2
- One 12V DC power output
- Operating modes: pulsed / bistable
- KeyArm Zone (input enabling switching between system arming modes using
third-party devices)
- Tamper protection (device status monitoring, encryption)
- Transmission range: 2000m
- Power supply: 24V DC
- Dimensions: 15×12.2×40mm (W/L/H)
