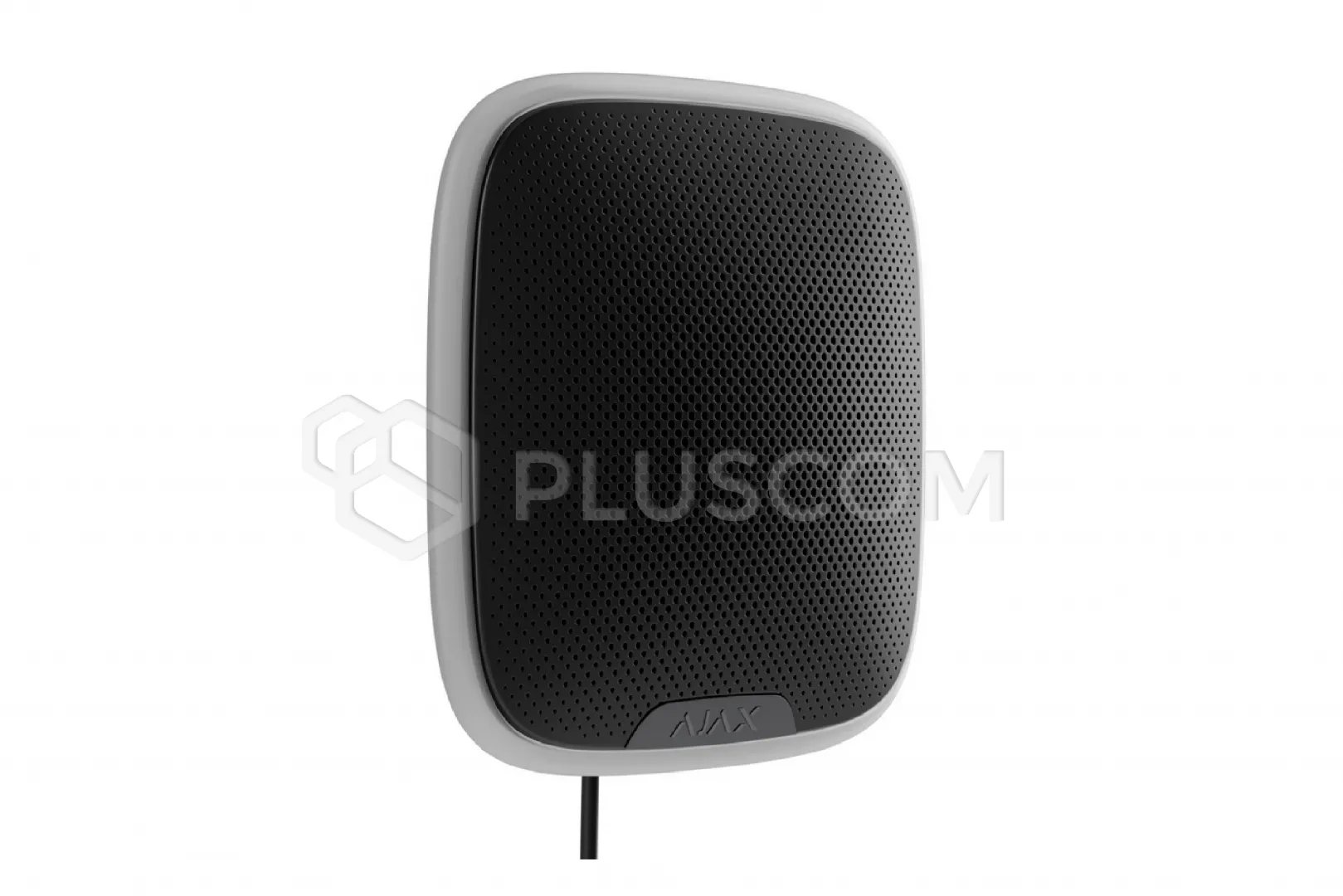

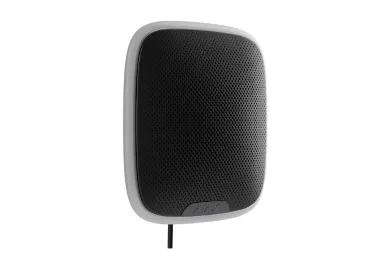

AJAX Superior StreetSiren Fibra Wired Outdoor Siren (Black)
The AJAX Superior StreetSiren Fibra wired outdoor siren is a wired alarm system
siren designed for both indoor and outdoor installation.
It features a piezoelectric sounder with an adjustable volume from 85 to 113 dB
and an LED frame for visually signaling alarms and notifications. The device
communicates with the control panel using the secure, encrypted Fibra protocol,
which provides protection against sabotage and data loss.
The siren features tamper detection, a backup power supply, and remote
configuration and control via the Ajax app. This makes it an effective security
element that quickly and clearly warns of threats while simultaneously
providing information on the alarm system's status.
Fibra Technology
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected via a standard four-wire cable, allowing for a stable
connection even at distances of up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
Operation Principle
The siren alerts users to multiple types of alarms,
signals entry/exit delays, displays the current security mode, and notifies
when a door is opened.
The Superior StreetSiren Fibra communicates with the Ajax hub using the secure
wired Fibra protocol. All alarms and event notifications are immediately sent
to the Ajax app, which also enables remote device management.
Features
It has an IP54 dust and moisture protection rating. It can use
an external 24V DC power supply. The built-in accelerometer will trigger an
alarm if an attempt is made to remove the siren.
Installation and Mounting
The siren communicates with the Ajax system
control panel using a fast and secure, wired Fiber protocol, ensuring reliable,
two-way data transmission over long distances.
The siren is configured through the app, where you can adjust the volume,
signal duration, and alarm response.
Mounting the device is simple thanks to the special SmartBracket, which allows
for quick and secure wall mounting without having to disassemble the entire
housing.
This allows installers to install the siren without disassembling the device,
significantly speeding up and simplifying the entire installation process.
Technical Specifications:
- Signaling: optical and acoustic
- Application: indoor and outdoor
- Two-way communication with the alarm control panel
- Remote system configuration and testing
- Transmission range: 2000m
- Siren volume: 85~113dB at 1m
- Alarm duration: 3~180s
- Power supply: 24V DC
- System arm/disarm indicator
- Anti-tamper protection (2x tamper, alarm, encryption,
authentication)
- Temperature Operating temperature: -25°C ~ 50°C
- Dimensions: 198.5×59×198.5mm (W/L/H)
