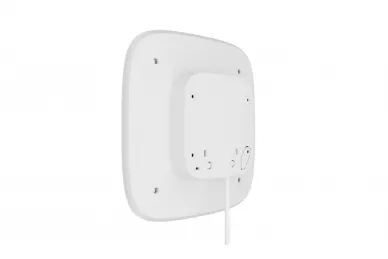

AJAX Superior StreetSiren DoubleDeck Fiber Wired Outdoor Siren with Sign
Clip (White)
The AJAX Superior StreetSiren DoubleDeck Fibra wired outdoor siren is a wired
alarm system siren designed for both indoor and outdoor installation. It
features a piezoelectric sounder with an adjustable volume from 85 to 113 dB
and an LED frame for visually signaling alarms and notifications.
The device communicates with the control panel using the secure, encrypted
Fibra protocol, which provides protection against tampering and data loss. The
siren features tamper detection, a backup power supply, and remote
configuration and control via the Ajax app.
This makes it an effective security element that quickly and clearly warns of
threats while simultaneously providing information on the alarm system's
status. A unique feature of the Superior StreetSiren DoubleDeck Fibra is the
ability to mount a Brandplate, allowing you to print your logo and contact
information directly on the siren's front panel.
In this way, the siren also becomes a marketing tool, allowing suppliers to
attract new customers, such as passersby or neighbors.
FEATURES:
- Provides immediate alarm notifications with a large amount of data
- Up to 2000m wired communication range
- In combination with Brandplate, you can print your own logo directly on
the front panel
- Protection against tampering and spoofing
Fibra Technology
Fibra is a proprietary, two-way wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected via a standard four-wire cable, allowing for a stable
connection even at distances of up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
Operation Principle
The siren alerts users to multiple types of alarms,
signals entry/exit delays, displays the current security mode, and notifies
when a door is opened. The Superior StreetSiren DoubleDeck Fibra communicates
with the Ajax hub using the secure wired Fibra protocol.
All alarms and event notifications are immediately sent to the Ajax
application, which also enables remote device management.
Features
It has an IP54 dust and moisture protection rating. It can be
powered by an external 24V DC power supply. The built-in accelerometer will
trigger an alarm if you attempt to remove the siren.
It also has a clip that allows you to mount a brandplate with your own logo.
Installation and Mounting
The siren communicates with the Ajax system
control panel using a fast and secure, wired Fiber protocol, ensuring reliable,
two-way data transmission over long distances.
The siren is configured via the app, where you can adjust the volume, signal
duration, and alarm response.
Mounting the device is simple thanks to the special SmartBracket, which allows
for quick and secure wall mounting. Additionally, the siren supports mounting a
brandplate, allowing you to personalize the device by adding your own logo to
the sign.
Technical Specifications:
- Signaling: optical and acoustic
- Application: indoor and outdoor
- Two-way communication with the alarm control panel
- Remote system configuration and testing
- Transmission range: 2000m
- Siren volume: 85~113dB at 1m
- Alarm duration: 3~180s
- Power supply: 24V DC
- Backup power supply (LTO18650 battery, 1500mAh/2.4V)
- Option to mount a brandplate with your own logo
- System arming/disarming indicator
- Tamper protection (2x tamper, alarm, encryption, authentication)
- Operating temperature: -25°C ~ 60°C
- Dimensions: 198.5×59×198.5mm (W/L/H)
