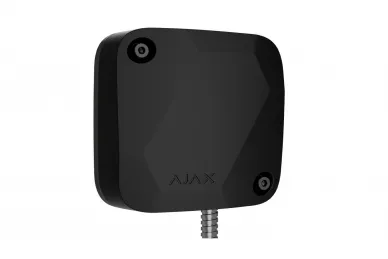

AJAX Superior SeismoProtect G3 Fiber Wired Shock Sensor with Impact Sensor
(Black)
The AJAX Superior SeismoProtect G3 Fiber is a device designed to detect
vibrations caused by drilling, cutting, or explosions.
The sensor also detects physical forces such as bending, pressure, or
temperature changes near the housing and responds instantly to shocks and
tilts.
An advanced software algorithm analyzes all detected vibrations to filter out
false alarms. Installation is easy and convenient, with no additional costs:
everything the installer needs to complete the job is included.
Selected Features of the Superior SeismoProtect G3 Fibra
- Piezoelectric sensor detects mechanical vibrations and shocks
- Accelerometer detects shocks and tilts
- Automatic self-diagnostics
- Wired Fibra communication
- Range up to 2000m
- Anti-tamper contact protects against housing removal
- Spirit level for precise device installation
- Remote control and configuration
Fibra Technology
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected using a standard four-wire cable, allowing for a stable
connection even at distances of up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
Operation Principle
The sensor detects vibrations (drilling, cutting,
explosions) using a piezoelectric sensor and an accelerometer.
The algorithm filters false alarms. The temperature sensor responds to changes
in temperature. Anti-tamper protection: buttons, flexible board, reinforced
cable.
Features
The device detects attempts to physically breach protected
facilities, such as ATMs, and immediately notifies the user via the Ajax app.
Automatic self-tests ensure the sensor's continuous functionality.
Anti-tamper features prevent removal and damage, ensuring reliable protection
against intrusions.
Intuitive configuration and installation
Connecting the sensor to the
Fibra bus and scanning the QR code in the Ajax app is all that's needed to
add the device to the system.
The intuitive interface allows you to quickly assign the sensor to a zone and
adjust the sensitivity and detection parameters.
The sensor easily mounts on a protected surface (e.g., a wall, safe, or door)
using the included accessories.
Wired Fibra communication guarantees a stable connection to the control panel,
and the compact housing allows for discreet installation even in hard-to-reach
places.
Technical Specifications:
- Compatible only with hubs supporting the Fiber protocol.
- Piezoelectric sensor - detects vibrations caused by drilling, explosions,
or physical force.
- Built-in accelerometer - detects vibrations and tilt.
- Digital temperature sensor - detects rapid temperature increases.
- Transmission range: 2000m.
- Operating radius: concrete: 4m / steel: 2m.
- Tilt threshold: 5°~25°.
- 3 sensitivity levels.
- Remote system configuration and testing.
- Anti-sabotage protection (2x tamper, alarm, intrusion detection,
temperature sensor, encryption, authentication).
- Dimensions: 88×20×88mm (W/L/H)
- Security class: Grade 3, IP43, vandal-resistant (IK04)
- Power supply: 24V DC
