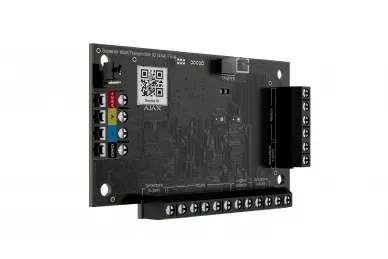

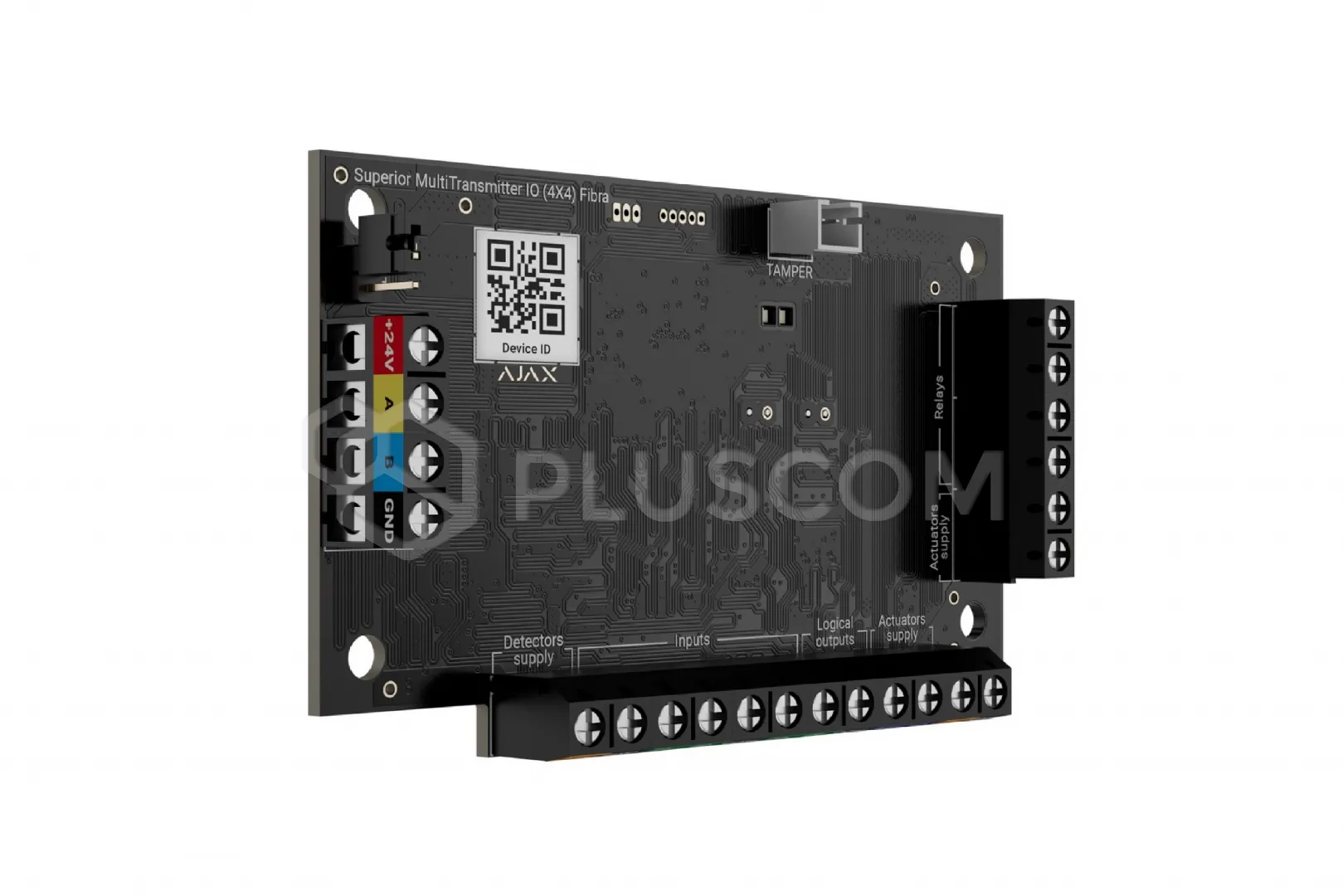

AJAX Superior MultiTransmitter IO (4X4) Fiber Module with 4 inputs and 4
outputs
The AJAX Superior MultiTransmitter IO (4X4) Fibra is an integration module with
4 inputs and 4 outputs for connecting third-party sensors to the Ajax security
system. The outputs are divided into 2 relay outputs and 2 logic outputs.
Extends the capabilities of the Ajax system to meet the requirements of even
the most complex and niche projects – from infrared motion sensors and home gas
sensors to thermostats and float switches. It supports the following connection
types: NO, NC, EOL, 2EOL, and 3EOL. The cable length between devices and the
module can reach up to 400 meters.
The MultiTransmitter Fibra transforms almost any wired alarm device into a part
of the Ajax ecosystem. Breathe new life into outdated equipment and connect
devices from outside the Ajax portfolio to create an intelligent alarm system
for projects of any complexity.
Integrated devices offer all the features that users and security agencies
value in the Ajax system: in-app security control, automation scenarios,
information notifications, integration with video surveillance, and more.
When connected to the hub using the integration module, each device can be
assigned an event type and immediately send notifications about threats or
activity in Ajax applications.
FEATURES:
- Supports NC, NO, EOL, 2EOL, and 3EOL connections, plus a KeyArm Zone
input.
- Supports pulse and bistable devices.
- 4x inputs + 4x outputs for integrating third-party devices.
- Automatic connection of EOL resistor data in wired system
integration.
Fibra Technology.
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected using a standard four-wire cable, allowing for a stable
connection over distances up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
A second life for your wired alarm
The Superior MultiTransmitter IO
(4X4) Fibra is the perfect solution for breathing new life into existing wired
systems.
With this module, you can easily integrate older devices with the modern Ajax
system, using fast and secure communication over the Fibra line. This is an
excellent way to preserve proven system components while increasing their
functionality and reliability.
Transform outdated solutions into innovative ones
With the integration
module, you can transform outdated alarm systems into modern, intelligent
solutions.
The Fibra AJAX MultiTransmitter allows you to connect and manage various
devices from the Ajax application, significantly improving user comfort and
security. Thanks to Fibra's advanced technology and simple installation,
system upgrades become quick, efficient, and cost-effective.
KeyArm Zone
KeyArm Zone is a dedicated input type that allows you to
switch system arming modes using third-party devices connected to Ajax
integration modules.
Third-party devices include access controllers, mechanical key switches,
push-button switches, radio controllers, telephone relays, and more.
KeyArm allows you to arm/disarm the system, individual groups, or set Night
Mode. This feature is available in Ajax applications.
Security via smartphone
With MultiTransmitter, users control security
via a mobile app, receive full notification data, and can implement automation
scenarios.
The installer can configure the system or device using the PRO app on-site or
remotely.
Technical Specifications:
- Supported Connection Types: NC, NO, EOL, 2EOL, 3EOL
- Alarm or Tamper Inputs/Outputs: 4/4
- Three 12V Power Outputs
- Operating Modes: Pulse/Bistable
- KeyArm Zone (input enabling switching between arming modes using
third-party devices)
- Tamper Protection (device status monitoring, encryption,
authentication)
- Transmission Range: AJAX Devices: 2000m / Third-Party Devices: 400m
- Power Supply: 24V DC
- Dimensions: 93×27×55mm (width/length/height)
