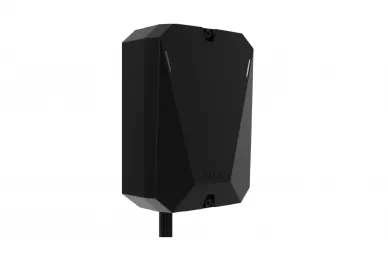

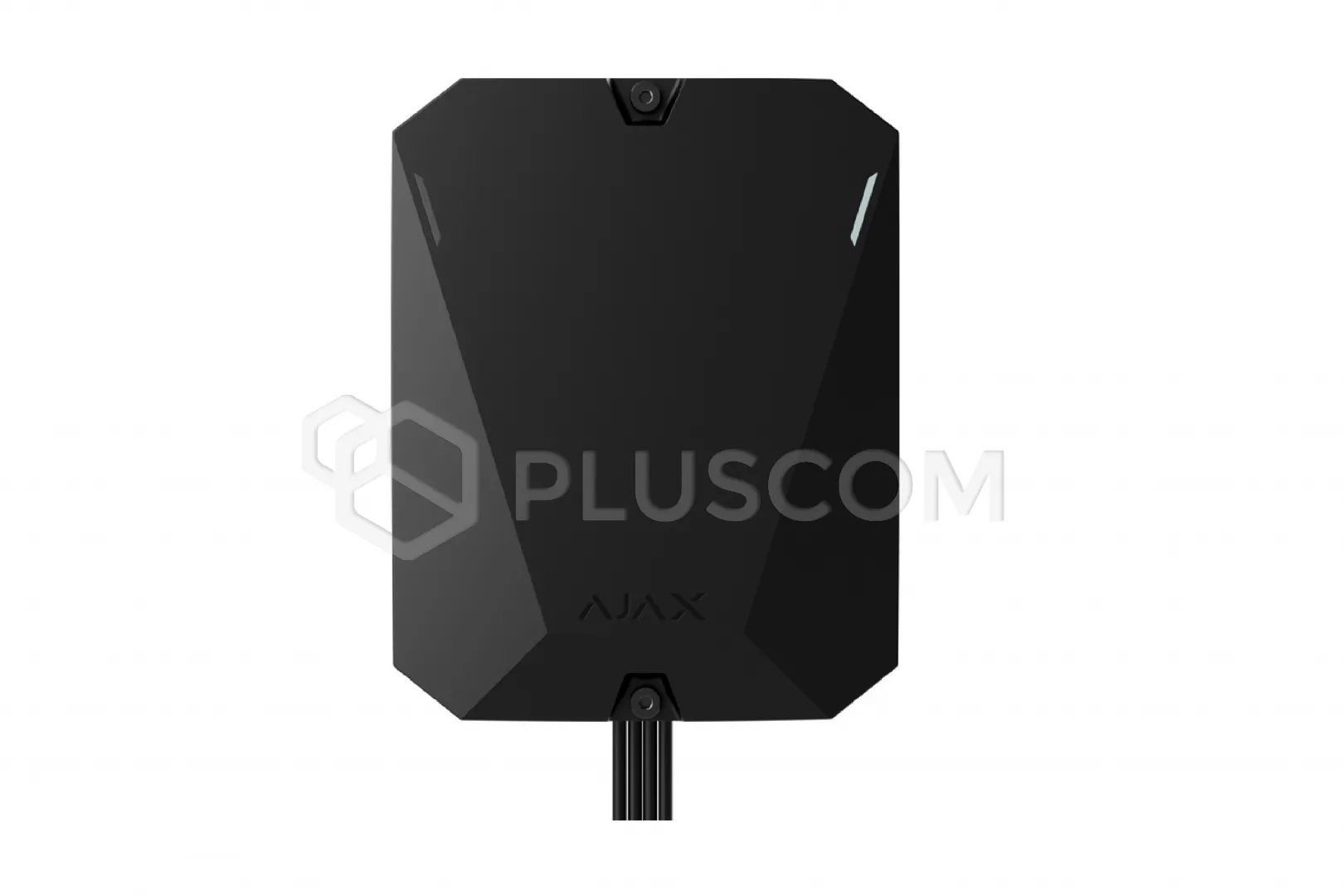

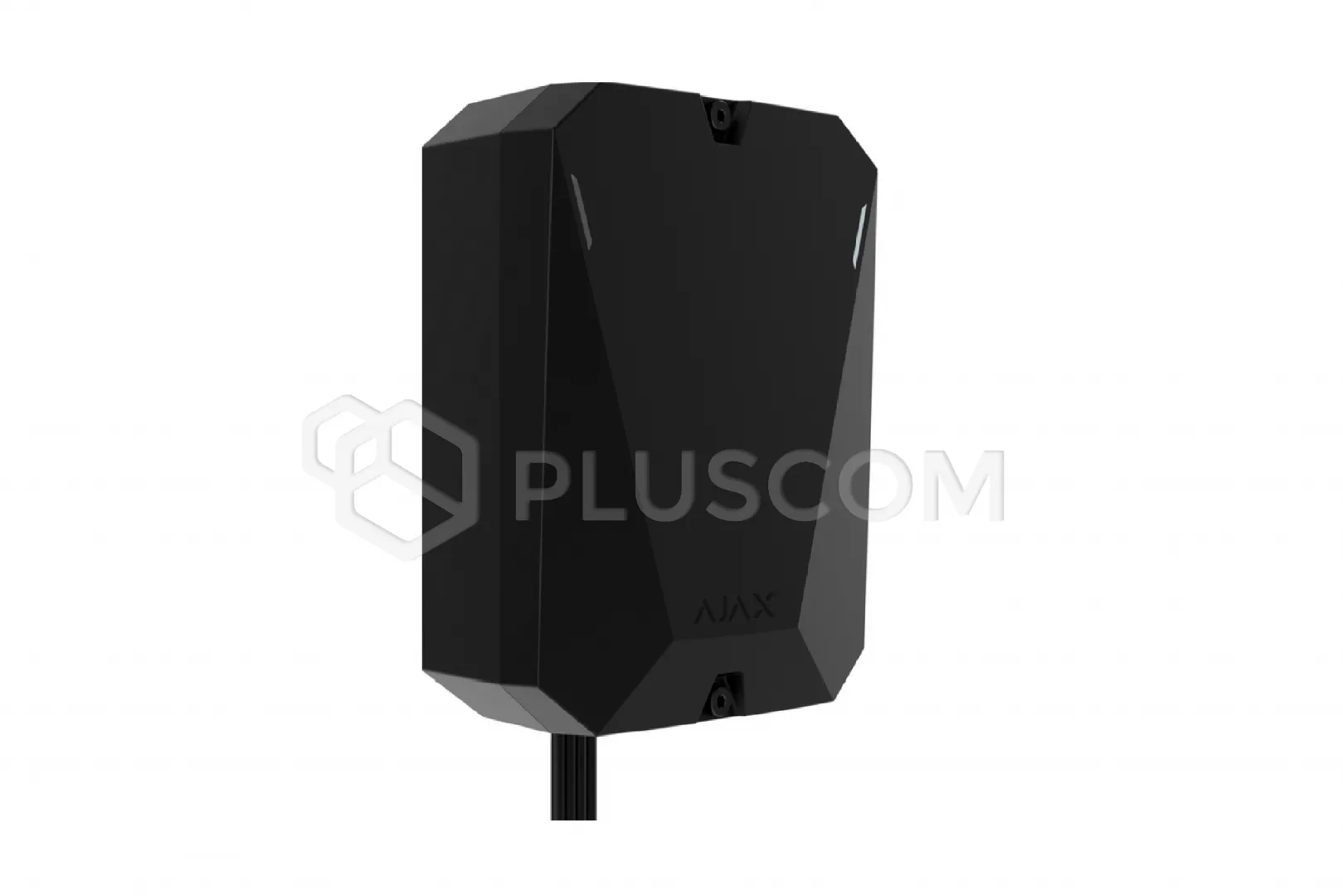

AJAX Superior MultiTransmitter Fiber Module for connecting external
sensors
The AJAX Superior MultiTransmitter Fibra is an integration module with 18 wired
zones for connecting third-party sensors to the Ajax security system.
Extends the capabilities of the Ajax system to meet the requirements of even
the most complex and niche projects – from infrared motion sensors and home gas
sensors, to thermostats and float switches. The module is powered by 100~240V
AC or 12V DC from a backup battery up to 7Ah.
The device is equipped with 4x 12V power outputs – 1x for the fire sensor and
3x for other devices. It supports the following connection types: NO, NC, EOL,
2EOL, and 3EOL.
The MultiTransmitter Fibra transforms almost any wired alarm device into a part
of the Ajax ecosystem. Breathe new life into outdated equipment and connect
devices from outside the Ajax portfolio to create an intelligent alarm system
designed for projects of any complexity.
Integrated devices offer all the features that users and security agencies
value in the Ajax system: in-app security control, automation scenarios,
information notifications, integration with video surveillance, and more.
When connected to the hub using the integration module, each device can be
assigned an event type and instantly send notifications about threats or
activity in Ajax applications.
FEATURES:
- Supports NC, NO, EOL, 2EOL, and 3EOL connections, and a KeyArm Zone
input.
- Allows integration of third-party sensors with the Ajax device
system.
- Two tamper contacts and a connector for the Ajax Case tamper
contact.
- Automatic connection of EOL resistor data in wired system
integration.
Fibra Technology.
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected using a standard four-wire cable, allowing for a stable
connection over distances up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
A second life for your wired alarm
The Fibra MultiTransmitter
transforms almost any wired alarm device into a part of the Ajax ecosystem. It
allows you to create an intelligent alarm system for projects of any
complexity.
Integrated devices offer all the features that users and security agencies
value in the Ajax system: in-app security control, automation scenarios,
information notifications, integration with video surveillance, and more.
Transform outdated solutions into innovative ones
Ajax integration
modules allow you to avoid the high costs of replacing your old alarm system.
The Fibra MultiTransmitter is designed to build a modern alarm system and
assist in automation using outdated but still functional hardware.
This solution features seamless integration of older alarm systems with the
latest Ajax devices.
KeyArm Zone
KeyArm Zone is a dedicated input type that allows you to
switch system arming modes using third-party devices connected to Ajax
integration modules.
Third-party devices include access controllers, mechanical key switches,
push-button switches, radio controllers, telephone relays, and more.
KeyArm allows you to arm/disarm the system, individual groups, or set Night
Mode. This feature is available in Ajax applications.
Smartphone Security
With MultiTransmitter, users have control over
security via a mobile app, receive full notification data, and can implement
automation scenarios.
The installer can configure the system or device using the PRO app on-site or
remotely.
Technical Specifications:
- Supported Connection Types: NC, NO, EOL, 2EOL, 3EOL
- Alarm or Tamper Inputs: 18
- Four 12V Power Outputs
- Operating Modes: Pulse / Bistable
- Battery Space: 12V DC / 7Ah
- KeyArm Zone (input enabling switching between arming modes using
third-party devices)
- Tamper Protection (2x tamper, alarm, encryption, authentication)
- Transmission Range: 2000m - with Ajax Hub or Expansion Module / 400m -
between sensors and module
- Power Supply: 100~240V AC / 12V DC (from backup battery)
- Dimensions: 185×38×99mm (W/L/H)
