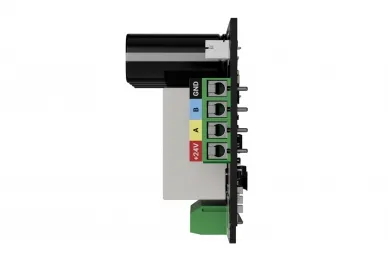

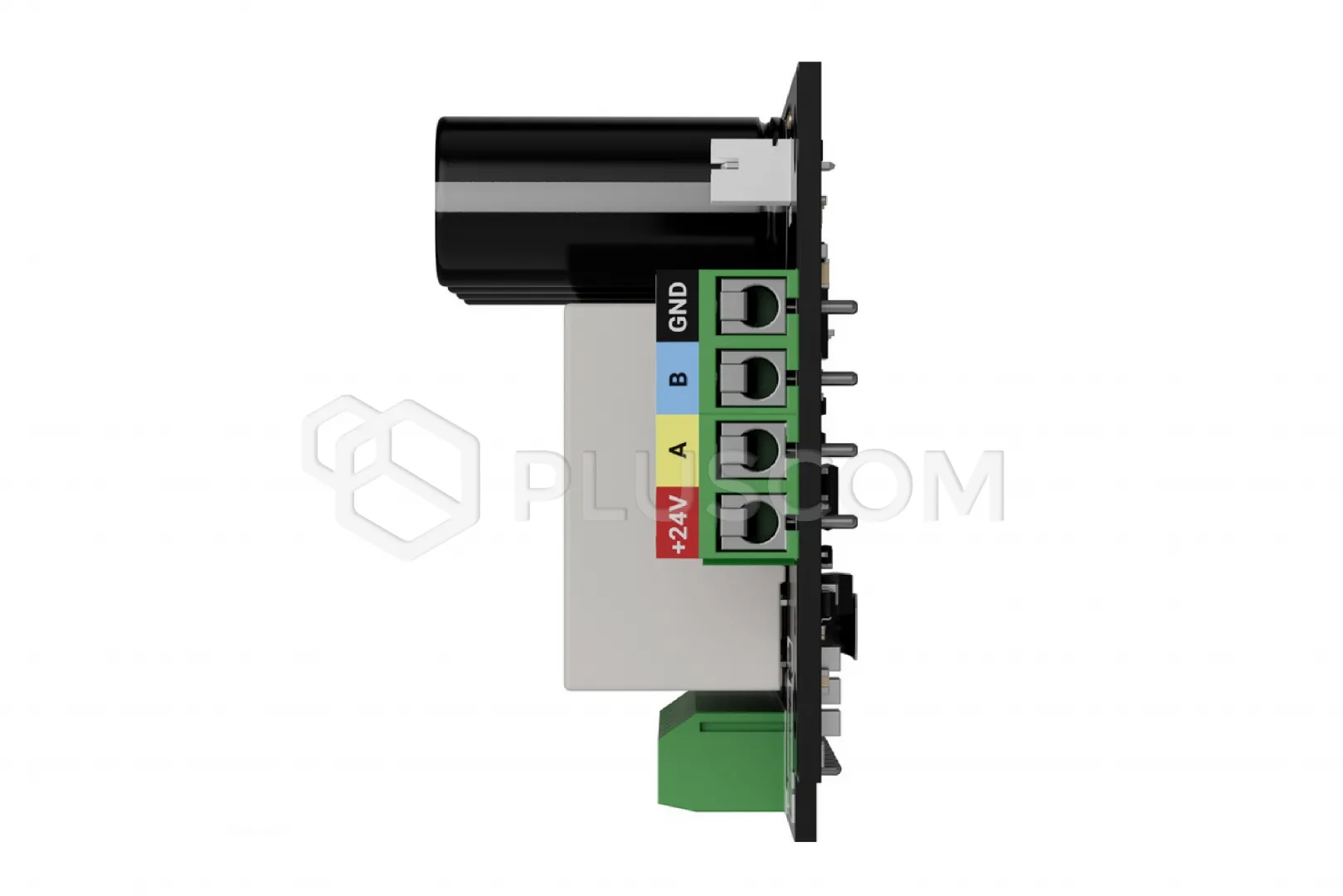

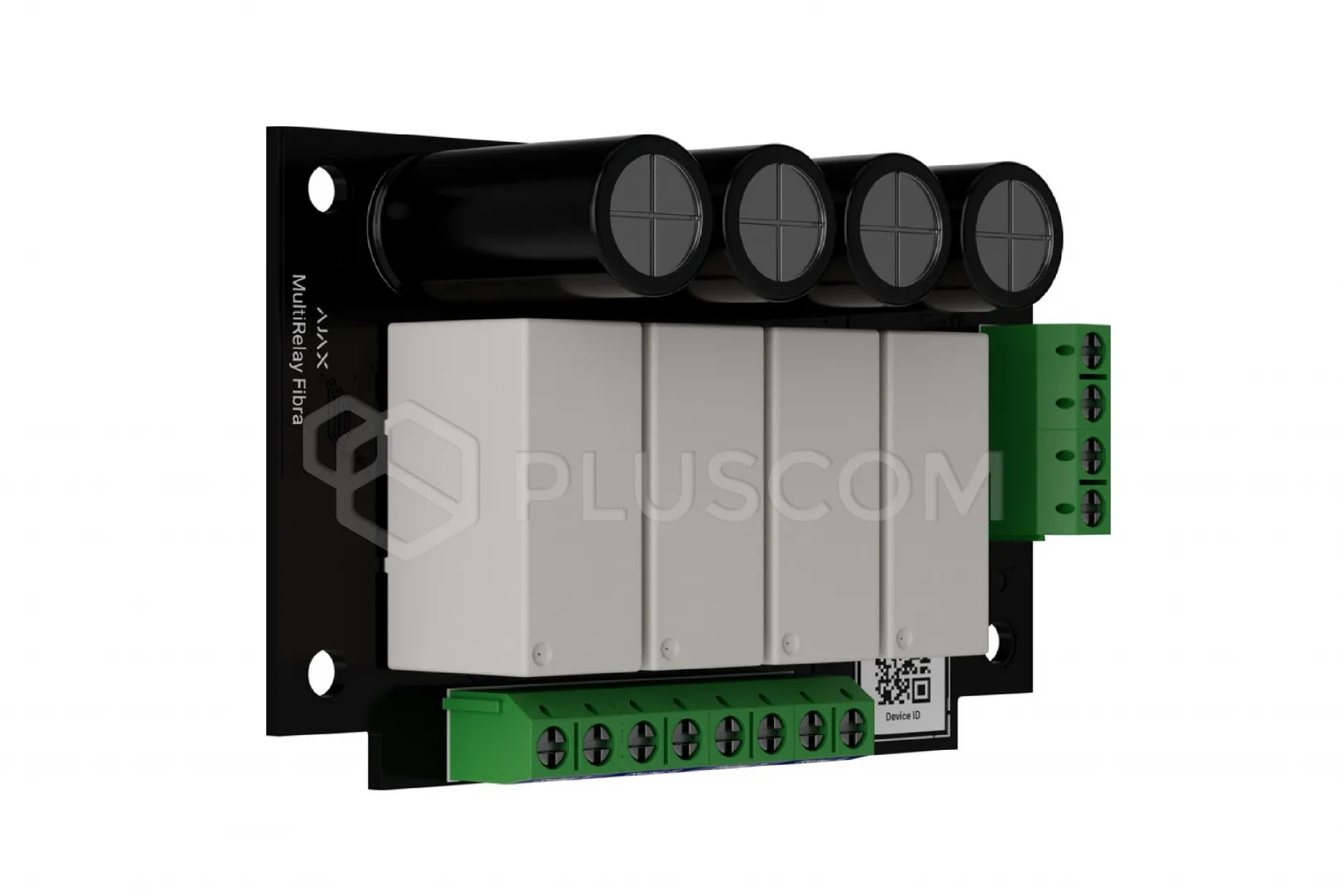

AJAX Superior MultiRelay Fiber Remote Control Relay
The AJAX Superior MultiRelay Fibra is a relay module designed for implementing
complex electrical wiring schemes.
It has four relays with potential-free (dry) contacts that can independently
control four separate circuits. MultiRelay enables the seamless integration of
various devices, electrical mechanisms, and third-party security systems.
Thanks to Ajax scenarios, the module provides fully automated actions in
response to alarms and security mode changes, or executes them according to a
predefined schedule.
FEATURES:
- Dry contacts
- 4 relay outputs
- Low power consumption (≤185mW)
- Automation scenarios
Fibra Technology
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected using a standard four-wire cable, allowing for a stable
connection even at distances of up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to the use of advanced
encryption and device authentication, the system is resistant to sabotage,
spoofing, and data theft attempts.
The protocol uses the Time-Division Multiple Access (TDMA) method, which
optimizes communication time and minimizes power consumption, which is
especially important for battery-powered or wired devices.
Operation Principle
The device controls the power supply using four
independent relays with potential-free contacts, allowing control of four
separate circuits.
Thanks to Fiber technology, MultiRelay provides bidirectional communication and
can be integrated with other devices in the Ajax system.
Installation and Mounting
The device is designed for indoor
installation. It can be mounted in various locations, such as electrical
cabinets, to provide convenient access to control various electrical devices.
Secure Home and Office Automation
Use Ajax scenarios to teach the alarm
system not only to report threats but also to actively prevent them.
Customize night mode according to a schedule, turn off office lights when
armed, program lamps to turn on when external motion sensors detect an
intruder, and implement an automatic flood prevention system.
The system continues to execute scenarios even if connection to Ajax Cloud is
lost.
Technical Specifications:
- Compatible only with hubs supporting the Fiber protocol.
- Actuator: potential-free relay.
- Operating modes: pulse / bistable.
- Transmission range: 2000m.
- Power supply: 8.5~30V DC.
- Maximum load current: 5A at 30V DC / 10A at 110~230V AC.
- Anti-tamper protection (encryption, authentication).
- Dimensions: 90x55x30mm (W/L/H).
