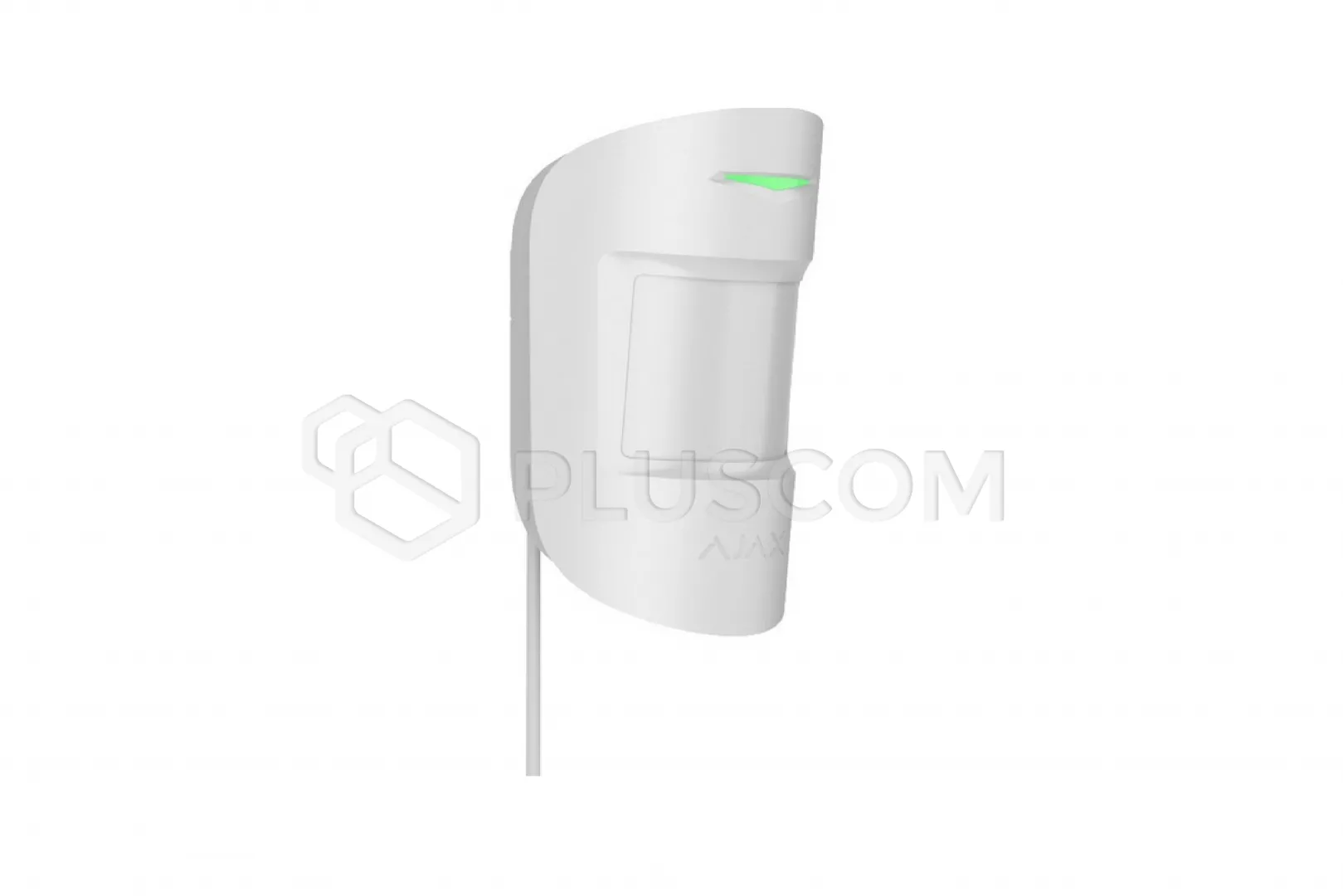

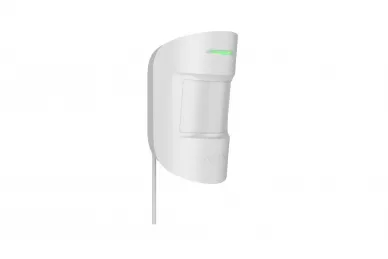

AJAX Superior MotionProtect Plus Fiber Wired Motion Sensor (White)
AJAX MotionProtect Plus Fibra is a wired motion sensor with an additional
K-band microwave sensor that activates when the PIR sensor is triggered.
This ensures accurate motion detection even in areas with complex thermal
disturbances, such as air conditioners or fireplaces, minimizing false alarms.
The modern design fits into any space, and the SmartBracket mounting bracket
makes installation easy.
Thanks to in-app configuration, engineers do not need to travel on-site to
handle minor issues.
FEATURES:
- Detection distance up to 12 m and viewing angles of 88.5°/80°
- SmartDetect software algorithm prevents false alarms
- Immunity for animals weighing up to 20 kg and less than 50 cm tall
- Additional K-band microwave sensor to filter thermal interference
Fibra Technology
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected using a standard four-wire cable, allowing for a stable
connection even at distances of up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission.
Thanks to the use of advanced encryption and device authentication, the system
is resistant to sabotage, spoofing, and data theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
Operation Principle
Detects human presence based on temperature
differences with background thermal radiation.
An additional K-band microwave sensor helps verify alarms detected by the PIR
sensor, minimizing false alarms caused by complex thermal interference, such as
air conditioners or fireplaces.
Features
Designed for use in demanding environments, such as rooms with
fireplaces and air conditioners.
Uses advanced temperature compensation algorithms, enabling effective motion
detection even in challenging conditions. Thanks to wired Fiber communication,
it ensures secure and stable data transmission, as well as protection against
sabotage and signal spoofing.
Intuitive configuration and installation
The sensor connects to the
Ajax security system in just a few clicks. Open the Ajax app, scan the QR code,
and assign the sensor to one of the rooms.
Mount the sensor on the wall using SmartBracket without removing the housing.
Make sure no vases, cabinets, or glass objects block the viewing angle.
You're all set!
Technical Specifications:
- Compatible only with hubs supporting the Fiber protocol
- Detection method: PIR + K
- Transmission range: 2000m
- Detection range: up to 12m
- Viewing angle: 88.5° - horizontal, 80° - vertical
- Temperature compensation
- Pet immunity: up to 20kg and 50cm high
- 3 sensitivity levels
- Remote system configuration and testing
- Dimensions: 67×62×110mm (W/L/H)
- Security class: Grade 2, IP50
- Protection Anti-sabotage (tamper, alarm, encryption, authentication)
- Power supply: 24V DC
