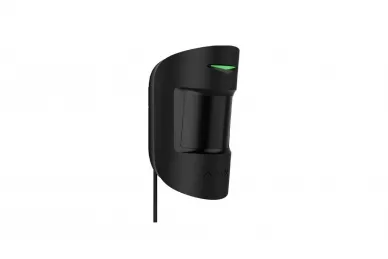

AJAX Superior MotionProtect Fiber Wired Motion Sensor (Black)
The AJAX MotionProtect Fibra is a wired motion sensor that activates when the
PIR sensor is triggered. This ensures accurate motion detection even in areas
with complex thermal disturbances, such as air conditioners or fireplaces,
minimizing false alarms.
The modern design fits into any space, and the SmartBracket mounting bracket
makes installation easy.
Thanks to in-app configuration, engineers don't have to travel on-site to
handle minor issues.
FEATURES:
- Detection distance up to 12 m and viewing angles of 88.5°/80°
- SmartDetect software algorithm prevents false alarms
- Immunity for animals weighing up to 20 kg and less than 50 cm tall
Fibra Technology
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected using a standard four-wire cable, allowing for a stable
connection even at distances of up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission.
Thanks to the use of advanced encryption and device authentication, the system
is resistant to sabotage, spoofing, and data theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
Operation Principle
The device detects human presence using a passive
infrared sensor. The received data is digitally processed to prevent false
alarms.
Features
The device automatically increases or decreases the
sensor's sensitivity to accurately detect motion during hot and cold
weather.
Intuitive configuration and installation
The sensor connects to the
Ajax security system in just a few clicks.
Open the Ajax app, scan the QR code, and assign the sensor to one of the rooms.
Mount the sensor to the wall using SmartBracket without removing the housing.
Make sure no vases, cabinets, or glass objects block the viewing angle.
You're all set!
Technical Specifications:
- Compatible only with hubs supporting the Fiber protocol
- Detection method: PIR
- Transmission range: 2000m
- Detection range: up to 12m
- Viewing angle: 88.5° - horizontal, 80° - vertical
- Temperature compensation
- Pet immunity: up to 20kg and 50cm high
- 3 sensitivity levels
- Remote system configuration and testing
- Dimensions: 67×62×110mm (W/L/H)
- Anti-tamper protection (2x tamper, alarm, encryption,
authentication)
- Protection class: Grade 2, IP50 protection class
- Power supply: 24V DC
