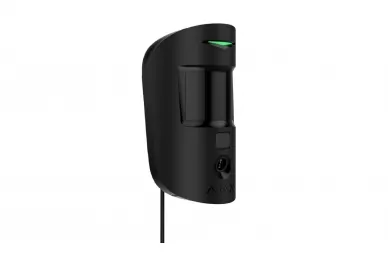

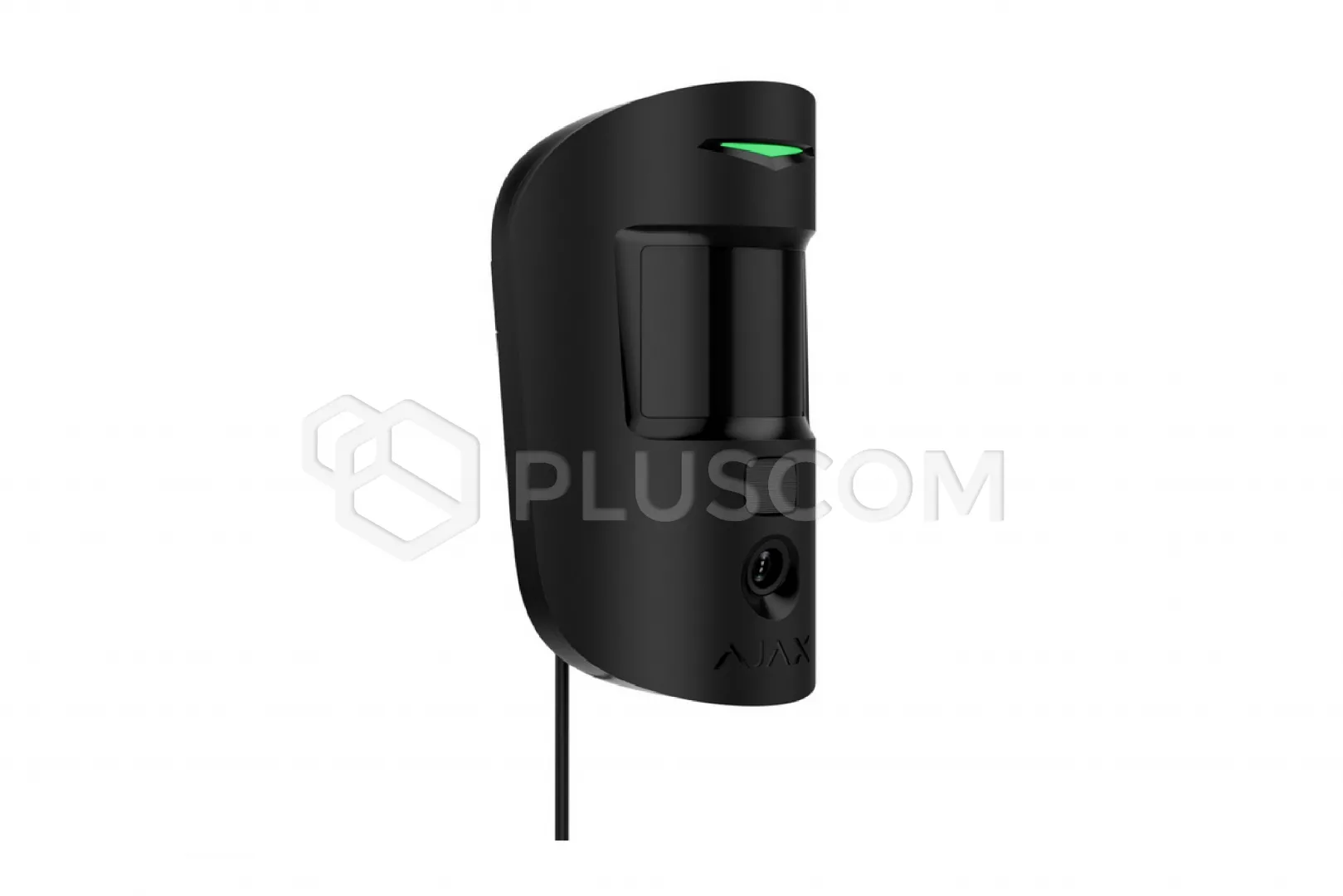

AJAX Superior MotionCam (PhOD) Fiber Wired PIR Motion Sensor with Camera
(Black)
The Superior MotionCam (PhoD) Fibra from AJAX is a wired PIR motion sensor with
advanced photo alarm verification.
When motion is detected, the sensor immediately notifies the owner of the first
signs of a home or office intrusion, and then, in just 9 seconds, transmits a
series of photos that allow for an on-site assessment of the situation.
It has a built-in camera that can take photos not only after an alarm, but also
on user request, according to a schedule, or in response to arming or disarming
the system. This allows the user and the security agency to quickly access
visual confirmation of the threat, avoiding false alarms and unnecessary
stress.
The sensor is mounted to the wall in front of the door or other location where
intruders may enter.
FEATURES:
- Remote photo capture upon user request
- Photo transfer time to the control panel: up to 9 seconds
- IR illumination for night vision
- Immunity for animals weighing up to 20 kg and less than 50 cm tall
Fibra Technology
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected via a standard four-wire cable, allowing for a stable
connection even at distances of up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
Designed with privacy in mind
The device mitigates threats without
invading privacy. The camera activates only in specific, user-defined
scenarios, and the data is encrypted and not subject to any analysis.
This allows for monitoring the causes of alarms without constant supervision.
Images can be taken not only during an alarm, but also according to scenarios,
schedules, or when the system is armed or disarmed.
The sensor is equipped with IR illumination for low-light photography and
mechanisms to prevent false alarms and tampering.
- Alarm photos / on demand / according to a schedule or scenario / by
arming and disarming
- All data stored and transmitted by the system is protected by a block
cipher with a dynamic key
- Photos are protected from prying eyes at the sensor, system, and software
levels
More than a photo. Faster than a video
With Fibra's Superior
MotionCam (PhoD), you'll know the real situation at home before burglars
realize they've been caught.
Immediately upon detecting motion, the sensor will send an animated series of
photos to help you assess the situation.
Furthermore, the device allows you to take photos on demand, according to
pre-prepared trigger scenarios, or manually via the app.
Unique Wireless Technologies
MotionCam is based on the Fibra protocol.
This technology inherits the features of two specialized radio protocols:
Jeweller for sending instant alarms and Wings for fast photo delivery.
You'll receive the first photo within 9 seconds of detecting motion.
As always, alarm notifications will arrive within a fraction of a second, even
if the signal is unstable. You can install the MotionCam up to 2,000 meters
from the control panel to provide visual monitoring of the most critical areas.
Intuitive Configuration and Installation
The sensor connects to the
Ajax security system in just a few clicks. Open the Ajax app, scan the QR code,
and assign the sensor to one of the rooms.
The Superior MotionCam (PhOD) Fibra sensor is mounted on the wall using the
included SmartBracket, which must be secured with at least two screws.
Before installation, break off the perforated part of the mount to expose the
cable. Then, place the sensor on the mount, securing it against disassembly.
Mounting is only possible on a vertical surface, ensuring a stable and durable
mounting of the device.
Technical specifications:
- Compatibility only with hubs supporting the Fiber protocol.
- Detection method: PIR.
- Photos on demand - takes photos during an alarm / on demand / according
to a schedule or scenario / by arming and disarming.
- Resolution: 640×480.
- Illumination: IR LEDs.
- Transmission range: 2000m.
- Detection range: up to 12m.
- Viewing angle: 88.5° - horizontal and vertical.
- 4 sensitivity levels.
- Power supply: 24V DC.
- Pet immunity: up to 20kg and 50cm high.
- Sabotage protection (2x tamper, alarm, encryption, authentication,
backup)
- Remote system configuration and testing
- Dimensions: 70×66×135mm (W/L/H)
- Security class: Grade 2, IP50 protection class
