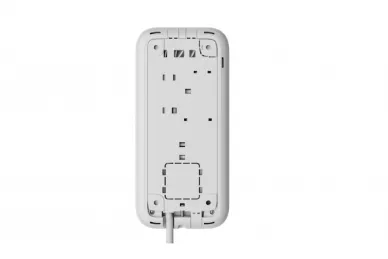

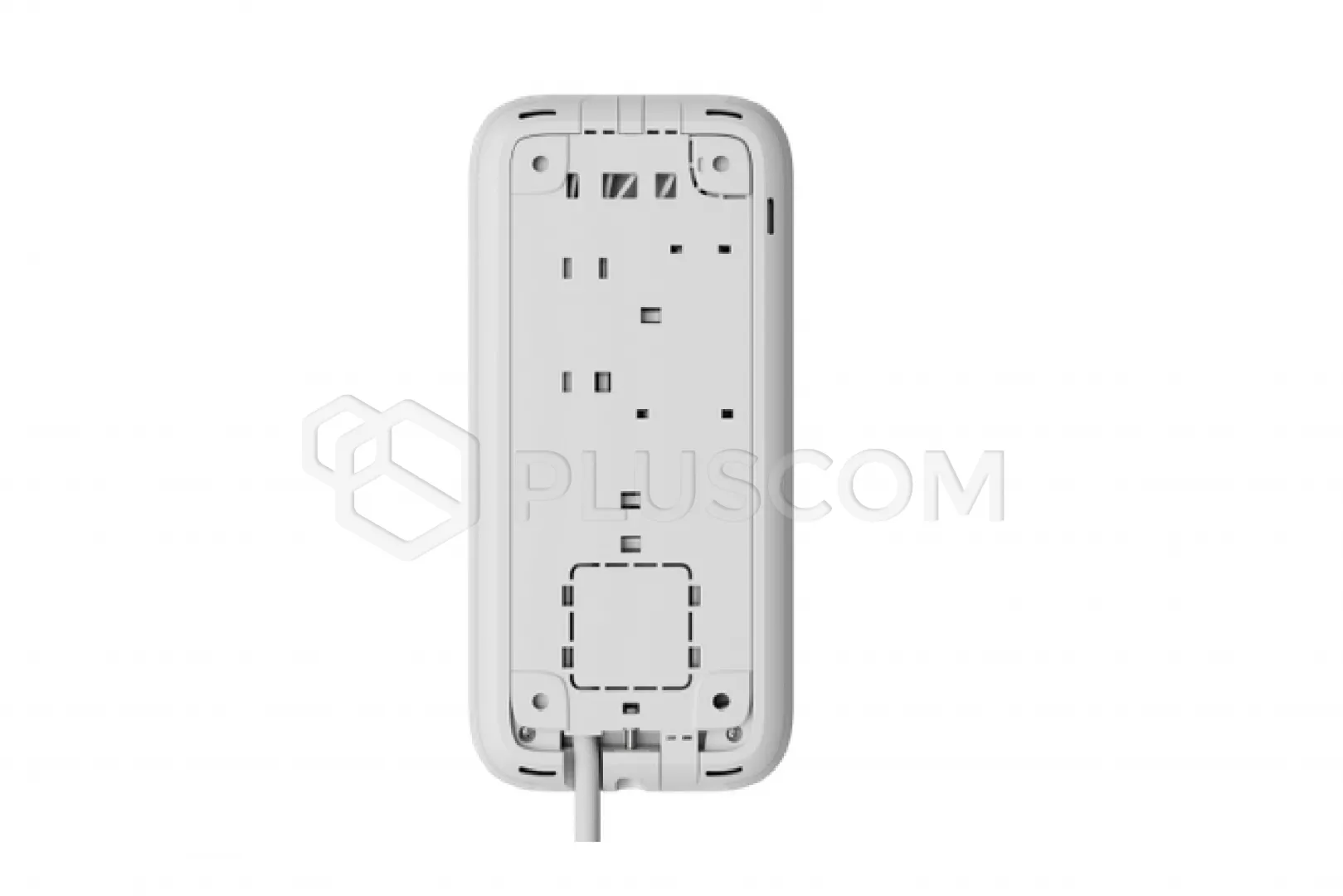

AJAX Superior KeyPad TouchScreen Fiber Wired Touchscreen Keyboard
The Superior KeyPad TouchScreen Fibra is a wired keypad with a touchscreen
designed to manage the AJAX alarm system. Users can authenticate using
smartphones, Tag fobs, Pass cards, and codes.
The device is intended for indoor use only. The Superior KeyPad TouchScreen
Fibra communicates with the hub using the 4-wire Fibra wired communication
protocol. This protocol ensures fast and reliable, two-way communication
between the hub and connected devices.
The range of this connection is up to 2000 meters.
Fibra Technology
Fibra is a proprietary, two-way wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected using a standard four-wire cable, allowing for a stable
connection even at distances of up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
One device, two purposes
Simple security management for multiple
groups. Users can view arming statuses and make changes with a single touch,
whether securing a single or multiple areas, activating night mode, or arming
the entire facility.
And all this is simple and straightforward.
- Easy group management
- Security mode for each group is available on-screen
- Management of night mode and system-wide security mode
The keypad has a separate tab for controlling automation devices, with a
maximum capacity of 6 buttons.
Groups simplify the process of controlling multiple automation devices:
switches, relays, smart plugs, and more. For example, users can assign all
LightSwitches to a single button and instantly turn off lights throughout the
house when they go to bed.
- Separate tab for controlling automation
- Up to 6 devices or groups of devices on one screen
The integrated siren keeps you up to date, receiving notifications about
alarms, door openings, and entry/exit delays.
PRO can effortlessly adjust the audio volume on your smartphone or computer.
Stay one step ahead with keypad error messages when arming.
- Audio notifications for alarms and events
- Instant notifications for faults
Three authentication methods
There are three simple ways to control the
keypad, giving users the flexibility to choose what works best for them.
All events are displayed on the channel, including user activity and
authentication details.
Control the keypad using a smartphone with the Ajax app. Access is only
granted to users approved by the administrator.
The KeyPad TouchScreen supports the following code types: keypad code (one
per keypad), personal code (individual for each user), and unregistered user
code.
- Pass ID Card and Tag Key Fob
The use of a Pass card or Tag key fob is recorded in events in the Ajax
applications. The system administrator can revoke or restrict access rights
assigned to the proximity access device at any time.
Proximity Access Devices
The Pass card and Tag key fob have original
DESFire® chips and share the same functions, but differ in their housing.
You can choose the format that suits you best. A single Tag or Pass can control
13 alarm systems. Access devices are sold separately in batches of 3, 10, or
100.
Access for unregistered users
By simply assigning a personal access
code in the hub settings, office workers, cleaning staff, and other users can
conveniently enter the protected area.
Complete protection in emergencies
The TouchScreen KeyPad provides a
card with configurable alarm buttons that can notify of three types of events.
If a user is forced to disarm the alarm, they can use the duress code. This
simulates disarming and simultaneously sends an alert to the security company.
- User notifies of an alert
- System sends an alarm
- Security agency calls emergency services

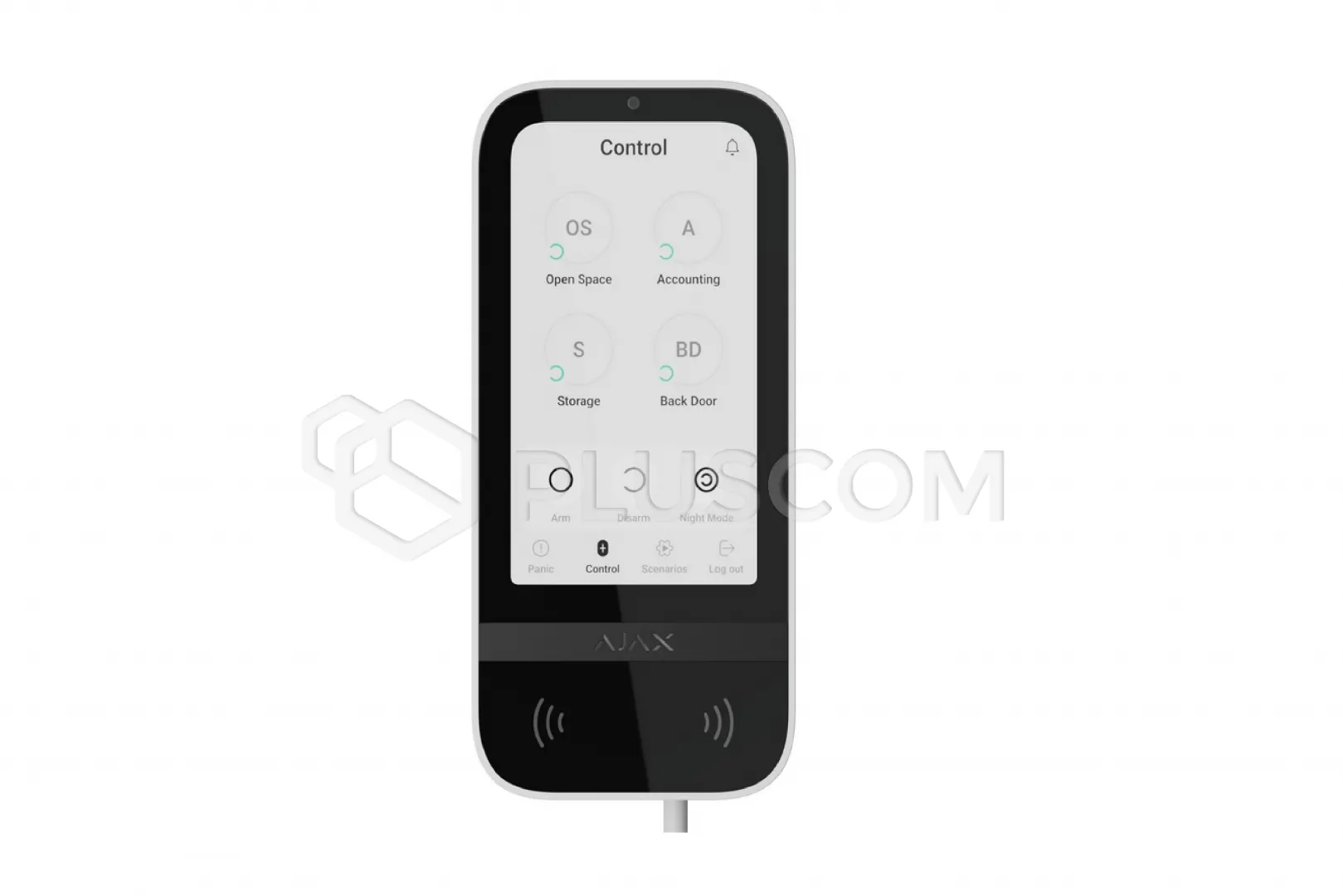

Unique touchscreen experience
The high-resolution screen houses all the
necessary controls, providing a visually stunning, high-quality image. With
automatic brightness adjustment and an elegant glass finish, the product offers
high aesthetics and comfort.
- Screen: 5-inch screen with a resolution of 480 × 854 pixels
- Screen Brightness: Bright during the day, glare-free at night
- Screen Protection: Protects the screen from scratches, etc.
Remote Access Rights Management
Change access rights and codes in real
time in Ajax applications. Compromised codes can be changed remotely in
minutes. An on-site visit by an installer is not required.
- Code: Remote code change
- Screen brightness: Change remote user access rights
- Screen protection: Remote locking with card, key fob, and smartphone
Technical specifications:
- Display: 5" IPS touchscreen
- Screen resolution: 480×854
- Authentication: smartphone (Bluetooth), proximity card, key fob,
code
- Two-way communication
- Remote system configuration and testing
- Transmission range: 2000m
- Tamper protection (tamper, anti-forgery authentication)
- Power supply: 7~30V DC
- Dimensions: 82×28×171mm (W/L/H)
