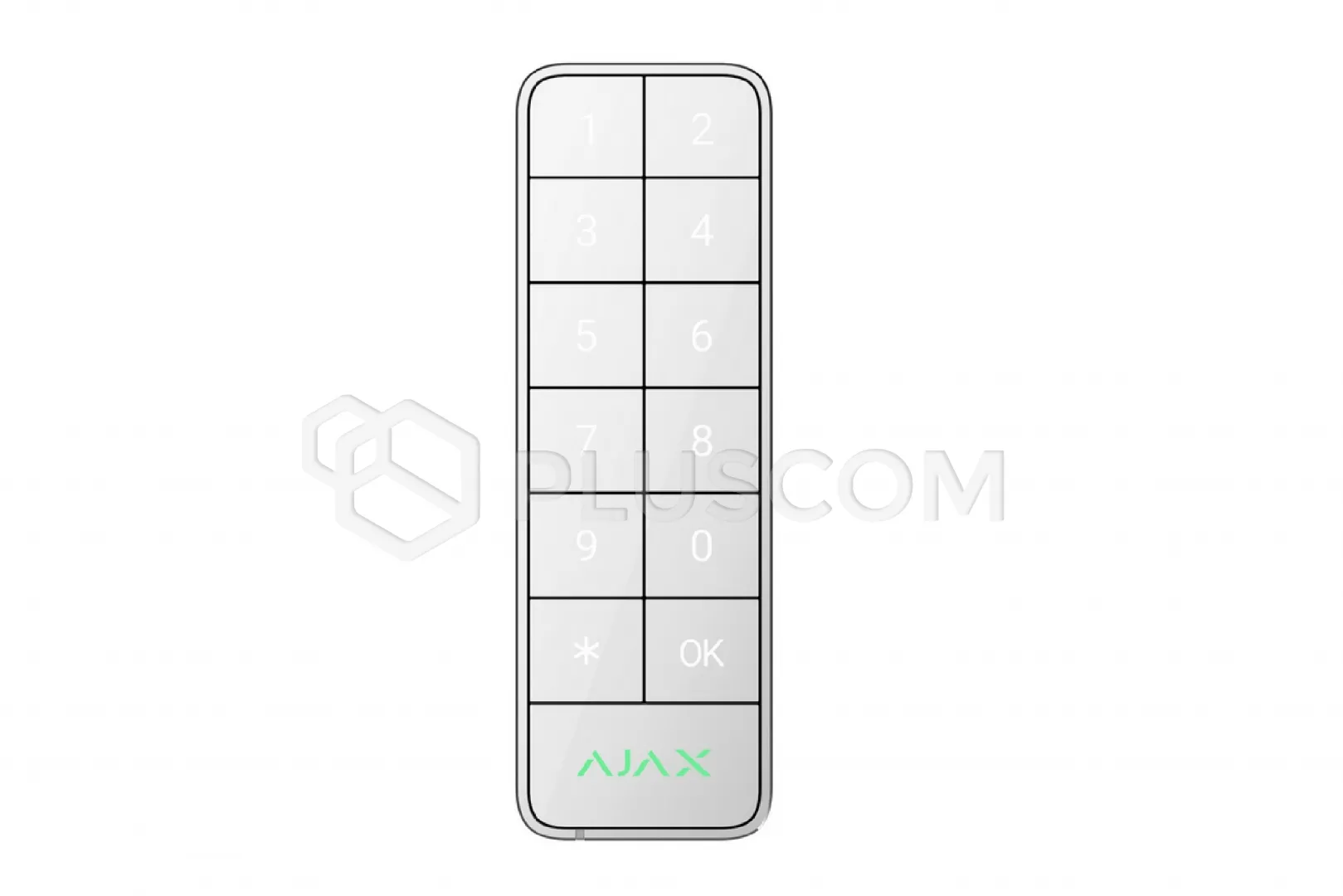

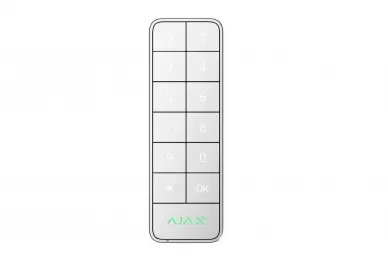

AJAX Superior KeyPad Outdoor Wired External Keyboard (White)
The wired Superior KeyPad Outdoor Fibra touchscreen keyboard by AJAX is
designed for arming/disarming security systems based on Ajax Fibra devices.
Designed specifically for outdoor use, it is resistant to harsh weather
conditions thanks to its IP66 and IK08 ratings. It is installed indoors near
the entrance door to ensure quick access.
The keypad is made of high-quality materials and has a modern design.
FEATURES:
- Activates full security mode with the press of a single button.
- If a thief attempts to enter a code, a silent alarm signal can be sent to
the monitoring station.
- Automatic keypad lock after multiple incorrect code entries.
- Suitable for harsh environments thanks to its IP66 rating and IK08
mechanical protection.
Fibra Technology
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected via a standard four-wire cable, allowing for a stable
connection at distances up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol utilizes the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
Operation Principle
The keypad supports security modes after entering a
digital code. It notifies about the current system status, sensor problems, or
lack of connection to the hub.
Features
It enables contactless and code-based authorization using Pass
cards, Tag fobs, smartphones, and traditional codes, ensuring reliable access
and security control even in rain, snow, or heat.
The robust, slim housing with large, convenient buttons is ideal for outdoor
installation, guaranteeing durability and full functionality in all conditions.
It includes an emergency button. It notifies you of any password guessing
attempt and automatically locks itself if the maximum number of attempts is
exceeded.
Reliable in all conditions
The Superior KeyPad Outdoor Fibra is a wired
keyboard designed for outdoor use, resistant to harsh conditions thanks to its
IP66 rating (dust and water resistance) and IK08 standard (impact resistance).
It withstands temperatures from -25°C to +60°C, and its robust housing and
large buttons ensure comfortable operation even with gloves. Ideal for access
control in demanding outdoor environments.
Installation and assembly
The Superior KeyPad Outdoor connects to the
system control panel quickly and conveniently – connection is achieved with a
single click via the mobile app.
Thanks to the intuitive app interface, device configuration is simple and
requires no specialist knowledge, allowing for quick setup and full integration
with the alarm system.
The Superior KeyPad Outdoor Fibra can be mounted directly to the wall or using
the SmartBracket, which includes all the necessary mounting hardware and a
built-in spirit level for precise alignment.

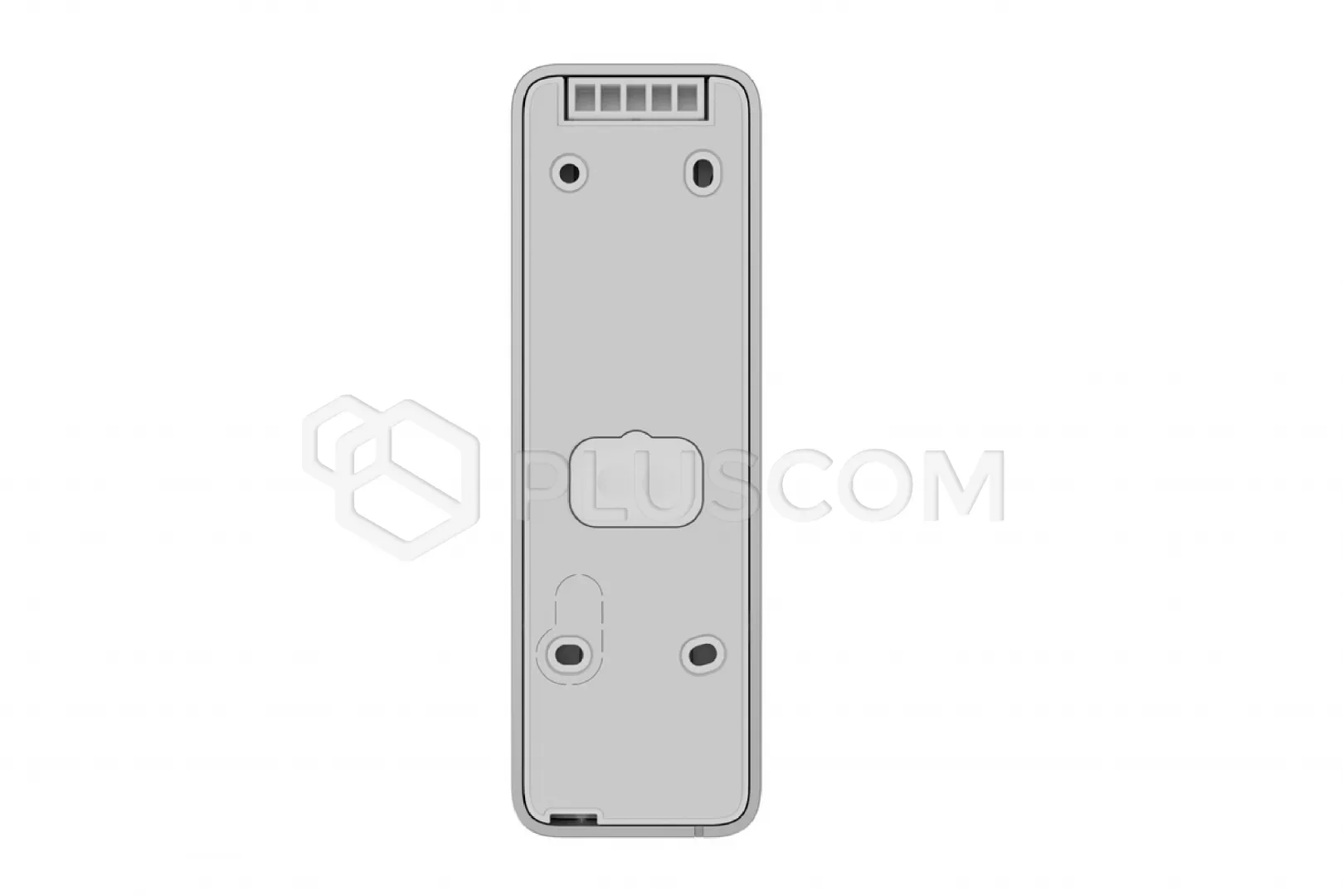

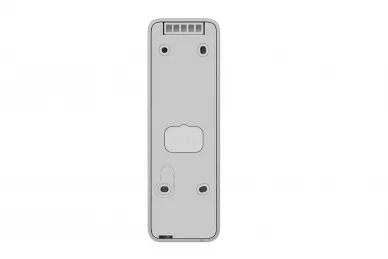

The terminal strip is located outside the housing, beneath the bracket, and is
removable, eliminating the need to disassemble the device and minimizing the
risk of damage during installation. The SmartBracket also features cable ties
for convenient cable management, ensuring aesthetics and a tidy wiring system.
Technical Specifications:
- Compatible with: Superior Hub Hybrid alarm control panels
- Keypad type: physical
- Button backlight
- Adjustable brightness and volume
- Two-way communication
- Up to 100 personal access codes
- Function button (panic button or alarm mute)
- Protection against code guessing
- Transmission range: 2000m
- Remote configuration via app
- Number of buttons: 12
- Anti-sabotage protection (2x tamper, alarm, code guessing protection,
authentication)
- Power supply: 5~30V DC
- Operating temperature: -10°C ~ 40°C
- Dimensions: 45×27×137mm (W/L/H)
