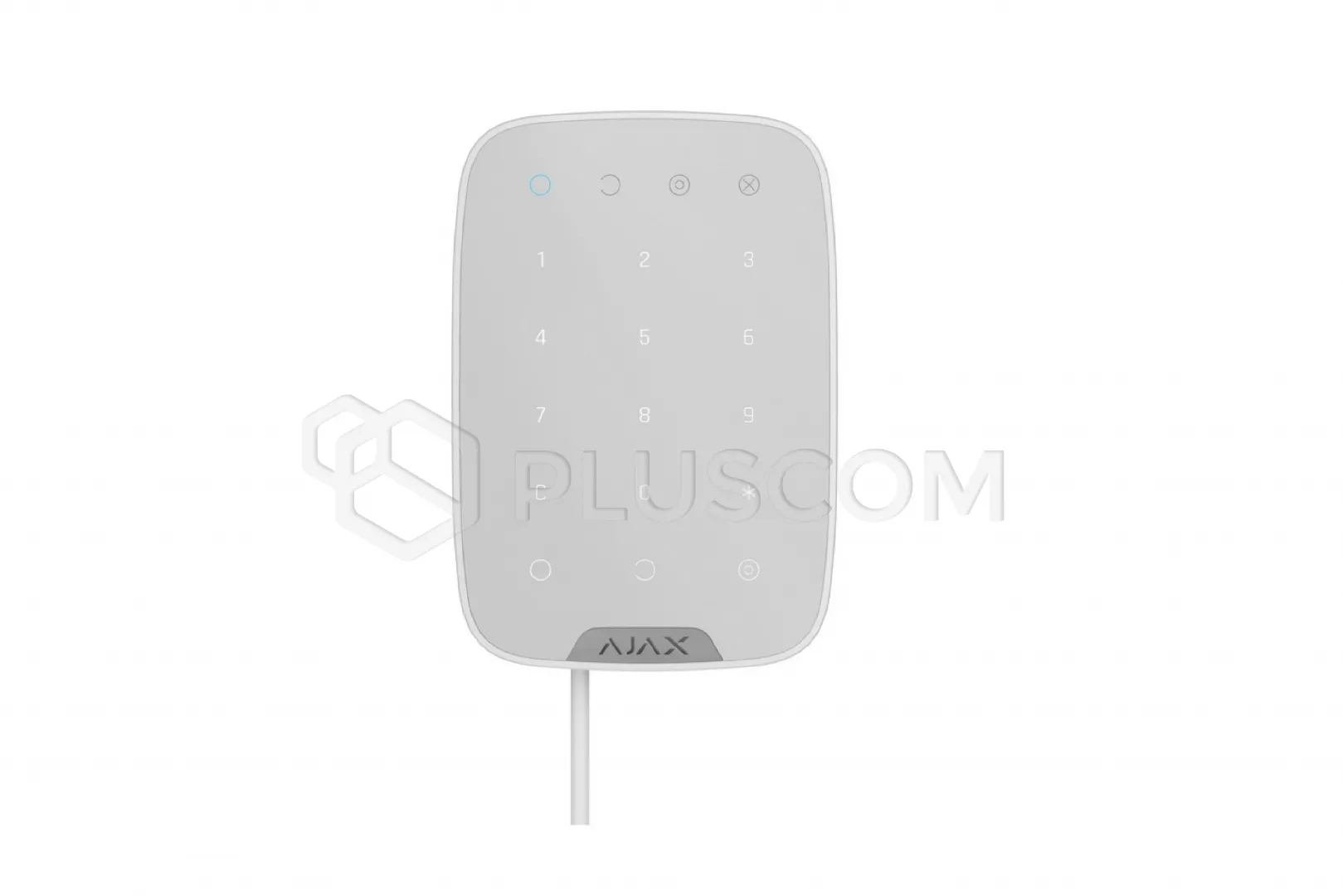

AJAX Superior KeyPad Fiber Wired Keyboard (White)
The wired Superior KeyPad Fibra touchscreen keypad from AJAX. Designed for
arming/disarming security systems based on Ajax Fibra devices.
It is installed in a room near the entrance door to ensure quick access. The
keypad is made of high-quality materials and has a modern design.
FEATURES:
- Activates full security mode with the press of a single button.
- If a thief attempts to enter a code, a silent alarm signal can be sent to
the monitoring station.
- Automatic keypad locking after multiple incorrect code entries.
Fibra Technology
Fibra is a proprietary, two-way wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected using a standard four-wire cable, allowing for a stable
connection even at distances of up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
Operation Principle
The keypad supports security modes after entering a
digital code. It notifies about the current system status, sensor problems, or
lack of connection to the hub.
Features
It has an alarm button. It notifies about any password
guessing attempt and locks automatically if the allowed number of attempts is
exceeded.
Installation and assembly
Connecting to the control panel is a simple
click using the mobile app. Thanks to the SmartBracket (included), installation
takes just a few minutes.
Technical Specifications:
- Compatible with: Superior Hub Hybrid alarm control panels
- Keypad type: touchscreen
- Button backlight
- Adjustable brightness and volume
- Two-way communication
- Up to 100 personal access codes
- Function button (panic button or alarm mute)
- Protection against code guessing
- Transmission range: 2000m
- Remote configuration via app
- Number of buttons: 15
- Anti-sabotage protection (2x tamper, alarm, code guessing protection,
authentication)
- Power supply: 5~30V DC
- Operating temperature: -10°C ~ 40°C
- Dimensions: 103×19×150mm (width/length/height)
