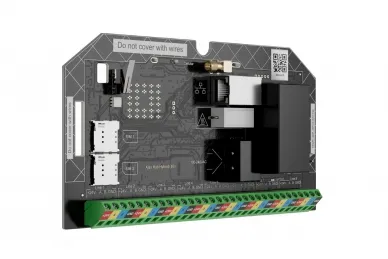

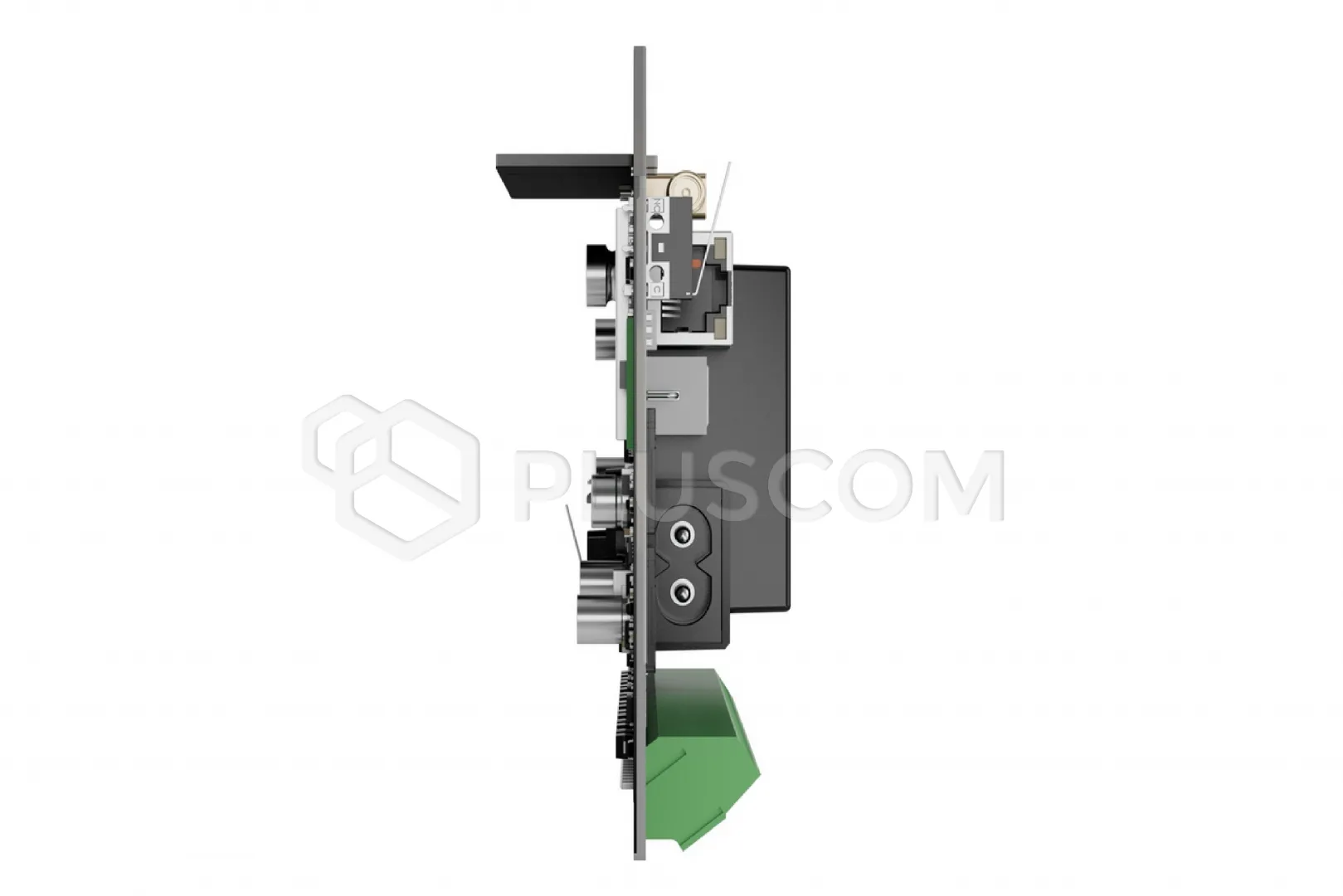

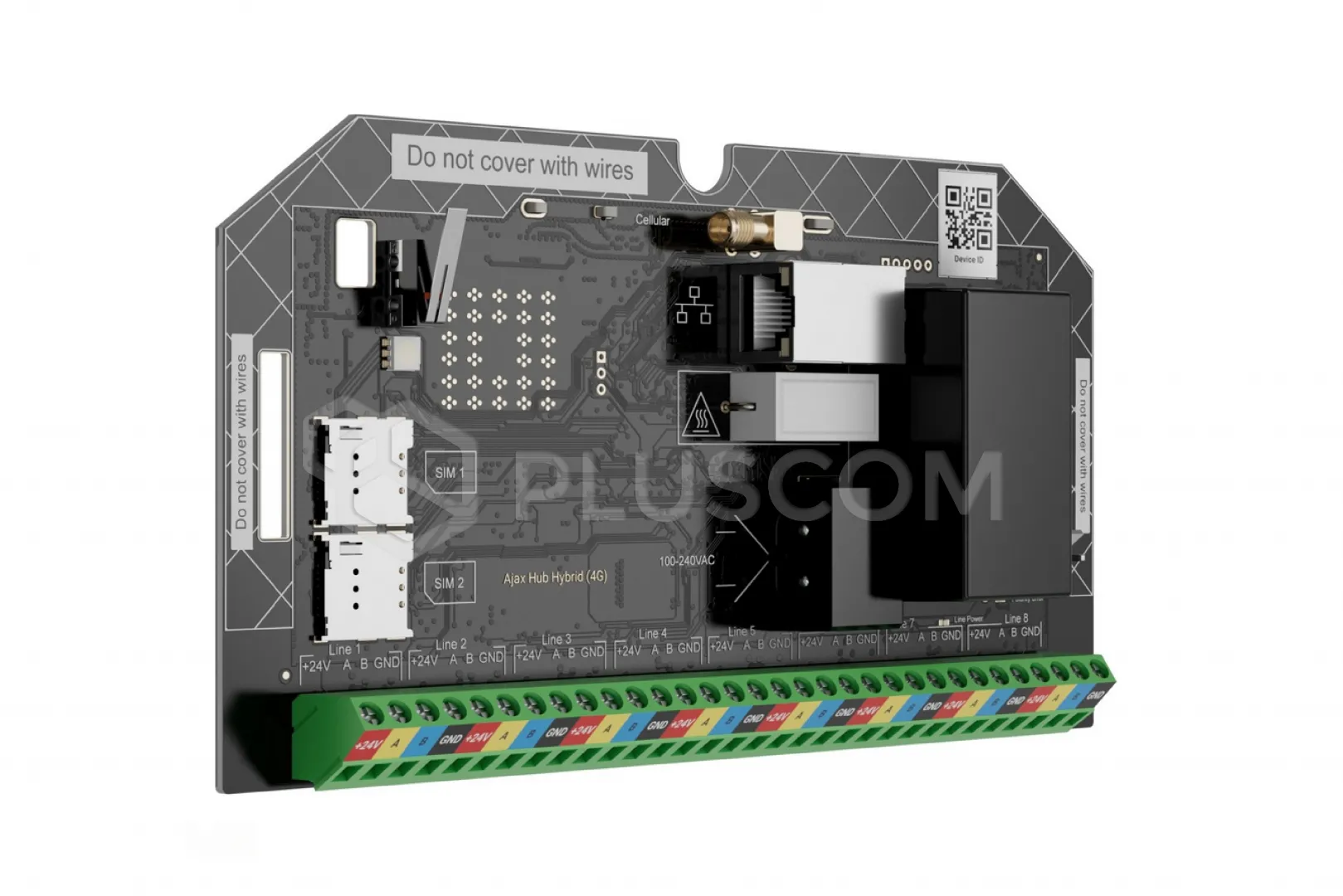

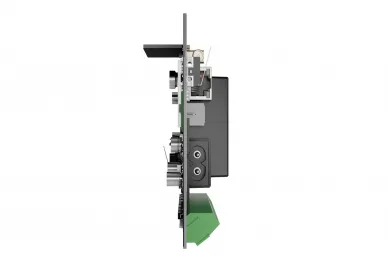

AJAX Superior Hub Hybrid (4G) Alarm Control Panel without Housing
The presented device is a variant of the AJAX Superior Hub Hybrid (4G) alarm
control panel without a housing.
This control panel is a hybrid alarm system solution combining wired and
wireless technologies.
It supports up to 100 devices (including wireless and wired sensors) and up to
25 cameras. The device has 8 bus outputs and supports a ring topology, ensuring
continuous operation even in the event of a line break.
The Hub Hybrid (4G) enables internet connection via Ethernet and two 4G-enabled
SIM cards, allowing automatic switching between channels in the event of a
failure.
Additionally, the device supports photographic alarm verification and allows
the creation of up to 32 automation scenarios, increasing the effectiveness of
the security system. The control panel is equipped with a built-in internal
tamper contact with the option of connecting an external tamper contact.
The board is compatible with the Case D (430) housing.
FEATURES:
- Uses GSM or Ethernet to send alarms to the security agency and system
owner.
- Operates up to 3.5 days on a backup battery.
- Connection loss notification within one minute.
- Video and audio streaming.
- Snapshot saving.
- Video zoom.
- Supports 25 cameras and a DVR.
- Alarm responses.
- Responses after changing the security mode.
- Scheduled actions.
Operation principle.
Collects information about sensor activity in
encrypted form, analyzes the data, and in the event of an alarm, notifies the
system owner and the alarm monitoring station of the danger within
milliseconds.
Features
Jeweller Radio Technology: uses Jeweller
radio technology to monitor sensor activity and quickly respond to threats. It
switches the entire system to clear frequencies during jamming. It is protected
against viruses at the software level.
Fibra Wired Technology: combines the reliability of wires with
the freedom of radio connections. It allows for lines up to 2 km long and
supports up to 8 lines in the system, ensuring continuous operation even in the
event of a line fault.
Secure Home and Office Automation
Use Ajax scenarios to teach the alarm
system not only to report threats but also to actively prevent them.
Customize night mode according to a schedule, turn off office lights when
armed, program lamps to turn on when external motion sensors detect an
intruder, and implement an automatic flood prevention system.
The system continues to execute scenarios even if connectivity to the Ajax
Cloud is lost.
Technical Specifications:
- Compatibility: Fibra and Jeweller devices
- 2G / 3G / 4G/LTE network support
- Two-way wired and wireless communication
- Communication: LAN, 2x GSM
- Operating frequency: 868.0~868.6MHz
- Transmission range: 2000m (using U/UTP Category 5 twisted-pair
cable)
- Photographic alarm verification (MotionCam required)
- Maximum number of connected devices: up to 100
- Video monitoring support: up to 25 cameras or DVRs
- Maximum number of users: 50
- Maximum number of rooms: 50
- Zones: 9
- Smart home scenarios: 32
- Anti-sabotage protection (2x tamper, alarm, encryption,
authentication)
- Power supply: 110~240 V
- Security class: Grade 3, IP30, vandal-resistant (IK06)
- Dimensions: 185×43×99mm (W/L/H)
