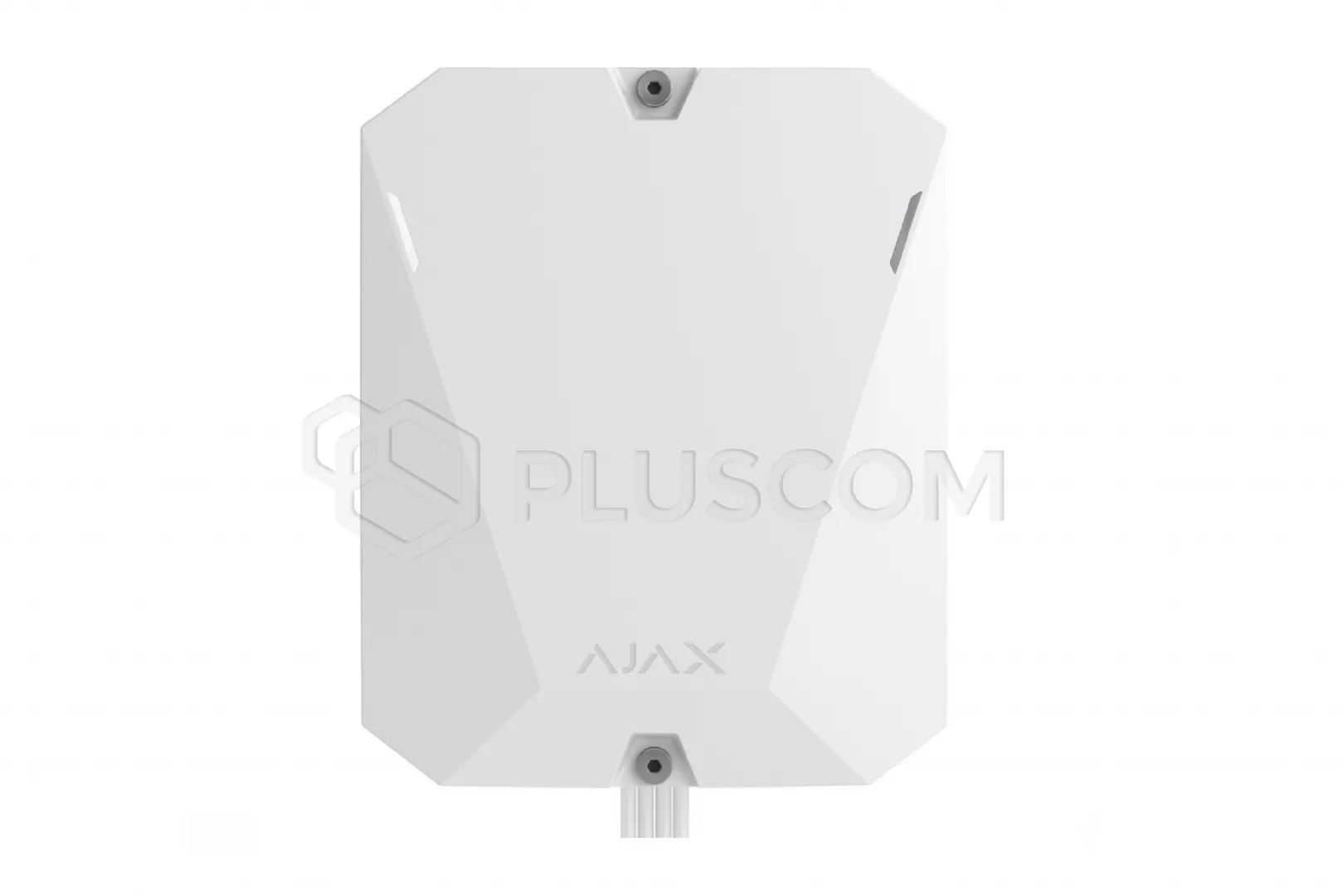

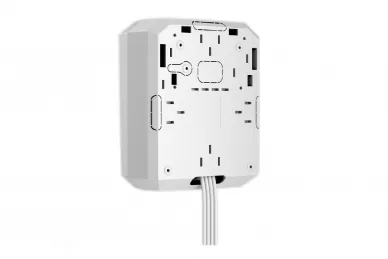

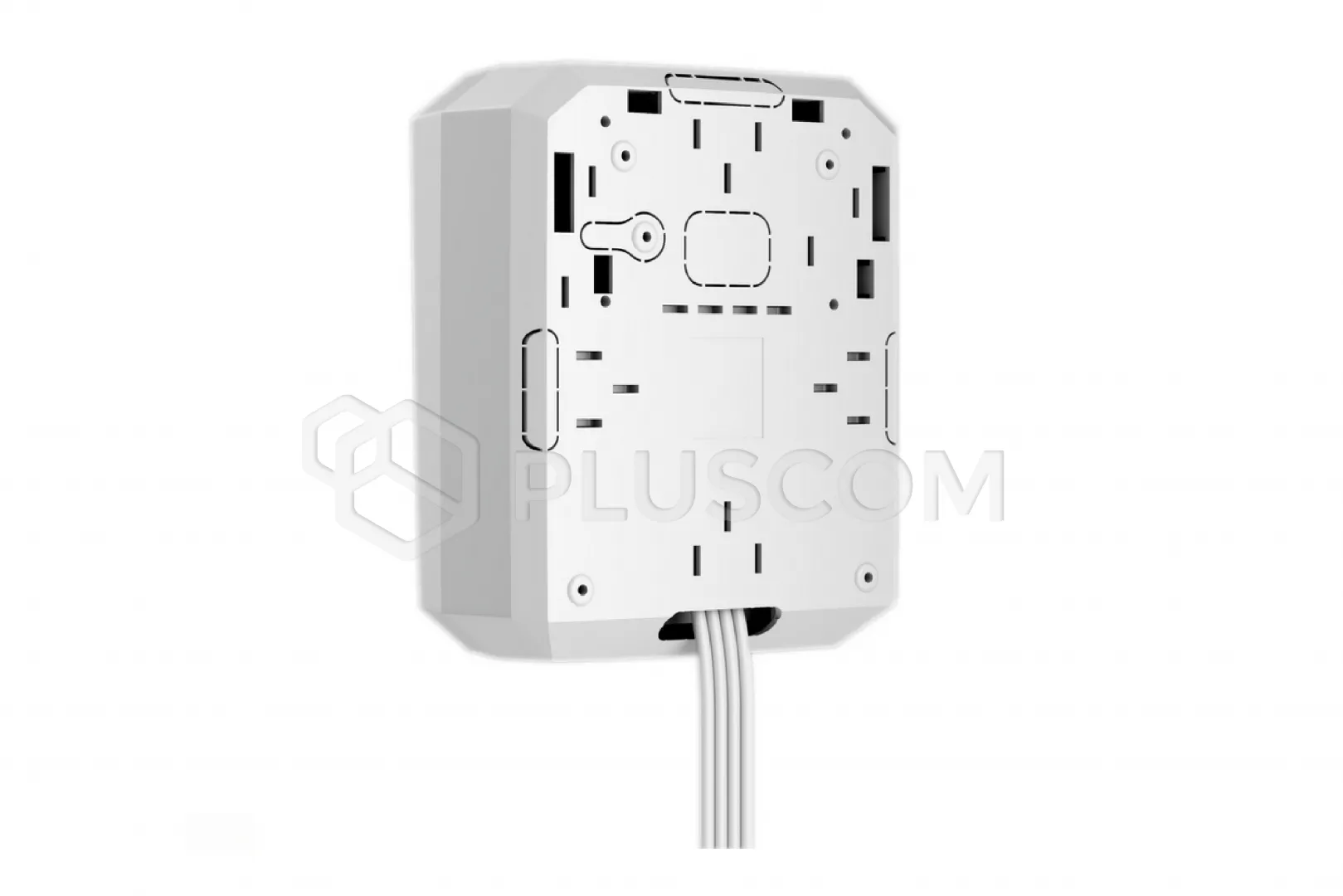

AJAX Superior Hub Hybrid (2G) Alarm Control Panel (White)
The AJAX Superior Hub Hybrid (2G) is a hybrid alarm system control panel
combining wired and wireless technologies. It supports up to 100 devices
(including wireless and wired sensors) and up to 25 cameras.
The device has 8 bus outputs and supports a ring topology, ensuring continuous
operation even in the event of a line break.
The Hub Hybrid (2G) enables internet connection via Ethernet and two 2G-enabled
SIM cards, allowing automatic switching between channels in the event of a
failure.
Additionally, the device supports photographic alarm verification and allows
the creation of up to 32 automation scenarios, increasing the effectiveness of
the security system.
FEATURES:
- Uses GSM or Ethernet to send alarms to the security agency and system
owner.
- Operates up to 3.5 days on a backup battery.
- Connection loss notification within one minute.
- Video and audio streaming.
- Snapshot saving.
- Video zoom.
- Supports 25 cameras and a DVR.
- Alarm responses.
- Responses after changing the security mode.
- Scheduled actions.
AJAX Fibra.
The AJAX Fibra series is a breakthrough in the world of
alarm systems.
It combines wired and wireless technologies, providing comprehensive protection
for a given facility regardless of its size and architecture.
It combines wired and wireless technologies, providing comprehensive protection
for a given facility regardless of its size and architecture.
Fiber communication technology allows for lines up to 2 km long. Eight lines in
a single system supported by Hub Hybrid minimize potential damage.
Even a completely severed line means the alarm system is 87% operational.
And with wireless devices, this percentage will be even higher.
Operation Principle
Collects information about sensor activity in
encrypted form, analyzes the data, and in the event of an alarm, notifies the
system owner and the alarm monitoring station within milliseconds.
Features
Jeweller Radio Technology: uses Jeweller
radio technology to monitor sensor activity and quickly respond to threats.
Switches the entire system to clear frequencies during jamming. It is protected
against viruses at the software level.
Fibra wired technology: combines the reliability of wires with
the freedom of wireless connections. It allows for lines up to 2 km long and
supports up to 8 lines in the system, ensuring continuous operation even in the
event of a line fault.
Secure home and office automation
Use Ajax scenarios to teach your
alarm system not only to report threats but also to actively prevent them.
Customize night mode according to a schedule, turn off office lights when
armed, program lamps to turn on when external motion sensors detect an
intruder, and implement an automatic flood prevention system.
The system continues to execute scenarios even if connection to the Ajax Cloud
is lost.
Technical Specifications:
- Compatibility: Fibra and Jeweller devices
- 2G network support
- Two-way wired and wireless communication
- Communication: LAN, 2x GSM
- Operating frequency: 868.0~868.6MHz
- Transmission range: 2000m (using U/UTP Category 5 twisted-pair
cable)
- Photographic alarm verification (MotionCam required)
- Maximum number of connected devices: up to 100
- Video monitoring support: up to 25 cameras or DVRs
- Maximum number of users: 50
- Maximum number of rooms: 50
- Zones: 9
- Smart home scenarios: 32
- Anti-sabotage protection (2x tamper, alarm, encryption,
authentication)
- Power supply: 110~240V AC
- Security class: Grade 3, IP40, vandal-resistant (IK06)
- Available colors: white or black
- Dimensions: 192×100×238mm (W/L/H)
