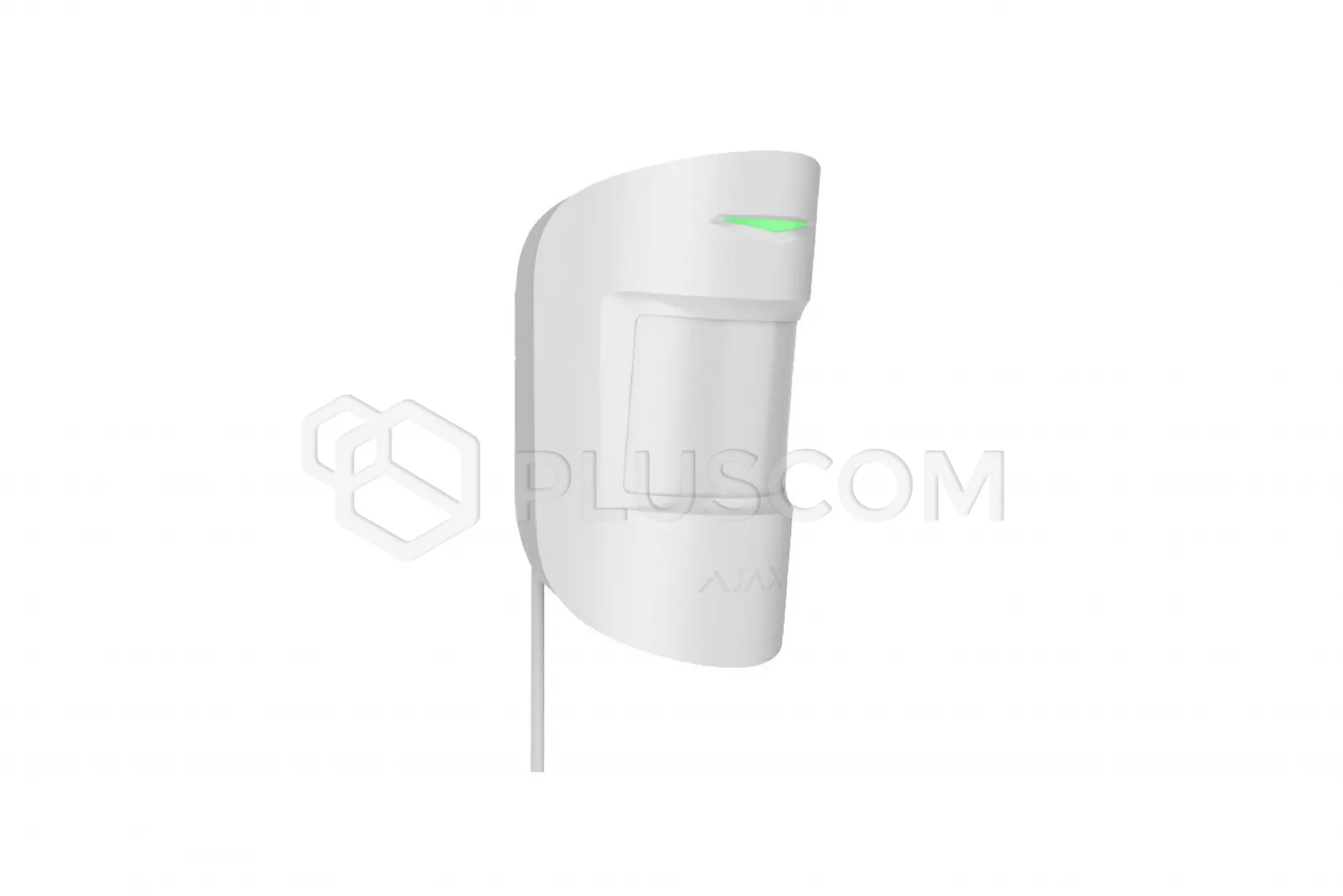

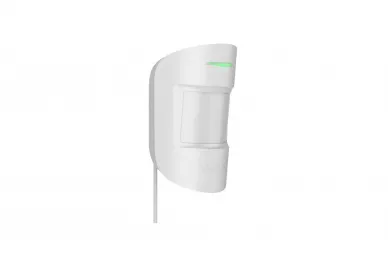

AJAX Superior CombiProtect Fiber Wired Motion and Glassbreak Sensor
(White)
The AJAX Superior CombiProtect Fibra wired motion and glassbreak sensor is a
universal security solution for various types of premises.
The device helps secure rooms against intruders entering through doors and
windows, and also monitors the condition of glass. The Superior CombiProtect
Fibra is equipped with software algorithms to prevent false alarms and performs
two basic functions: detecting motion and glassbreak.
Both sensors can be remotely configured in the app, and their sensitivity
levels can be adjusted. It is also possible to remotely test the device via the
app.
The intuitive interface and hassle-free installation ensure comfort for both
the PRO and the end user.
FEATURES:
- Detection distance up to 12 m and viewing angles of 88.5°/80°
- Glassbreak detection up to 9 m and viewing angles of 180°
- SmartDetect software algorithm prevents false alarms
- Immunity for animals weighing up to 20 kg and less than 50 cm tall
Fibra Technology
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected via a standard four-wire cable, allowing for a stable
connection even at distances of up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
Operation Principle
The device combines the functions of two sensors –
a motion sensor and a glassbreak sensor. It detects movement in a room up to 12
meters away and registers broken glass up to 9 meters from a window.
Features
The device detects motion even in hot climates using
temperature compensation. It filters out false alarms caused by thunder,
barking dogs, or the sound of passing trucks.
Intuitive configuration and installation
The sensor connects to the
Ajax security system in just a few clicks.
Open the Ajax app, scan the QR code, and assign the sensor to one of your
rooms.
Mount the sensor to the wall using SmartBracket without removing the housing.
Make sure no vases, cabinets, or glass objects block the viewing angle.
You're all set!
Technical Specifications:
- Compatible only with hubs supporting the Fiber protocol
- Detection method: PIR + electret microphone
- Transmission range: 2000m
- Detection range: up to 12m
- Glass breakage range: up to 9m
- Viewing angle (PIR): 88.5° - horizontal and vertical
- Viewing angle (electret microphone): 180°
- 3 sensitivity levels
- Pet immunity: up to 20kg and 50cm high
- Remote system configuration and testing
- Anti-sabotage protection (tamper, alarm, encryption, authentication)
- Power supply: 24V DC
- Dimensions: 67x62x110mm (W/L/H)
