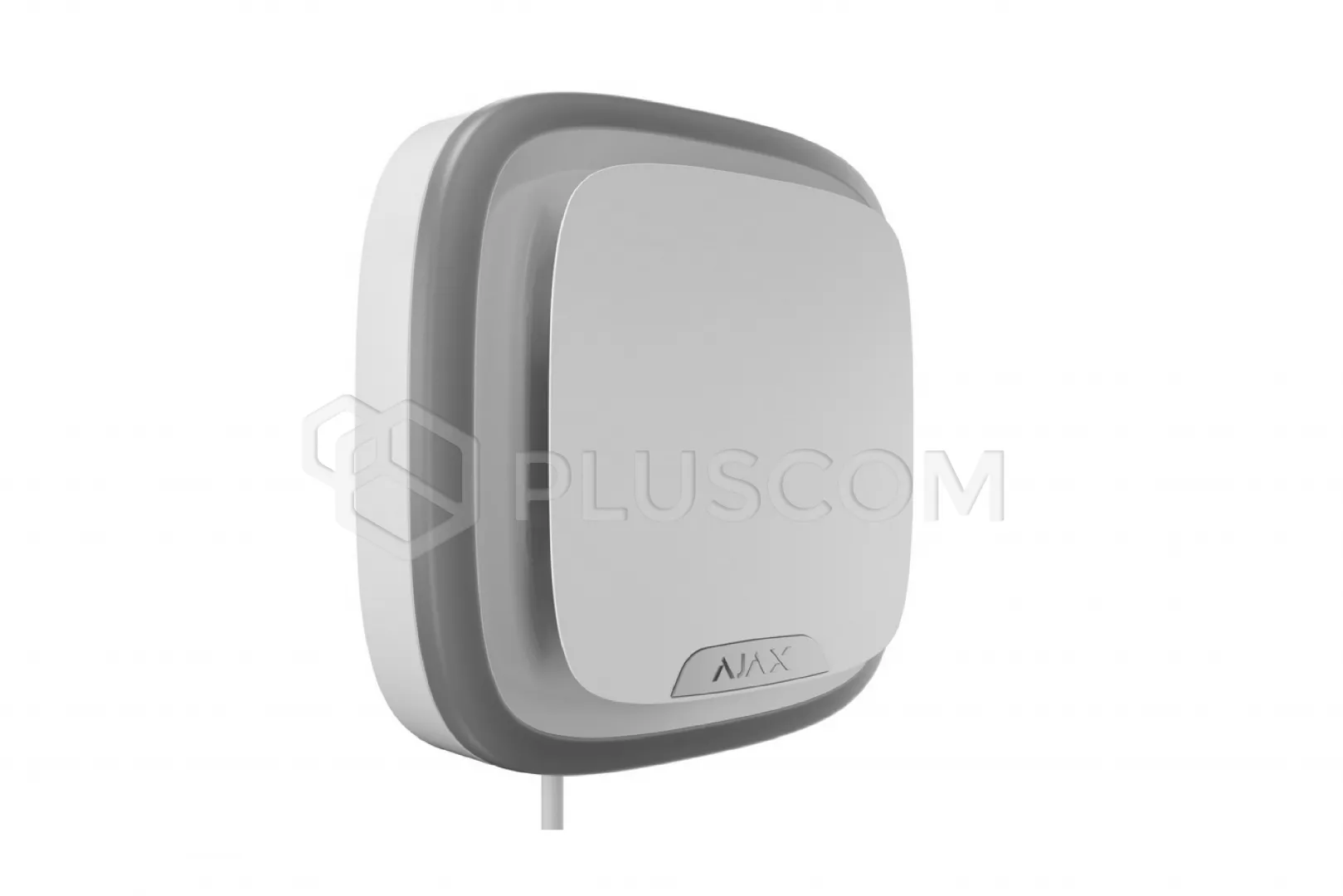

AJAX StreetSiren Plus Fibra Wireless Outdoor Siren with Advanced Tamper
Protection (White)
The AJAX Superior StreetSiren Plus Fibra wired outdoor siren is a wired alarm
system siren designed for both indoor and outdoor installation. It features a
piezoelectric sounder with an adjustable volume from 85 to 107 dB and an LED
frame for visually signaling alarms and notifications.
The device communicates with the control panel using the secure, encrypted
Fibra protocol, which provides protection against sabotage and data loss. The
siren features tamper detection, a backup power supply, and remote
configuration and control via the Ajax app.
This makes it an effective security element that quickly and clearly warns of
threats while simultaneously providing information on the alarm system's
status.
Fibra Technology
Fibra is a proprietary, bidirectional wired protocol
developed by Ajax Systems that ensures fast, secure, and reliable communication
between the system control panel and wired devices.
Devices are connected via a standard four-wire cable, allowing for a stable
connection even at distances of up to 2000 meters.
Fibra combines the advantages of the wireless Jeweller protocol with the
reliability of wired data transmission. Thanks to advanced encryption and
device authentication, the system is resistant to sabotage, spoofing, and data
theft attempts.
The protocol uses the TDMA method, which optimizes communication time and
minimizes power consumption, which is especially important for battery-powered
or wired devices.
Operation Principle
The siren alerts users to multiple types of alarms,
signals entry/exit delays, displays the current security mode, and notifies
when a door is opened.
The Superior StreetSiren Plus Fibra communicates with the Ajax hub using the
secure wired Fibra protocol. All alarms and event notifications are immediately
sent to the Ajax app, which also enables remote device management.
Features
It has an IP54 dust and moisture protection rating. It can
operate from an external 24V DC power supply. The built-in accelerometer will
trigger an alarm if an attempt is made to remove the siren.
Installation and Mounting
The siren communicates with the Ajax system
control panel using a fast and secure, wired Fiber protocol, ensuring reliable,
two-way data transmission over long distances.
The siren is configured through the app, where you can adjust the volume,
signal duration, and alarm response.
Mounting the device is simple thanks to the special SmartBracket, which allows
for quick and secure wall mounting without having to disassemble the entire
housing.
This allows installers to install the siren without disassembling the device,
significantly speeding up and simplifying the entire installation process.
Technical Specifications:
- Signaling: optical and acoustic
- Application: indoor and outdoor
- Two-way communication with the alarm control panel
- Remote system configuration and testing
- Transmission range: 2000m
- Siren volume: 85~107dB at 1m
- Alarm duration: 3~180s
- Power supply: 24V DC
- System arm/disarm indicator
- Anti-tamper protection (2x tamper, alarm, encryption,
authentication)
- Operating temperature: -25°C~60°C
- Dimensions: 210.2 x 70.6 x 210.2 (W x L x H)
