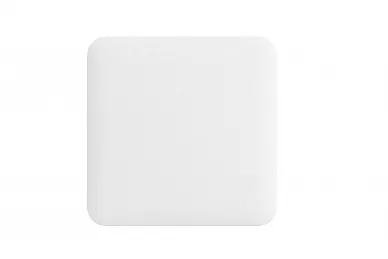

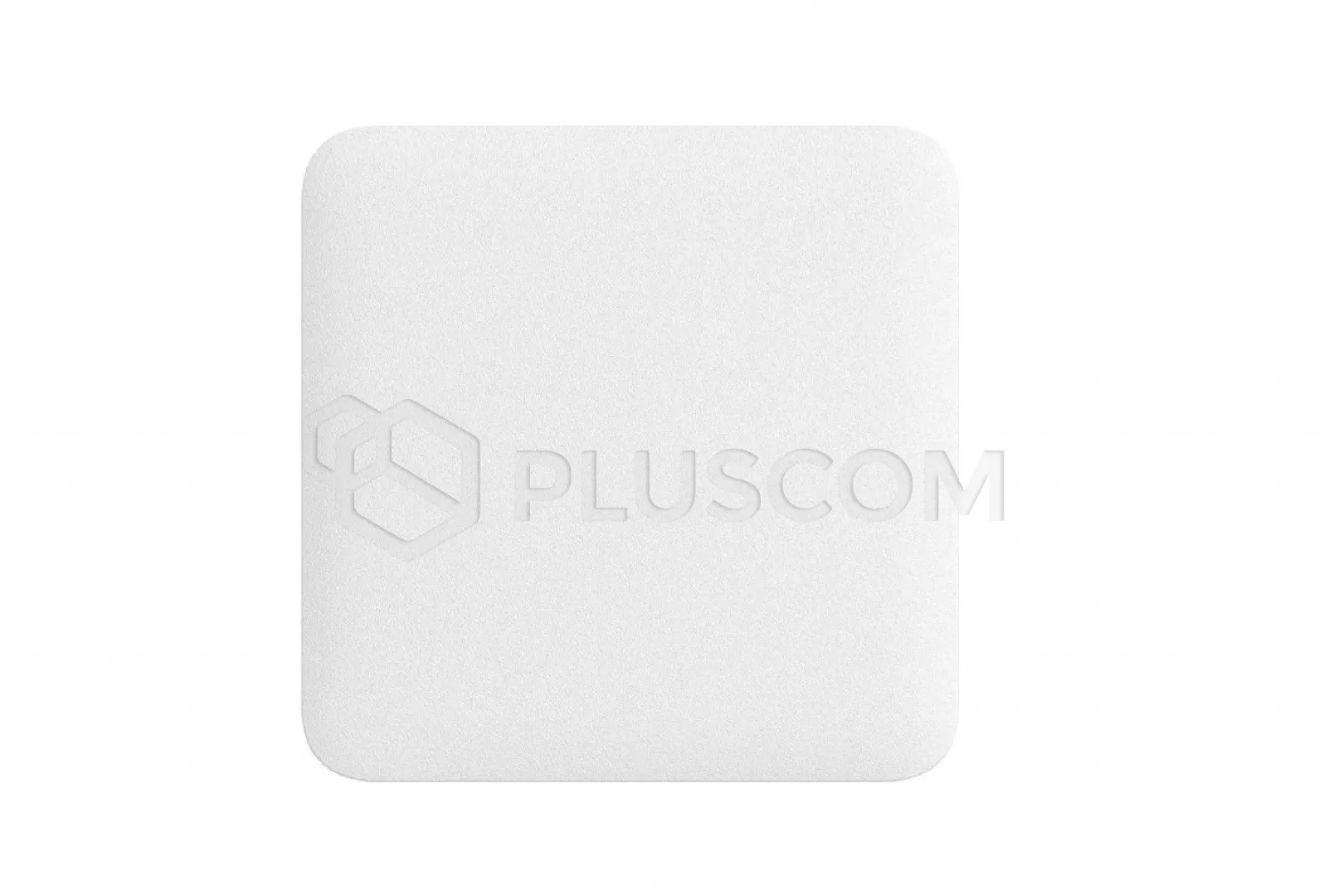

AJAX SoloButton (1-gang/2-way) Button for 1-gang or 2-way switch
(white)
SoloButton (1-gang/2-way / 2-gang) is a button for a single AJAX LightSwitch.
The button is available in two versions: 1-gang/2-way - a single-button
version, and 2-gang - a two-button version. The panel includes a sensor and
radio antennas. It mounts directly on the LightCore relay.
The switches can be combined. A combined switch consists of 2, 3, or 4 switches
installed in a single frame.
FEATURES:
- Touch panel with backlight
- Touchless lighting control
- Automatic switch with timer
- Automation scenarios
- Overcurrent and overtemperature protection
- Up to 1100 m communication range with the Ajax hub
- Protection for your curious little ones
- Jeweller radio communication
- Remote control and configuration
- Lighting control via smartphone
- Notifications and event log in the app
- 8 modern colors to choose from
- No need for natural wire
- Compatible with lamps from 5 to 600 W
- 4 frame sizes for connecting multiple buttons
Convenience and security at your fingertips
This smart light switch
combines the reliability of professional alarm systems with user-friendly
operation.
The entire panel is touch-sensitive, even with a 15 mm proximity sensor.
The LightSwitch works well in the dark thanks to its soft backlight.
The light switch can do more than just turn on the lights.
It can also simulate the owner's presence and remotely control curtains or
blinds using automation scenarios.
Designed for any interior
The Ajax LightSwitch impresses with its
simple design and high-quality hardware.
The device will easily fit into both a cozy home interior and a modern,
technology-filled space.
Illuminate the switch on the wall or make it invisible. The design is universal
and will fit into any space in the home, office, factory, or anywhere else.
Enjoy lighting control
Turn off the light with minimal effort. The
entire panel is touch-sensitive and responds even when your hand, elbow, knee,
or other body part is within 15 mm of your finger.
This feature is essential if you want to avoid touching the device or if
it's in a public place. At the same time, the touch panel only responds
when needed.
The 1-port/2-port touch switch responds even to gloved hands.
Feel in control of your device with a silent, lag-free click.
The optional backlight allows you to control the lighting even at night,
without disturbing your sleep.
- Without indication
- With a gloved hand
- Without touching
- In complete darkness
A different world of hardware
LightSwitch is an intelligent lighting
control system that provides advanced electrical protection and reliability
comparable to professional alarm systems.
There's no need to set a neutral wire to connect the switch. It's
controlled via Ajax software and doesn't experience any issues with
malfunctions or freezes.
Furthermore, the device has an anti-tamper contact that detects if the light
switch's touch panel is disconnected.
- No neutral connection required
- Two radio antennas built into the front panel
- The relay is designed for at least 200,000 switching cycles (50 years of
operation)
- Consumes up to 0.2 W (15 times less than a typical smart switch)
- Protection against false reactions caused by power surges
- Overcurrent and overtemperature protection
Unique wireless technologies
For the LightSwitch to utilize its
intelligent capabilities, it must communicate with an Ajax hub. It does not
rely on popular technologies such as Wi-Fi, Z-Wave, ZigBee, or Bluetooth.
Instead, Jeweller's proprietary radio communication technology is used,
which meets high industry standards and ensures security, range, and energy
efficiency.
Jeweller's functionality remains unaffected by home interference and does
not cause sudden failure or cessation of operation.
LightSwitch has a radio communication range of up to 1100 meters in open space,
which is longer than standard solutions from competing manufacturers.
Automatic power control makes the device energy-efficient by not constantly
using the maximum power of the radio transmitters in the system devices. It is
also more stable by using less common radio frequencies.
- Up to 1100 meters of radio communication with the hub
- Encrypted two-way radio communication
- Respond to app commands and trigger automation scenarios without
delay
Technical specifications:
- Compatibility: LightCore 1-gang / 2-way or 2-gang
- Number of buttons: 1 or 2
- Large touch panel
- Available colors: white or black
- Weight: 45g
- Dimensions: 82.75×82.75×10.26mm (H/W/D)
- Warranty: 24 months
