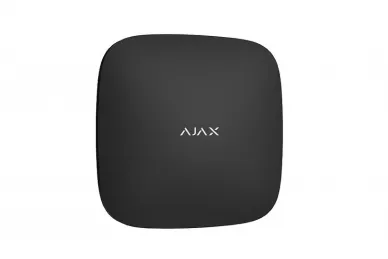

AJAX ReX Jeweller Range Doubler (Black)
The ReX Jeweller RF signal range extender increases the protected area,
allowing Ajax to protect large manufacturing plants, multi-story offices, and
properties.
FEATURES:
- Sends alarms in 0.3 seconds
- Manages devices in the event of a loss of connection to the HUB
- Communicates at a distance of up to 1800m
- Operates for up to 35 hours with a backup battery
Large-Scale Security
ReX is a RF signal range extender that extends the
range of all Ajax security system devices and manages their communication with
the control panel.
The intelligent range extender allows users to place Ajax devices at
significant distances from the control panel to protect multi-story offices,
standalone buildings, and even manufacturing plants.
Connecting 5 ReX devices to an Ajax security system extends its range to 35
km².
Reliable link for secure communication
ReX can manage some or all
devices in the system. However, the number of connected devices does not affect
the alarm transmission speed.
Up to 5 REX repeaters can be used in a security system
- Hub - 1 ReX
- Hub 2 - 5 ReX
- Hub Plus - 5 ReX
Increases system security
ReX connects devices to an autonomous group
within the system. The extender takes full control of the situation if the
connection to the control panel is interrupted for any reason.
If one of the sensors sends an alarm signal, ReX can sound a siren to draw
attention to the incident and deter an intruder.
Second Decision Center
ReX runs on the Malevich OS and is as reliable
as a hub. The intelligent repeater manages connected devices and makes
important decisions instantly.
The capabilities and role of ReX in the security system continue to evolve with
free Malevich OS updates available to all users.
- Constantly synchronizes system data with the Hub
- Immediate response to threats
- Gains new features with each update
Stops intruder attacks
The unique logic of the Malevich OS protects ReX
from cyber and physical attacks and makes it resistant to viruses.
Furthermore, all ReX communications are encrypted, making it virtually
impossible to intercept signal data.
Even during a power outage, ReX will continue to watch over your property
thanks to its built-in backup battery.
- Works for up to 35 hours after a power loss
- All data is encrypted
- Built-in tamper and jamming detection
Intuitive setup and installation
To connect ReX to your system, scan
the QR code, name the device, and turn it on.
> Then select the devices that should use the repeater from the list.
> Install ReX in a safe location without having to remove the housing.

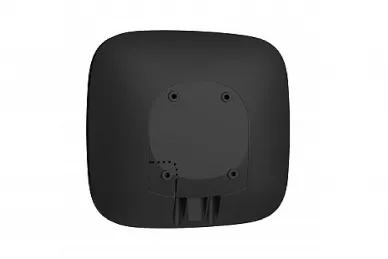

> Use the SmartBracket.
Technical Specifications:
- Two-way wireless communication
- Operating frequency: 868.0 - 868.6 MHz
- Transmission range: 1800m (in open space)
- Maximum number of connected devices:
- Hub, Hub 2 - up to 99
- Hub Plus - up to 149
- Sabotage protection (tamper and jamming detection)
- Battery: 2 Ah (up to 35 hours of battery life)
- Power supply: 110 - 240 V
- Operating temperature: -10°C ~ 40°C
- Dimensions: 163x36x163mm (W/L/H)
- Security Class: Grade 2
