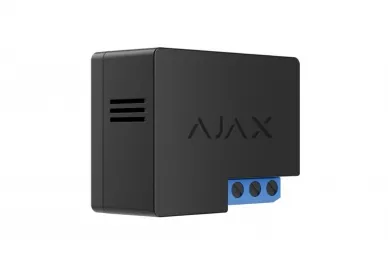

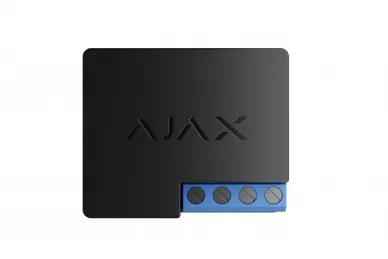

AJAX Relay Jeweller Remote Control Relay
The Relay Jeweller is a radio channel controller for remotely controlling
low-current devices. It can be used to activate electric locks, gates and
barriers, blinds and curtains, and reset modems and routers.
FEATURES:
- Turns home appliances on and off with a single click in the mobile
app.
- Turns off in the event of overcurrent, power surges, and
overheating.
- Transmits power consumption information to the mobile app.
Operating Principle
Controls electrical power supply via a relay that
closes and opens a potential-free contact.
Special Features
Powered by a 7-24 V DC voltage source. The dry contact
is not galvanically connected to the device itself.
Installation and Assembly
Installs in junction boxes, electrical
enclosures, and switch housings.
Secure Home and Office Automation
Use Ajax scenarios to teach your
alarm system not only to report threats but also to actively prevent them.
Customize night mode according to a schedule, turn off office lights when
armed, program lamps to turn on when external motion sensors detect an
intruder, and implement an automatic flood prevention system.
The system continues to execute scenarios even if connection to the Ajax Cloud
is lost.
Technical Specifications:
- Actuator: electromagnetic relay
- Operating Modes:
-
- Operating Frequency: 868.0 - 868.6 MHz
- Transmission Range: 1000m (in open space)
- Power Supply: 7-24V DC
- Maximum Load Current:
-
- 5A at 36V DC
- 13A at 230V AC
- Dimensions: 39x18x33mm (W/L/H)
